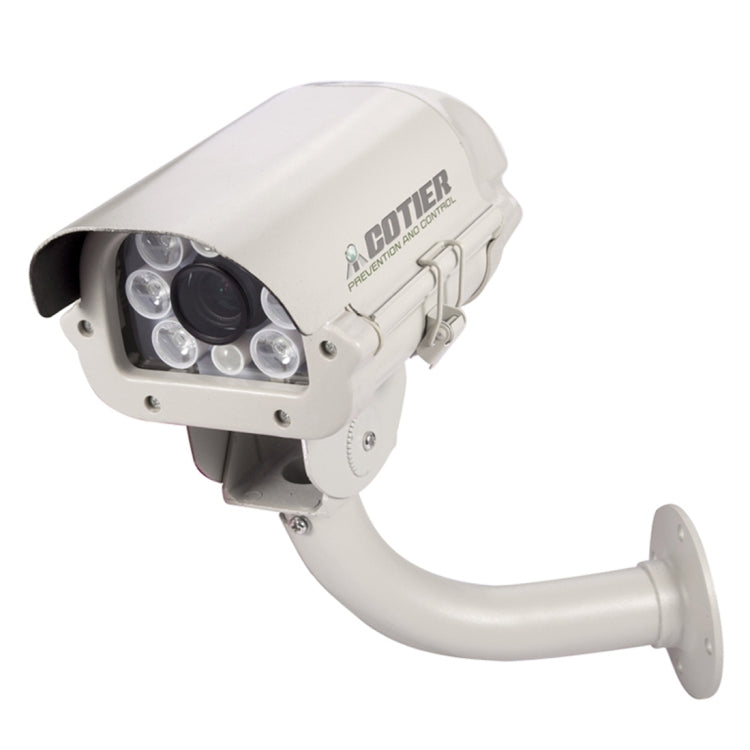

Features 1. 1/2.5 inch Megapixel CMOS Sensor, high resolution 2MP 2. Manual focus 4-9mm, 4mm-8mm. 3.0 Megapixels lens optional, IR distance 30m 3. Support IR CUT dual OLP Switching, monitored day and night to achieve. Minimum illumination up 0 LUX (IR ON) 4. High performance H.264 compression technology, processing and flexible, high compression ratio 30FPS (1920*1080P 30FPS). Real time transmission up to 30FPS 5. Dual stream network transmission, for a variety of network environments 6. Support Optional: Two-way audio supported 7. 1080P (High resolution 2MP), 2MP: 1920*1080, 720P: 1280*720 8. Illumination up 0 LUX (IR ON) 9. Support IR CUT dual OLP Switching, monitored day and night to achieve 10. Support mobile phone monitoring (compatible iPhone / Android) P2P 11. Onvif 2.1 compliant, support for multiple NVR 12. DC 12V/1A 13. Support Optional: 1 USB port (optional WIFI/3G) 14. DC 12V or Power over Ethernet (Support Optional: IEEE 802.3af)
Specification 1. Model: TV-821H2/IP-LP 2. System structure: - Embedded RTOS design (HI3518), dual-core 32-bit DSP - Pure hardware compression, watchdog, 16M FLASH, 128M DDR3 3. Sensor: 2 Megapixel 1/2.5 inch CMOS, color 1.0 lux F1.2, black and white 0.01 lux F1.2, support day and night switch 4. Manual focus4-9mm, 4mm-8mm 3.0 Megapixels lens optional 5. Video processing: H.264 video coding; support dual-stream 6. AVI format; support adjustable stream 0.1M~6Mpbs 7. IR distance: 8 x LED Array, IR distance 30m 8. 2.0 Megapixel 30 frame(full-time), support to adjust 1~30 frame rate 9. Video output: - Main stream: 1920x1080, 1280x960 - Sub stream: 640x360, 480x270, 320x180 10. Network interface: - 1 x RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity - Support the network protocols which is RTSP / FTP/ PPPOE/ DHCP/ DDNS / NTP/ UPnP etc 11. Business functions: - Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download - Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (iPhone, Android), through service "through clouds" and provide complete development kit SDK 12. Power supply: DC12V/1A, Power: 5W
