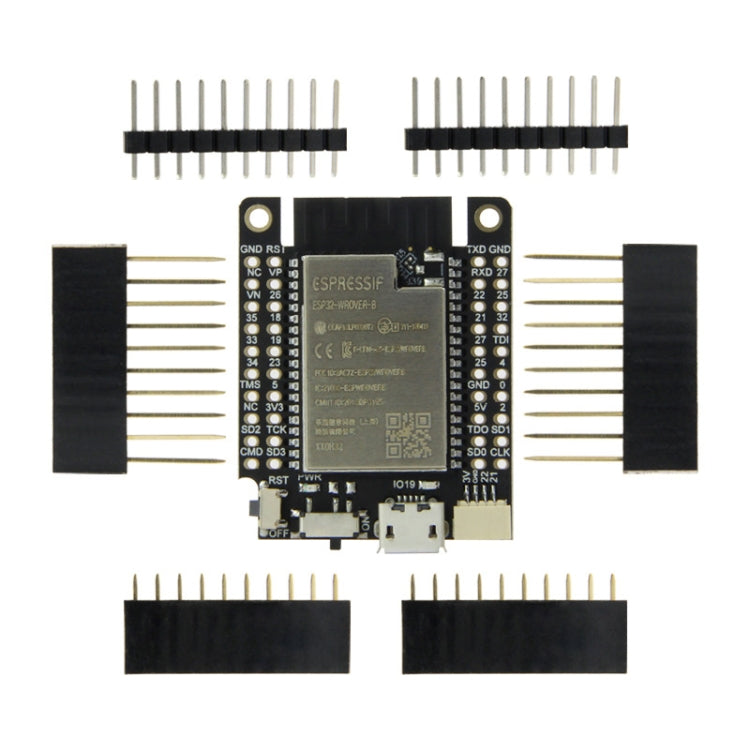

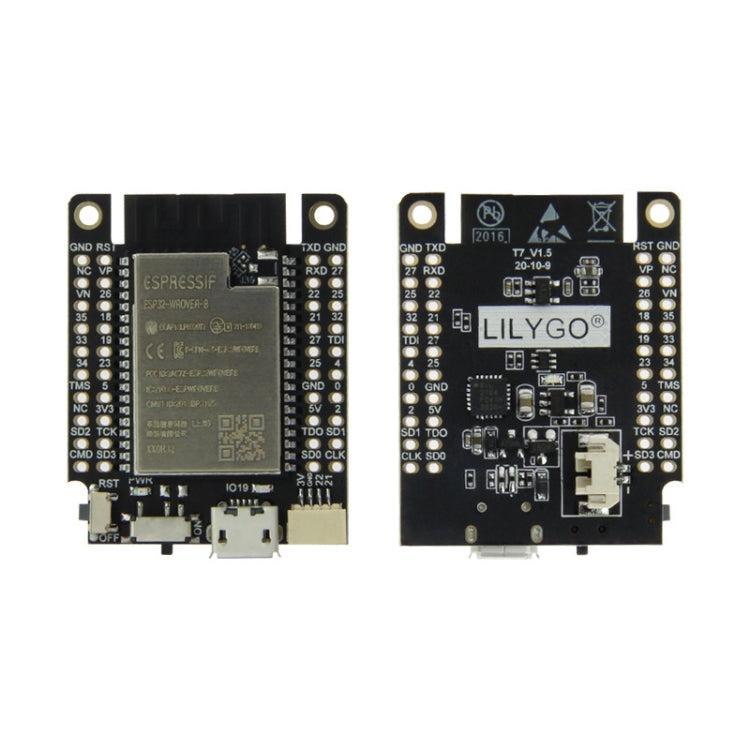

TTGO T7 V1.5 Mini32 Expansion Board ESP32-WROVER-B PSRAM Wi-Fi Bluetooth Module Development Board
TTGO T7 V1.5 Mini32 Expansion Board ESP32-WROVER-B PSRAM Wi-Fi Bluetooth Module Development Board
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Chipset: ESPRESSIF-WROVER-B 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash 4MB / PSRAM 8MB
3. SRAM: 520KB SRAM
4. Button: reset
5. Power indicator lamp: red
6. USB to TTL: CH9102F QFN24
7. Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
8. On-board clock: 40MHz crystal oscillator
9. Working voltage: 2.7V-3.6V
10. Working current: about 30mA
11. Working temperature range: -40~ +85 Degrees Celsius
12. Size&weight: 40.27x31.07x8.13mm, 6.42g
Power Supply Specifications:
1. Power Supply: USB 5V/1A
2. Charging current: 500mA
3. Battery: 3.7V lithium battery
WiFi Description:
1. Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4??S Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth Description:
1. Protocol: meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification Description:
1. WiFi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA???Through network/host to download and write firmware???
5. Software Development: Support cloud server development /SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration: AT + Instruction set, cloud server, Android/iOS APP
8. OS: FreeRTOS
