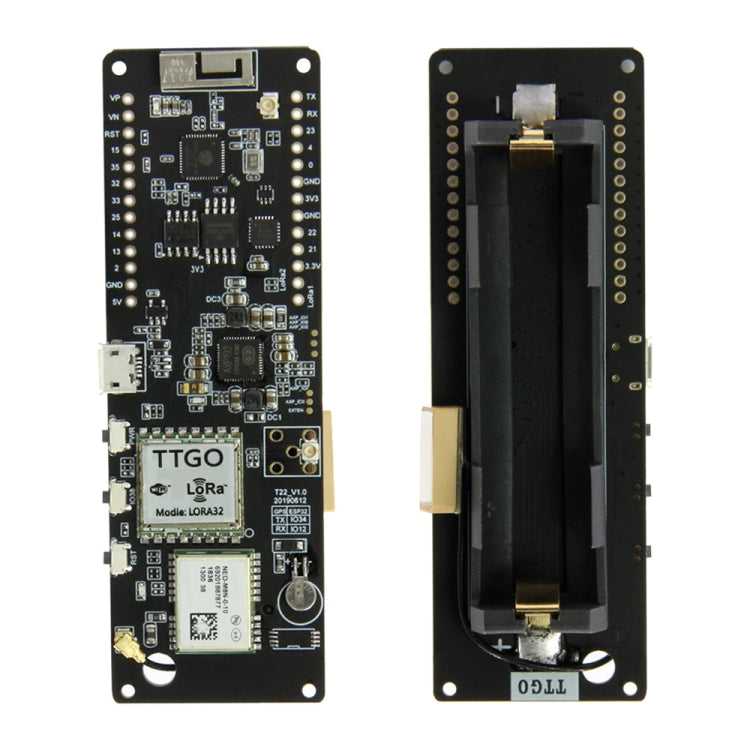

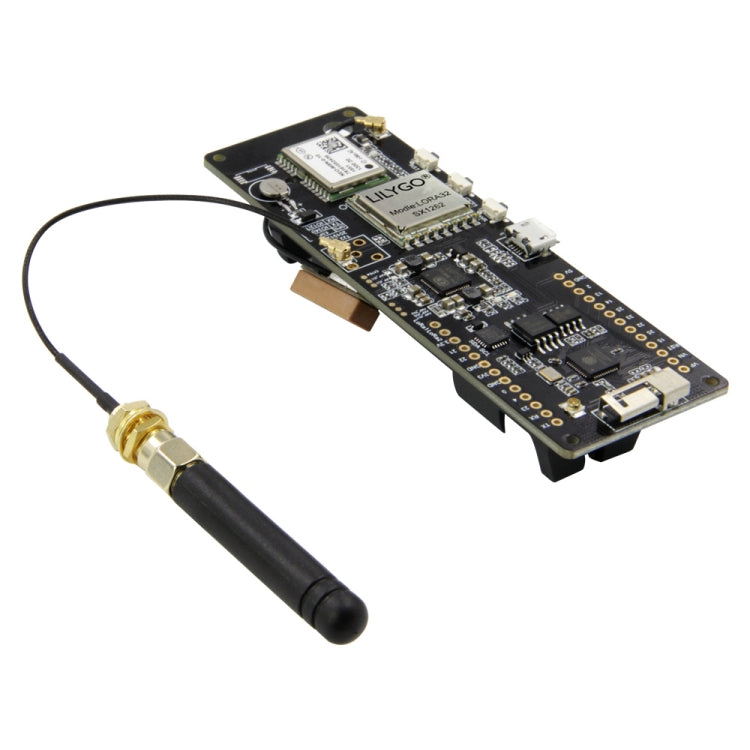

1. New version of ESP32: REV1 2. Wi-Fi/Bluetooth/4MB flash memory/4MB PSRAM/3D antenna/LORA
Product description 1. Working voltage: 1.8~3.7v 2. Acceptable current: 10~14mA 3. Emission current: -120mA at +20dBm -90 mA at +17dBm -29mA at +13dBm 4. Working frequency: 433HMz version SX1278 5. Transmitting power: + 20dBm 6. Receiving sensitivity: - 139dBm at LoRa and 62.5Khz & SF = 12 and 146bps - 136dBm at LoRa and 125Khz&SF = 12 & 293bps - 118dBm at LoRa & 125Khz & SF = 6& 9380bps - 123dBm at FSK & 5Khz & 1.2Kbps 7. Frequency error: +/- 15KHz 8. FIFO space: 64Byte 9. Data rate: - 1.2K~300Kbps at FSK - 0.018K~37.5Kbps in LoRa 10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK 11. Interface form: SPI 12. Sleep current: - 0.2uA in SLEEP - 1.5uA in IDLE 13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius 14. Digital RSSI function 15. Automatic frequency correction 16. Automatic gain control 17. RF wake-up function 18. Low pressure detection and temperature sensor 19. Fast wake-up and frequency hopping 20. Highly configurable packet handler

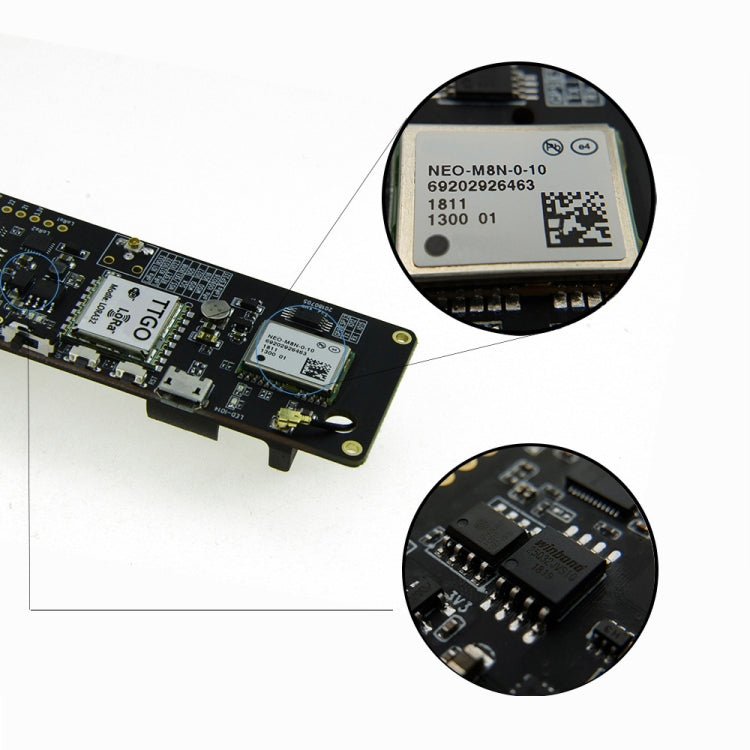

Global Positioning System 1. GPS module NEO-M8N, 3V-5V power supply universal 2. Designated module with ceramic antenna, super strong signal 3. Save configuration parameter data EEPROM Down 4. With data backup battery 5. With LED signal indicator 6. The default baud rate: 9600
Power 1. TP5400 2. 2A battery management 3. LED indicator: There are 4 LEDs to display the battery status in real time. 4. Power button: Click once to start. Tap twice quickly to close. 5. USB 6. CP2104-GMR 7. Pre-flash firmware: SoftRF V4.0

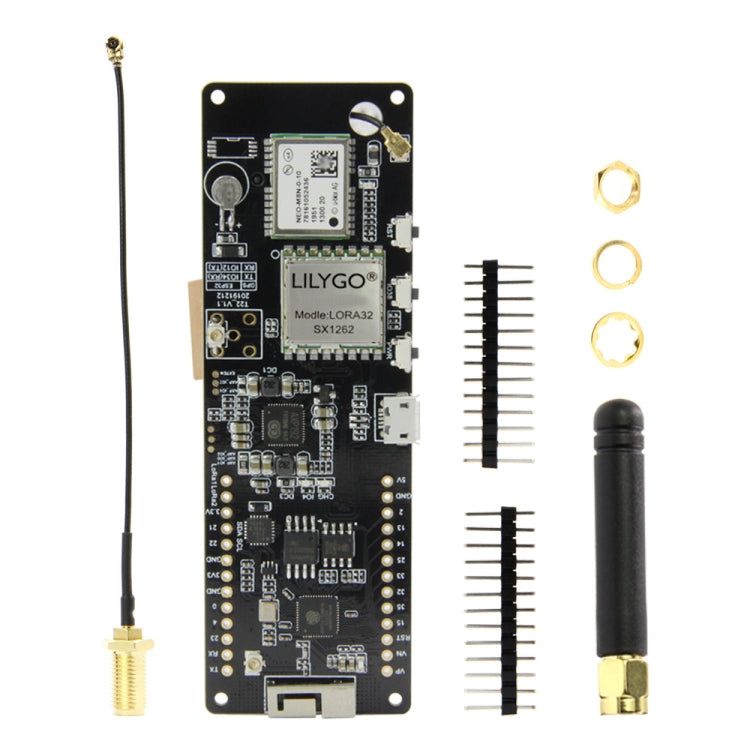

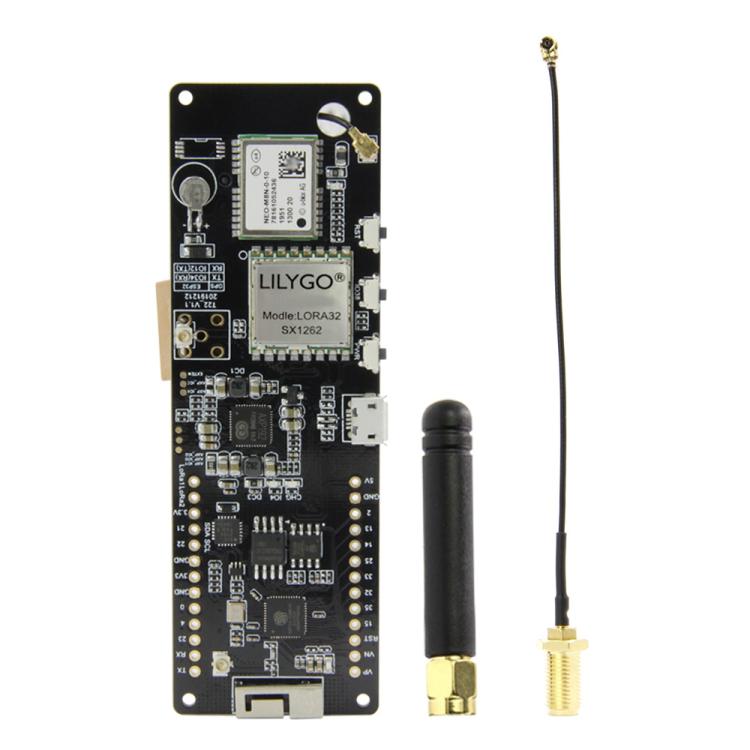

Packing list: 1. TTGO T-Beam ESP32 2. 433MHz antenna 3. Pin x 1 4. Screw Washer x 3
Note: OLED is not included in the invoice
