TTGO Meshtastic T-Beam V1.1 ESP32 923MHz OLED WiFi Bluetooth GPS NEO-6M SMA 18650 Battery Holder

Name: TTGO Meshtastic T-Beam V1.1 ESP32 923MHz OLED WiFi Bluetooth GPS NEO-6M SMA 18650 Battery Holder
Brand: TTGO
SKU: DIY6148
Availability: InStock

$74.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

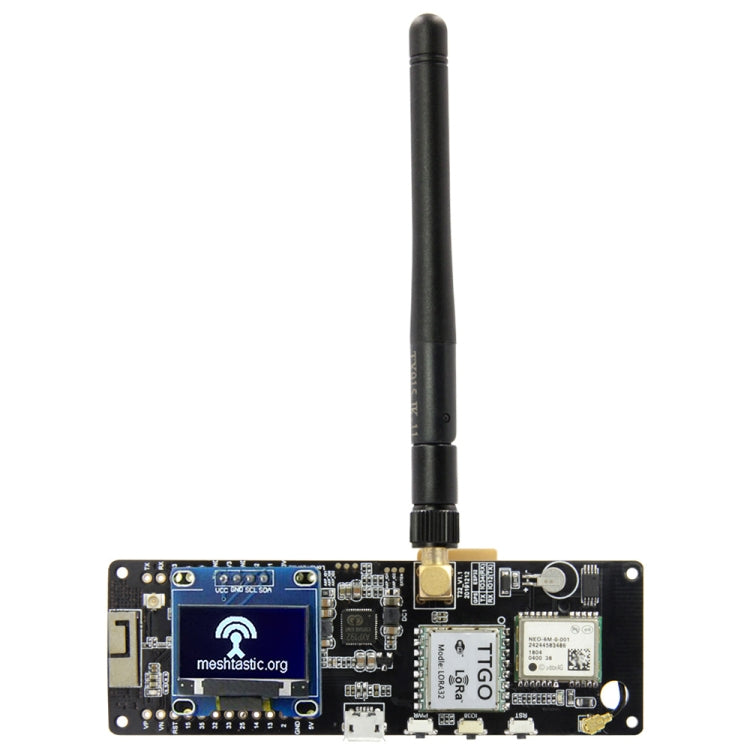

Product demonstration (Note: OLED is not soldered to T-beam)
Features:
1. ESP 32 version: Rev1
2. WiFi
3. Bluetooth
4. 4MB pSRAM
5. 4MB flash memory
6. Three-dimensional antenna

product description:
1. Working voltage: 1.8~3.7V
2. Acceptable current: 10~14 mA
3. Transmitting current: 120 mA@+20 dBm
4. 90 mA@+17 dBm
5. 29 mA@+13 dBm
6. Working frequency: 433/470 MHz (433 HMz version) SX1278 /868m/915 m (868 MHz version) SX1276
7. Transmitting power: +20 dBm
8. Receiving sensitivity:
-139 dBm@Lora&62.5Khz&SF=12&146 bps
-136 dBm@Lora&125 Khz&SF=12&293 bps
-118 dBm@Lora&125 Khz&SF=6&9380 bps
-123 dBm@FSK&5 Khz&1.2Kbps
9. Frequency error: +/-15 kHz
10. FIFO space: 64 bytes
11. Data rate:
1.2k~300 Kbps@FSK
0.018K~37.5Kbps@Lora
12. Modulation method: FSK, GFSK, MSK, GMSK, Lora TM, OOK
13. Interface form: SPI
14. Sleep current: 0.2uA
15. 1.5uA@Idle
16. Working temperature: -40 degrees Celsius-+85 degrees Celsius
17. Digital RSSI function
18. Automatic frequency correction
19. Automatic gain control
20. Low pressure detection
21. Fast wake-up and frequency hopping
22. Highly configurable packet handler

Global Positioning System:
1. GPS module neo-6m, 3V-5V power supply universal
2. The predetermined module with ceramic antenna, super signal
3. Save configuration parameter data EEPROM
4. With data backup battery
5. With LED signal indicator
6. The default baud rate: 9600

power:
1. TP 5400
2. 1A battery management
3. LED indicator: there are 4 LEDs to display the battery status in real time
4. USB
5. CP 2104-GMR
6. Pre-Flash firmware

OLED description:
1. Size: 0.96 inches
2. High resolution: 128x64
3. Color: white
4. Viewing angle: >160 degrees
5.Driver IC: SSD 1306
6. Working temperature: -30~80 degrees Celsius
7. Module size (generous): 27.0mm x 27.0mm x 4.1mm
8. Support a variety of control chips: fully compatible with Arduino, 51 series, MSP 430 series, STM 32/2, CSR chips, etc. (a lot of examples are available for reference)
9. Wide voltage support: directly support 3.3V~5V DC power supply without any modification
10. Ultra-low power consumption: 0.04W in normal operation
11. IO port occupies the smallest display: IIC communication, as long as two IO ports
