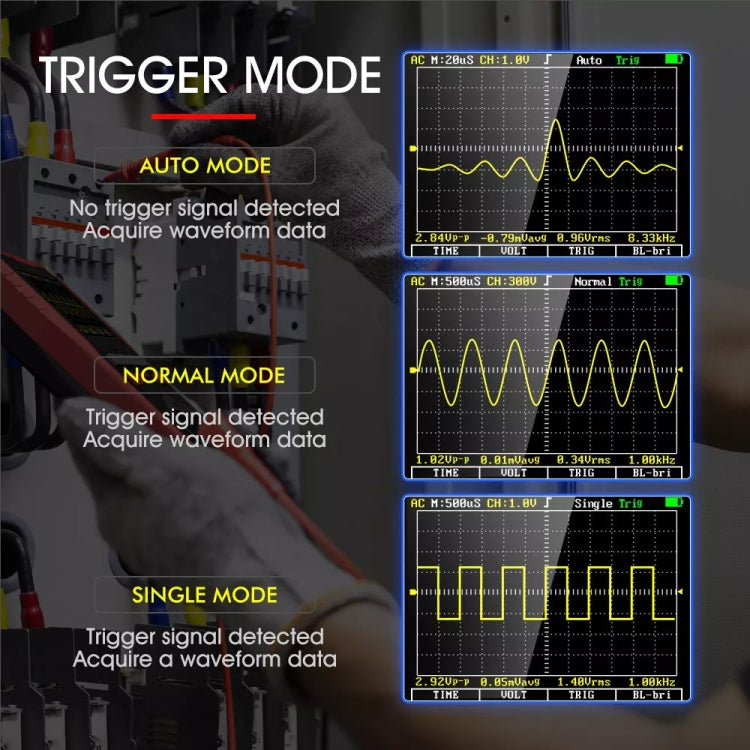

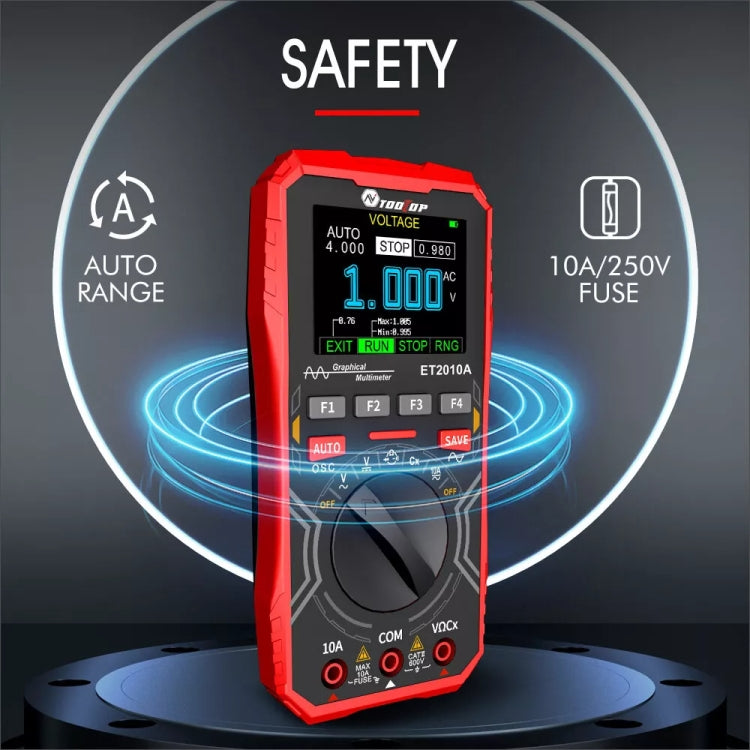

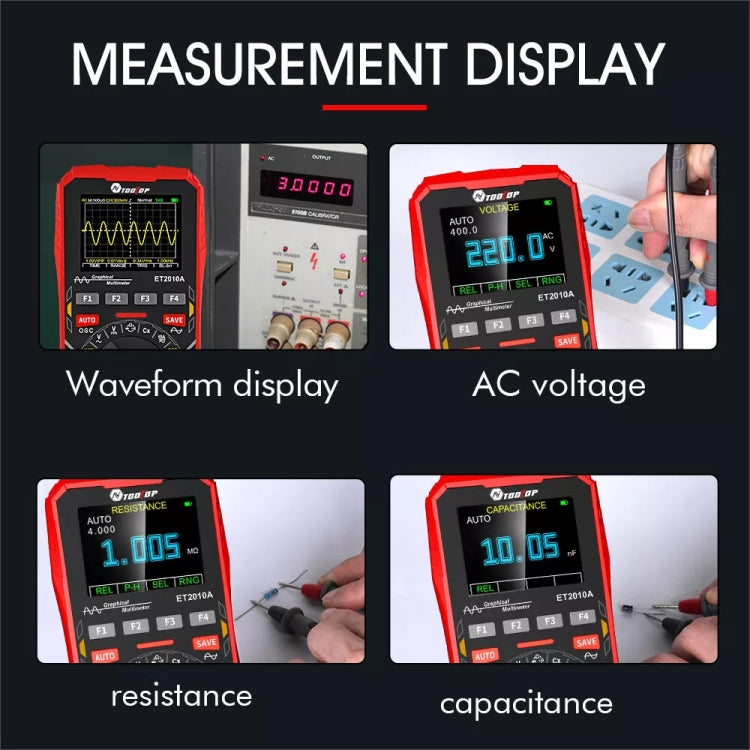

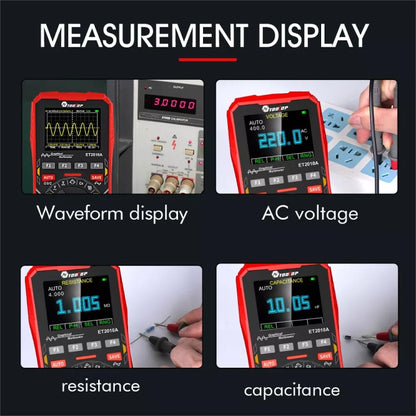

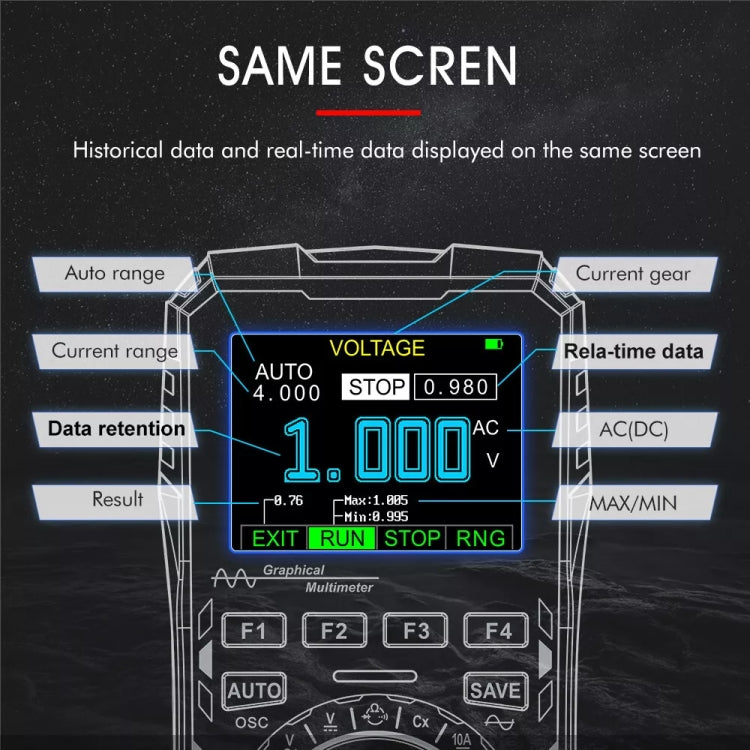

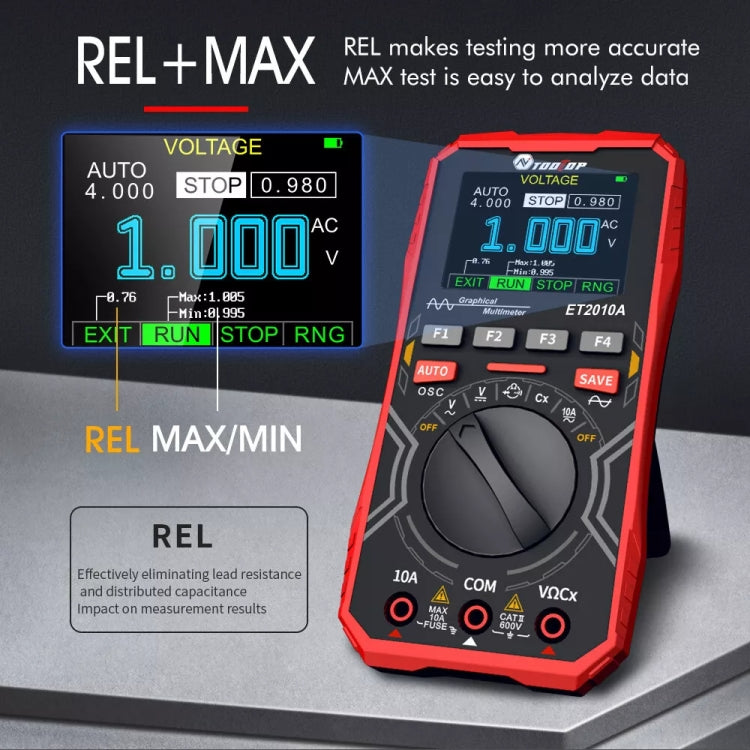

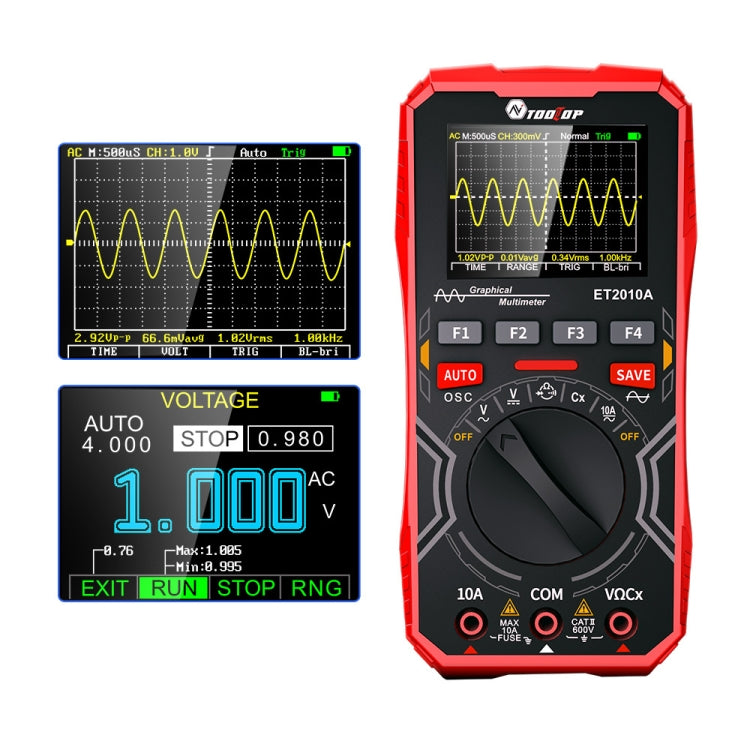

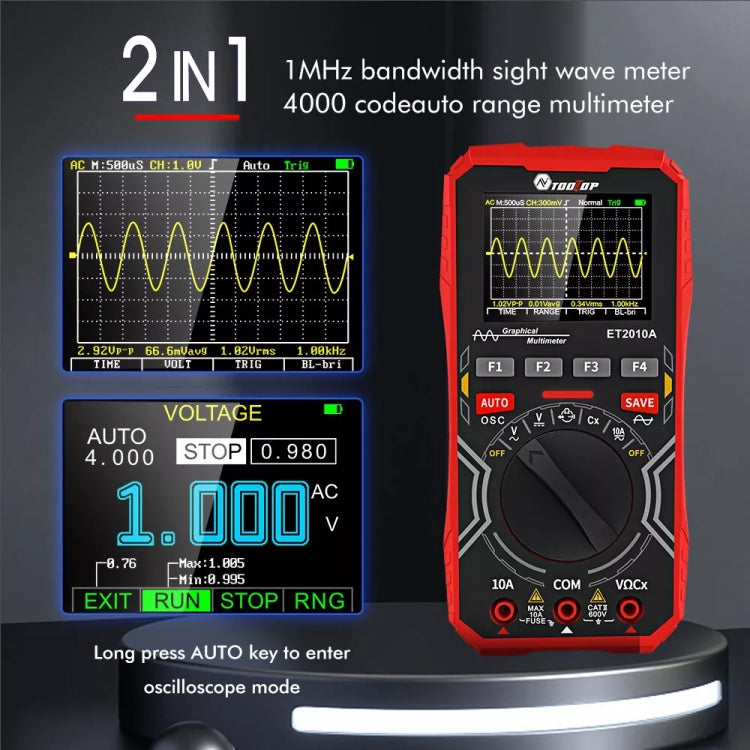

1. Bandwidth: 1MHz 2. Real-time sampling rate: 2.5Msps 3. Display: 320x240, white backlight 4. Battery: AA x 3 (not included) 5. Storage: 100 data/10 waveforms 6. Fuse: 10A/250V 7. Number of channels: 1 8. Vertical sensitivity range: 300mV- 1000V/div 9. Time base range: 2.5us -10s/div 10. Trigger mode: Auto / Single / Normal 11. Trigger edge selection: rising edge / falling edge 12. Auto sleep: no operation within 15 minutes 13. Measurement function: Vp-p, Vavg, Vrms, Hz 14. Input resistance: about 10 milliohms 15. DC voltage: 400mV-600V 16. AC voltage: 400mV-600V 17. DC current: 4A-10A 18. AC current: 4A-10A 19. Resistance: 400.0 ohms-40.00 milliohms 20. Capacitance: 51.2nF~100uF 21. Frequency: 5Hz ~ 5MHz 22. Diode: 1.5 V 23. Same screen display: historical data and real-time data are displayed on the same screen 24. Continuity test: resistance is less than 50 ohms, beep 25. Intelligent protection, automatic range plus 10A fuse double protection 26. REL effectively eliminates the influence of lead resistance and distributed capacitance on the measurement results 27. Dimensions: 77x157x25.5mm 28. Weight: 135g
