1. 32-bit ARM processor, voltage acquisition accuracy less than 0.005V, signal acquisition output accuracy: 1us
2. Classic scroll wheel, high precision feel, manual channel output pusher, output signal volume with hand control

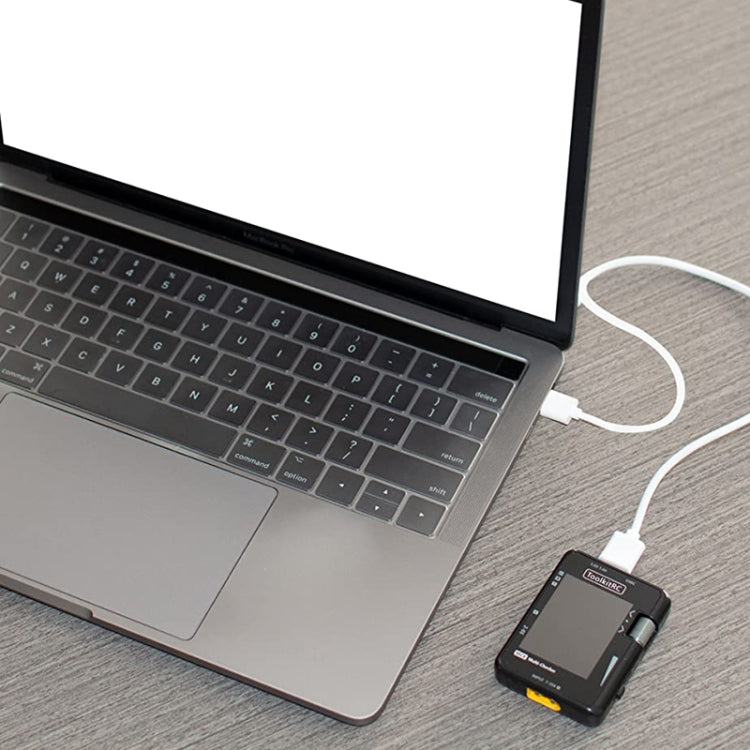

3. USB-C+USB-A dual output, can be used for mobile device charging
4. Equipped with cutting-edge auto-balancing algorithm, one-key start, accurate balancing of each battery voltage
5. Highly integrated multi-function: battery status reading, multiple signal testing, signal output

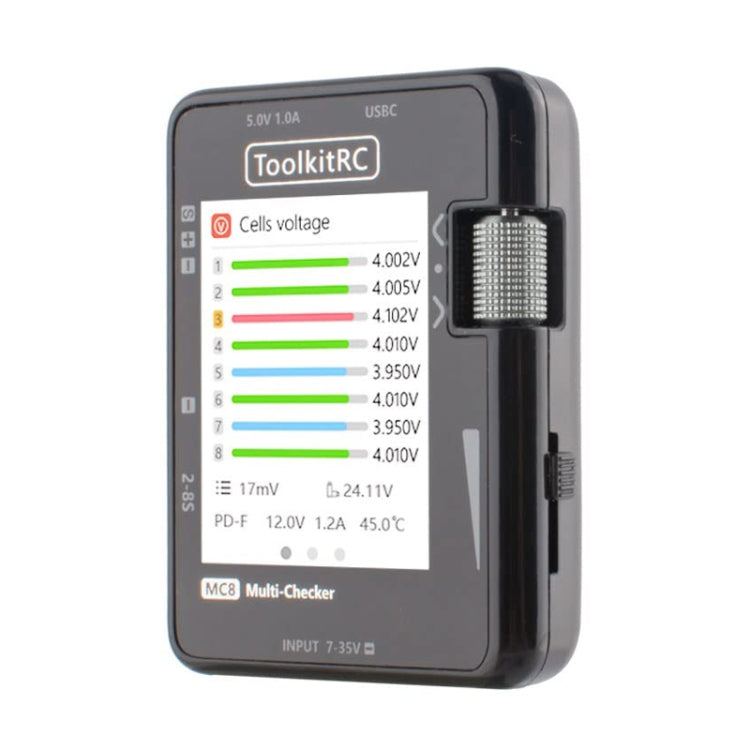

6. Large color screen vision, multiple battery status at a glance
Parameters:
1. Main port input: XT60 7.0V-35.0V
2. Balanced port input: 0.5V-5.0V Lixx 2-8S
3. Signal port input: less than 6.0V
4. Balance current: MAX 60mA 2-8S
5. Balance accuracy: less than 0.005V 4.2V
6. USB-A output: 5.0V 1.0A firmware upgrade
7. USB-C output: 5.0V-12.0V MAX 20W
8. USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
9. PWM measurement: 500-2500us 20-400Hz
10. PPM measurement: 880-2200us x 8CH 20-50Hz
11. SBUS measurement: 880-2200us x 16CH 20-100Hz
12. PWM output: 1000-2000us 20-1000Hz
13. PPM output: 880-2200us x 8CH 50Hz
14. SBUS output: 880-2200us x 16CH 74Hz
15. Size: 68 x 50 x 15mm
16. Weight: 50g
17. LCD: IPS 2.0 inch, 240 x 240 resolution
