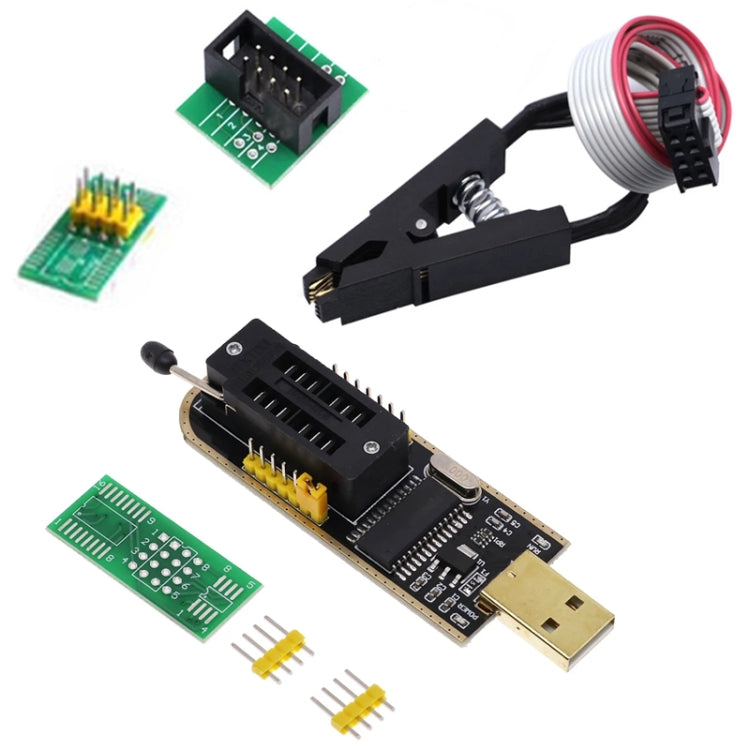

Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool

Name: Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool
Brand: buy2fix
SKU: TBD0604399403
Availability: InStock

$18.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

Product features:
1. Adopts FT232BL chip with external EEPRON (93C46)
2. Support Windows 10
3. Support 3 power supply modes: 5V external power supply, 3.3V external power supply, external power supply (requires 3.3V-5V)
4. With 3 LEDs: TXD LED, RXD LED, POWER LED
5. GND, RXD, TXD, 3V3, 5V: using a curved pin pin out
6. The rest of the function PIN: reserved pads CTS, RTS

Instructions for use: (to access the MCU as an example)
1. GND: connected to GND
2. RXD: connect to MCU.TX (Signal flow: MCU.TX - FT232 - PC.RX)
3. TXD: connect to MCU.RX (signal flow: PC.TX - FT232 - MCU.RX)
4. 3V3/5V: output 3.3V or 5V (the module is powered by USB, the jumper cap must be jumped to 3.3V or 5V)
5. RTS: connect to MCU.CTS (signal flow: PC.RTS - FT232 - MCU.CTS)
6. CTS: connect to MCU.RTS (Signal flow: MCU.RTS - FT232 - PC.CTS)
