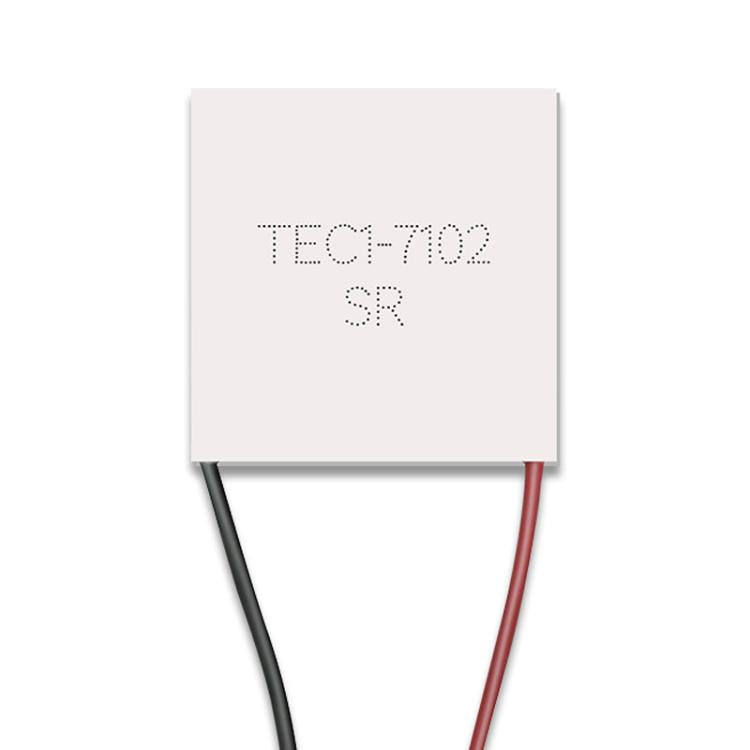

1. Chip model: TEC1-7102SR 2. Temperature difference: 65 degrees Celsius 3. Voltage: 8.4V (MAX) 4. Internal resistance value: 2.9-3.5 ohms (ambient temperature 23 degrees Celsius, 1KHZAc test) 5. Assembly pressure: 85N/cm2 6. Working environment: Temperature range -55~83 degrees Celsius (excessive ambient temperature will directly affect the refrigeration efficiency) 7. Current: 2A (MAX) 8. Packaging process: 704 silicone rubber seal around 9. Storage conditions ambient temperature -10~40 degrees Celsius 10. A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface, otherwise it will burn. 11. Device characteristics: red line positive electrode, black line negative electrode (literally the refrigeration surface, non-literally the heat dissipation surface) 12. When testing without heat dissipation, there will be a cooling effect. If the power is turned on, the power supply should be unplugged immediately within 1 second, otherwise the refrigeration plate will be easily burned. 13. Note: no matter whether it is water-cooled or air-cooled, thermal silicone grease must be applied 14. Wire specifications: lead length 150mm, RV standard wire single head 5mm tin plated 15. Dimensions: 30x30x4.2mm
