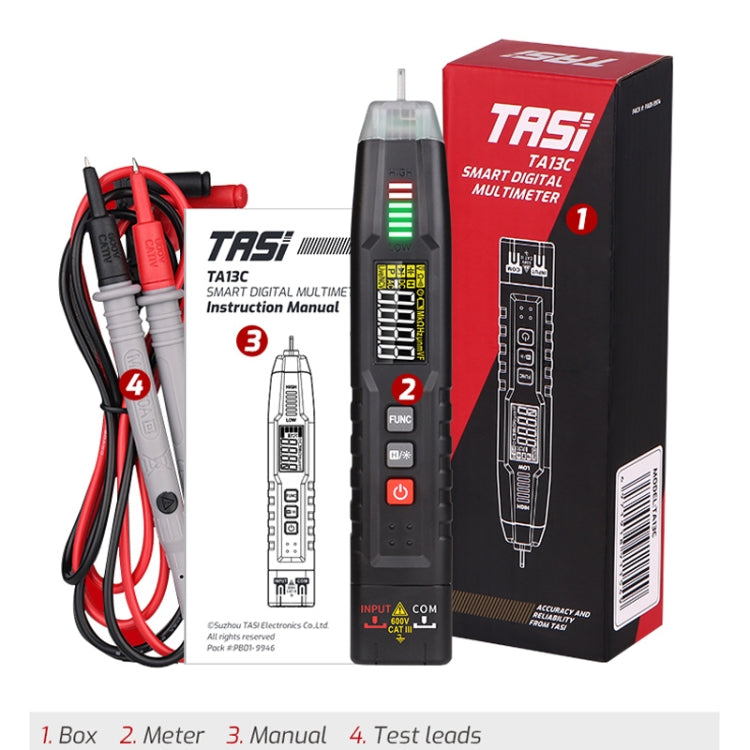

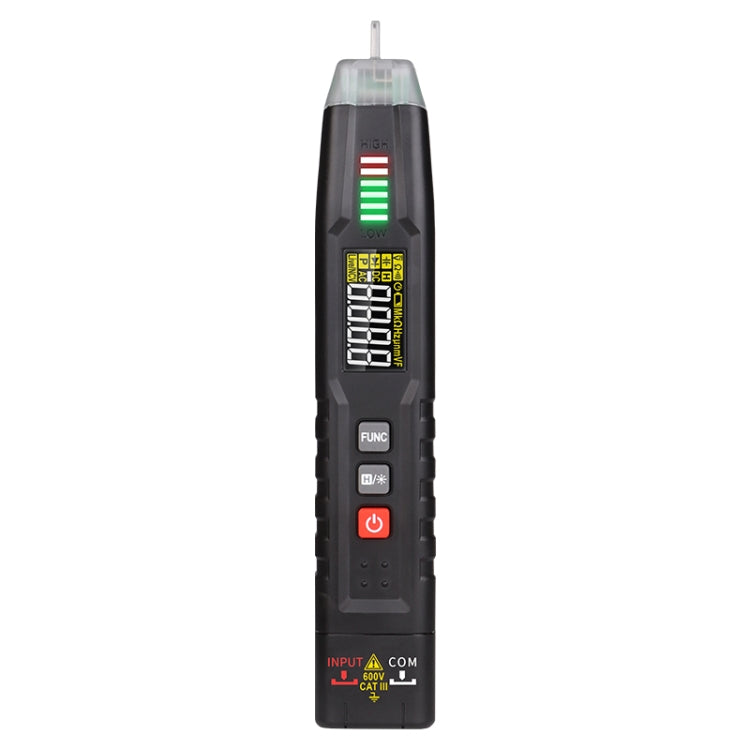

1. Voltage: Range: 0.8-600V; Resolution: 0.01-1V 2. Capacitance: Range: 1nF-4mF; Resolution: 0.01nF-0.001mF 3. Resistance: Range: 1 ohm-40 megohm; Resolution: 1 ohm-0.01 megohm 4. Frequency: 40Hz-4MHz 5. Display: four-digit display, up to 4000 6. Functions: on-off beeping, diode measurement, zero-firewire identification, NCV sensing, phase sequence judgment, flashlight illumination, VA color screen, data retention, auto-ranging 7. Sampling rate: 3 times / sec 8. Auto shutdown: 15 minutes 9. Power supply: 2 x 1.5V AAA batteries (not included) 10. Operating environment: -10-40 degrees Celsius, within 80% relative humidity 11. Storage environment: -10-60 degrees Celsius, 70% relative humidity (remove the battery) 12. Packing list: main unit x 1, meter pen x 2, manual x 1 13. Overall size: about 17.5 x 3 x 2.6cm 14. Display size: about 3 x 1.5cm 15. Weight: about 76g
Features: 1. NCV voltage sensing 2. Pen tip contact to the measured line ends, the path will send out an alarm tone and indicator light prompts, broken circuit is no response 3. Phase sequence judgment, the screen shows PA, start measuring, display A constantly flashing will be the tip of the pen close to the first phase line, wait for a beep to show flashing B and then the tip of the pen close to the second line, wait for a beep to show a flashing C symbols, will be the tip of the pen close to the third line, wait for a beep to complete the test, the screen displays results 4. According to the parameters of the object under test, with indicator + sound prompts 5. In the dark environment, you can turn on the flashlight lighting function
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
