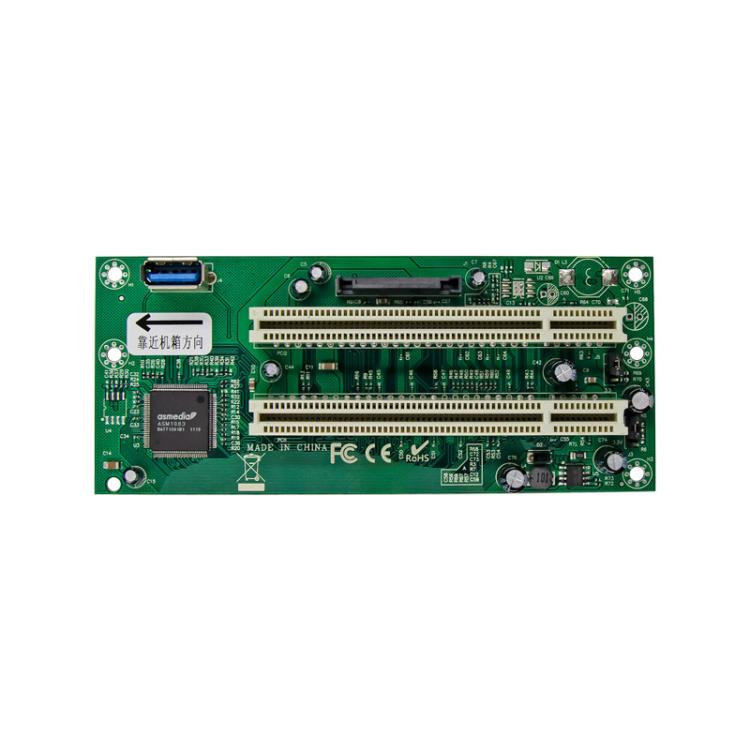

1. Allows the PCI bus to be used with high-performance PCI Express networks 2. SB-EP1083A-2P, PCI Express x1 to 32-bit PCI bridge, enables users to connect legacy parallel bus devices to serial PCI Express interfaces 3. ASM1083 is a PCI Express-to-PCI forward bridge that is fully compliant with PCI-SIG PCI Express-to-PCI Bridge Specification 1.0 4. Main chipset: ASM1083 5. Bus type: PCI Express x 1 (1 x Lane virtual channel) 6. Slot interface: 2 x PCI 32bit 33/66MHz (split), USB3.0 port, 15 Pin SATA interface 7. PCI card slot: 3.3V/1A, 3.3V/100mA, 5V/ and 12V/500mA (adjustable) 8. No need to connect to an additional power source (if there are special circumstances, the board has a SATA power interface available), driver-free, plug and play 9. Widely applicable: commonly used for network cards, sound cards, serial and parallel port cards, video capture cards, array cards, tax and tax control cards, industrial boards and other PCI device cards

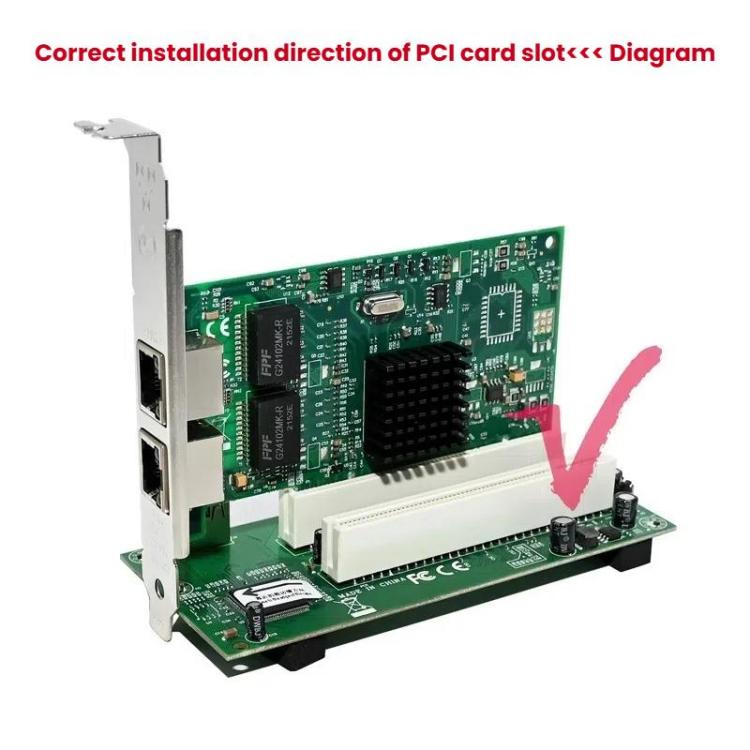

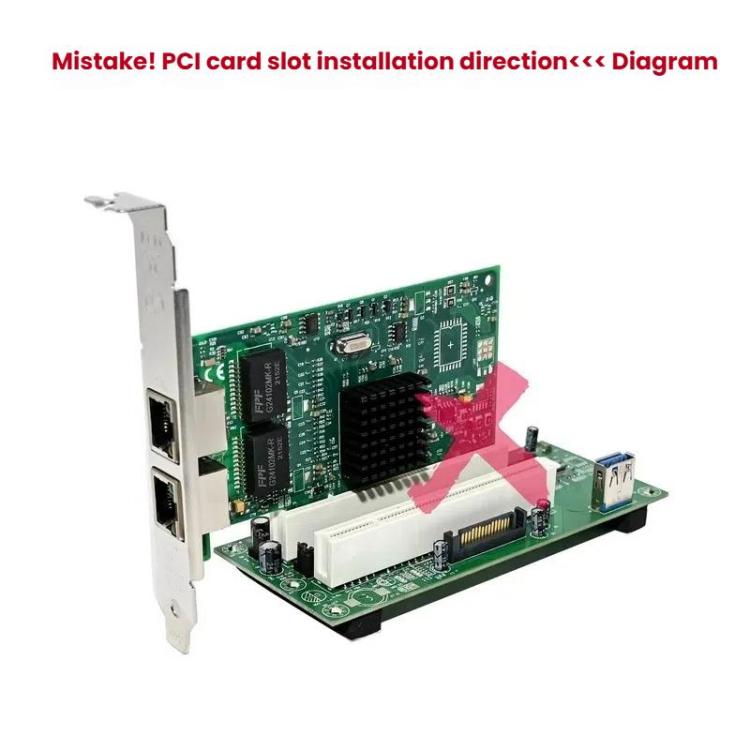

Warm tips: 1. The adapter card is tested before shipment, remember not to hot-swap with power on! Before operation, please turn off the power first. When using the adapter card, the computer needs to be turned off to hot-swap 2. When installing a PCI device card, pay attention to the direction of the card (the board has an arrow indicating the direction), do not insert it in reverse! Reverse insertion may cause the chip to burn and damage 3. Correct installation method: Turn off the computer host, follow the arrow on the board, and insert the PCI device card into the PCI card slot split converter

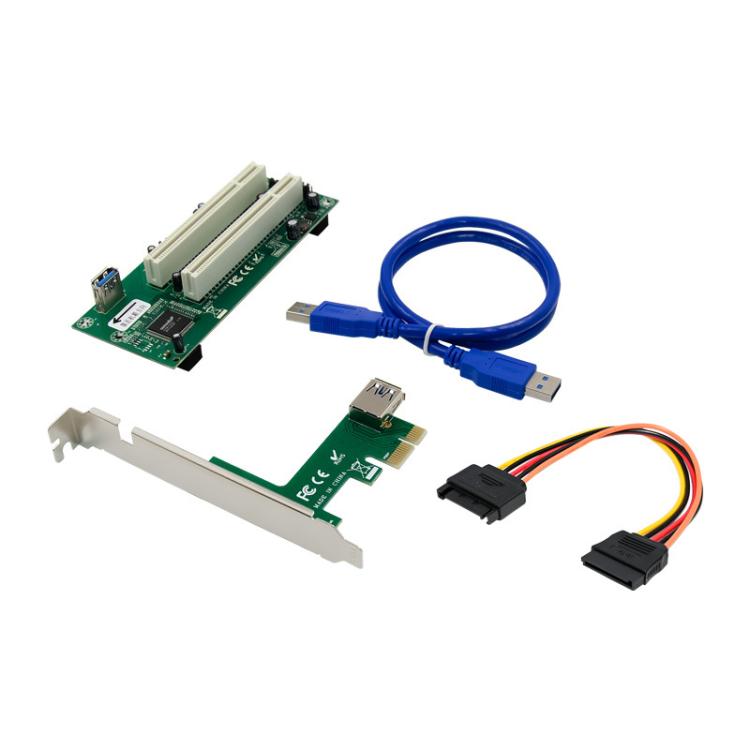

Packing list: - PCI Express x 1 board x 1 - Split (2 x PCI) card slot x 1 - USB3.0 data cable x 1 - 4 Pin to 15 Pin power cable x 1
