SUNWEIT ST45 PCIe X1 To 1-PCI Slot ASM1083 Bridge Card
SUNWEIT ST45 PCIe X1 To 1-PCI Slot ASM1083 Bridge Card
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Allows the PCI bus to be used with high-performance PCI Express networks
2. Enables users to connect legacy parallel bus devices to serial PCI Express interfaces
3. ASM1083 is a PCI Express-to-PCI forward bridge that fully complies with PCI-SIG PCI Express-to-PCI bridge specification 1.0
4. Main chipset: ASM1083
5. Bus type: PCI Express x1 (1xLane virtual channel)

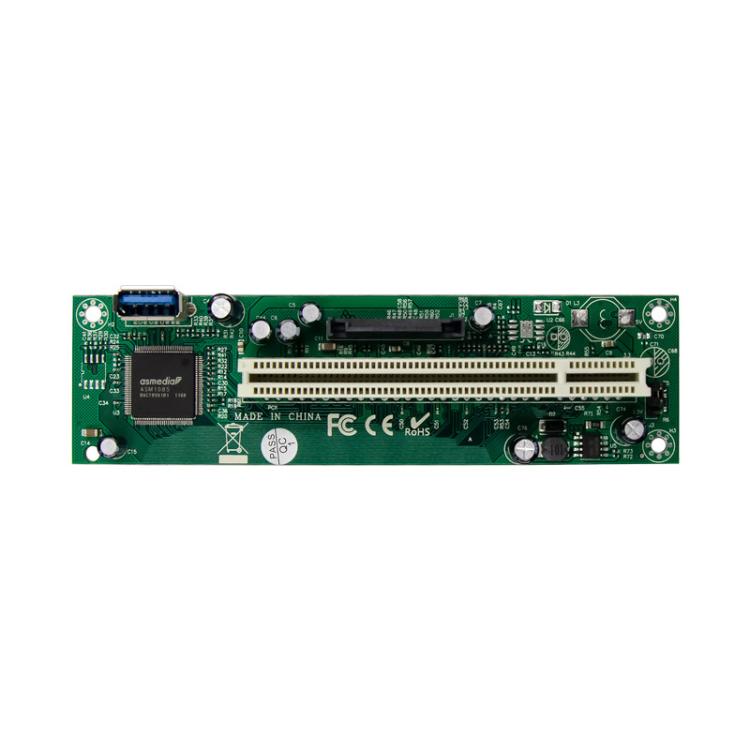

6. Slot interface:
- 1 x PCI 32bit 33/66MHz (split)
- 1 x USB3.0 port
- 1 x 15Pin SATA interface
7. PCI card slot: 3.3V/1A, 3.3V/100mA, 12V/500mA (adjustable)
8. Features: no need to connect an additional power supply (in special cases, the onboard SATA power interface is available)
9. Driver-free, plug and play
10. Wide range of applications: commonly used for network cards, sound cards, serial and parallel port cards, video capture cards, array cards, industrial boards and other PCI device cards
Warm Tips:
1. The adapter card is tested before shipment. Remember not to hot-swap it with power on. Please turn off the power before operation
2. When using the adapter card, the computer needs to be turned off to hot-swap it.

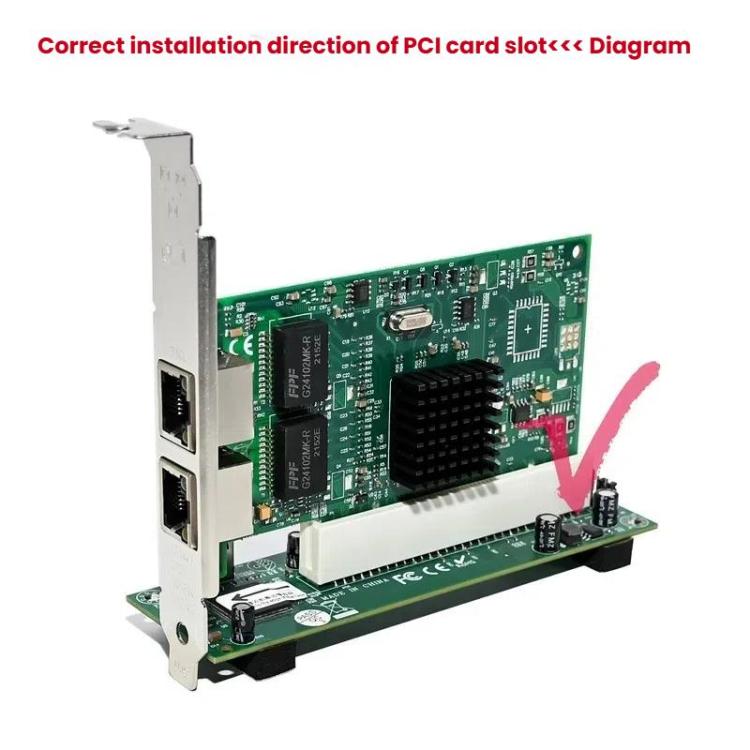

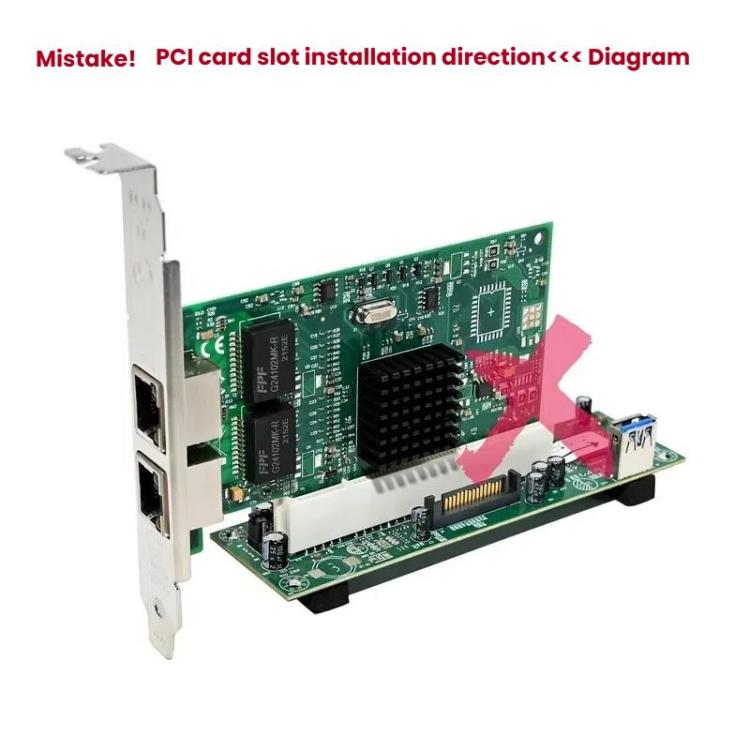

3. When installing the PCI device card, pay attention to the direction of the card (the board has an arrow indicating the direction). Do not insert it in reverse. Inserting it in reverse may cause the chip to burn and damage
4. Correct installation method: Turn off the computer host, follow the arrow on the board, and insert the PCI device card into the PCI card slot split converter

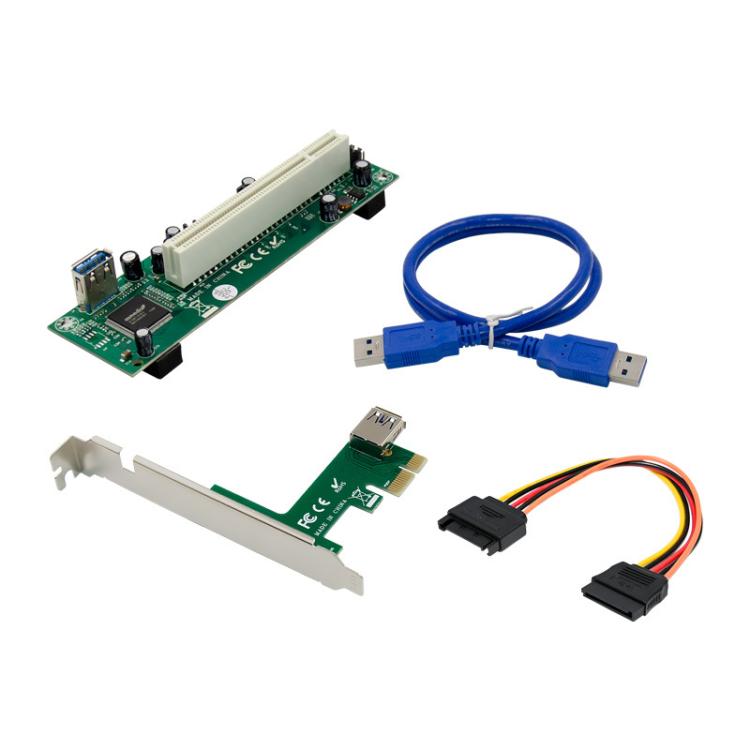

Packing list:
- PCI Express x1 board x 1
- Split (1xPCI) card slot x 1
- USB3.0 data cable x 1
- 4 Pin to 15 Pin power cable x 1
