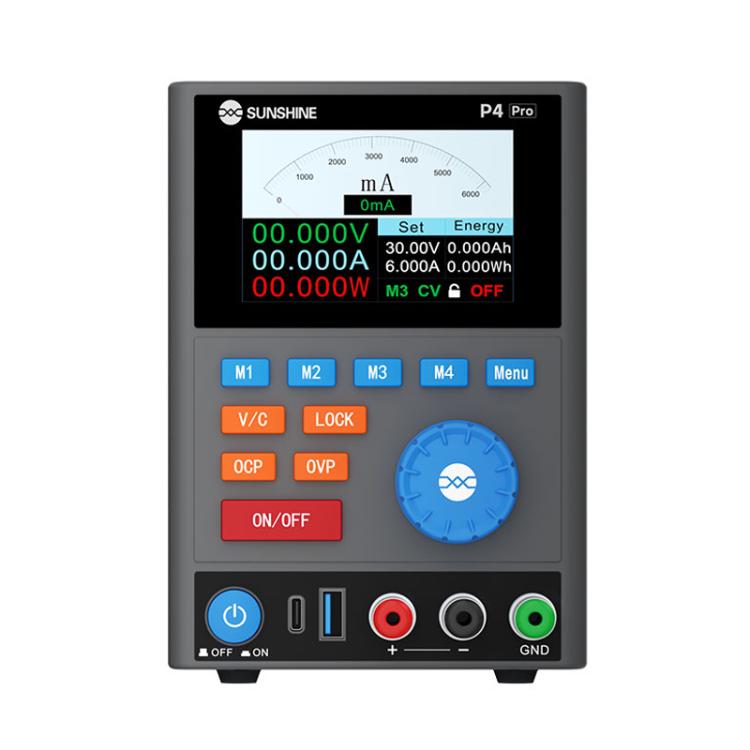

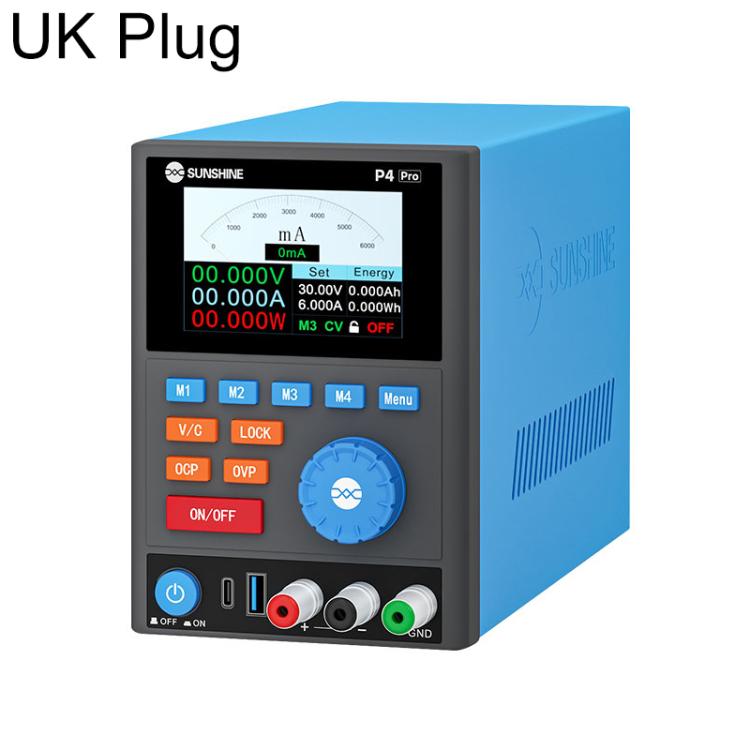

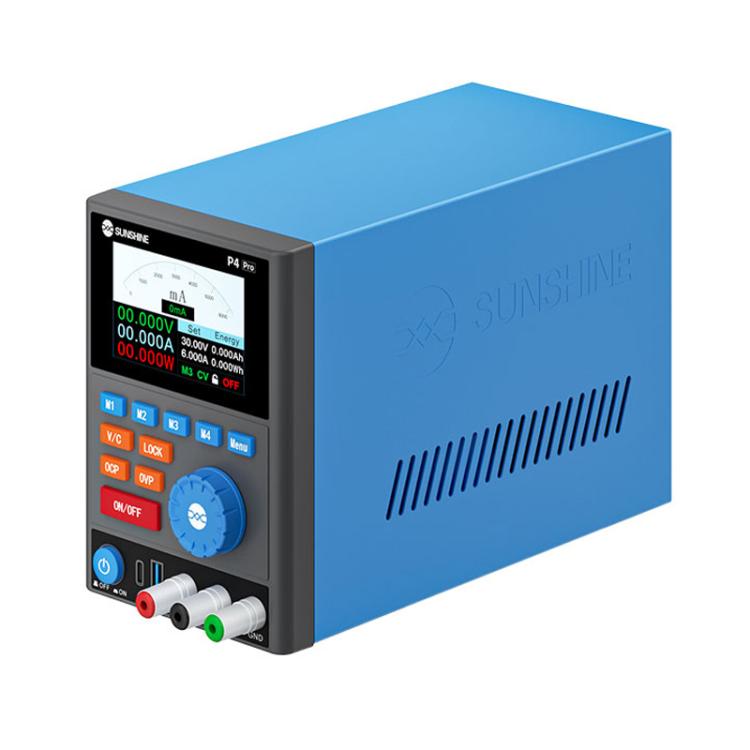

SUNSHINE P4 Pro 30V / 6A Smart DC Regulated Power Supply, Plug:UK Plug
SUNSHINE P4 Pro 30V / 6A Smart DC Regulated Power Supply, Plug:UK Plug
SKU: EDA009909703
Regular price
$239.00
Regular price
Sale price
$239.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Specifications:
1. Model: P4 Pro

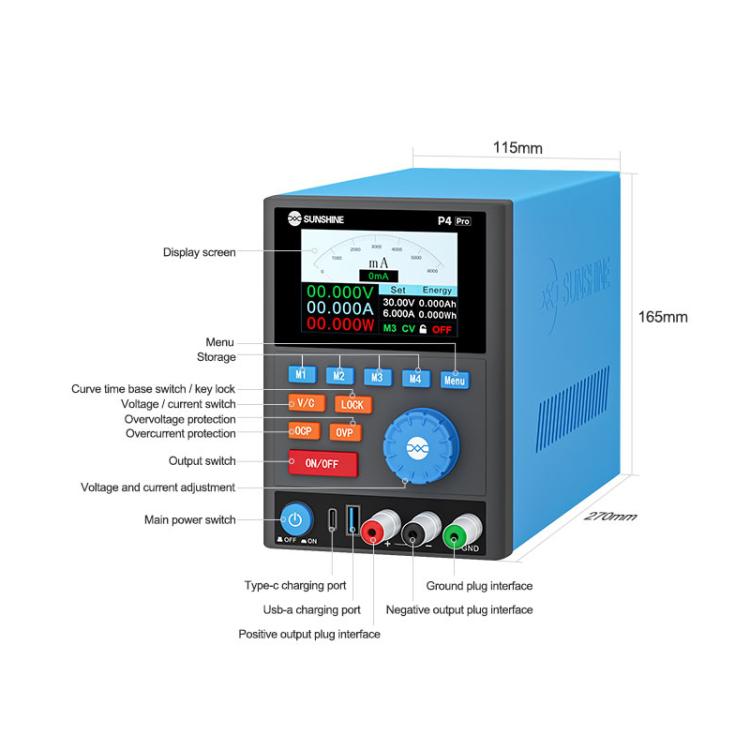

2. Product size: 11.5 x 27 x 16.5cm
3. Net weight: about 3.8kg
4. Voltage range: 0-30V
5. Current range: 0-6A
6. Load effect: <=0.01%+2mV/<=0.02%+10mA
7. Power effect: <=0.01%+3mV/<=0.1%+3mA
8. Output resolution: 10mV/1mA
9. Setting accuracy: <=0.5%+20mV/<=0.5%+5mA
10. Ripple (20-20m): <=2mVrms/<=3mArms
11. Output temperature coefficient: 150ppm
12. Readback resolution: 1mV/1mA
13. Readback temperature coefficient: <=100ppm+10mV/<=100ppm+5mA
14. Response time(10%rated load): <=100ms
15. USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP
16. USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP

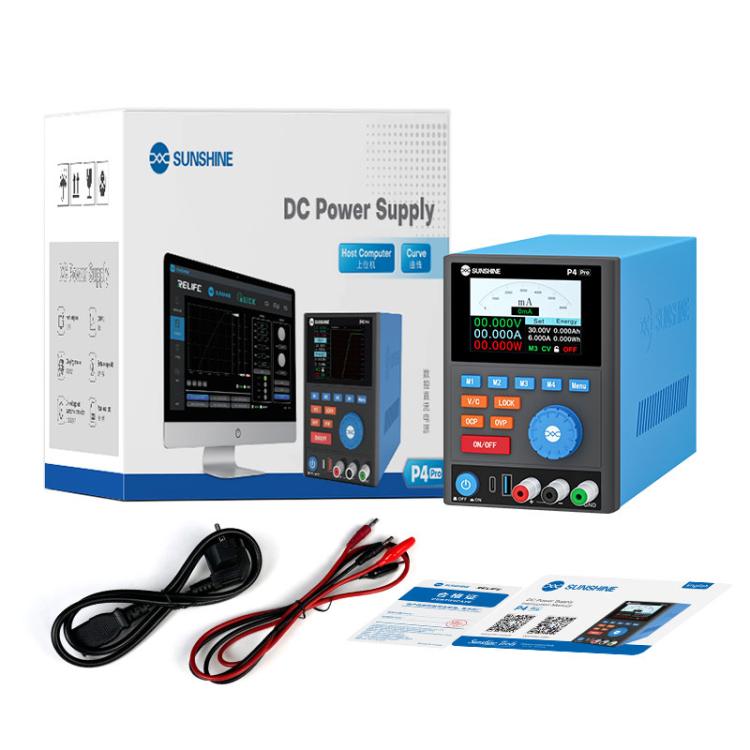

17. Package includes:
1 x Power Supply
1 x Test Cable
1 x Power Cable
Features:

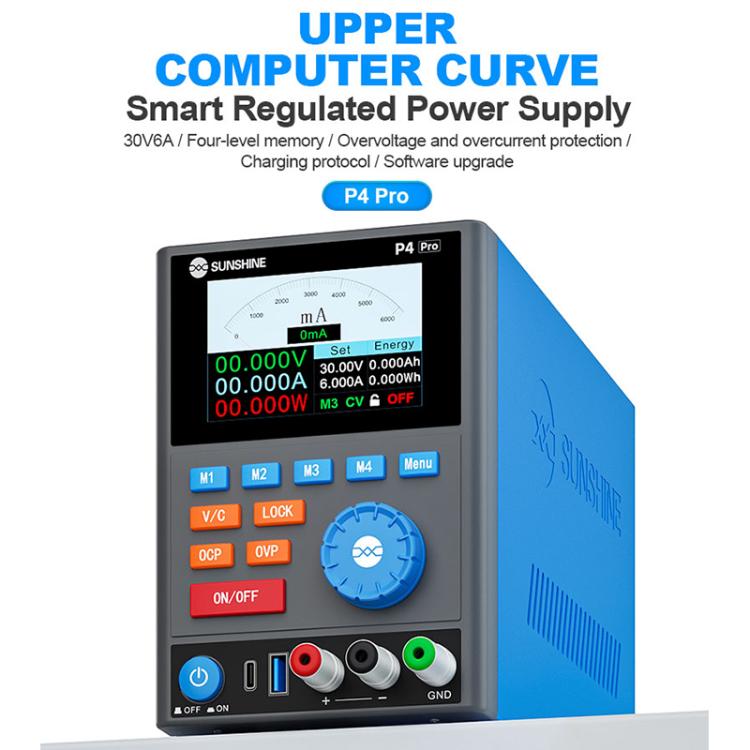

1. P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade

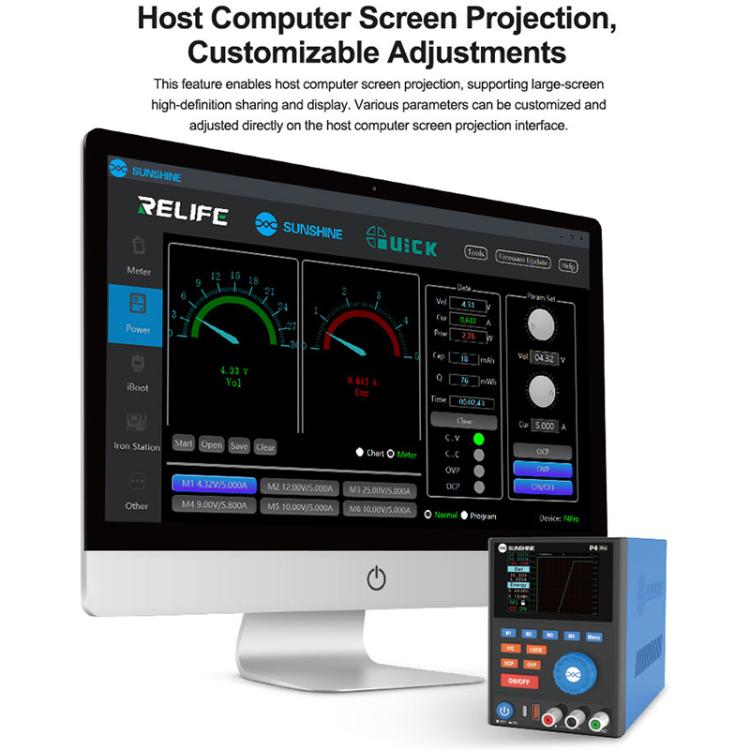

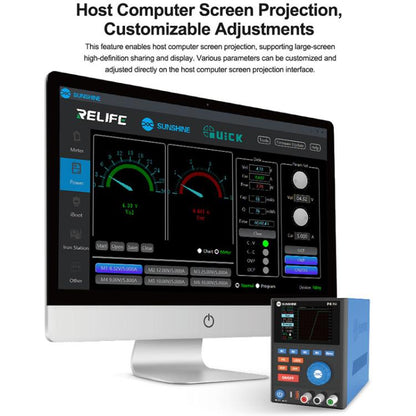

2. Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface

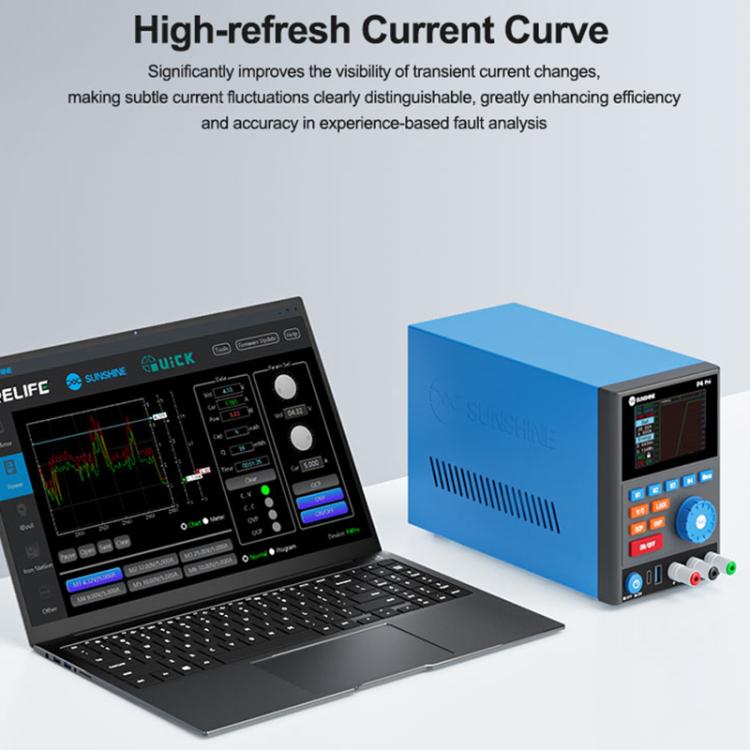

3. High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis

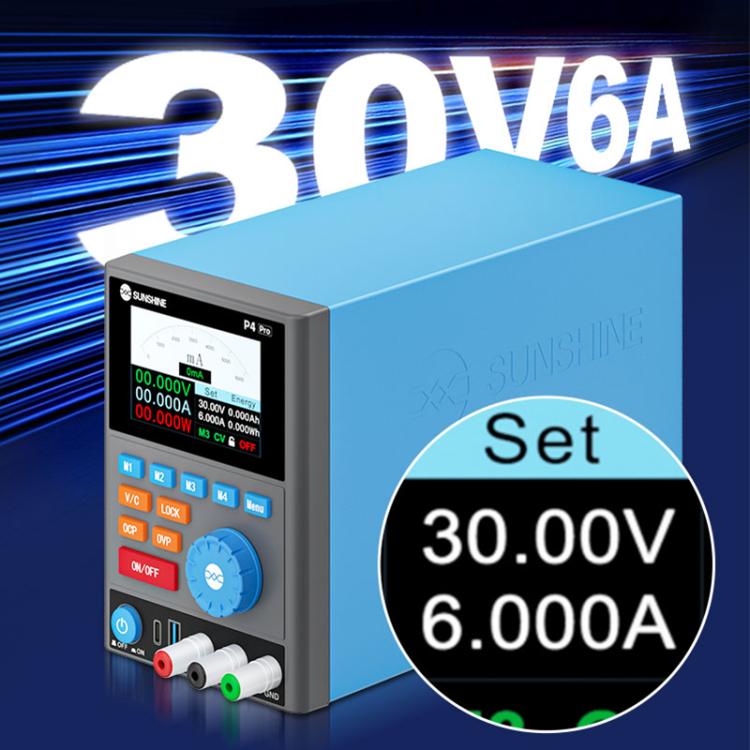

4. 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply

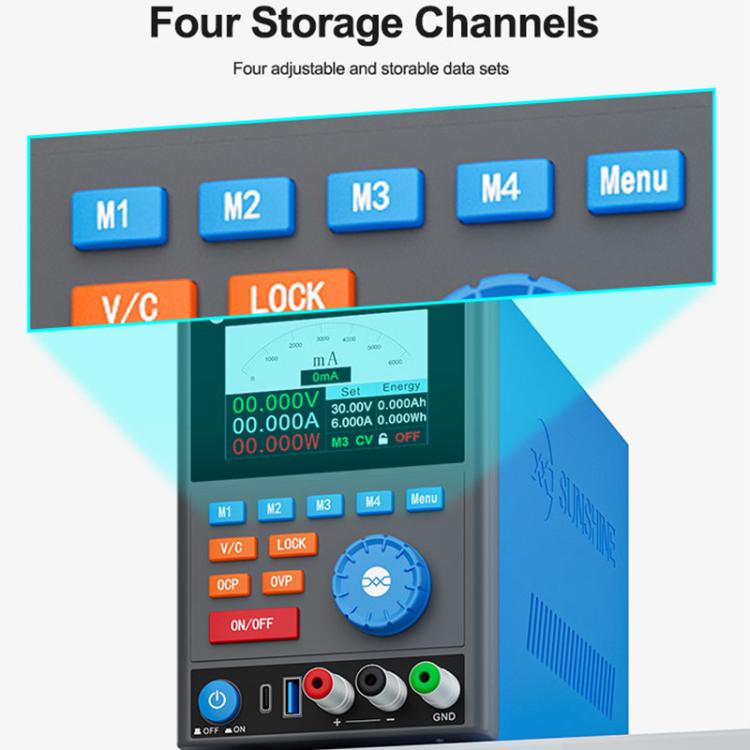

5. Four Storage Channels: Four adjustable and storable data sets

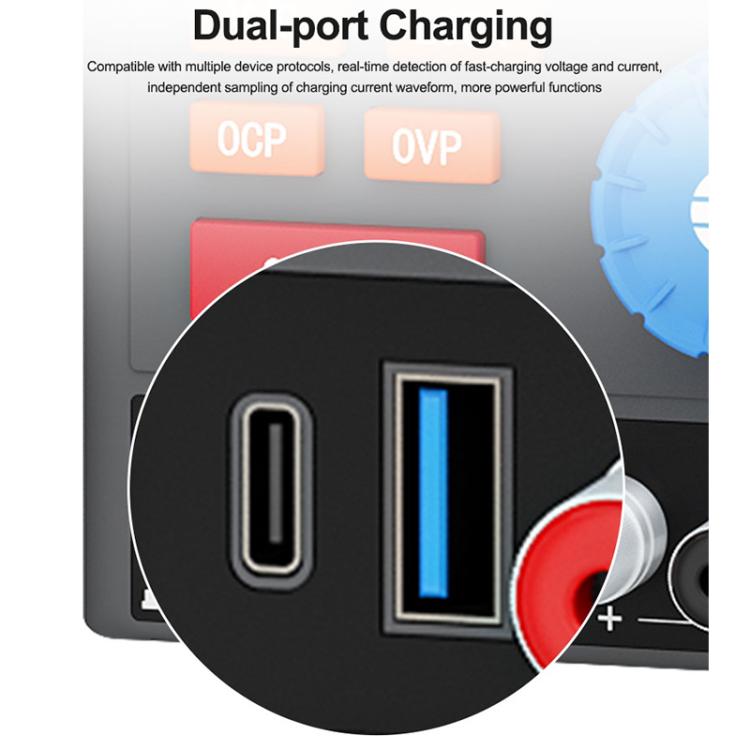

6. Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions

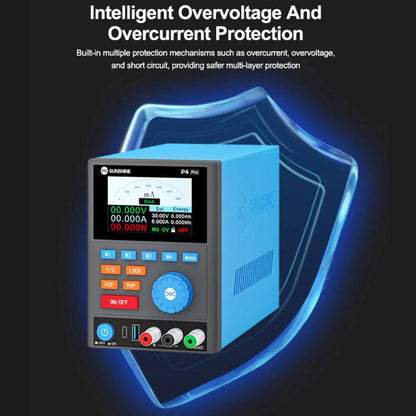

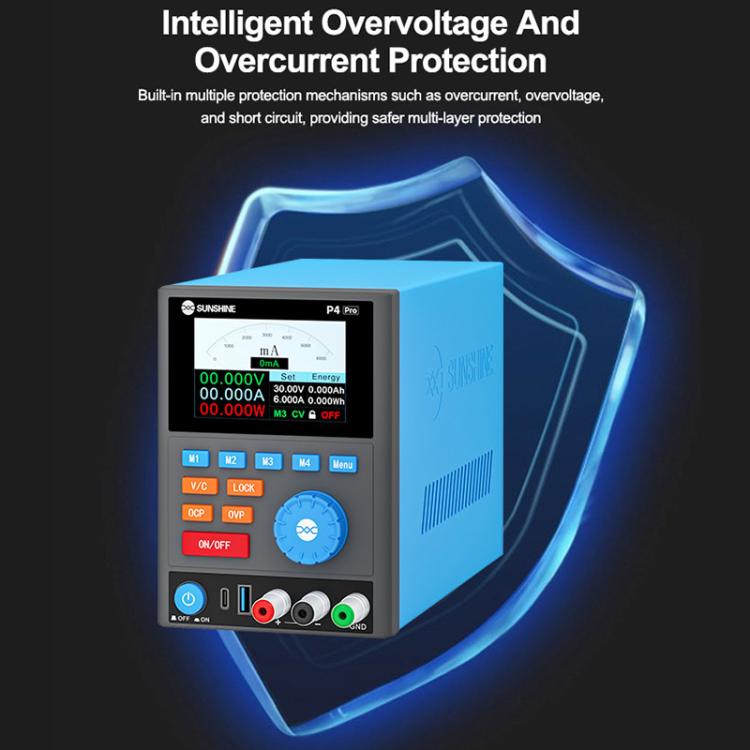

7. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection

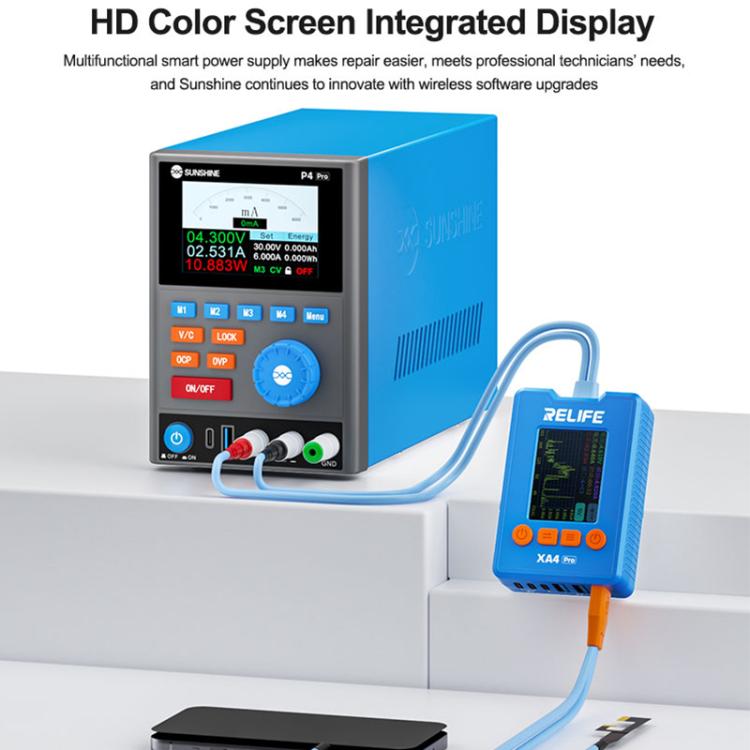

8. HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians needs, and Sunshine continues to innovate with wireless software upgrades
1. Model: P4 Pro
2. Product size: 11.5 x 27 x 16.5cm
3. Net weight: about 3.8kg
4. Voltage range: 0-30V
5. Current range: 0-6A
6. Load effect: <=0.01%+2mV/<=0.02%+10mA
7. Power effect: <=0.01%+3mV/<=0.1%+3mA
8. Output resolution: 10mV/1mA
9. Setting accuracy: <=0.5%+20mV/<=0.5%+5mA
10. Ripple (20-20m): <=2mVrms/<=3mArms
11. Output temperature coefficient: 150ppm
12. Readback resolution: 1mV/1mA
13. Readback temperature coefficient: <=100ppm+10mV/<=100ppm+5mA
14. Response time(10%rated load): <=100ms
15. USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP
16. USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP
17. Package includes:
1 x Power Supply
1 x Test Cable
1 x Power Cable
Features:
1. P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade
2. Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface
3. High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis
4. 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply
5. Four Storage Channels: Four adjustable and storable data sets
6. Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions
7. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection
8. HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians needs, and Sunshine continues to innovate with wireless software upgrades
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
