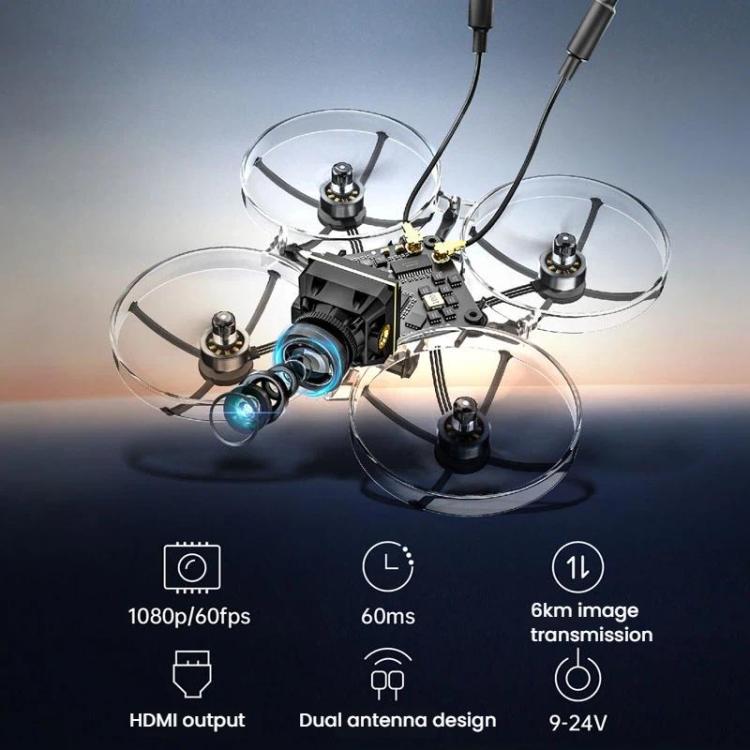

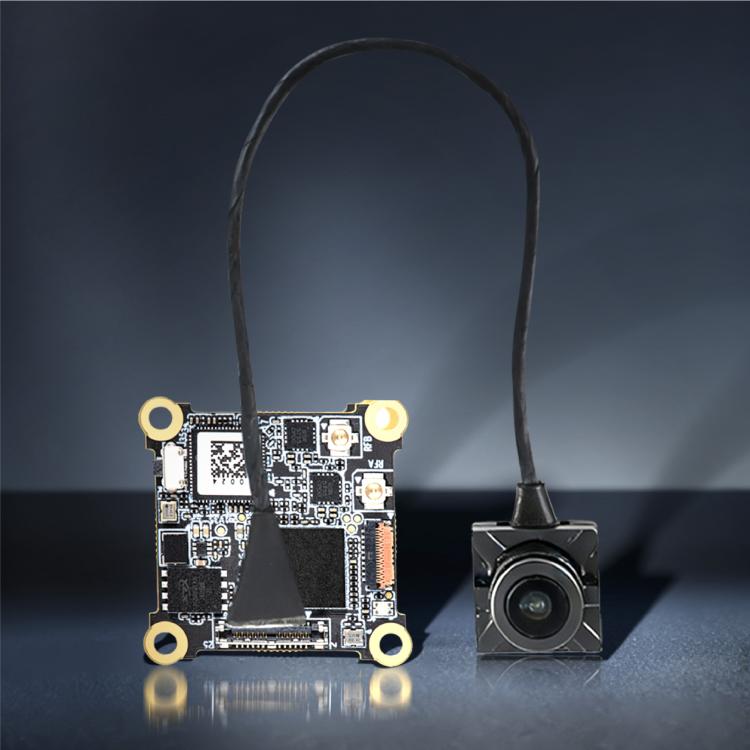

1. Video output: HDMI, TYPE C-DP 2. Wide dynamic range: supported 3. Automatic frequency control: automatic 4. Transmitter power range: maximum 25dBm 5. Latency: 60ms 6. Frequency band: 4.9-5.9GHz 7. Image sensor: 1/2.8-inch image sensor 8. Aperture: f/2.0 9. ISO range: 100 to 12800 (Auto) 10. Resolution: 1080p/60fps 11. Field of view: 155 degrees 12. Power auto-sensing: automatic 13. Antennas: dual 14. Flight range: 6km (default antenna configuration) 15. System power consumption: (maximum) 5W 16. Operating voltage: 5V-26V 17. Equivalent focal length: 2.28mm 18. Focus point: 2 meters or more 19. Mounting hole spacing: 25.5 x 25.5mm 20. Air system size: about 30 x 30 x 6mm 21. Air system camera size: about 17.5 x 14 x 14mm 22. Air system weight: about 9.2g (including camera) 23. Ground system size: about 60 x 21 x 73mm 24. Ground system weight: about 74.7g

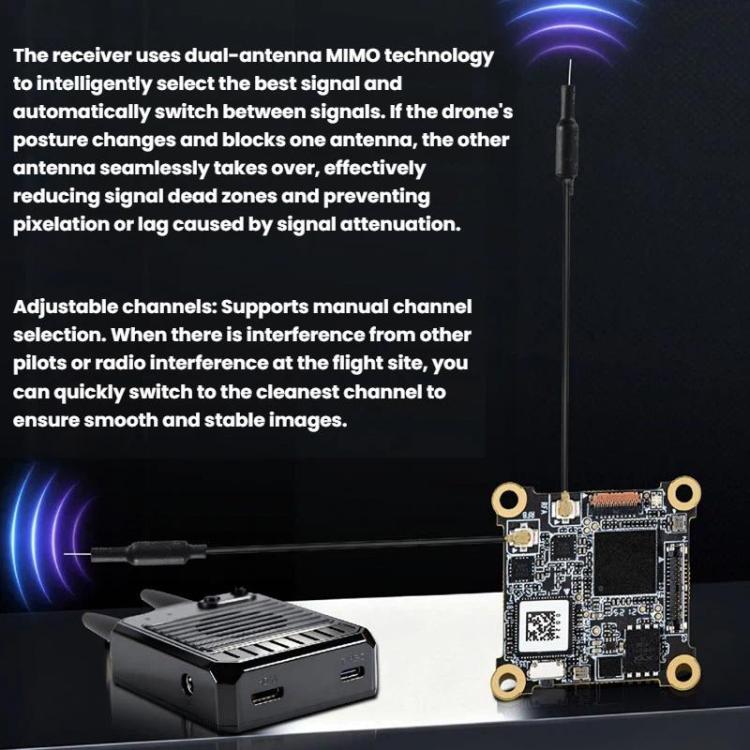

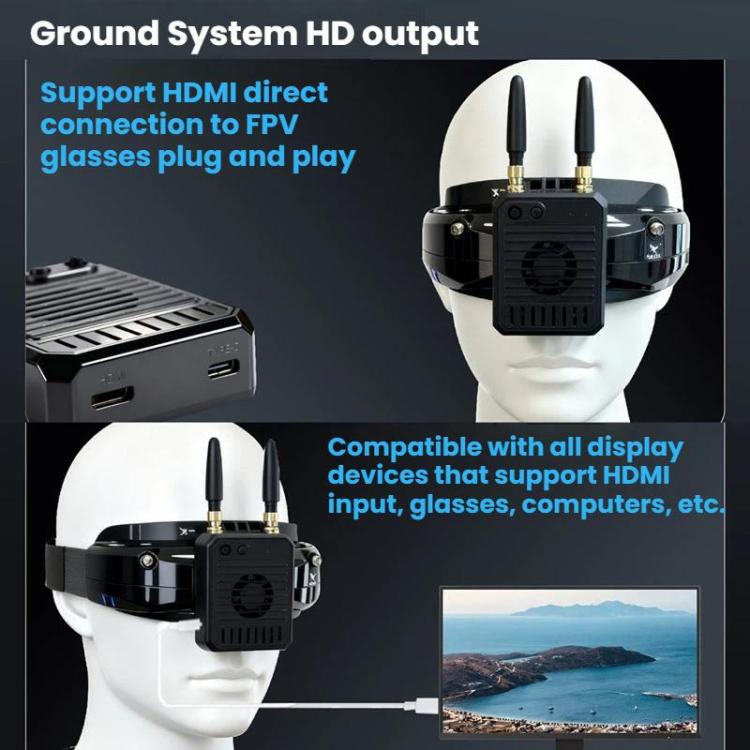

Features: 1. 1080p Full HD resolution with a high frame rate of 60 frames per second ensures smooth, ghost-free images during high-speed flight, significantly improving flight safety and image capture success rates 2. Utilizing a high-performance transmitter chip and premium circuit design, it delivers 60ms low latency image transmission. In open, interference-free environments, it can transmit images up to 6 kilometers, meeting the needs of FPV long-distance exploration and various flight scenarios 3. The receiver utilizes dual-antenna MIMO technology, intelligently selecting the optimal signal and automatically switching between signals. When the drone's attitude changes, blocking one antenna, the other end seamlessly takes over, effectively reducing signal dead zones and preventing pixelation or lag caused by signal attenuation 4. Adjustable channel selection, with support for manual channel selection, allows you to quickly switch to a clean channel when there's interference from other pilots or radio interference at the flight site, ensuring smooth and stable video 5. Compatible with drones, fixed-wing aircraft, model aircraft, model cars, and model boats 6. The ground system features HD output and supports direct HDMI connection to FPV headsets for plug-and-play operation. Compatible with HDMI-enabled displays, glasses, computers, and more

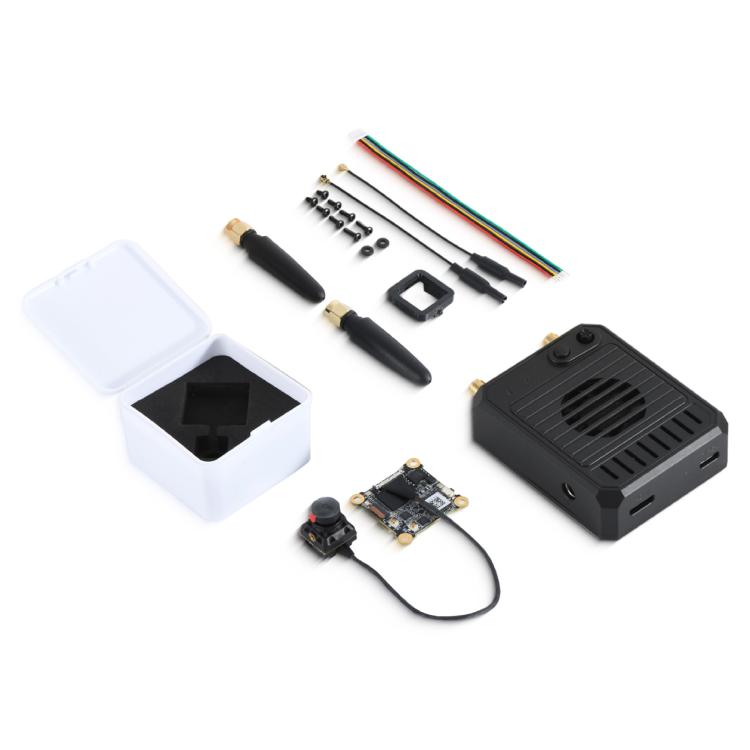

Packaging list: - Air system x 1 - Air system camera x 1 - Ground system x 1 - Rubber pads x 2 - Antennas x 2 - Screws x 8 - Silicone cable x 1 - Camera printer x 1 - Storage case x 1
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
