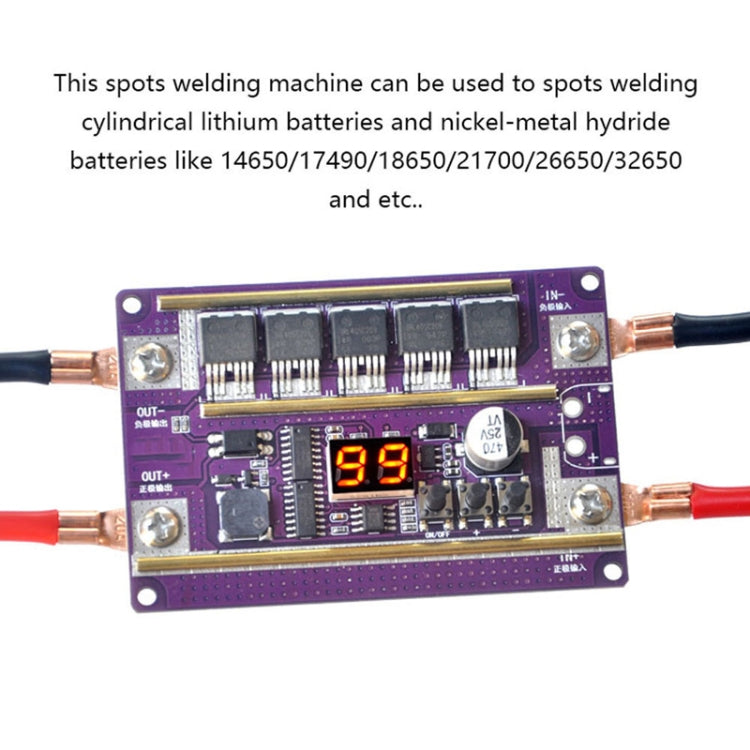

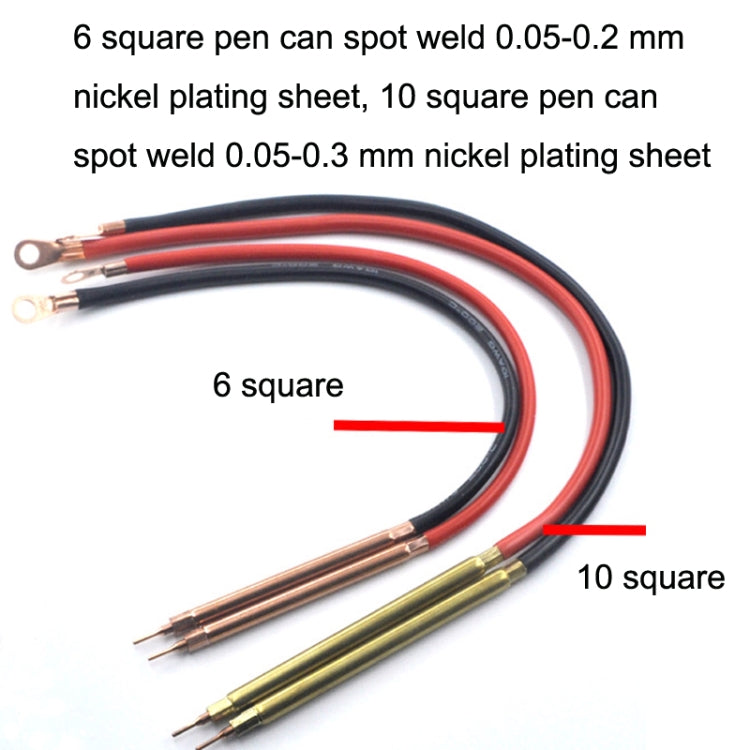

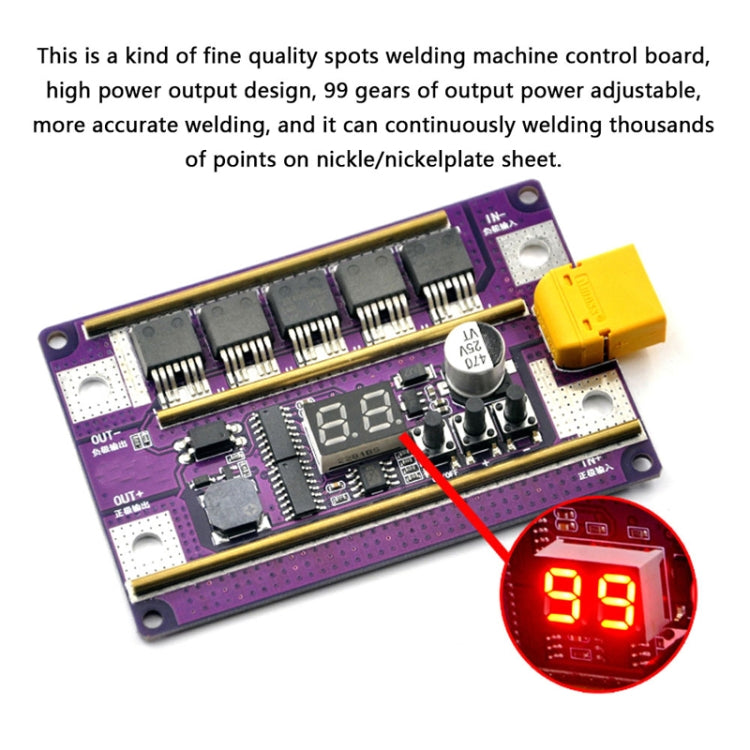

1. 6 square pen can spot weld 0.05-0.2 mm nickel plating sheet, 10 square pen can spot weld 0.05-0.3 mm nickel plating sheet 2. High-power output design, 99 adjustable output power, welding more accurate, can be in nickel/nickel plate continuous welding thousands of points 3. Using 5 MOS transistors, the current can reach 2390A 4. Welding is the use of high current and high temperature rapid melting of nickel foil parts and cooling principle 5. Equipped with two copper bars, greatly increased the ability to over-current 6. Welding spot accurate and beautiful, support welding 0.05-0.3 mm nickel sheet, iron sheet, stainless steel sheet 7. The spot welder can be used for spot welding of lithium cylindrical battery and ni-mh battery, such as 14650/17490/18650/21700/26650/32650, etc. 8. Display: digital tube display 9. Self-supply power: the normal start of the car 12V start treasure (EC5 interface) 10. Do not use: switching power supply, transformer, Charger, water battery, charging treasure, power supply spot welding machine, will damage the welding machine control board 11. Control Board operating voltage: 9-16V 12. Control Board operating current: 90-180A

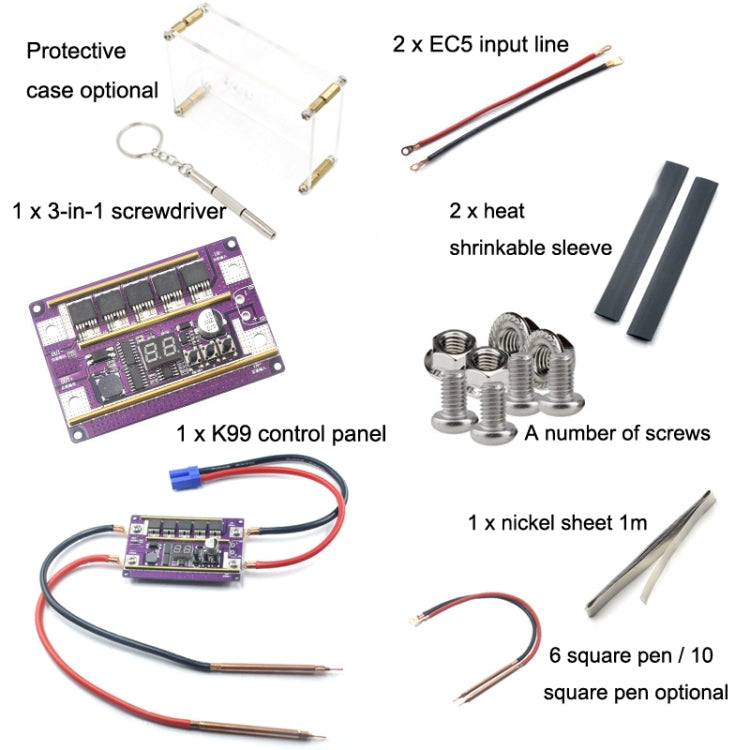

Packing list: - . 1 x control panel - . 2 x EC5 input line - . 2 x spot welder - . 2 x heat shrinkable sleeve - . a number of screws - . 1 x nickel sheet one meter - . 1 x acrylic case - . 1 x three-in-one screwdriver
