Standalone Keypad Access Control System (7612)(Silver)
Standalone Keypad Access Control System (7612)(Silver)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
Technical Specification:
1. Operating Voltage:
12VDC From a Regulated Power Supply Input current:
Standby: 40mA Not including attached devices
Max: 130mA Not including attached devices
2. Outputs:
Lock Strike Relay From C, 5A
Auxiliary Relay From C, 5A
LockStrike Control Output Collector Open Output (25mA)
Auxiliary Control Output Collector Open Output (25mA)
3. Inputs:
REX: N.O.,Dry Contact
Auxiliary Input (In/Monitor): N.C.,Dry Contact in
Monitor Mode: N.O.Dry Contact Input Mode
4. Built-in Proximity reader
Read Range: 65mm
Modulation: ASK at 125 kHz
Compatible Cards: ALL 26-Bit EM Cards
5. Mechanical Characteristics
Dimentions: 120L*76W*27Hmm
Weight: 450g
Range also depends on electrical environment and proximity to metal.
Features:
1. Built-in Proximity Card Reader (125KHZ ASK Modulation)
2. Built-in Keypad for PIN Code entry
3. Auxiliary Input & Auxiliary Output
4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure
5. Internal Buzzer
6. Two Status/Programming Interface LEDS
7. Two Modes of Operation: Normal Mode; Secure Mode
8. Three User Levers: Normal User; Secure User; Master User

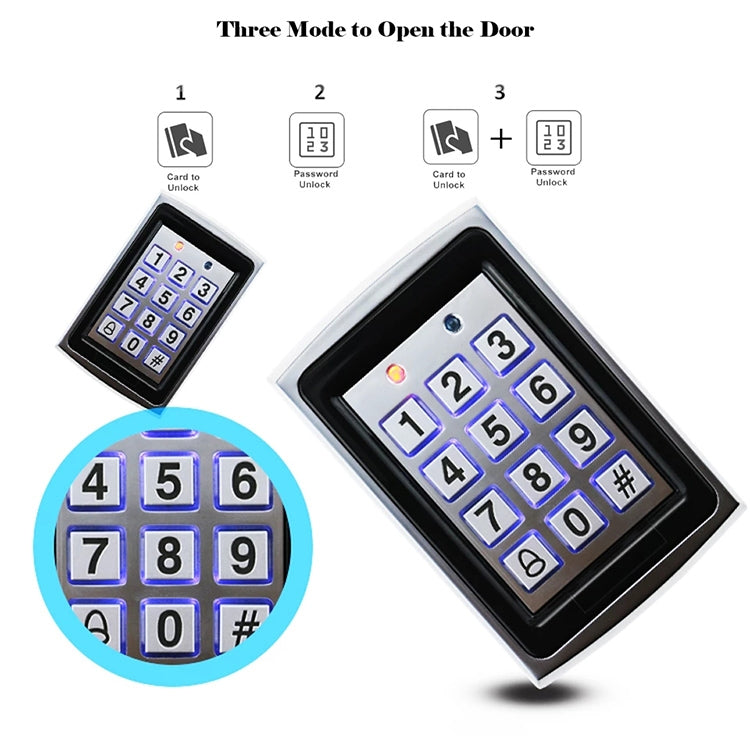

9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card
10. Code search Feature that helps make maintaining user codes easier.
11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies.
12. Programmable Siren Time.
13. Programmable Lock Strike Release Time.
