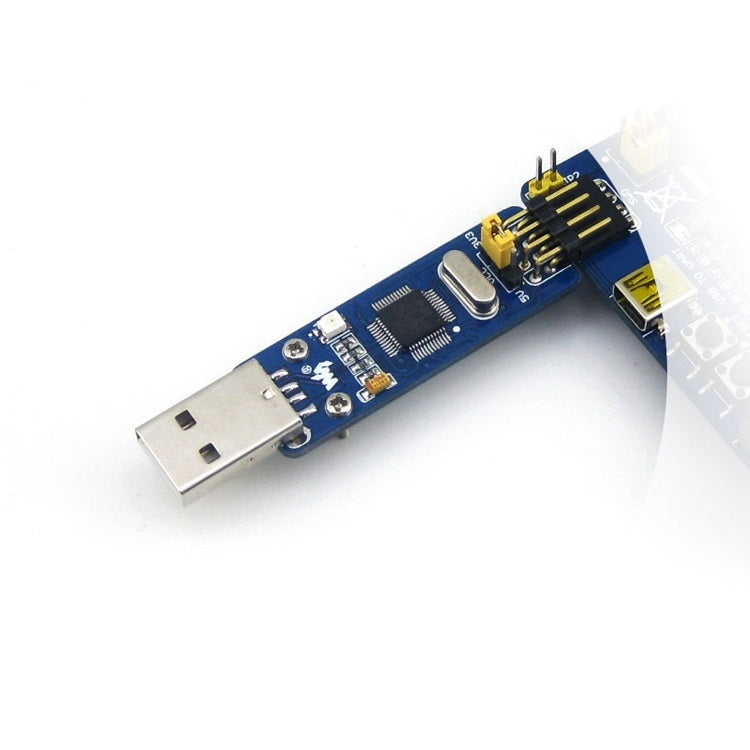

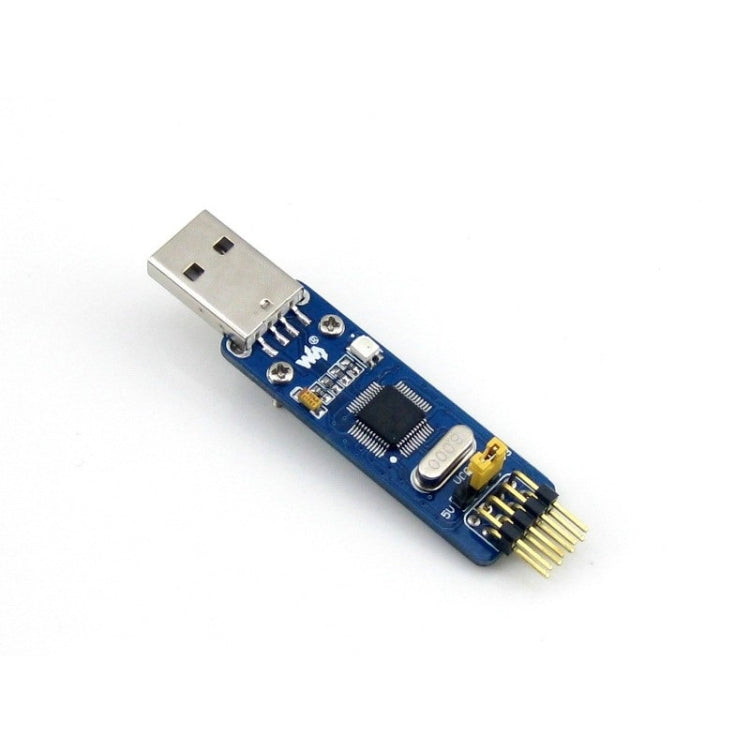

Description Mini ST-LINK/V2 on a small single board, an extreme low cost solution for in-circuit debugger/programmer for STM8 and STM32.
Features 1. Onboard 500mA self-recovery fuse to avoid harming by short circuit 2. Dual voltage output (3.3V/5V), easy for debugging/programming 3. Standard USB interface for direct connection to PC 4. Debugging/Programing performance - Debugging : run at full-speed, single-stepped, breakpoints, viewing variables and registers, etc. - Programming : supports FLASH ROM, EEPROM, AFR, etc. - USB2.0 combined with SWIM/SWD interfaces : quick response for debugging & fast speed for programming 5. Upgradable firmware - The firmware is upgradable to support more devices in the future - Automatically upgraded 6. Supported software - ST-LINK Utility v2.0 (or higher ver.) - STVD Version 4.2.1 (or higher ver.) - STVP Version 3.2.3 (or higher ver.) - IAR EWARM Revision v6.20 (or higher ver.) - IAR EWSTM8 Revision v1.30 (or higher ver.) - KEIL RVMDK Revision v4.21 (or higher ver.) - ATOLLIC - TASKING 7. Supported devices - All the STM8 devices with SWIM interface - All the STM32 devices with SWD interface
Package Contents 1. ST-LINK/V2 (mini) × 1 2. 4-pin custom connector cable × 1 3. USB type A plug to receptacle cable × 1
