Features: 1. Comes with 10.1-inch LCD screen, supports multi-touch 2. 5 million pixels, supports up to 8 5MP wireless cameras 3. Support H.265, H.264 coding front-end adaptive access 4. Supports storage and playback of up to 16TB hard drive (2.5 inches) 5. Support wireless bridge mode-WiFi range up to 60 meters 6. Support H265 compression format, which can save 50% storage space 7. Two-way voice, built-in omnidirectional microphone and speaker
WiFi NVR parameters: Model: NVS010 (WiFi version) 1. Display: Screen size: 10.1-inch LCD screen Resolution: 800xRGB(3)x1280 Touch: Support multi-touch 2. Video: Video input: 8 CH Output interface: 1 HDMI, 1 VGA Compression format: H265/H264/Smart264 Encoding capability: 8x5M/25fps Decoding capability: 1x5M/25fps (main stream), 8xD1/25fps (auxiliary stream) Decoding format: H265, H.264 3. Audio: Audio: two-way voice, built-in omnidirectional microphone and speaker Audio output: HDMI and 1-way AUX interface audio output, built-in speaker Decoding format: G.711U, AAC 4. Hard drive: Interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD Capacity: Support 16TB max 5. Recording/playback: Recording mode: scheduled recording, alarm recording Playback mode: regular playback and APP playback Backup mode: regular backup 6. Network management: WiFi: 2.4G, only for SriHome standard camera connection WAN: RJ45 wired connection Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc. 7. Alarm: Alarm mode: motion detection alarm, humanoid detection alarm Alarm reminder: APP push, alarm whistle 8. External interface: Network interface: one RJ45 network interface USB interface: 1 USB2.0 HDMI interface: 1 VGA interface: 1 Audio interface: 1 AUX audio output interface Power interface: 1 DC 12V 2A (5.5x2.1x10) 9. APP: Support SriHome APP, IOS and Android remote access
WiFi IPC parameters: 1. Model: IPC047(NVS001) 2. System: Main processor: multi-core high-speed processor Sensor: 1/3 inch, 5 million high-definition color CMOS sensor Compression format: H.265 3. Lens: Lens parameters: Focal length: 4mm, 5 million pixels Viewing angle: Field of view: D 110 H 80 V 58 4. Video: Resolution: 1920P(2560x1920), VGA(480x360) Frame frequency: 15 frames Night vision mode: a. Alarm mode: The default is black and white night vision. When a human figure is detected, the white light will be automatically turned on and switched to full-color night vision. b. White light mode: White light will be used during the period from 17:00 to 8:00. The light will be on, the brightness is adjustable, and the night vision is full color Infrared mode: Turn off the white light and switch to normal night vision IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect 5. Audio: Audio: built-in microphone and speaker, supports two-way voice Protocol: G711 6. PTZ: Tracking: supports humanoid tracking Rotation angle: horizontal: 355 degrees, vertical: 90 degrees 7. Alarm: Alarm: motion detection alarm, humanoid alarm Siren: Alarm whistle can be set Area detection: Supports customizing motion detection alarm areas to improve alarm accuracy 8. Wireless: Wireless: 2.4G (only connected to NVS010 host) Network distribution mode: QR code network distribution, button network distribution

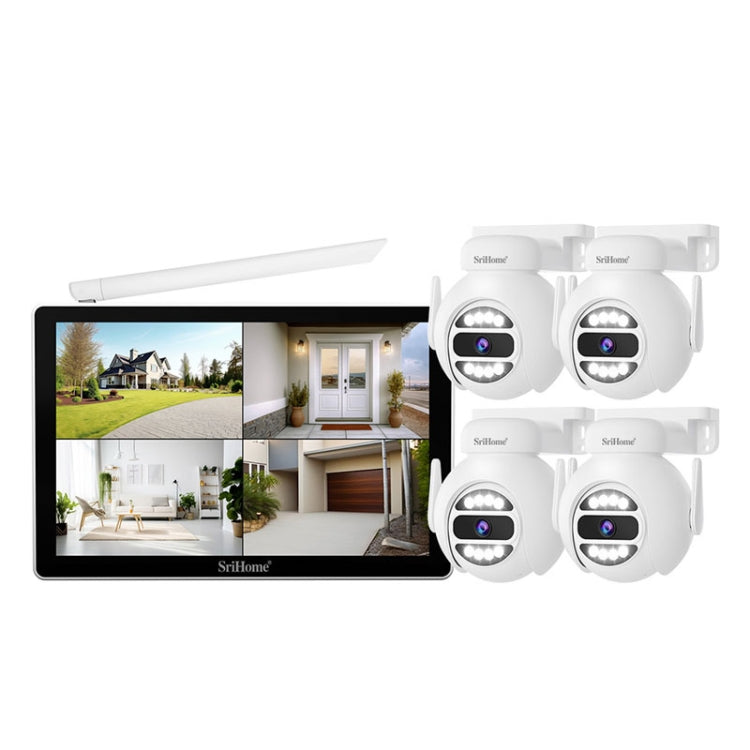

Set list 1. NVS001 host x 1 2. IPC047 camera x 4 3. Power adapter 12V2A power supply (NVR) x 1, 12V0.5A power supply (camera) x 4 4. Screw pack x 5 5. Instruction manual x 1 6. Network cable x 1
