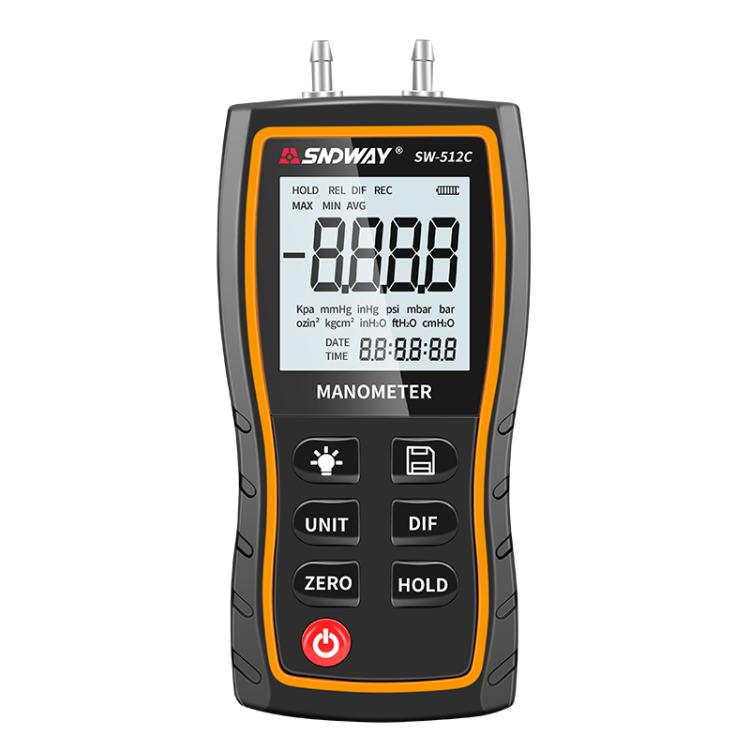

SNDWAY SW-512C Digital Handheld Differential Pressure Gauge Negative Pressure Tester
SNDWAY SW-512C Digital Handheld Differential Pressure Gauge Negative Pressure Tester
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

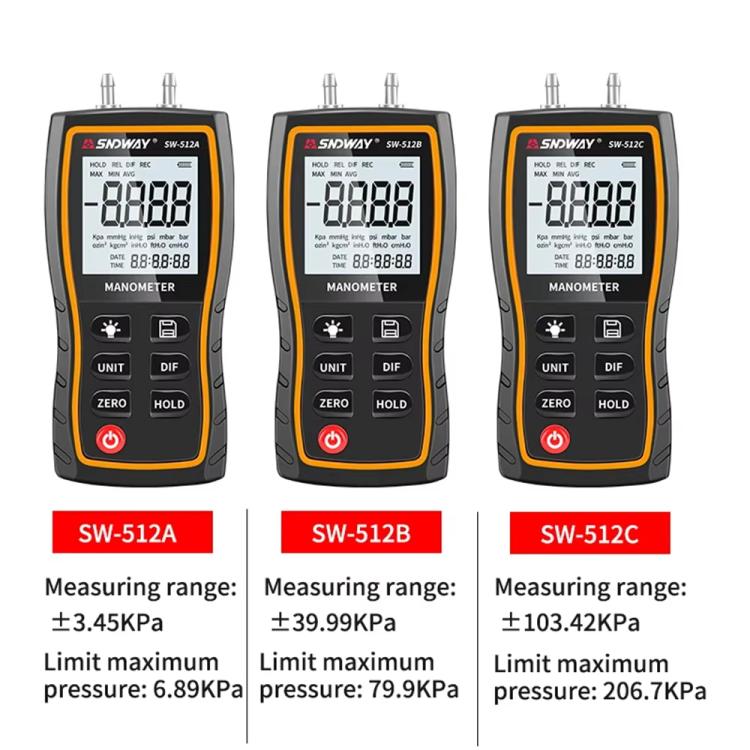

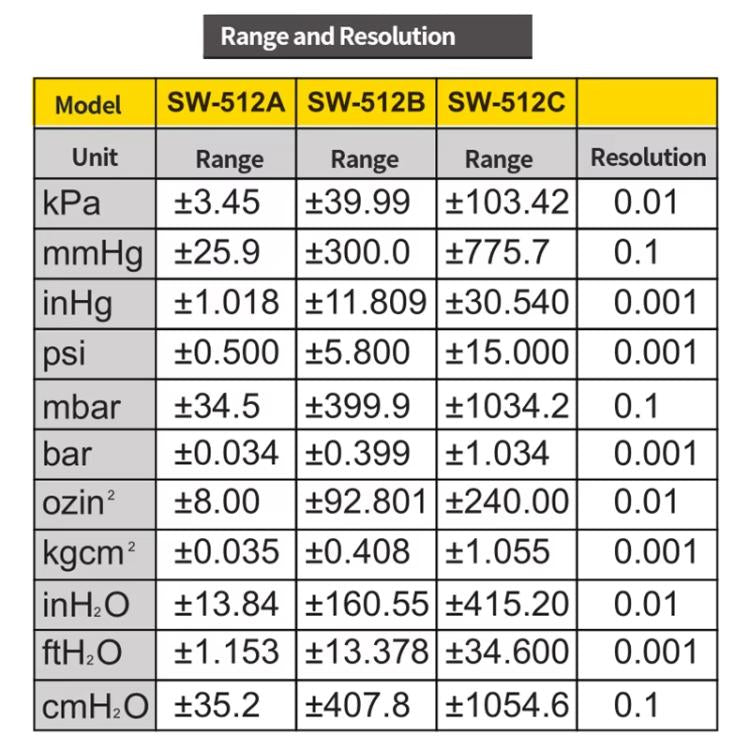

1. Measuring range:
- SW-512A: +/-3.45KPa
- SW-512B: +/-39.99KРa
- SW-512C: +/-103.42KPa
2. Accuracy:
- SW-512A: +/-1%FS, maximum error 35Pa
- SW-512B: +/-1%FS, maximum error 400Pa
- SW-512C: +/-1%FS, maximum error 1.04KPa
3. Limiting maximum pressure:
- SW-512A: 6.89KPa
- SW-512B: 79.9KPa
- SW-512C: 206.7KРa
4. Repeatability: +/-0.25%FS
5. Response time: 0.5S
6. Pressure connection: one 1/8 inch (3.18mm) quick connector
7. Working temperature and humidity: 0 - 40 degrees Celsius 10% - 80% RH
8. Storage temperature and humidity: -10 - 60 degrees Celsius 10% - 90%RH
9. Over-range prompt: Err1 or Err2
10. Power supply: 3 x 1.5V AAA (not included)
11. Size: about 13.85 x 6.35 x 2.7cm
12. Weight: about 120g
Features:

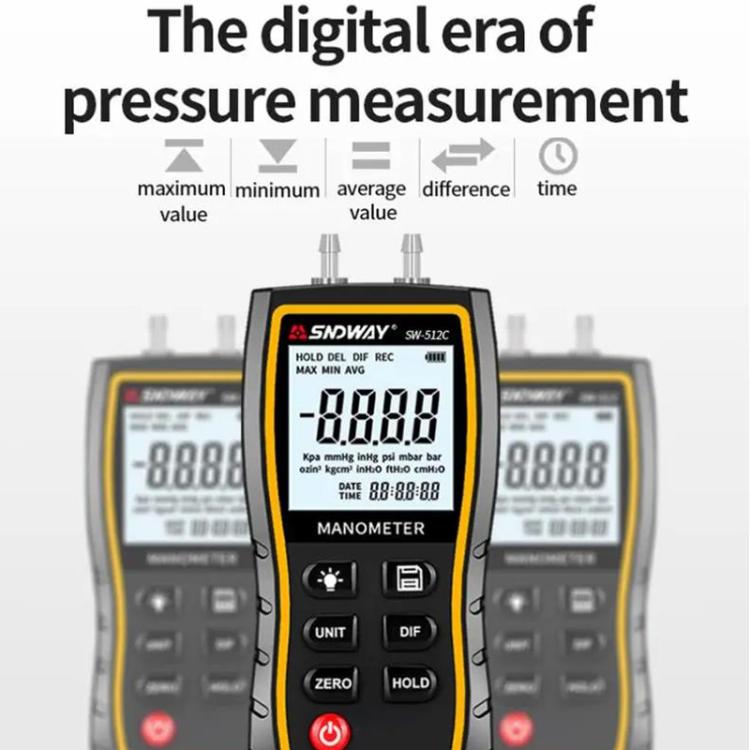

1. Switch between multiple pressure units, directly output data without further calculation
2. Positive and negative pressure sensors

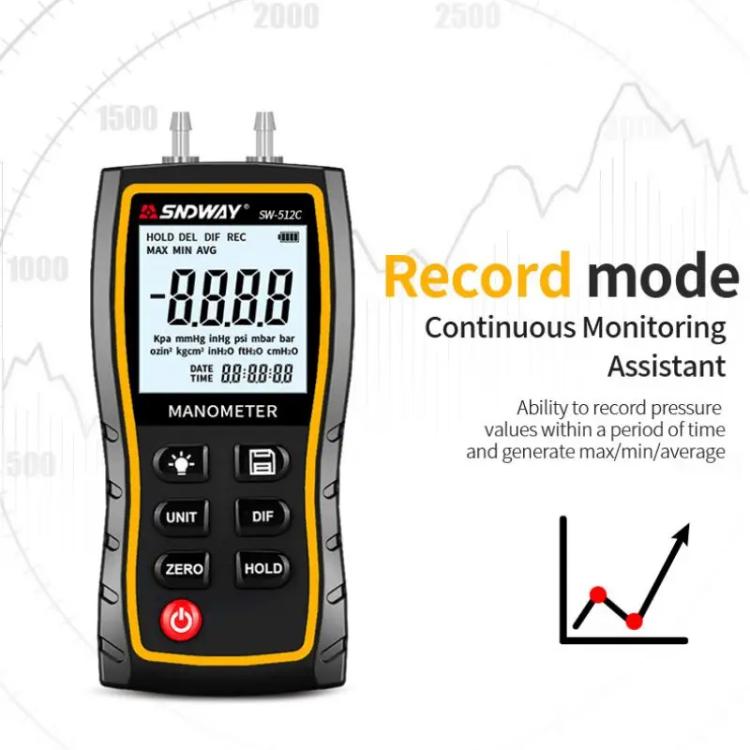

3. Recording mode, can record pressure values ??within a period of time and generate maximum/minimum/average values

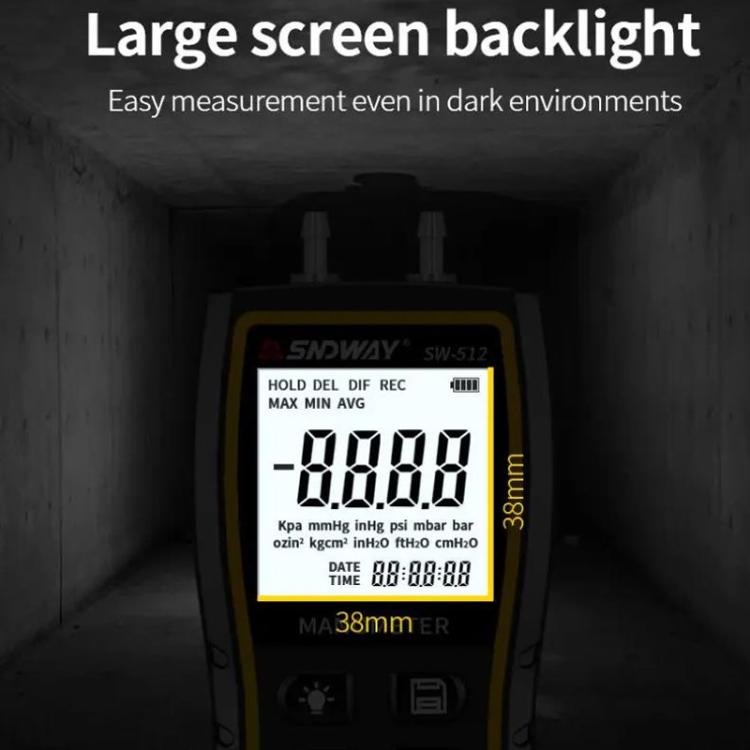

4. Large screen backlight, easy to measure in dark environment

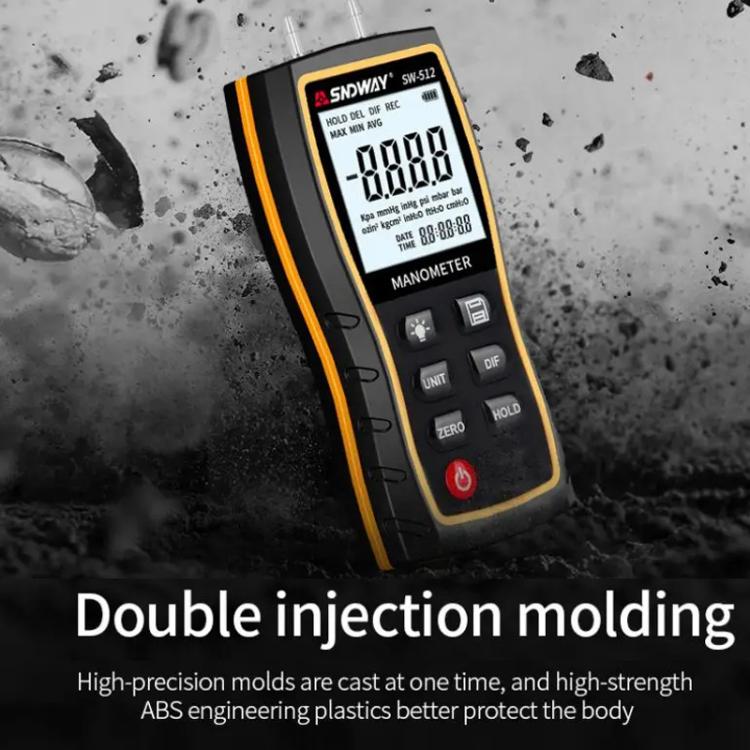

5. High-precision mold cast in one time, high-strength ABS engineering plastic better protects the fuselage

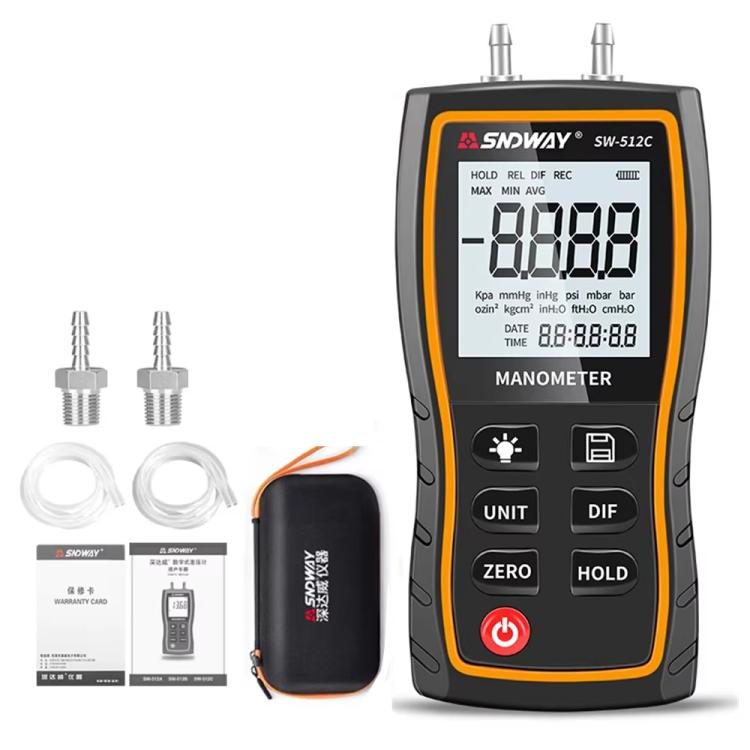

Packing list:
- Differential pressure gauge x 1
- Instruction manual x 1
- Adapter x 2
- Silicone tube x 2
- PVC tube x 2
- Carrying bag x 1
