SMART SENSOR

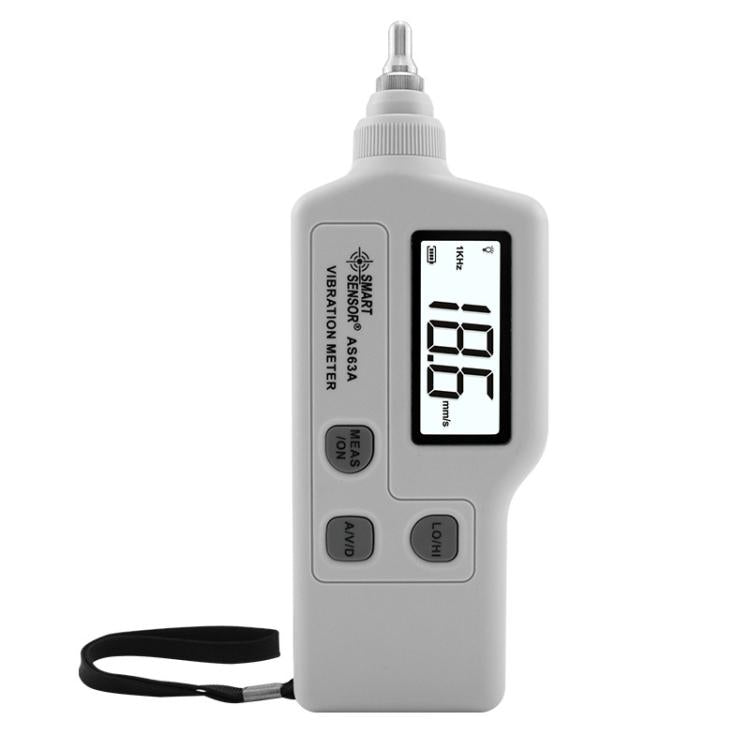

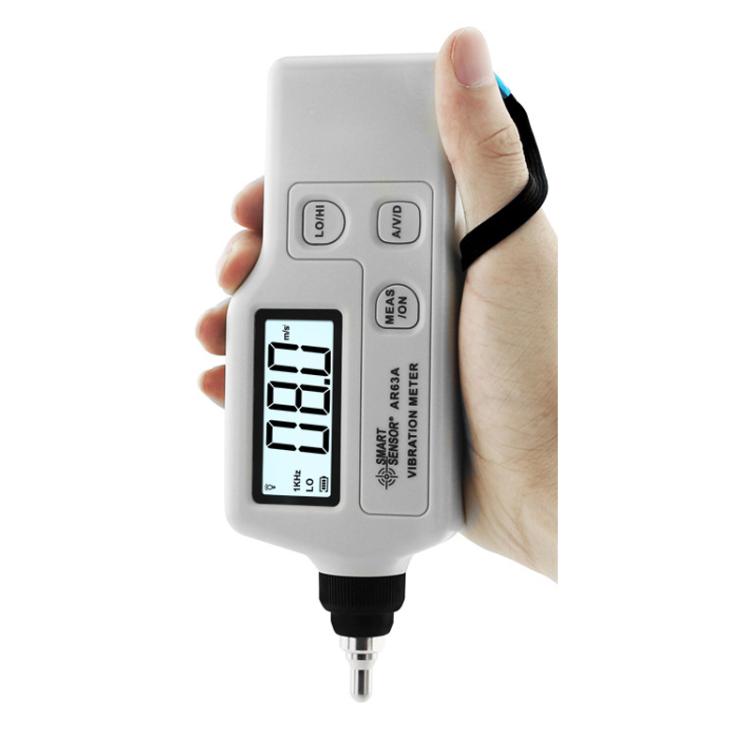

SMART SENSOR Portable Handheld Motor Vibration Analyzer(Ivory White)

Name: SMART SENSOR Portable Handheld Motor Vibration Analyzer(Ivory White)
Brand: SMART SENSOR
SKU: TBD0606582601A
Availability: InStock

$161.00

Sale Sold out

In stock

Fast Delivery

30-Day Returns

1-Year Warranty

Shipping Information

FAST DELIVERY to UK & 40+ countries.

Delivery: Typically 4-8 working days total including 1-3 days handling to the UK (estimated times for other locations shown at checkout)

Import duties and taxes may apply depending on destination. UK orders under £135 or less ship DDP with no extra charges at delivery. Orders over £135 may have import duties.

Ships from China. Your order will be processed and dispatched from the warehouse within 1–3 days if you order by 12 AM London.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered, any costs to you will be refunded.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Easy Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by DIY & repair professionals in 40+ countries

• Product type: Other Tester Tool
• Brand: SMART SENSOR
• Compatibility: Vibration analysis
• Material: Not specified
• Key feature: Built-in backlight display
• Color/Variant: Ivory White
• Intended use: Everyday use
• Category: Consumer Electronics

1. Vibration acquisition: piezoelectric ceramic accelerometer (shear type)

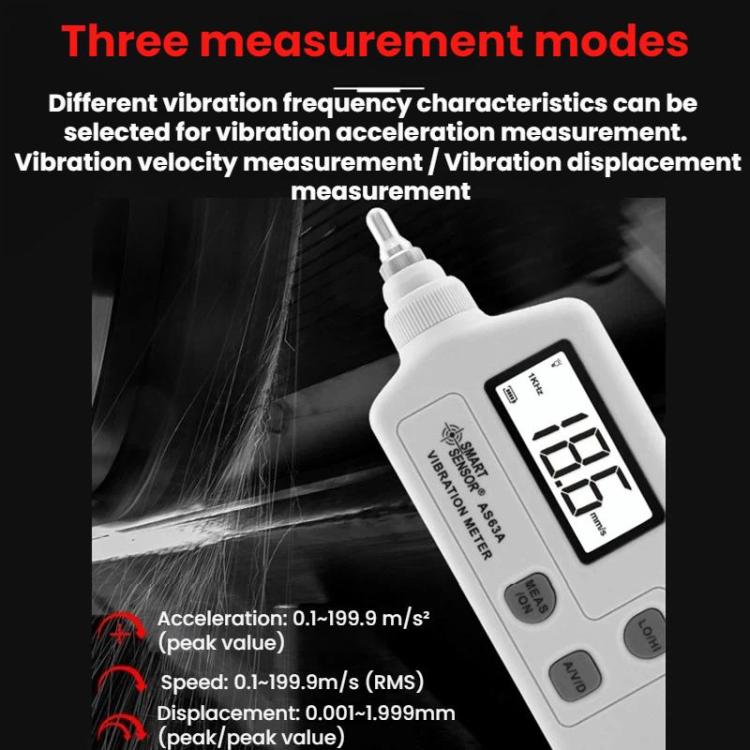

2. Acceleration measurement range: 0.1~199.9 m/s2 peak
3. Velocity measurement range: 0.1~199.9 mm/s RMS
4. Displacement measurement range: 0.001~1.999 mm peak-to-peak
5. Acceleration measurement frequency range: 10Hz~1KHz (LO) 1KHz-15KHz (HI)
6. Velocity measurement frequency range: 10Hz~1KHz (LO)
7. Displacement measurement frequency range: 10Hz~1KHz (LO)
8. LCD display: 3.5-digit digital display
9. Display data update cycle: 1 second
10. Power supply: 9V battery (not included)
11. Static current: 20mA
12. Working current: 25mA
13. Automatic shutdown function: automatically shuts down after 1 minute of inactivity
14. LCD backlight function: backlight turns off after 7 seconds of inactivity
15. Low battery indicator: 6.4V
16. AC signal output: AC output 2V peak (full scale)
17. Data lock function: yes

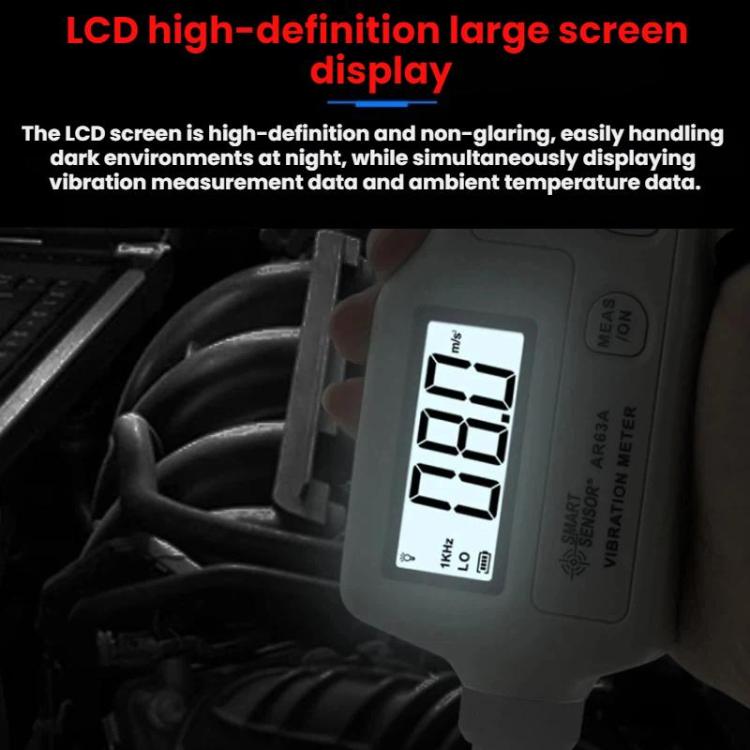

18. The instrument features a built-in backlight display for easy use in low-light conditions and displays the current ambient temperature.

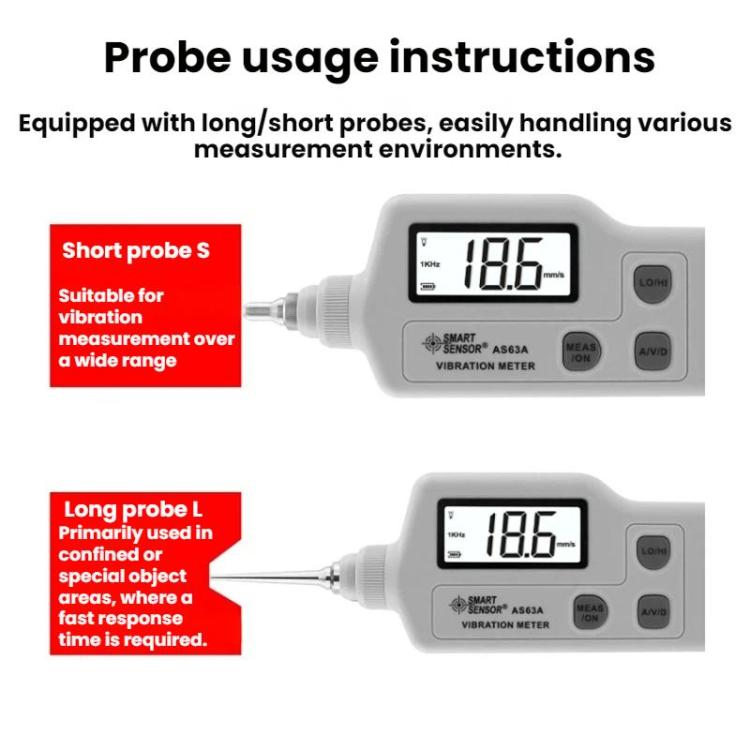

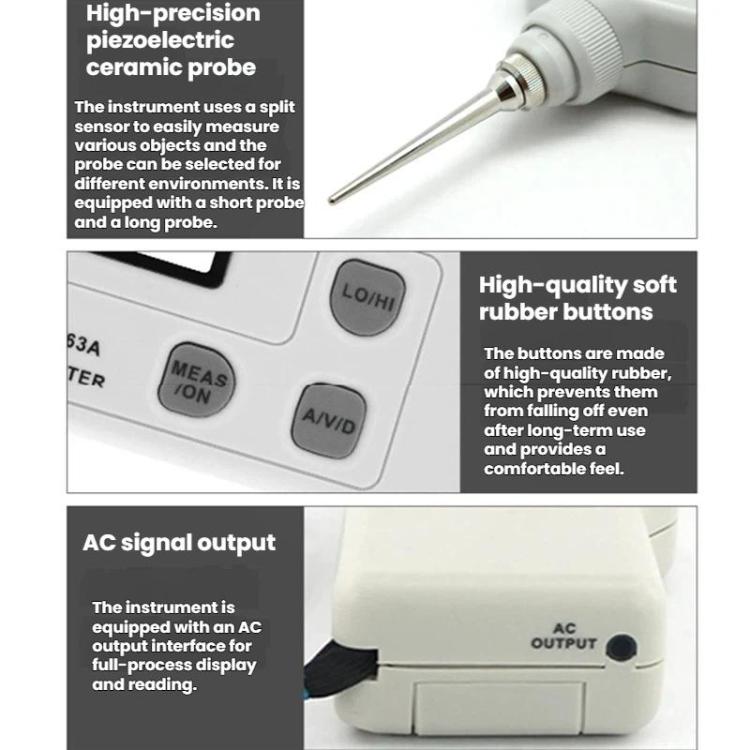

19. High-precision piezoelectric ceramic probe; the instrument uses a separate sensor for easy measurement of various objects and environments, with short/long probes available.
20. The buttons are made of high-quality rubber material, ensuring comfortable use and durability.
21. The instrument is equipped with an AC output interface for full-scale display reading.
22. Dimensions: 67x30x183mm
23. Weight: 147g (excluding battery and accessories)
