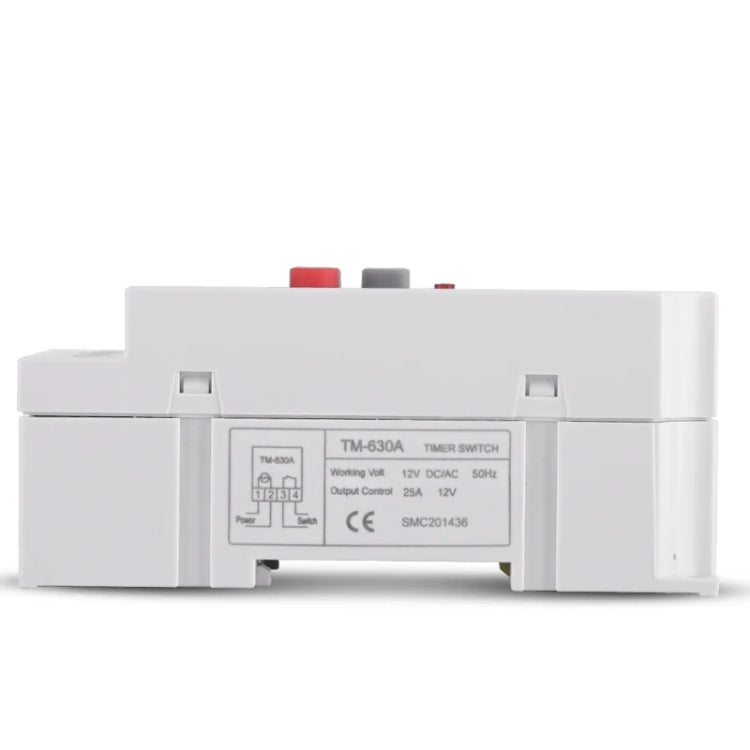

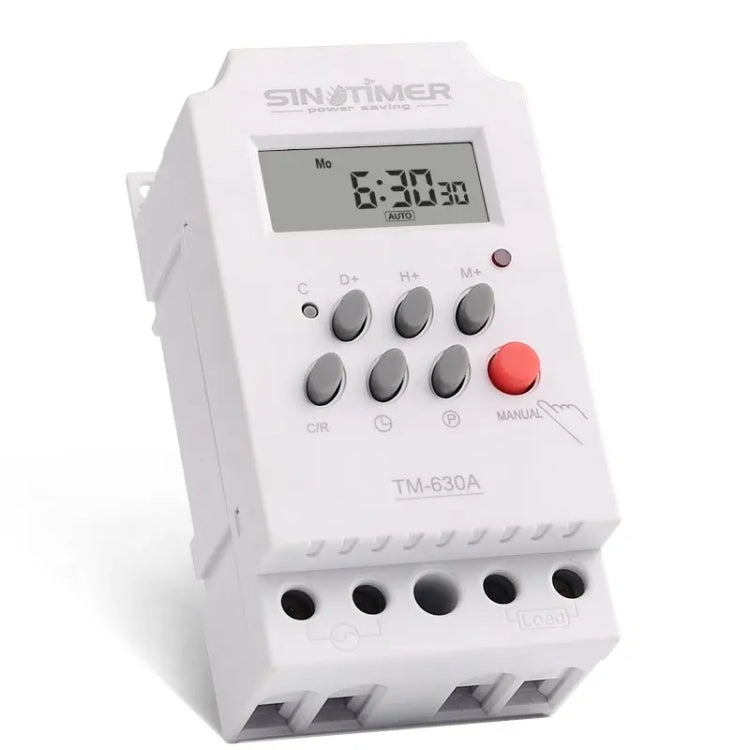

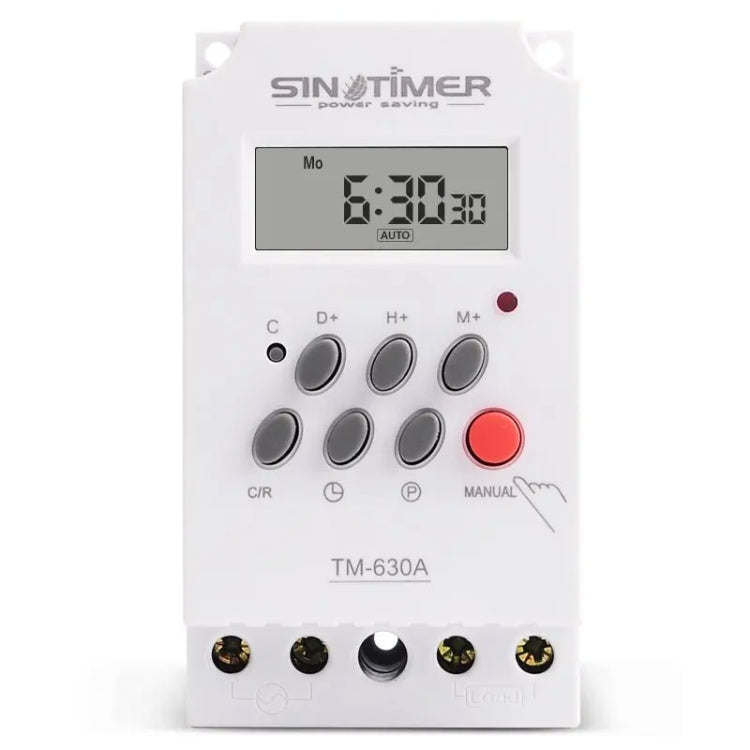

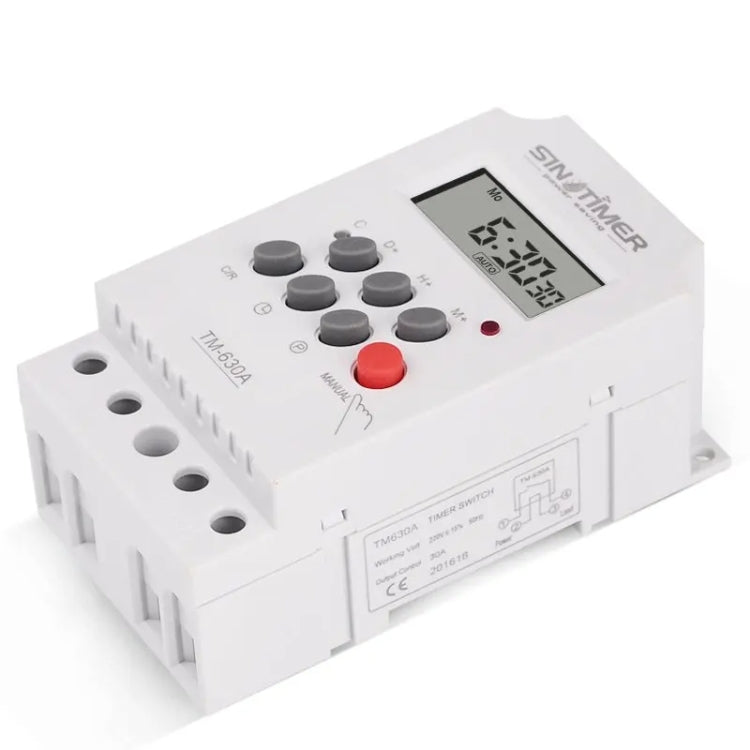

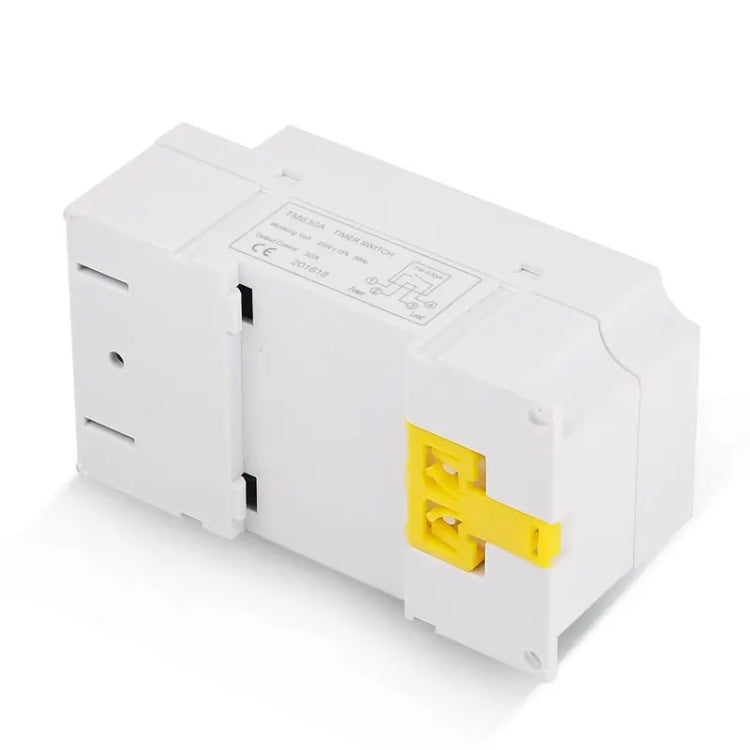

SINOTIMER TM630A-4 12V DC Timer Switch Din Rail Digital Weekly Programmable Time Relay

Features:
1. 6500 Watts/30 Amps
2. 24 Hours/7 Days per Week Programmable
3. Internal Battery for Memory Backup in Case of Power Failure
4. Weekly Automatic Time Error +/- 30 Seconds
5. Repeating Program with 17 On/Off Settings and Manual On/Off Settings

Parameters:
1. Temperature Range: -20 to 50 Degrees Celsius

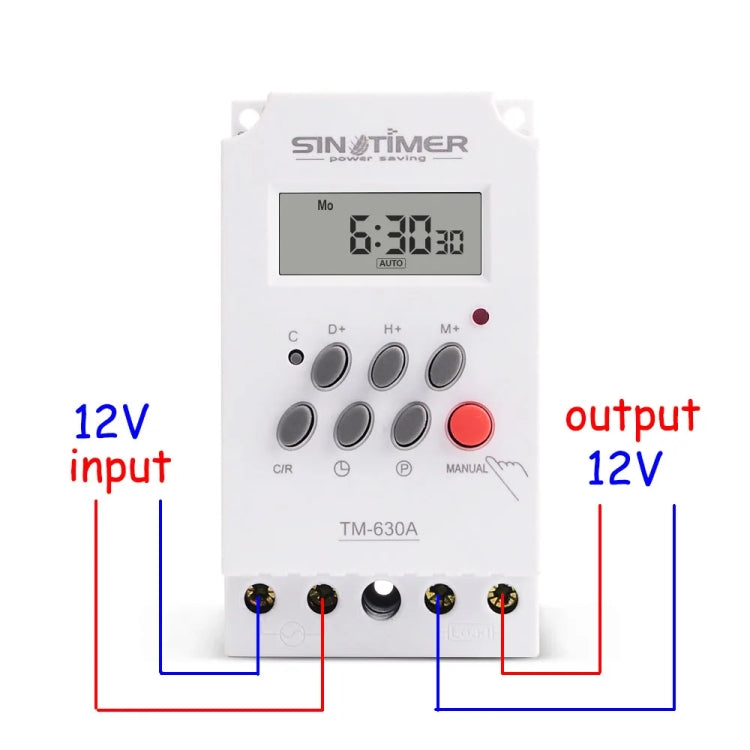

2. Power Supply: 12V DC/AC
3. Power Consumption: 3.5 VA (Maximum)
4. Display: LCD
5. Switch Contacts: 1 Changeover Switch
6. Programs: 17 On/Off Daily or Weekly
7. Hysteresis: 2 Seconds/Day (25 Degrees Celsius)
8. Minimum Interval: 1 Minute
9. Capacity: 30(16) 250V AC
10. Power Failure: 60 Days
11. Timer Range: 1 Minute~168 Hours
12. Rechargeable battery: 1.2V 40Ma
13. Average error: 1s/24h, 25 degrees Celsius
