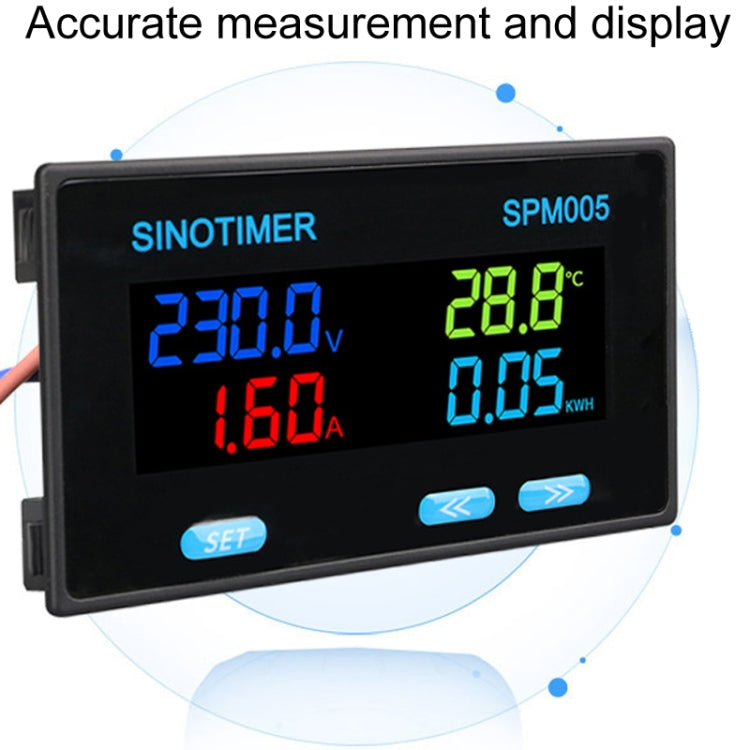

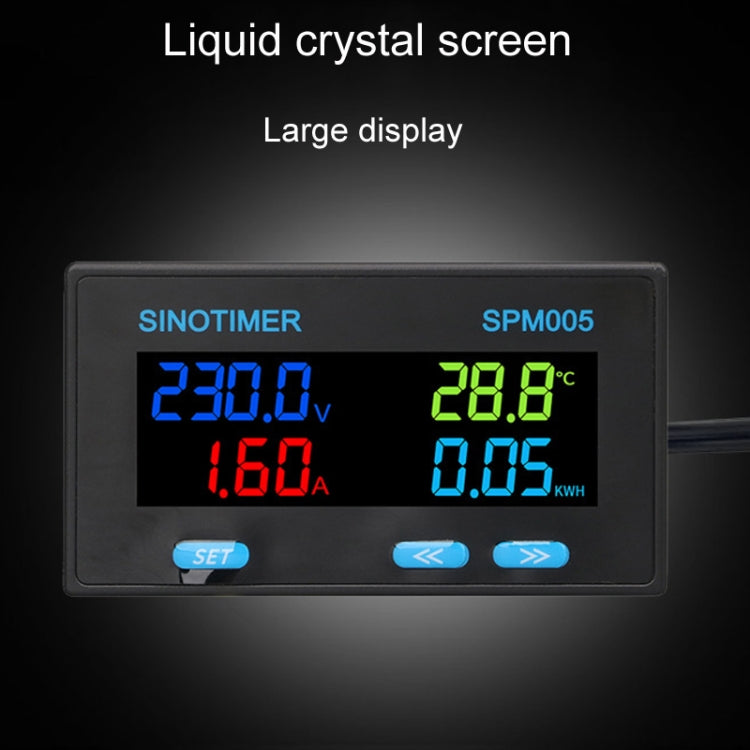

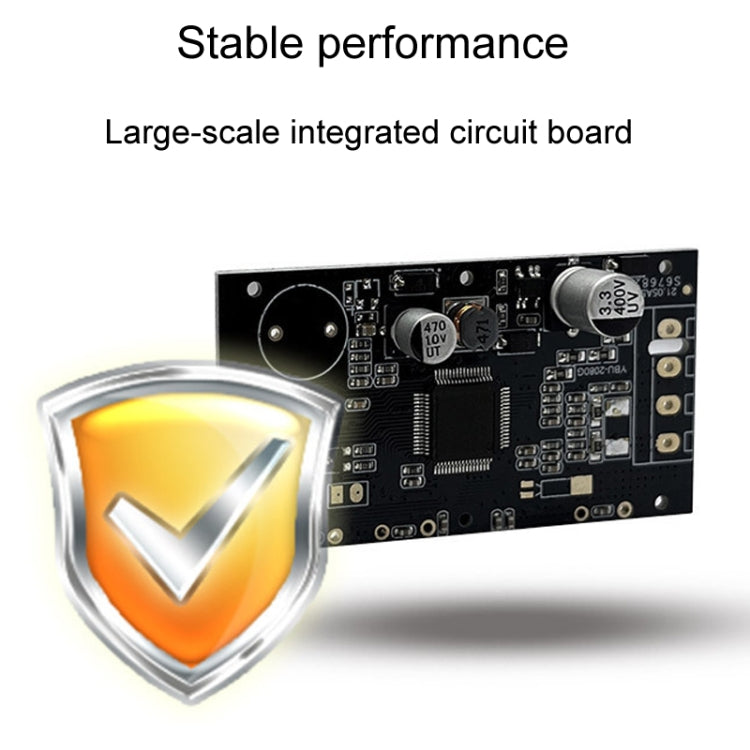

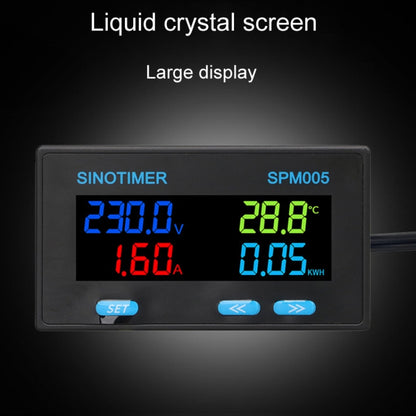

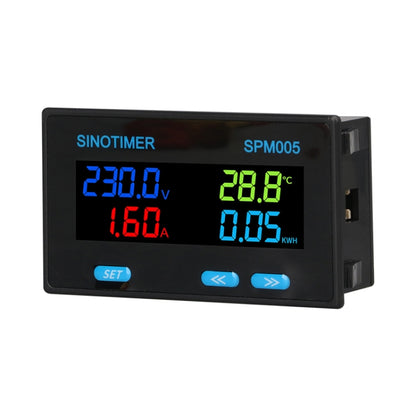

1. The instrument adopts color LCD screen display, 4 areas display 8 kinds of power parameters 2. Function: display voltage, current, temperature, power, power factor, operating time, frequency, electrical energy 3. The instrument adopts 32-bit microcontroller operation, fast response speed and accurate operation 4. High precision, multiple display mode switching, to meet the customers application scenario requirements 5. Large-scale integrated circuit boards and SMT technology to ensure accurate metering

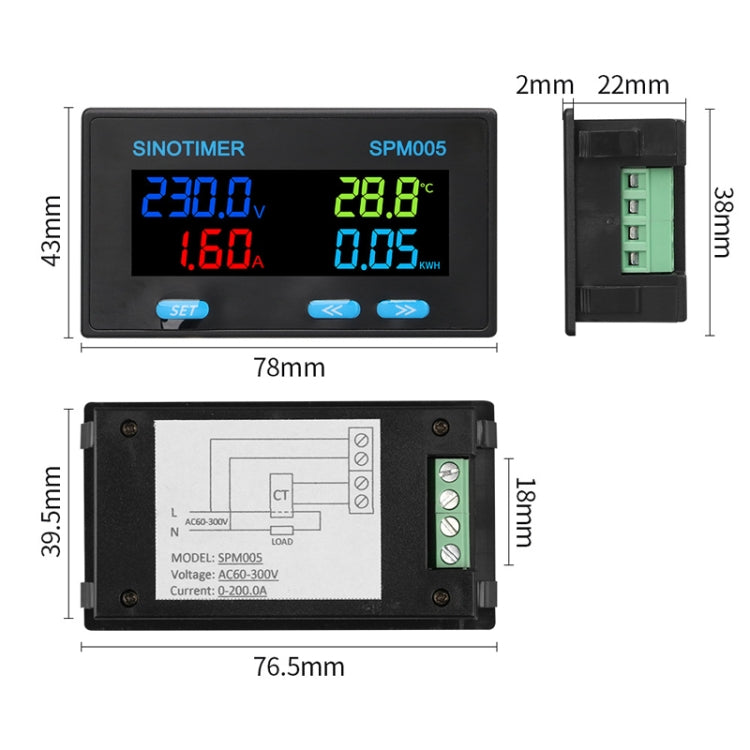

Parameters: 1. Working voltage: AC60-300V 2. Display refresh: 3 times/s 3. Voltage range: AC60-300V 4. Current range: 0-20.00A; 0-100.0A; 0-200.0A 5. Temperature range: -50-200 degrees celsius 6. Power range: 0.01W-99999KW 7. Frequency accuracy: 0.01Hz 8. Electrical energy range: 0.01-99999kWh 9. Time range: 0.01 hours-99999 days 10. Memory data: 10 years 11. Ambient temperature: -10-60 degrees celsius 12. Humidity: less than or equal to 85 percent RH 13. Overall dimensions: 78 x 43 x 23mm 14. Color screen size: 60 x 19mm 15. Hole size: 76.5 x 39.5mm
