Features 1. Compact size and lightweight. 2. Designed for drones, UAV, RC equipment etc.. 3. 3000mW 2.4GHz UAV RC wifi signal booster amplifier. 4. Designed for use in a variety of mobile and wireless networking applications. 5. Result in a further reaching signal and better connectivity.
Parameters 1. Model No.: SH-RC24G3W 2. Operating Range: 2.4~2.5 GHz 3. Channel Size: 20Mhz & 40Mhz 4. Support Standard: IEEE 802.11/b/g/n 5. Operating Mode: bidirectional transmission mode, half-duplex transmission mode and time division duplex transmission mode 6. Connector Type: SMA 7. Output Power: 3000mW (35dBm) 8. Input Power: 0~20 dBm 9. Transmission Gain: 15-18dB 10. Receiver Gain: =< 12 dB 11. Noise Figure: =< 3.5 dB 12. Supported Voltage: 5V~16V/2A DC 13. Operating Temperature: -20 degree C to +70 degree C 14. Operating Humidity: Up to 75% relative humidity 15. Material: Aluminum Alloy 16. Booster Weight: 46g, Booster Size: 7.3 x 4 x 1cm

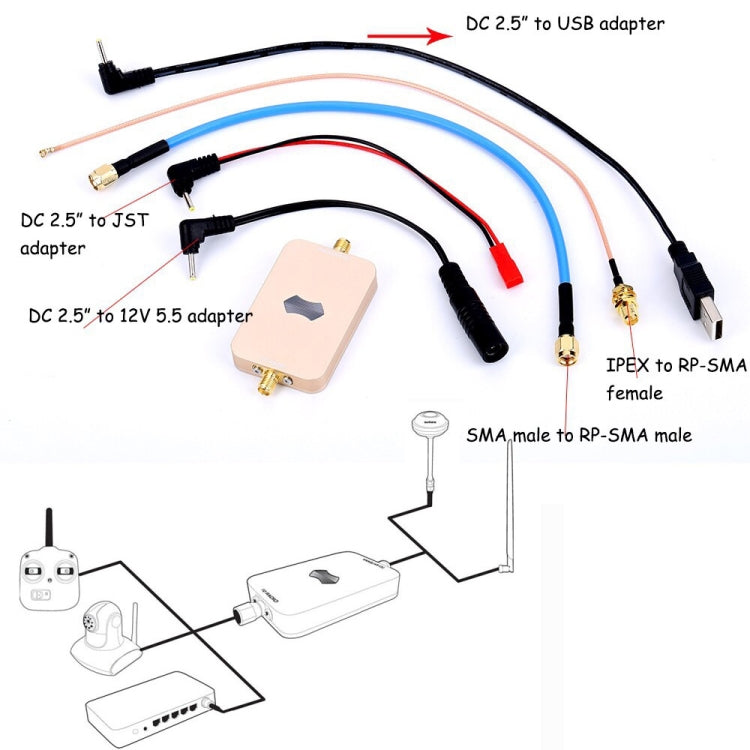

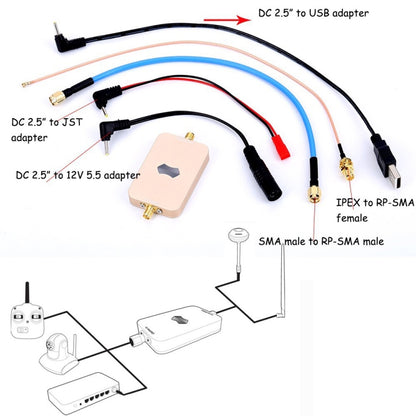

Package List 1. WiFi Signal Booster Amplifier x 1 2. RG141 20cm Cable x 1 3. DC 2.5 inch to 12V 5.5 inch Cable x 1 4. DC 2.5 inch to USB Cable x 1 5. DC 2.5 inch to JST Cable x 1 6. Magic Tape x 1 7. User Manual x 1
