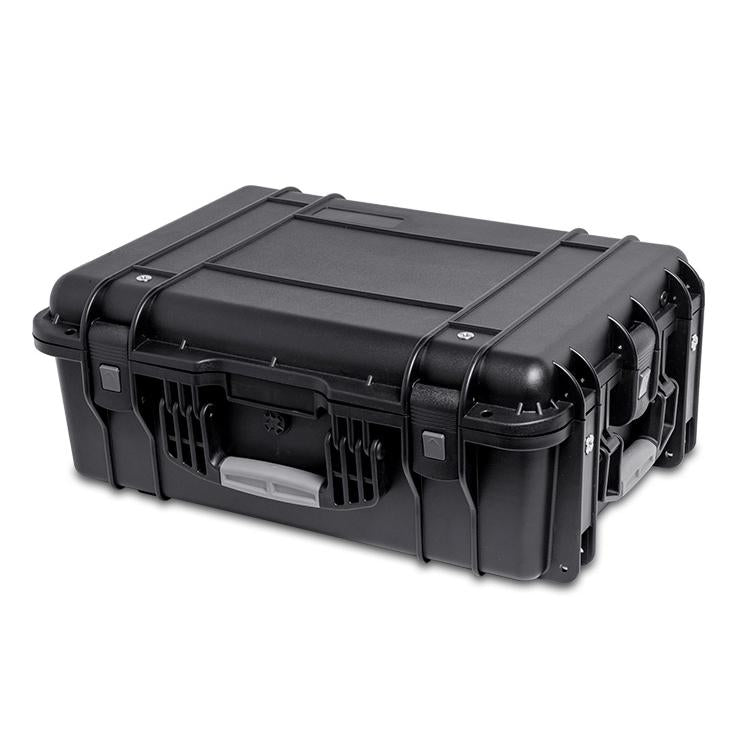

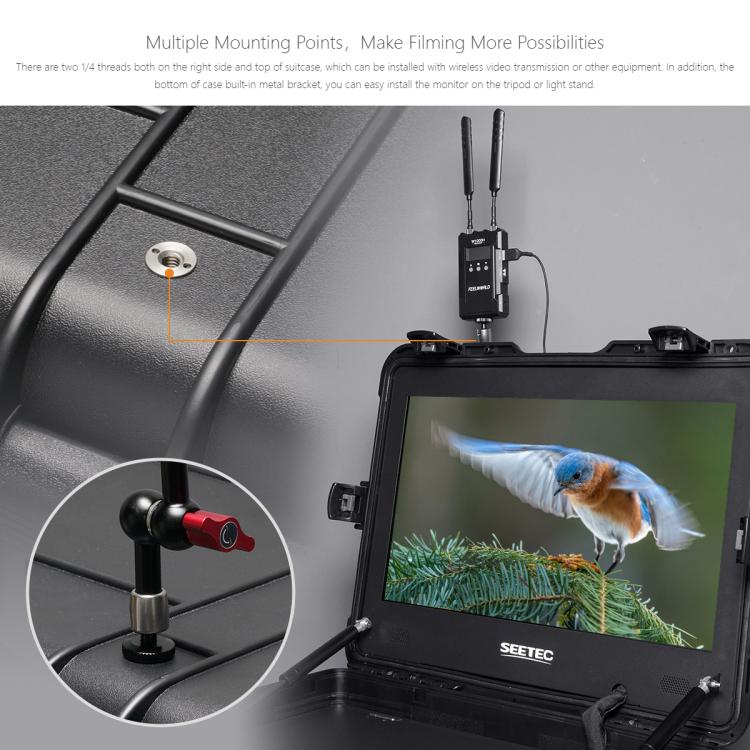

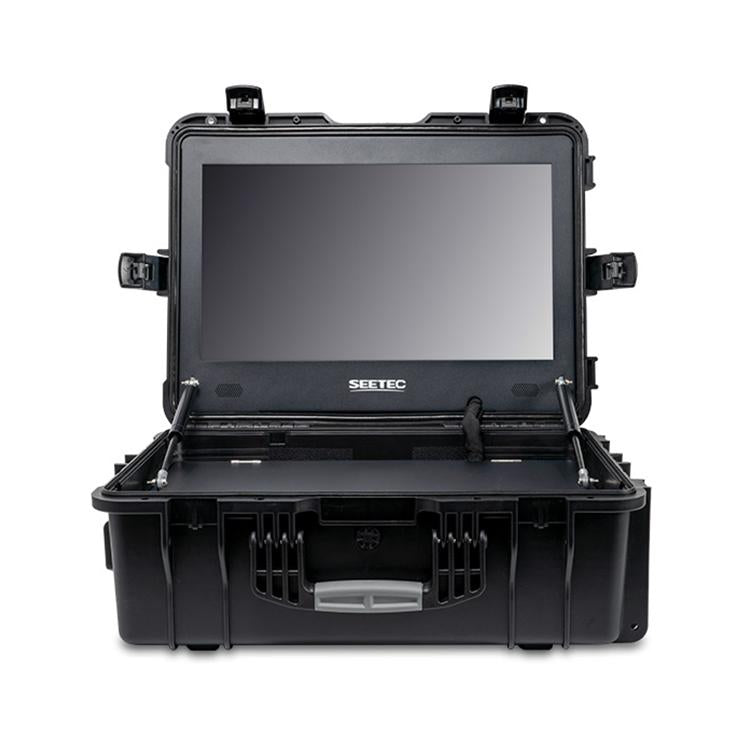

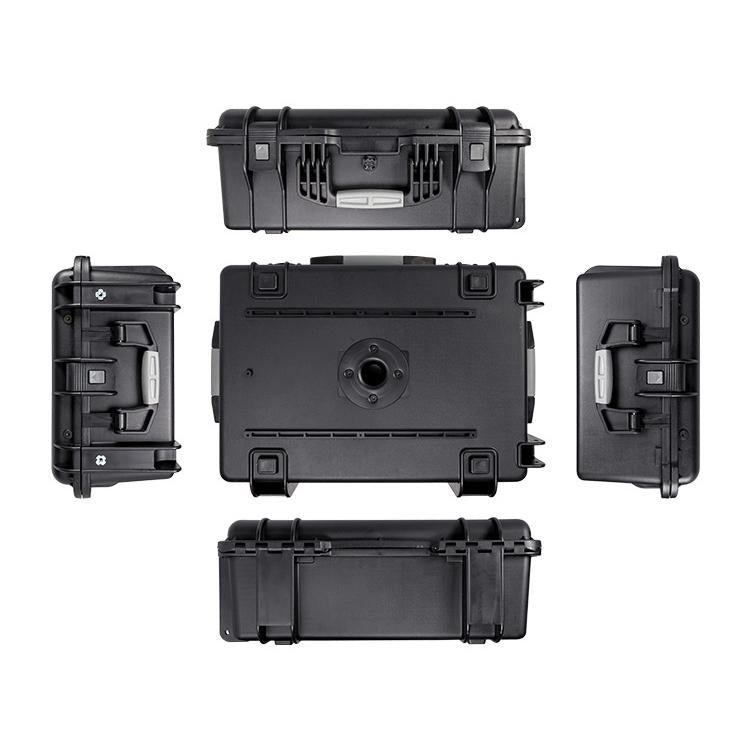

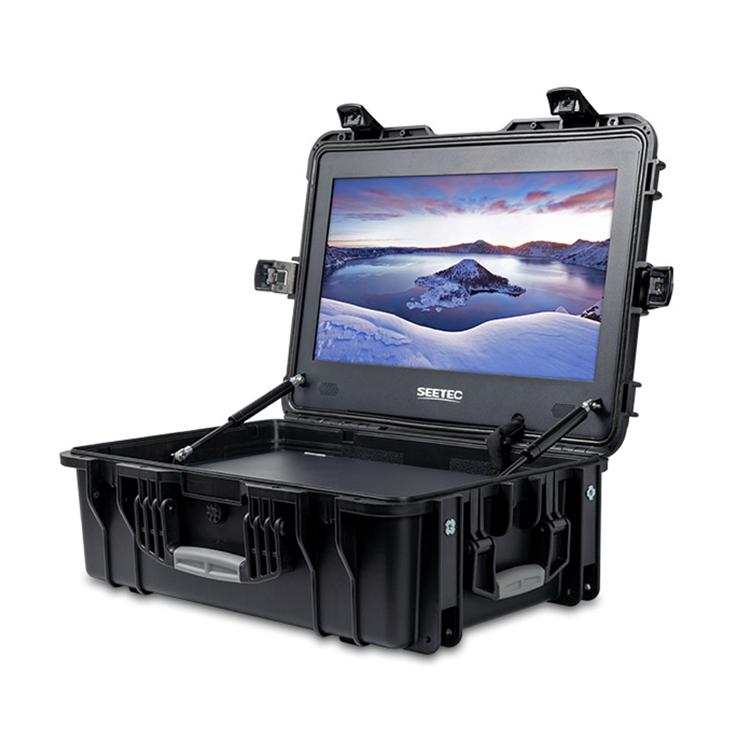

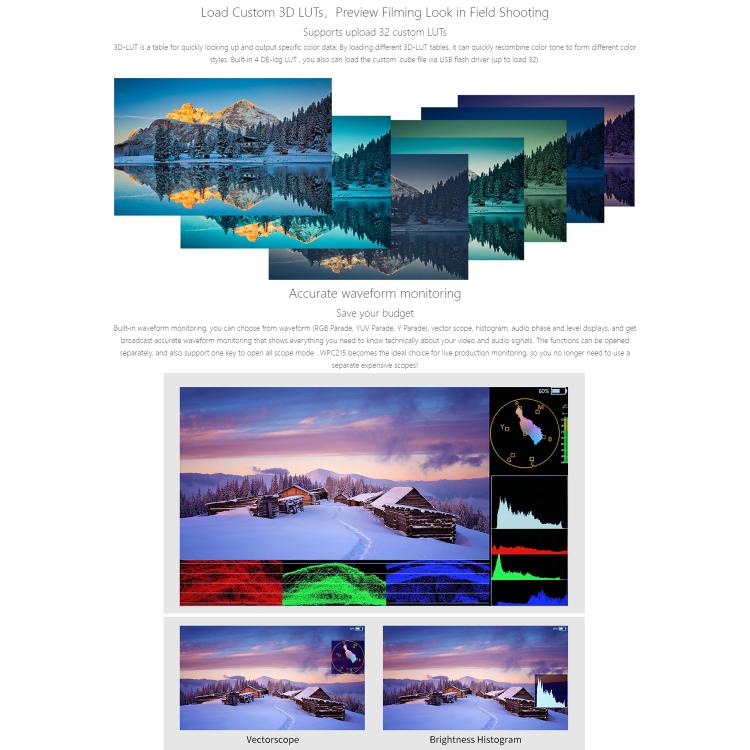

Features 1. 21.5-inch 1920x1080 full HD large screen 2. Portable waterproof case, easily cope with various harsh shooting environments 3. 1000nits high brightness, ideal choice outdoor shooting 4. Flexible and intuitive button operation, easy to use 5. Custom 3D-LUT, preview film look 6. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot. 7. HDMI support up to 4K at 30Hz 8. With multiple 1/4 screw thread, can be mount wireless transmission and other device. 9. The bottom of case built-in metal bracket, can mount the monitor on the tripod. 10. Stereo Earphone output

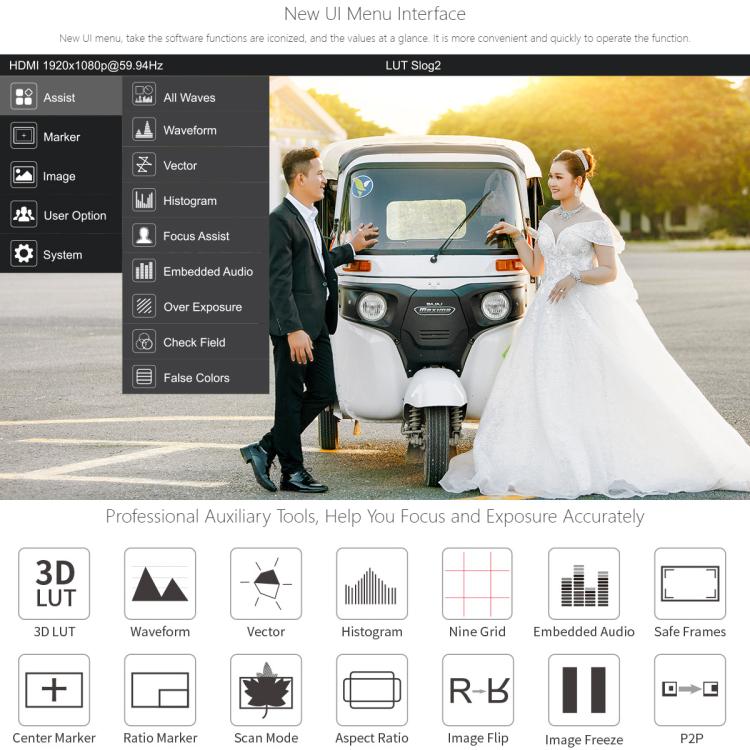

Functions 1. All waves (waveform, vector, histogram and embedded audio) 2. Waveform (RGB, YUV, Y) 3. Vector 4. Histogram(RGB1, RGB2, Y) 5. Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus) 6. Embedded Audio 7. Over Exposure (10~100) 8. Check Field (Red, Green, Blue, Gray) 9. False Color 10. Nine Grid 11. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) 12. Center Marker 13. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) 14. Scan Mode (Under Scan, Over Scan) 15. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) 16. Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) 17. Image Flip (H Flip, V Flip, H_V Flip) 18. Zoom Mode(2X, 4X, 9X, 16X, User) 19. Freeze 20. Pixel to Pixel 21. 3D-LUT 22. Colortemp (5600K, 6500K, 9300K, User)

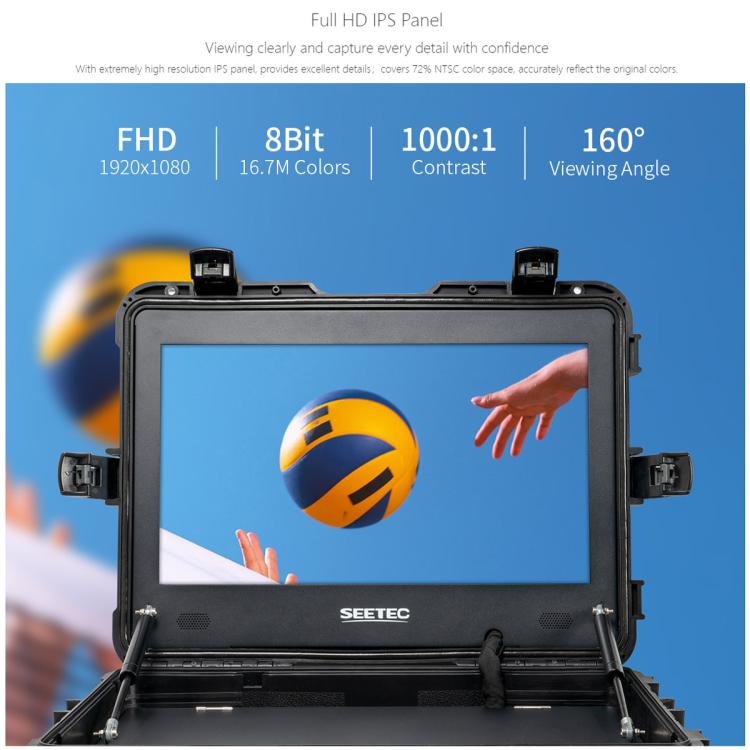

Specifications Display Screen: 1. Model: WPC215 2. Screen Size: 21.5 inch IPS 3. Color Depth: 16.7M 4. Resolution: 1920 x 1080 pixels 5. Pixel pitch: 0.24795(W) x 0.24795(H) mm 6. Aspect Ratio: 16:9 7. Brightness: 1000cd/m2 8. Contrast Ratio: 1000:1 9. Backlight: LED 10. Viewing Angle: 89 degrees /89 degrees (L/R) 89 degrees / 89 degrees (U/D)

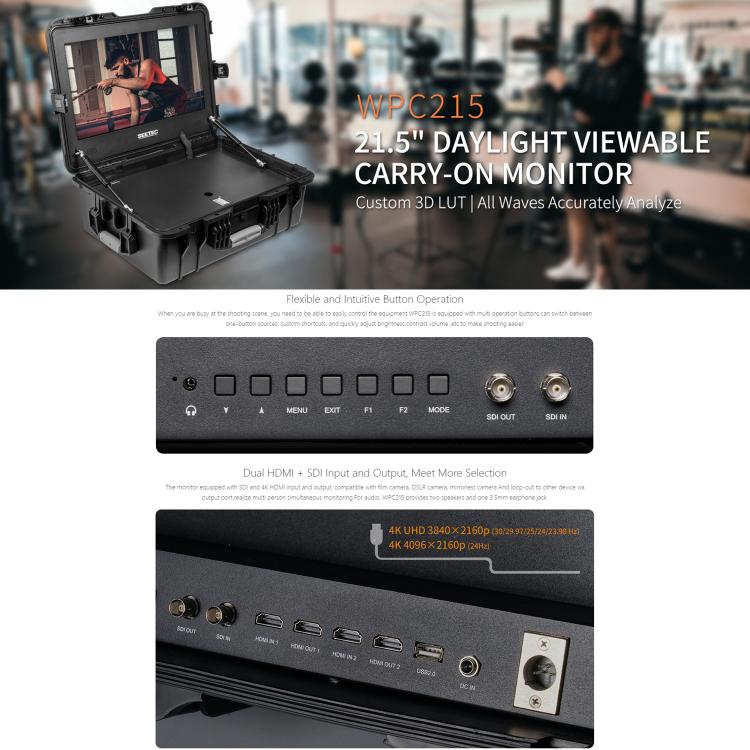

Input: 1. 1 x 3G-SDI: 3G-SDI 2. 2 x HDMI: HDMI-A (up to 4K at 30) 3. 1 x USB: USB (upgrade and LUT import)
Output: 1. 1 x 3G-SDI: 3G-SDI 2. 2 x HDMI: HDMI-A (up to 4K at 30)
HDMI Support Format: 1. 480i/576i/480p/576p 2. 720p (60/59.94/50/30/29.97/25/24/23.98) 3. 1080i (60/59.94/50) 4. 1080p (60/59.94/50/30/29.97/25/24/23.98) 5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98 Hz), 4096 x 2160p (24Hz)

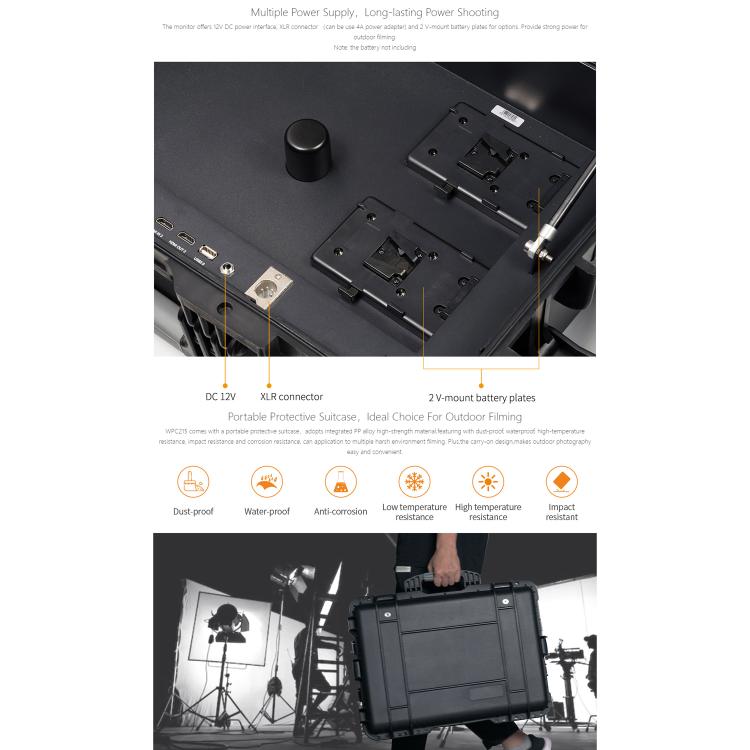

General: 1. Input Voltage: DC 12V 2. Power Consumption: Less than or equal to 38W 3. Working Temperature: 0 degree C~50 degree C 4. Storage Temperature: -20 degree C~60 degree C 5. Unit Size: 596 x 440 x 240mm 6. Unit Weight: 14.8kg
Package List 1. Monitor x 1 2. Power Adapter x 1 3. SDI Cable x 1 4. Mini HDMI Cable x 1 5. V-mount Battery Plate (default to mount on device) x 2 6. User Manual x 1
