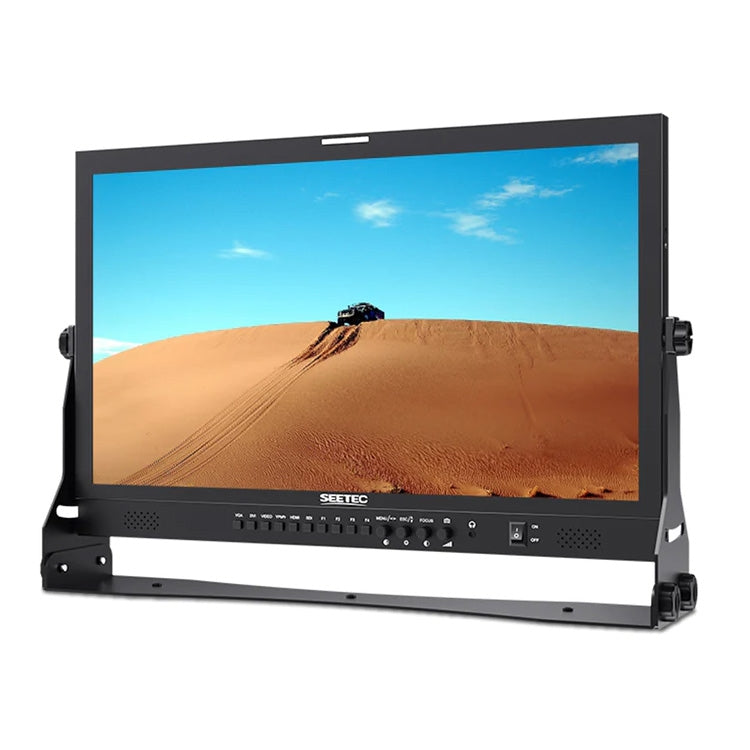

SEETEC P238-9HSD 23.8 inch 1920x1080 IPS Full HD 3G-SDI 4K HDMI Pro Broadcast LCD Monitor(US Plug)

Name: SEETEC P238-9HSD 23.8 inch 1920x1080 IPS Full HD 3G-SDI 4K HDMI Pro Broadcast LCD Monitor(US Plug)
Brand: SEETEC
SKU: EDA005656401B
Availability: InStock

$1,007.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

Features:
1. Wide view angle, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
- Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
- Check Field (Red, Green, Blue, Mono)
- Camera Mode
- Pixel to Pixel
- Center Marker
- Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (Horizontal, Vertical, Hor&Ver)
- Image Freeze
- Zoom All
- U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR

Specifications:
Display Spec.
1. Model: P238-9HSD
2. Screen Size: 23.8 inch IPS
3. Color Depth: 16.7M (8-bit)
4. Resolution: 1920x1080 pixels
5. Pixel Pitch: 0.2745 (H) x 0.2745 (V)mm
6. Aspect Ratio: 16:9
7. Brightness: 250cd/m2
8. Contrast Ratio: 1000:1
9. Backlight: LED
10. Viewing Angle: 89degrees/89degrees/(L/R); 89degrees//89degrees/(U/D)

Input
- 1 x BNC: 3G-SDI
- 1 x HDMI: HDMI
- 3 x BNC: YPbPr
- 1 x DVI-I: DVI-I
- 1 x BNC: Video
- 2 x RCA: Audio(L/R)

Output
- 1 x BNC: 3G-SDI
- 1 x HDMI: HDMI
- 3 x BNC: YPbPr
- 1 x BNC: Video

Audio
- Audio: Stereo Headphone, Speaker

SDI Support Format
- 480i/576i
- 720p(60/59.94/50/30/29/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

Standard Accessories:
1. Mini HDMI Cable x 1
2. V Battery Plate (default to mount on device) x 1
3. 3A Power Adapter x 1
4. Tally Kit x 1

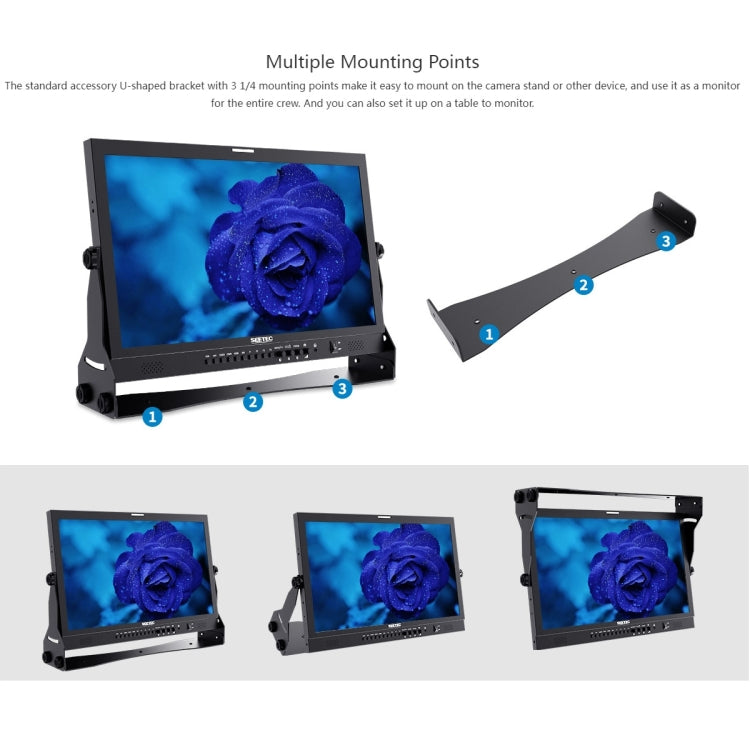

5. U-shape Bracket x 1
6. Operation Manual x 1
