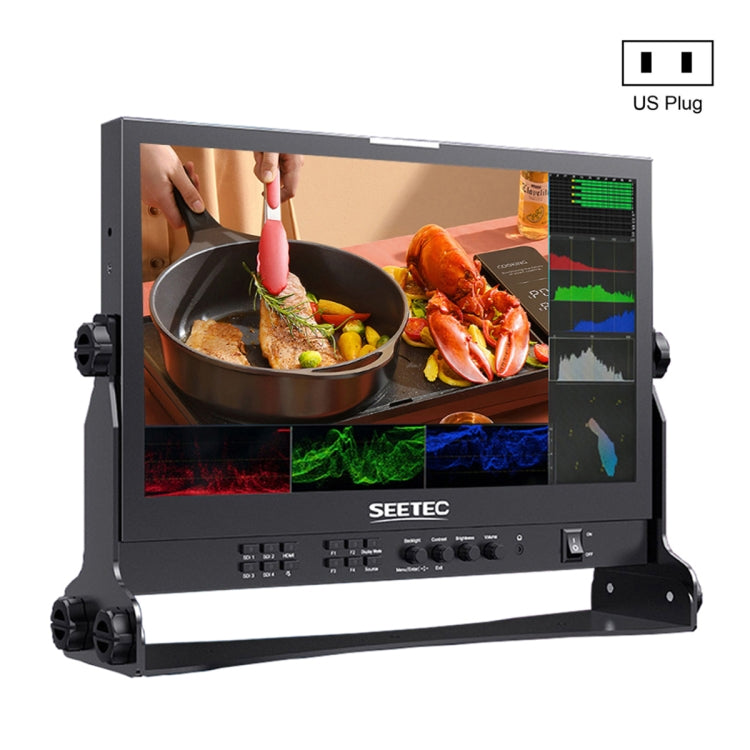

SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(US Plug)
SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(US Plug)
SKU: DCA1818US
Regular price
$1,545.00
Regular price
Sale price
$1,545.00
Duties & Import Tax Information
Duties are only included if shown at checkout. Otherwise, your local government may apply customs fees, which your courier will collect directly from you before delivery.
In Stock
CHN
This item is shipped from China.
Processed in 0–3 days
Quantity
Couldn't load pickup availability
Shipping info
To find all available shipping methods and exact delivery times, add the product to your cart and check using our shipping calculator.
30-day returns
Fast refunds: Once we receive and check your item, we aim to process your refund within 48 hours.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Your details are safe
We treat your data the way we'd want ours treated. Your payment details are locked down with bank-level encryption. We never actually see your credit card numbers, and we will absolutely never sell your personal information.
Features
1. Built-in Multi camera Delog LUTs
2. User 3DLUTs upload via USB (up to 36)
3. Support GPI control
4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
5. Support TALLY
6. Support 16-ch embedded audio meters display
7. Histogram
8. HDR
9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
10. False Colors
11. Zebra (70IRE, 80IRE, 90IRE)
12. Timecode Display
13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
14. Under Scan, Over Scan
15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
16. Pixel to Pixel
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. All Waves
21. Parade (RGB Parade, Y, YUV Parade)
22. Image Freeze
23. Selectable Color Temperature Presets
Specifications
Display Screen
1. Model: ATEM156S
2. Screen Size: 15.6 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.17925(W) x 0.17925(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 200cd/m2
8. Contrast Ratio: 800:1
9. Backlight: LED
10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)
Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
General
1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C
5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket)
6. Unit Weight: 1.81kg
Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1

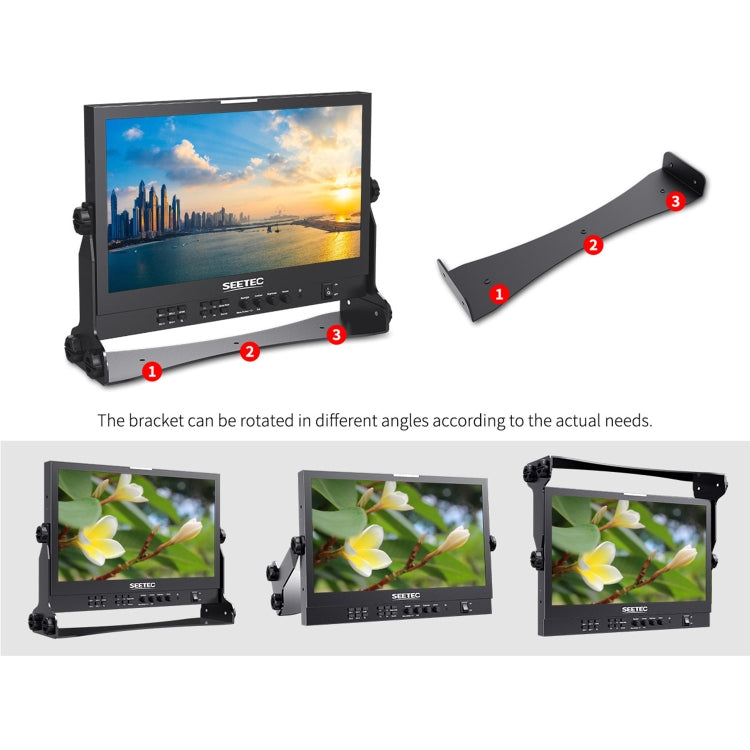

6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
1. Built-in Multi camera Delog LUTs
2. User 3DLUTs upload via USB (up to 36)
3. Support GPI control
4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
5. Support TALLY
6. Support 16-ch embedded audio meters display
7. Histogram
8. HDR
9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
10. False Colors
11. Zebra (70IRE, 80IRE, 90IRE)
12. Timecode Display
13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
14. Under Scan, Over Scan
15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
16. Pixel to Pixel
17. Center Marker
18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
20. All Waves
21. Parade (RGB Parade, Y, YUV Parade)
22. Image Freeze
23. Selectable Color Temperature Presets
Specifications
Display Screen
1. Model: ATEM156S
2. Screen Size: 15.6 inch IPS
3. Color Depth: 16.7M
4. Resolution: 1920 x 1080 pixels
5. Pixel pitch: 0.17925(W) x 0.17925(H) mm
6. Aspect Ratio: 16:9
7. Brightness: 200cd/m2
8. Contrast Ratio: 800:1
9. Backlight: LED
10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D)
Input
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x HDMI: HDMI (support 1080P)
3. 1 x RS485: RS485
4. 1 x GPI: GPI
5. 1 x USB: USB (upgrade and LUT import)
Output
1. 4 x 3G-SDI: 3G-SDI (support 2K)
2. 1 x RS485: RS485
Audio
- Audio: Stereo Headphone
SDI Support Format:
- 720p (60/59.94/50/30/29/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Support Format:
- 480i/576i/480p/576p
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i (60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
General
1. Input Voltage: DC 12V
2. Power Consumption: Less than or equal to 21W
3. Working Temperature:0 degree C~50 degree C
4. Storage Temperature:-20 degree C~60 degree C
5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket)
6. Unit Weight: 1.81kg
Package List
1. Monitor x 1
2. SDI Cable x 1
3. Mini HDMI Cable x 1
4. V-mount Battery Plate (default to mount on device) x 1
5. Sunshade x 1
6. U-shape Bracket x 1
7. Power Adapter x 1
8. User Manual x 1
Verified Compatible
Guaranteed fit for device in the title. Wrong part? Full refund including shipping.
