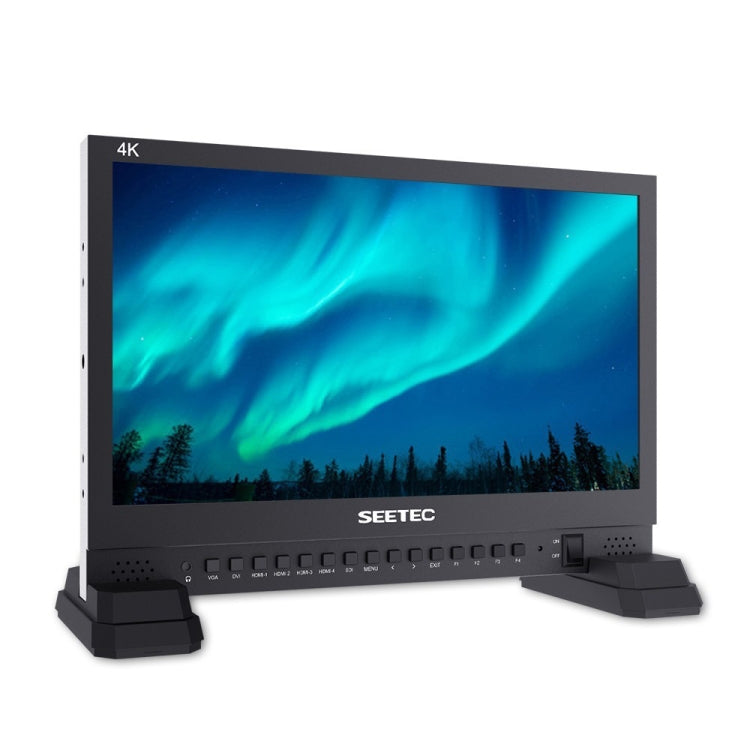

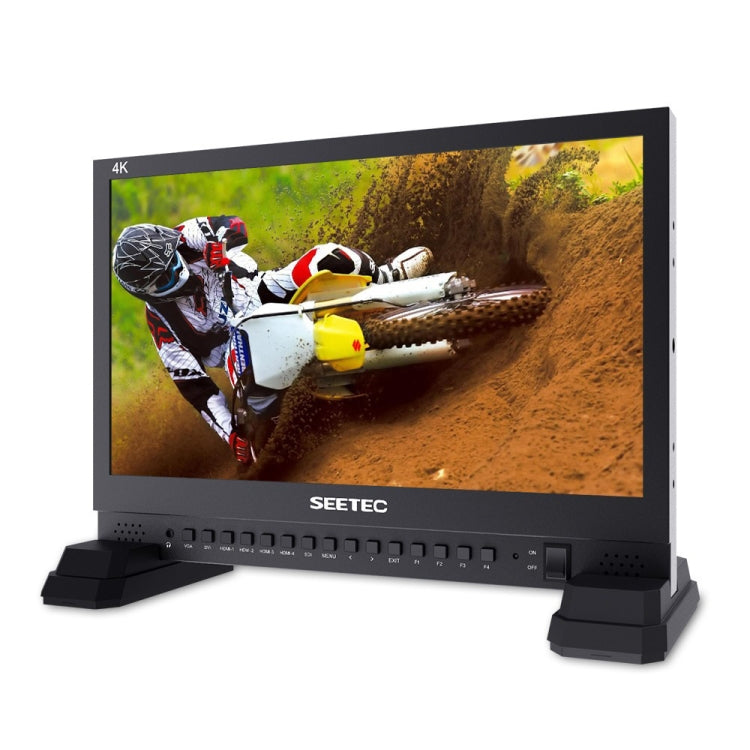

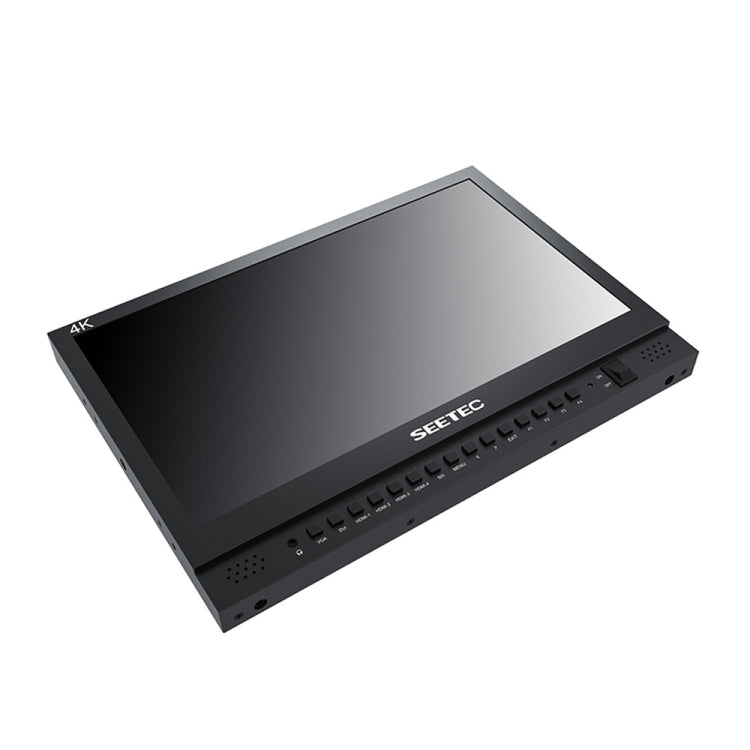

SEETEC 4K156-9HSD 3840x2160 300 nits 15.6 inch IPS Screen HDMI 4K 3G-SDI Four Screen Split Display Monitor
SEETEC 4K156-9HSD 3840x2160 300 nits 15.6 inch IPS Screen HDMI 4K 3G-SDI Four Screen Split Display Monitor
No reviews
Regular price
$1,288.00
Regular price
Sale price
$1,288.00
In Stock - Ships in 1-3 Days
Estimated delivery:
Quantity
Couldn't load pickup availability
Free Shipping
30-Day Returns
1-Year Warranty
Shipping Information
Shipping Information
FREE SHIPPING to UK & 40+ countries. Fully insured.
Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)
No hidden fees on orders under £135 (orders over £135 may have import duties)
Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.
30-Day Money-Back Guarantee
30-Day Money-Back Guarantee
Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.
Right Part Guarantee
Right Part Guarantee
Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.
Hassle-Free Returns
Hassle-Free Returns
Start your return online in seconds. No forms, no hassle.
Trusted by 80,000+ DIY & repair professionals
Panel characteristics
1. Screen size: 15.6 inch IPS
2. Color: 16.7M colors (8-bits)
3. Resolution: 3840×2160 pixels
4. Dot pitch: 0.0897 x 0.0897 mm
5. Screen ratio: 16:9
6. Brightness: 300cd/m2
7. Contrast ratio: 800:1
8. Viewing angle: 85 degrees/85 degrees (L/R) 85 degrees/85 degrees (U/D)

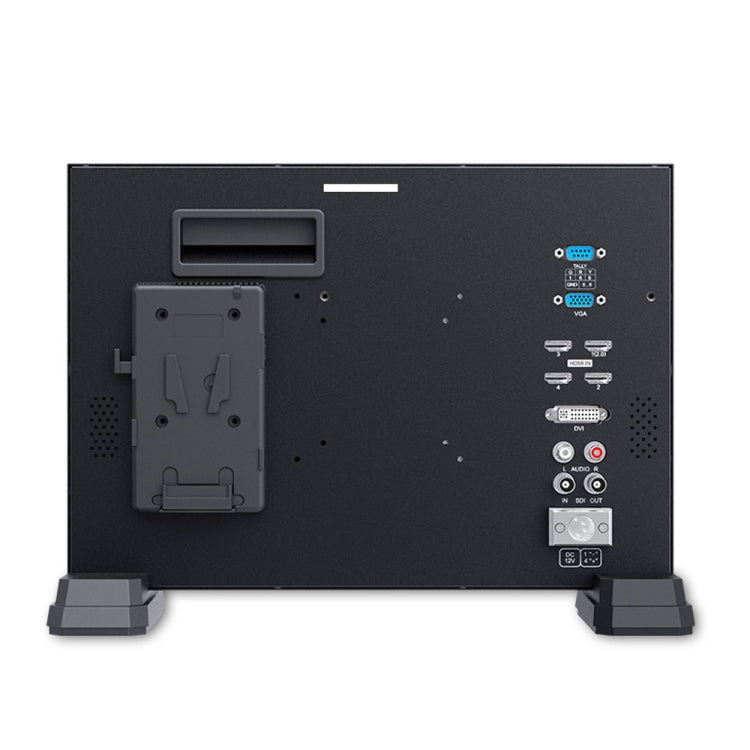

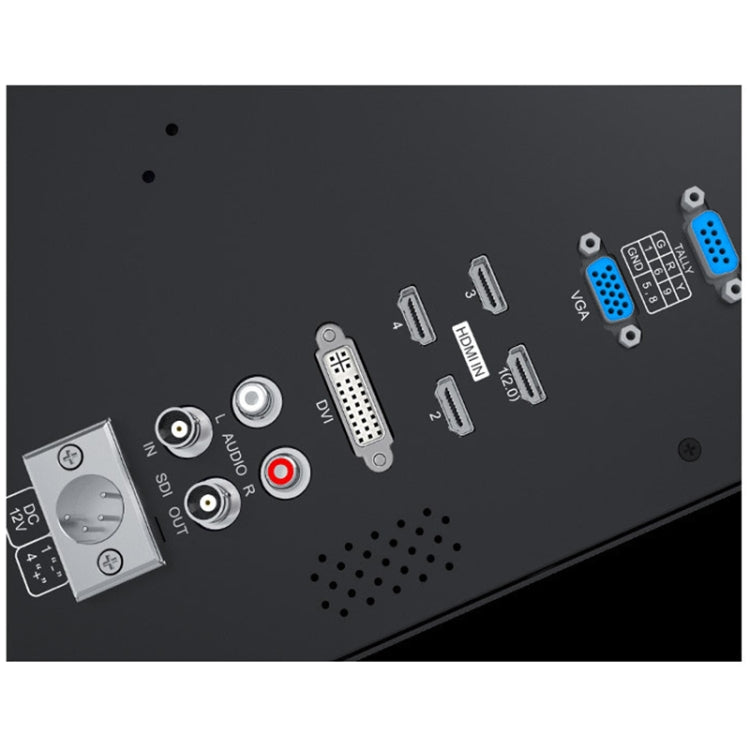

Input:
1. 4x HDMI: HDMI (HDMI2.0x1 supports 4K 60HZ; HDMI1.4x3 supports 4K 30HZ)
2. 1x BNC: SDI
3. 1x DVI: DVI
4. 1x VGA: VGA
5. 2x RCA: Audio(L/R)
6. 1x DB-9: Tally
Output:
1. 1x BNC: SDI
Audio:
1. Audio output: headphone jack, built-in speaker
SDI support format:
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI support format:
HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
Other specifications:
1. Input voltage: DC12-24V (XLR)
2. Power consumption: greater than or equal to 18W
3. Working temperature: -10-50 degrees Celsius
4. Storage temperature: -20-60 degrees Celsius
5. Stand-alone size: 372Lx262Hx28.5D (without bracket)
6. Stand-alone weight: 2.03kg (without bracket)
Feature:
1. Wide viewing angle, 4K resolution (3840 x 2160), rich color gradation
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) input and 3G-SDI loop out
3. Product features:

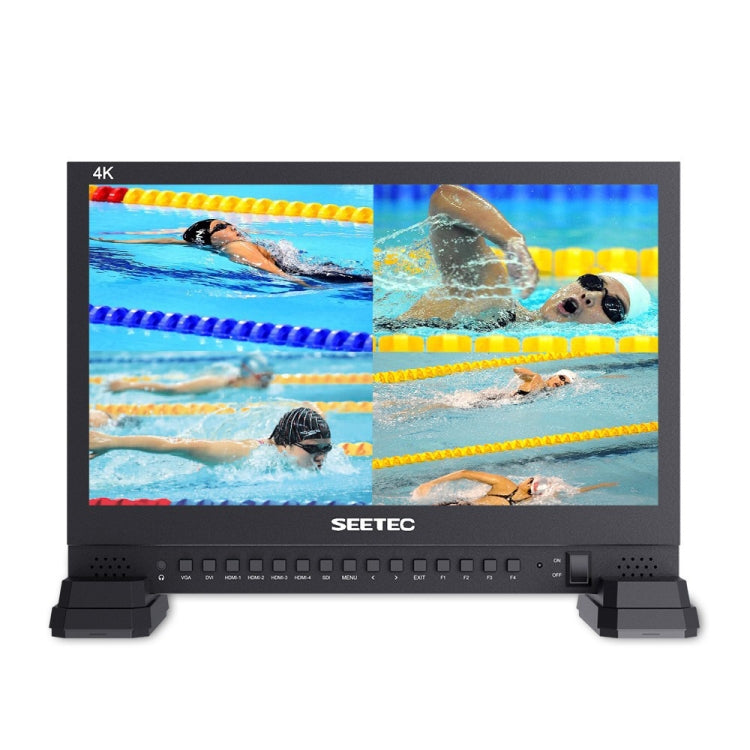

-Screen split setting (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Professional assisted focus
-Pseudo-color
-Display rotation (0 degrees, 90 degrees, 180 degrees, 270 degrees)
-Monochrome display (red, green, blue, gray)
-The picture is still
-Image enlargement
-peer to peer
-Center mark
-Box mark (percent 80, percent 85, percent 90, percent 93, percent 96, 2.35:1)
-Line color (red, green, blue, white)
4. Front 3.5mm headphone jack, built-in speaker
5. 3-color tally indicator (red, green, yellow)
6. The monitor supports Ultra HD 3840x2160 resolution, with unparalleled clarity in movie shooting and display.
7. It has a metal body design, a built-in control panel, and is equipped with four-screen split, auxiliary focus, monochrome display, image still, image zoom, image flip, center mark, safety frame mark, point-to-point, color temperature and other wonderful functions, so You can easily check whether all camera positions are accurately focused and make sure that the colors are consistent.
8. The display screen has an ultra-wide 170-degree viewing angle, even if multiple people are monitoring at the same time, it can ensure that everyone can easily get the high-quality picture brought by 4K resolution. In addition, the ultra-high contrast can ensure the vivid color of the image, allowing you to enjoy a more realistic and delicate picture.
9. When you are busy at the shooting scene, what you need is equipment that can be easily controlled, such as quickly enabling auxiliary shooting functions and selecting input signals. These 4K156-9HSD have been carefully considered for you. Its high-quality buttons are sturdy and durable, and can withstand years of repeated use, allowing you to quickly obtain all high-tech professional broadcast controls during the production process.
10. When making a multi-camera live program, viewing more video sources at the same time will greatly improve efficiency. The 4K156-9HSD is equipped with 4 4K HDMI inputs, 1 SDI input loop out, DVI, VGA, and supports four-screen, dual-screen, and single-screen monitoring functions, allowing you to get a good multi-camera monitoring solution anytime, anywhere!
11. The position and size of the live video can be adjusted in real time. You can adjust brightness, contrast, hue, saturation, sharpness, and backlight to create professional picture-in-picture images. You can use the picture-in-picture effect to superimpose commentators on the screen when broadcasting sports matches, training videos, interviews, and even game matches.
Standard configuration:
1. 1.5A power adapter x1
2. V-shaped battery back button x1
3. Mini HDMI cable x1
4. Tally adapter kit x1
5. Horseshoe foot pad x1
6. Manual x1
1. Screen size: 15.6 inch IPS
2. Color: 16.7M colors (8-bits)
3. Resolution: 3840×2160 pixels
4. Dot pitch: 0.0897 x 0.0897 mm
5. Screen ratio: 16:9
6. Brightness: 300cd/m2
7. Contrast ratio: 800:1
8. Viewing angle: 85 degrees/85 degrees (L/R) 85 degrees/85 degrees (U/D)
Input:
1. 4x HDMI: HDMI (HDMI2.0x1 supports 4K 60HZ; HDMI1.4x3 supports 4K 30HZ)
2. 1x BNC: SDI
3. 1x DVI: DVI
4. 1x VGA: VGA
5. 2x RCA: Audio(L/R)
6. 1x DB-9: Tally
Output:
1. 1x BNC: SDI
Audio:
1. Audio output: headphone jack, built-in speaker
SDI support format:
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI support format:
HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30)
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
Other specifications:
1. Input voltage: DC12-24V (XLR)
2. Power consumption: greater than or equal to 18W
3. Working temperature: -10-50 degrees Celsius
4. Storage temperature: -20-60 degrees Celsius
5. Stand-alone size: 372Lx262Hx28.5D (without bracket)
6. Stand-alone weight: 2.03kg (without bracket)
Feature:
1. Wide viewing angle, 4K resolution (3840 x 2160), rich color gradation
2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) input and 3G-SDI loop out
3. Product features:
-Screen split setting (1P, 2P LR, 2P TB, 2P PIP, 4P)
-Professional assisted focus
-Pseudo-color
-Display rotation (0 degrees, 90 degrees, 180 degrees, 270 degrees)
-Monochrome display (red, green, blue, gray)
-The picture is still
-Image enlargement
-peer to peer
-Center mark
-Box mark (percent 80, percent 85, percent 90, percent 93, percent 96, 2.35:1)
-Line color (red, green, blue, white)
4. Front 3.5mm headphone jack, built-in speaker
5. 3-color tally indicator (red, green, yellow)
6. The monitor supports Ultra HD 3840x2160 resolution, with unparalleled clarity in movie shooting and display.
7. It has a metal body design, a built-in control panel, and is equipped with four-screen split, auxiliary focus, monochrome display, image still, image zoom, image flip, center mark, safety frame mark, point-to-point, color temperature and other wonderful functions, so You can easily check whether all camera positions are accurately focused and make sure that the colors are consistent.
8. The display screen has an ultra-wide 170-degree viewing angle, even if multiple people are monitoring at the same time, it can ensure that everyone can easily get the high-quality picture brought by 4K resolution. In addition, the ultra-high contrast can ensure the vivid color of the image, allowing you to enjoy a more realistic and delicate picture.
9. When you are busy at the shooting scene, what you need is equipment that can be easily controlled, such as quickly enabling auxiliary shooting functions and selecting input signals. These 4K156-9HSD have been carefully considered for you. Its high-quality buttons are sturdy and durable, and can withstand years of repeated use, allowing you to quickly obtain all high-tech professional broadcast controls during the production process.
10. When making a multi-camera live program, viewing more video sources at the same time will greatly improve efficiency. The 4K156-9HSD is equipped with 4 4K HDMI inputs, 1 SDI input loop out, DVI, VGA, and supports four-screen, dual-screen, and single-screen monitoring functions, allowing you to get a good multi-camera monitoring solution anytime, anywhere!
11. The position and size of the live video can be adjusted in real time. You can adjust brightness, contrast, hue, saturation, sharpness, and backlight to create professional picture-in-picture images. You can use the picture-in-picture effect to superimpose commentators on the screen when broadcasting sports matches, training videos, interviews, and even game matches.
Standard configuration:
1. 1.5A power adapter x1
2. V-shaped battery back button x1
3. Mini HDMI cable x1
4. Tally adapter kit x1
5. Horseshoe foot pad x1
6. Manual x1
