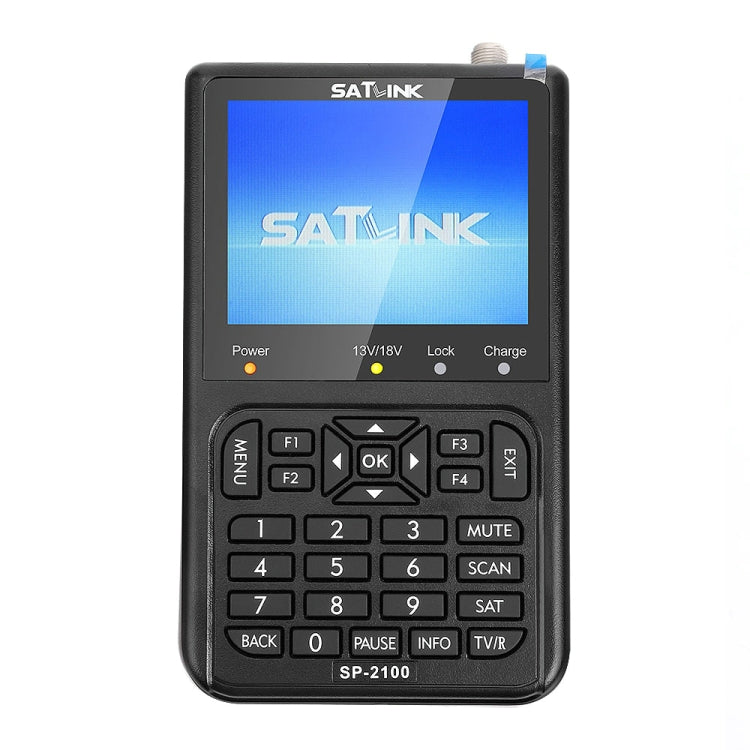

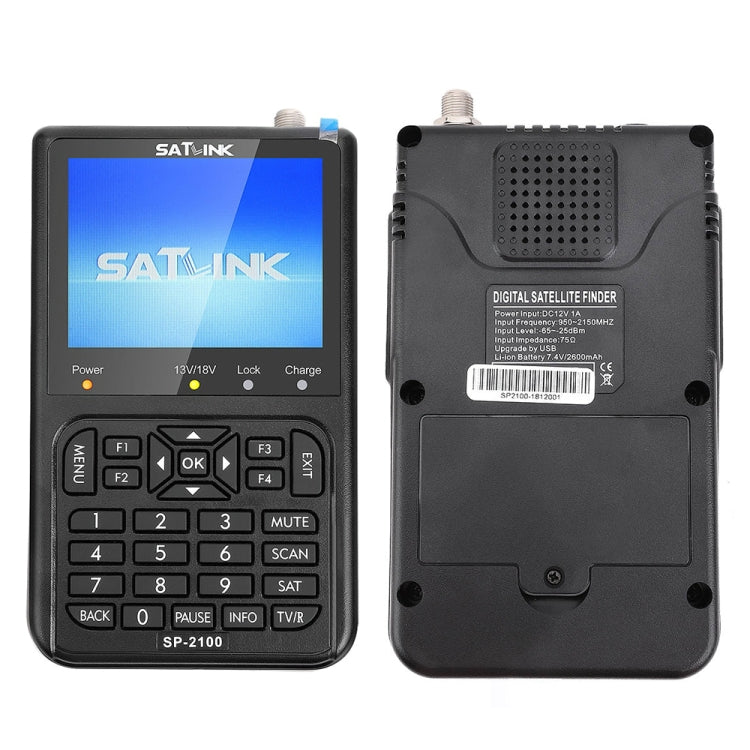

Features: 1. DiSEqC 1.0/1.1/1.2 and 22 kHz tone 2. Automatically calculate the angle of AZ, EL 3. MPEG-2 / H.264 hardware decoding 4. Signal Strength and Quality Measurements 5. 4 hours battery operation time 6. Auto, blind, manual and NIT scan modes 7. Handheld Satellite Meter Compliant with DVB-S/S2 and MPEG-2/4 H.264 Standards. With its compact size, light weight, intuitive user interface, long battery life and rich feature set, this meter provides a residential or multi-dwelling unit with everything needed to install and verify digital satellite TV service. 8. LNB short circuit protection 9. Software upgrade and file transfer via USB

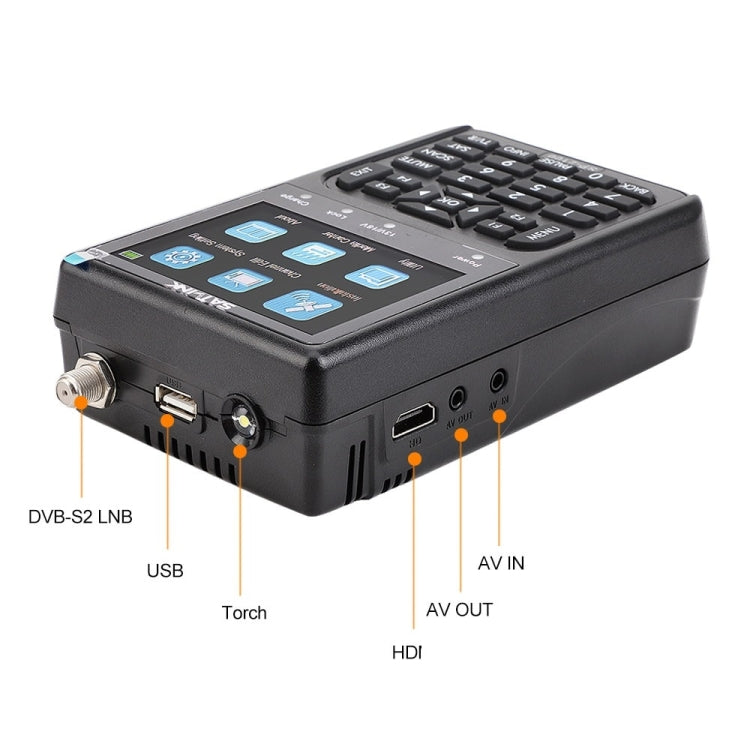

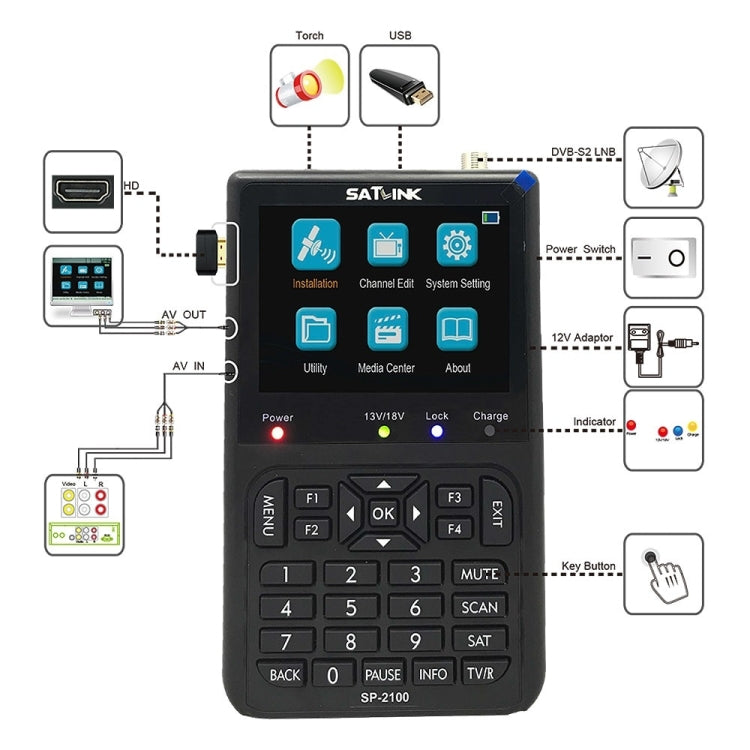

Interface: - 3.5 inch HD TFT LCD screen 720x576, 720x480 - AV input and AV output - HD output - 7.4V/2600mAh Li-ion rechargeable battery - 12VDC/1.0A / DC Adapter - Speaker - LED flashlight - USB 2.0 Type A
Parameter: 1. Transmission: DVB-S/S2, MPEG-2, MPEG-4, H.264 2. Interface: USB Type A 3. Satollite input/demodulation 4. Connector type: F male 5. Data protocol: USB 2.0 6. Resolution: 320x240 (RGB) 7. Adapter: Output: 12VDC / 1A; Input: 100-240VAC, 50/60Hz 8. File management system: NTFS FAT32 FAT16 9. Input frequency: 950 to 2150 MHz 10. File format: wma, mp3, mp4, avi, jpg, jpeg, bmp, img 11. Signal input level: -65 to -25 dBm 12. Microprocessor Band SwitchControl: 22 kHz 13. Microprocessor: GX6605 14. LNB supply: 13V/18V 350mA 15. Clock frequency: 600 MHz 16. Demodulation type: QPSK, 8PSK, 16APSK, 32APSK 17. Li-lon battery: 7.4V/2600mah 18. Liquid crystal display: TFT delivered 19. Audio output: Stereo L/R 20. Video output: CVBS 21. Active display area: 70 x 52.5mm 22. Power consumption: 10w 23. Video and audio output physics 24. Connector Type: 3.5mm Jack 25. Size: 101x77x47mm 26. Net weight: 0.46kg

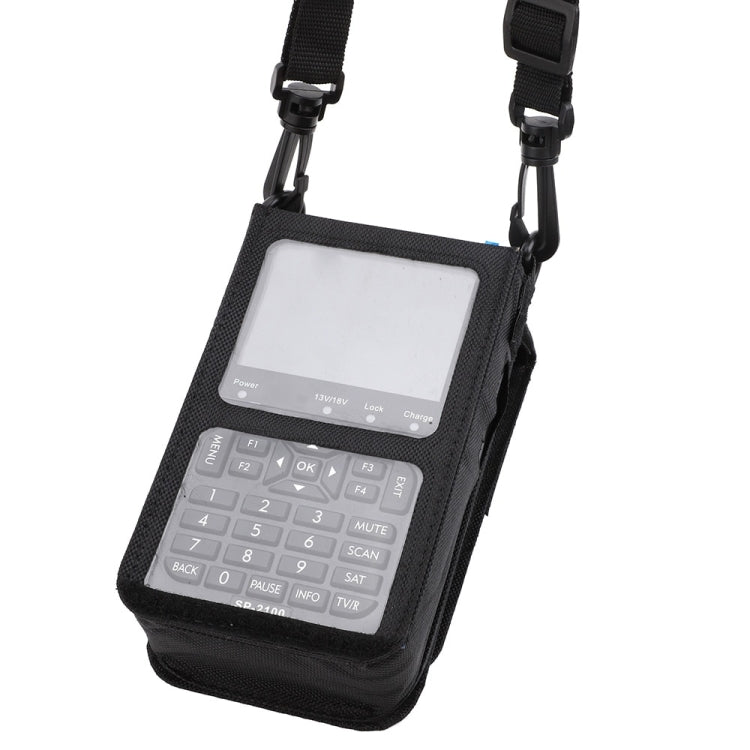

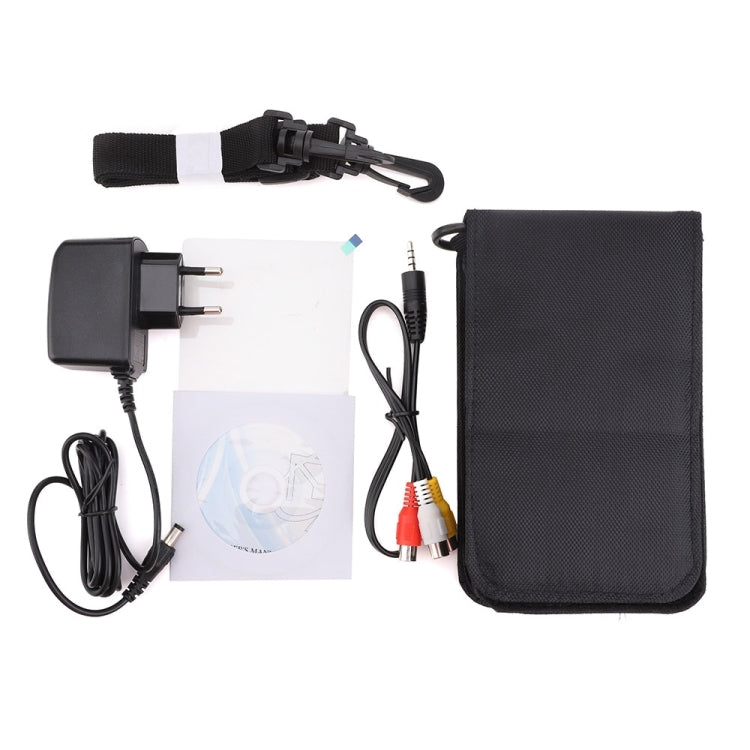

Packing list: - star finder - AV cable - power adapter (12V/1.0A) - silicone case - user guide
