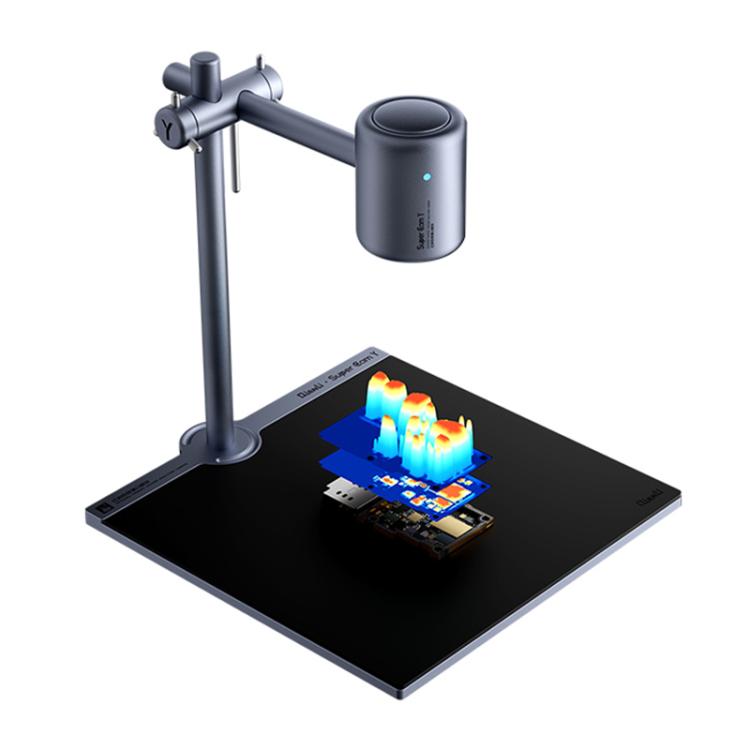

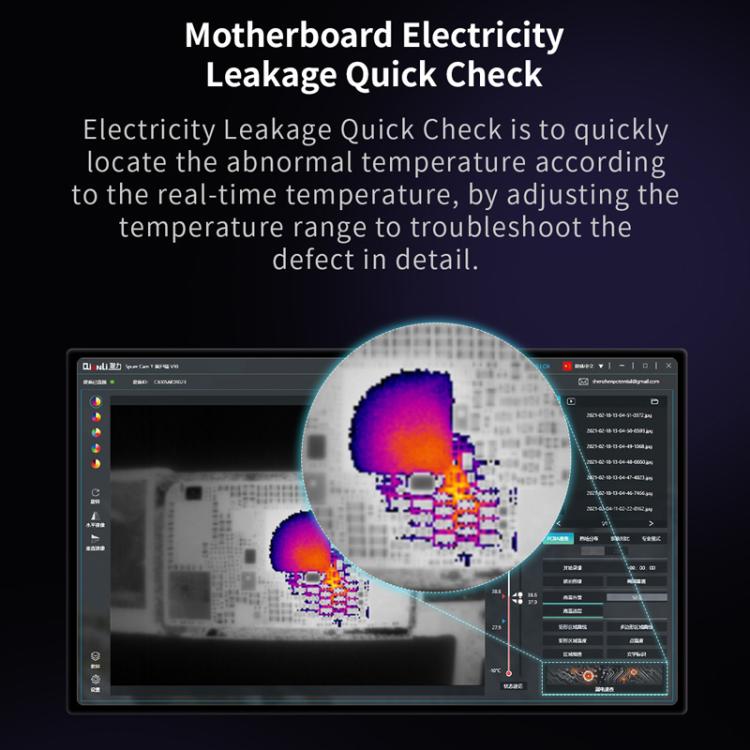

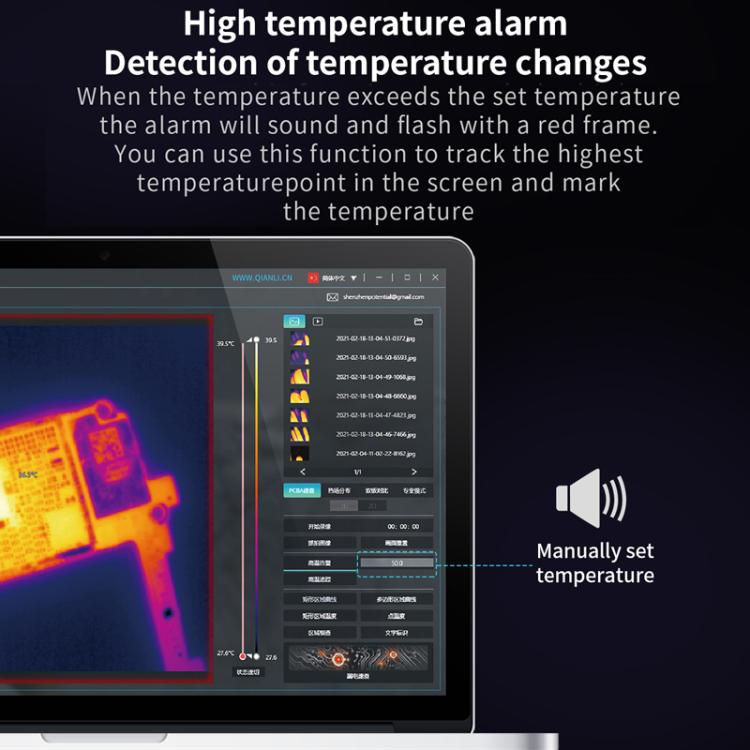

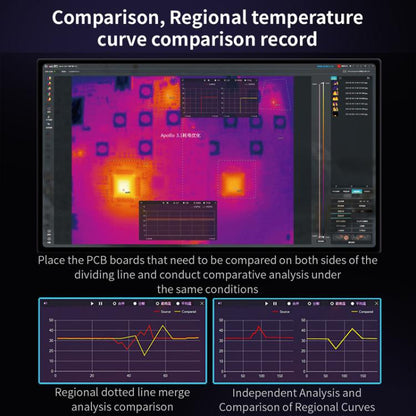

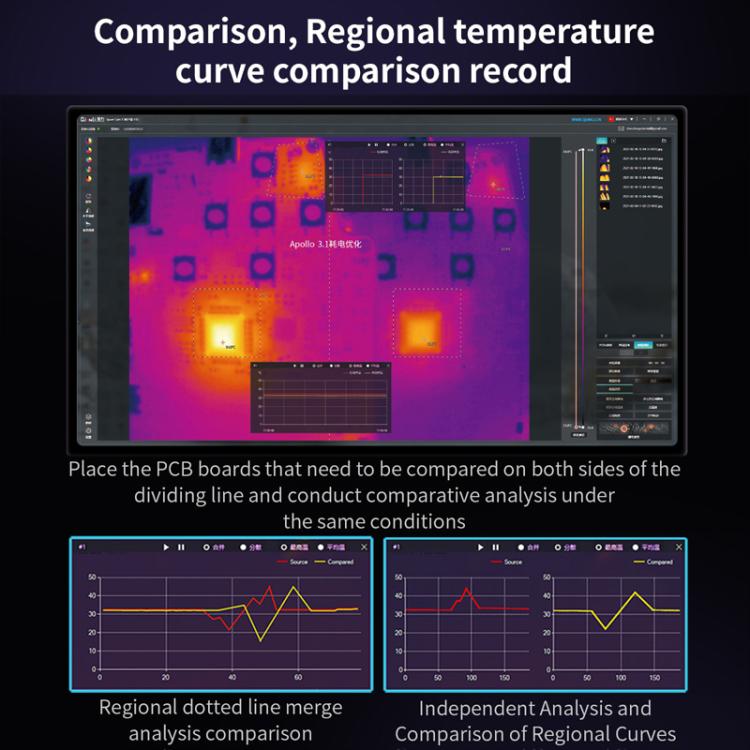

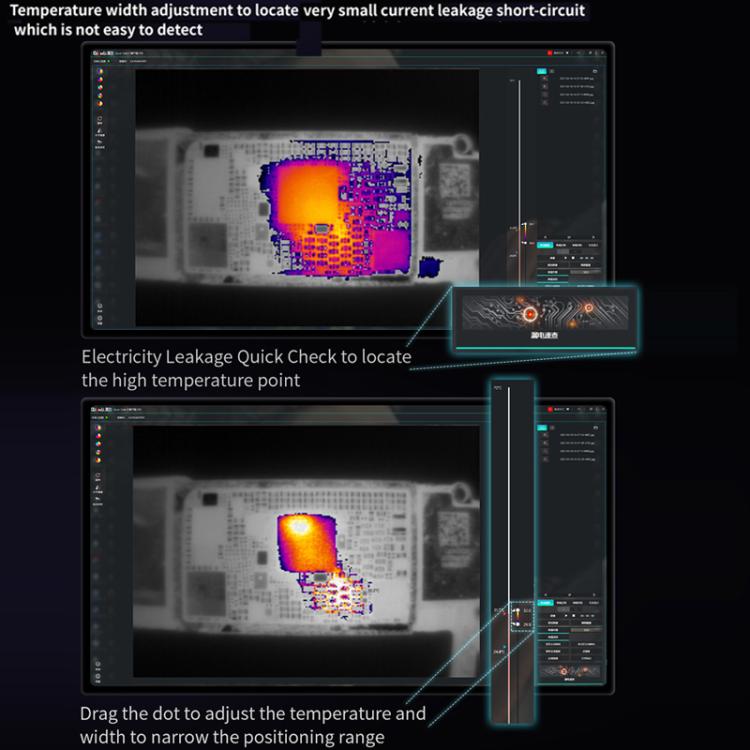

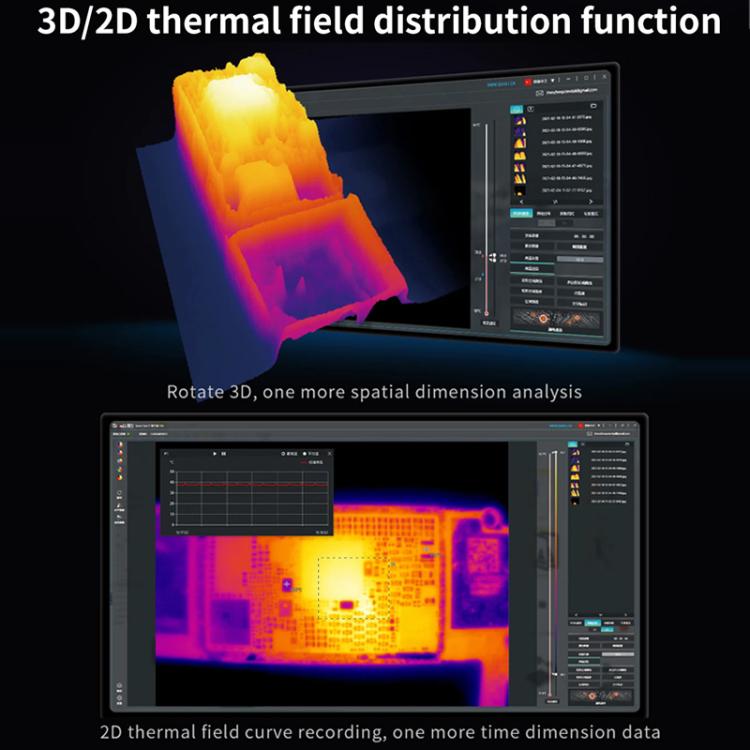

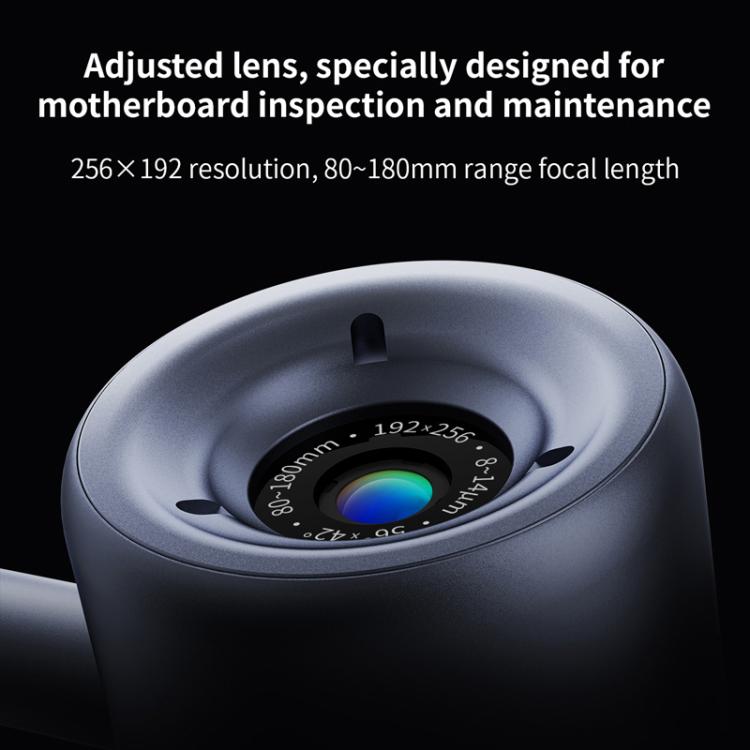

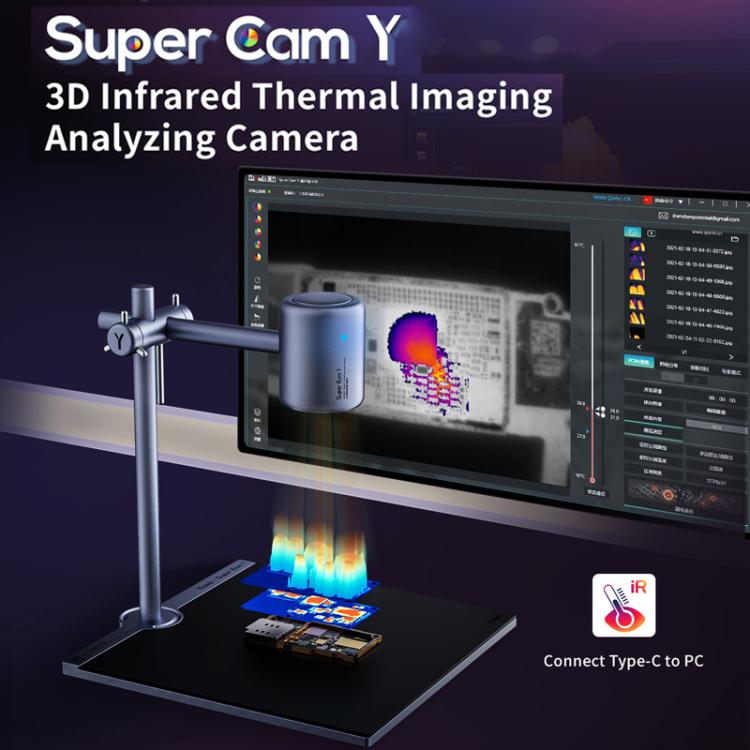

1. Professional motherboard testing device, to help improve work efficiency 2. Say goodbye to dated and complicated motherboard testing methods, always at the cutting edge of advanced maintenance 3. Adjusted lens, specially designed for motherboard inspection and maintenance, 256 x192 resolution, 80~180mm range focal length 4. Electricity Leakage Quick Check is to quickly locate the abnormal temperature according to the real-time temperature, by adjusting the temperature range to troubleshoot the defect in detail 5. When the temperature exceeds the set temperature the alarm will sound and flash with a red frame. 6. You can use this function to track the highest temperature point on the screen and mark the temperature 7. Professional mode focuses on product evaluation and heat distribution analysis, such as the rationality analysis of the thermal structure design of the circuit board, and the design of the heat dissipation efficiency of the product, etc 8. Rotate 3D, one more spatial dimension analysis, 2D thermal field curve recording, one more time dimension data 9. Design and Optimization for thermal distribution comparison and verification of defects differentiation Regional temperature curve comparison records, overlay comparison, etc 10. Place the PCB boards that need to be compared on both sides of the dividing line and conduct a comparative analysis under the same conditions 11. When there is a very small current leakage or a large interference source is nearby, the (Electricity Leakage Quick Check) cannot easily locate the leakage component, you may adjust the temperature range to change the image contrast to locate the leakage component 12. Switch between different color palettes according to different applications,5 different color palettes 13. Reserved 1/4 inch camera threaded hole, which can be installed on most of the standard camera brackets

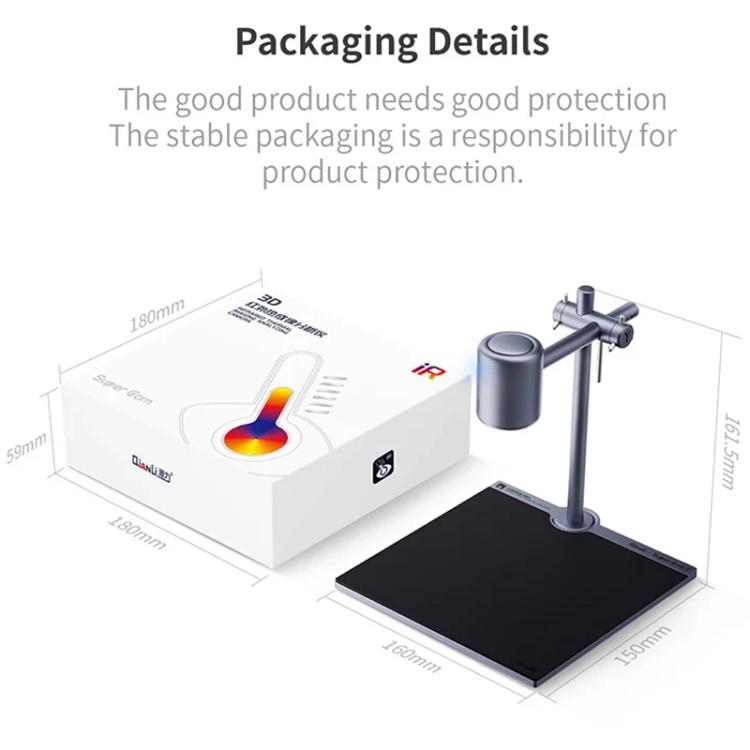

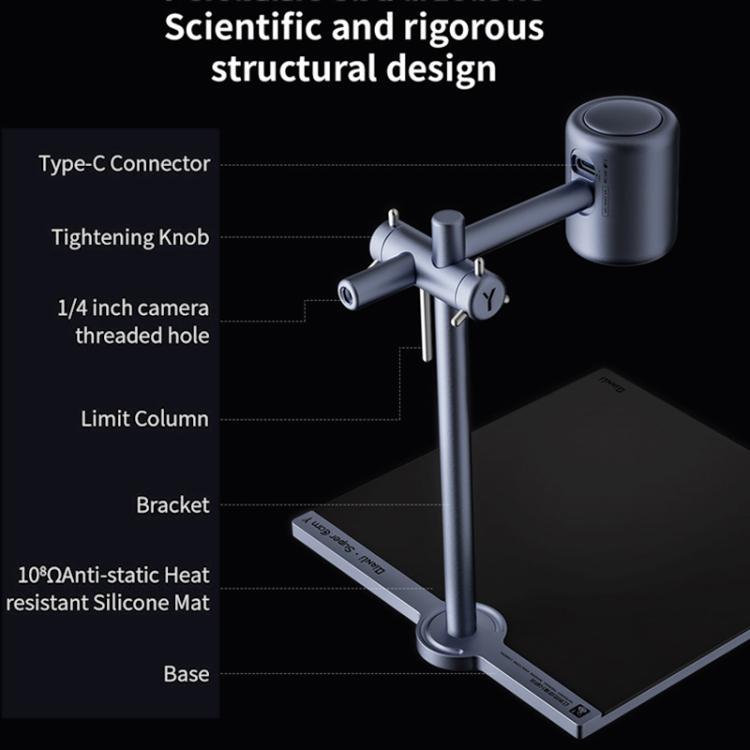

Specification: 1. Detector Type: Uncooled Vanadium Oxide Detector 2. Resolution: 256 × 192 3. Wavelength Range: 8~14um 4. Camera Angle: 56 × 42 degrees 5. Frame Frequency: 25Hz 6. Bracket Size: 150mm × 160mm × 161.5mm 7. Weight: 435g 8. Installation: Removable Installation 9. Input Voltage: 5V DC 10. Power Consumption: <250mw 11. Display Mode: Infrared Thermal Imaging 12. Port Type: Type-C 13. Image Storage Format: JPG(640×480) 14. Video Storage Format: MP4 15. Temperature Measurement Function: Full Frame Temperature Measurement 16. Temperature Measurement Distance: 80~180mm 17. Temperature Measurement Accuracy: +-5 or +-5% 18. Temperature Range: 0~120 degrees Celsius 19. Storage Temperature Range: -15~60 degrees Celsius 20. Humidity: Relative Temperature
