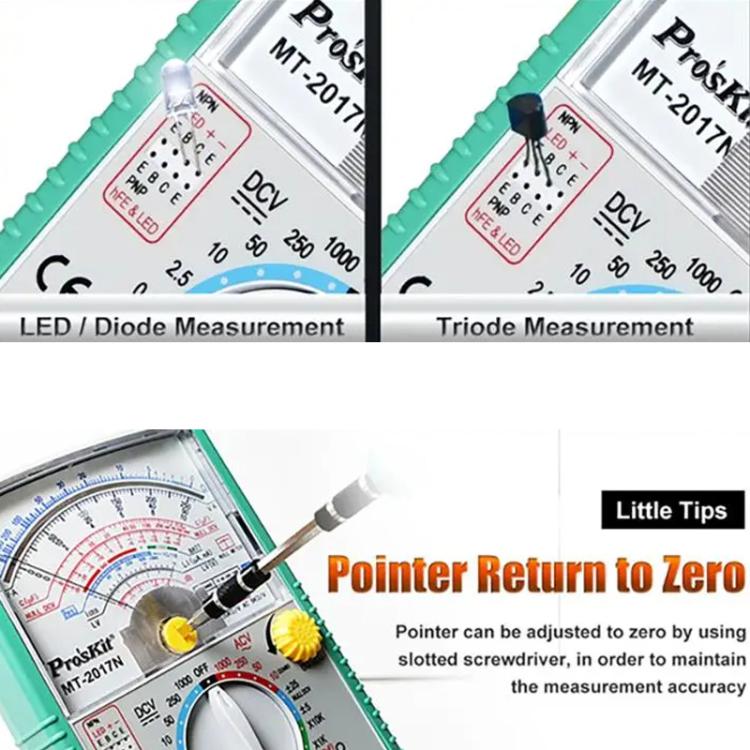

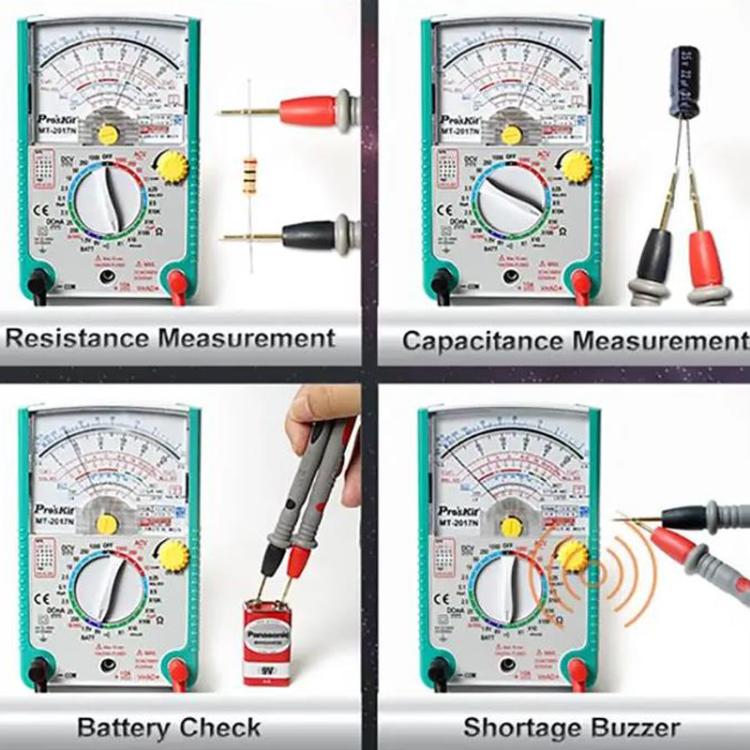

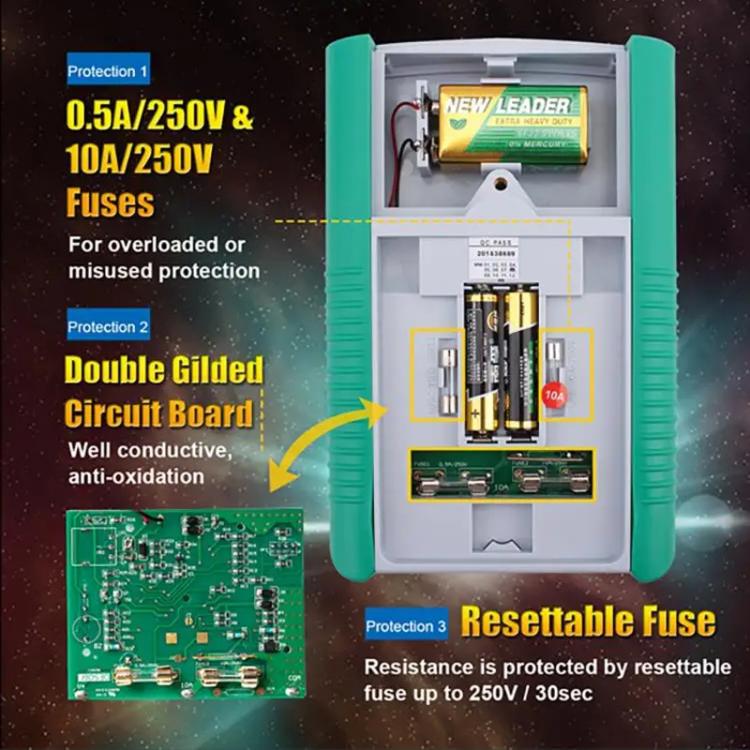

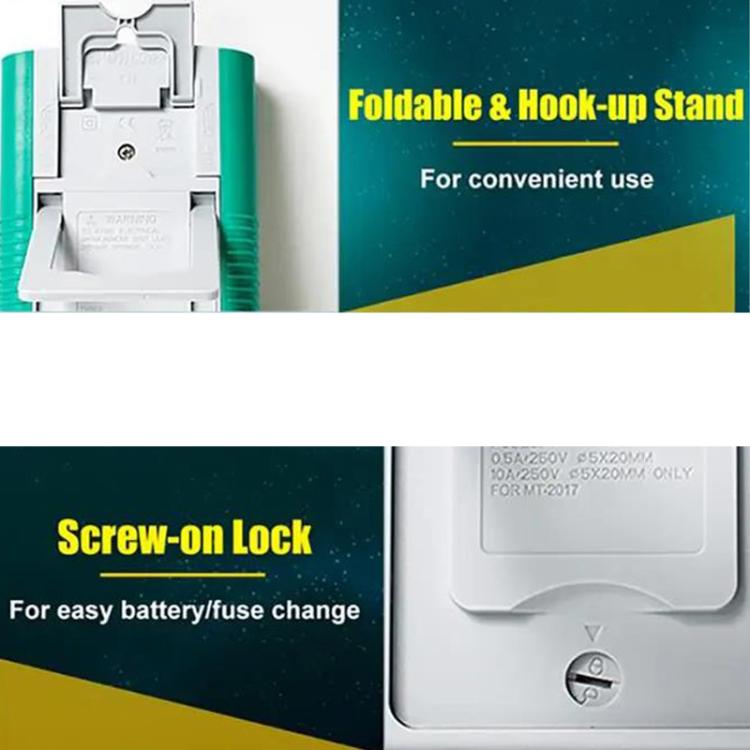

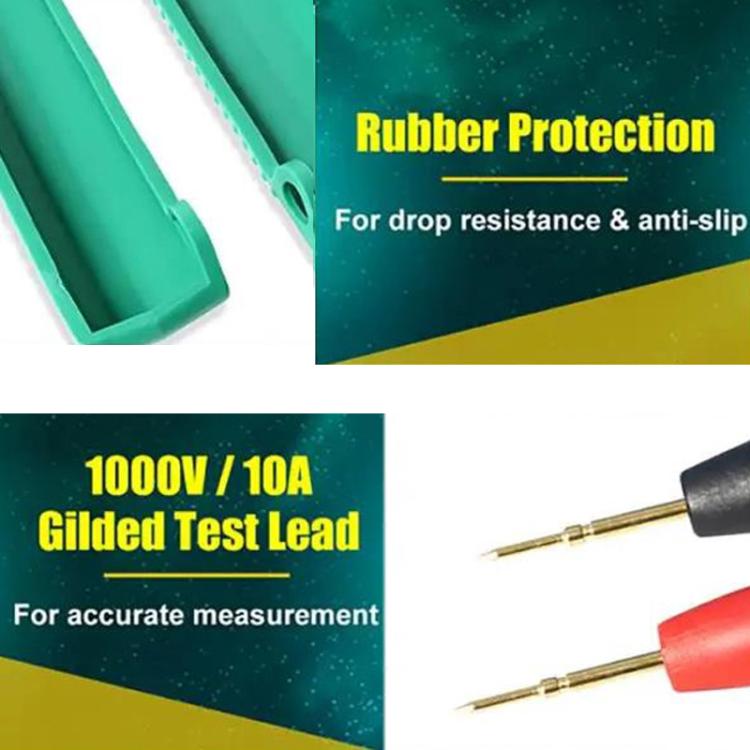

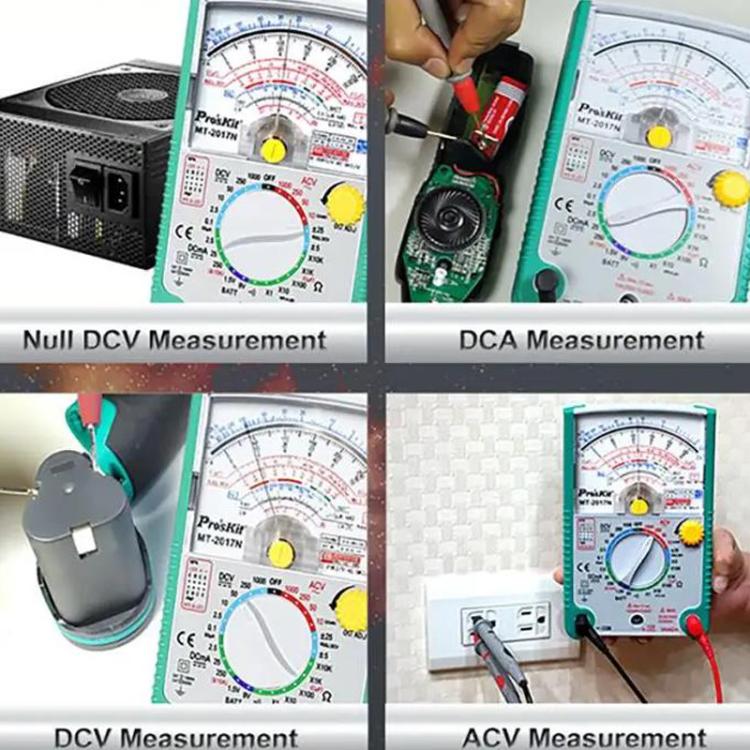

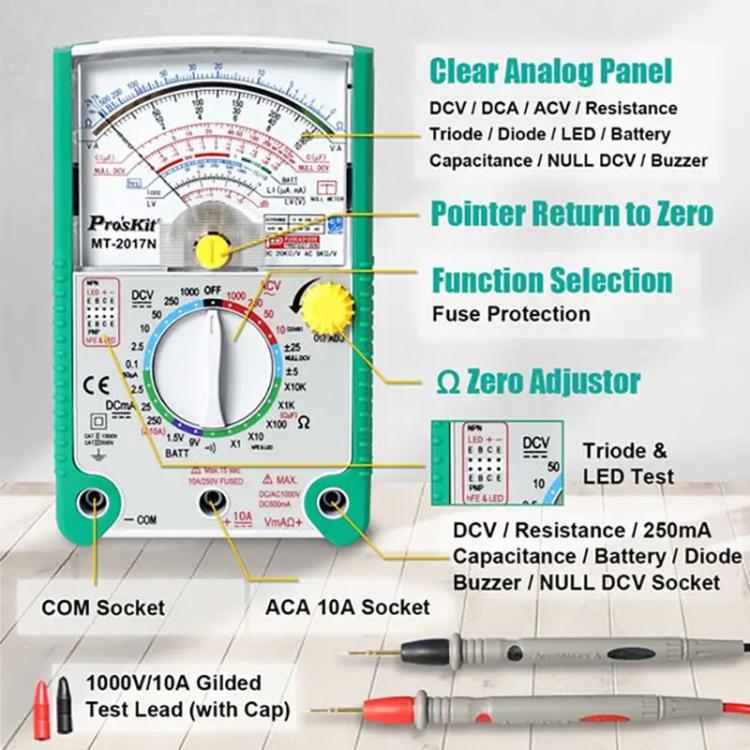

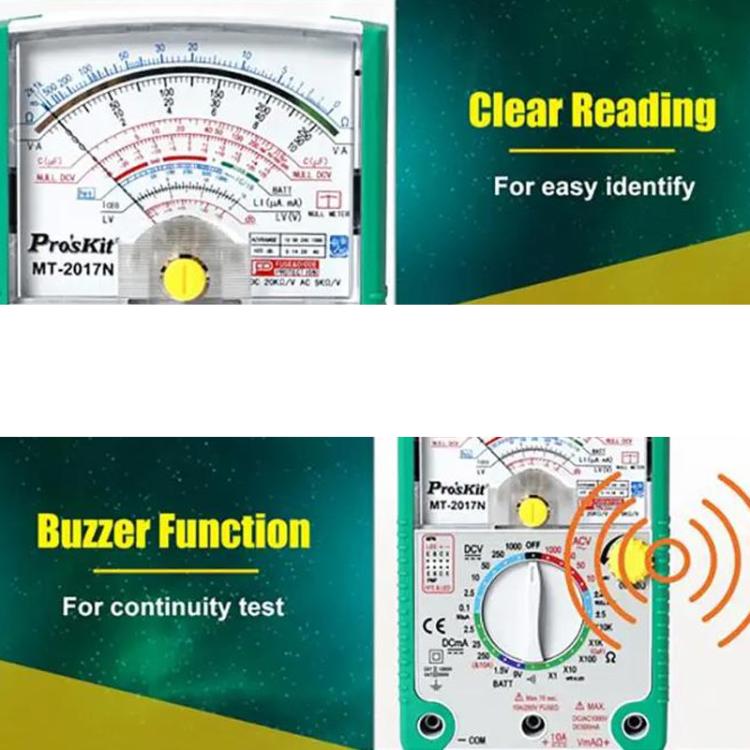

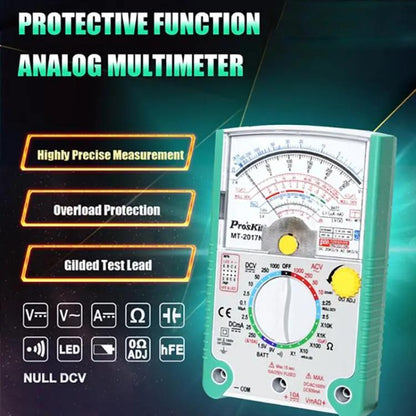

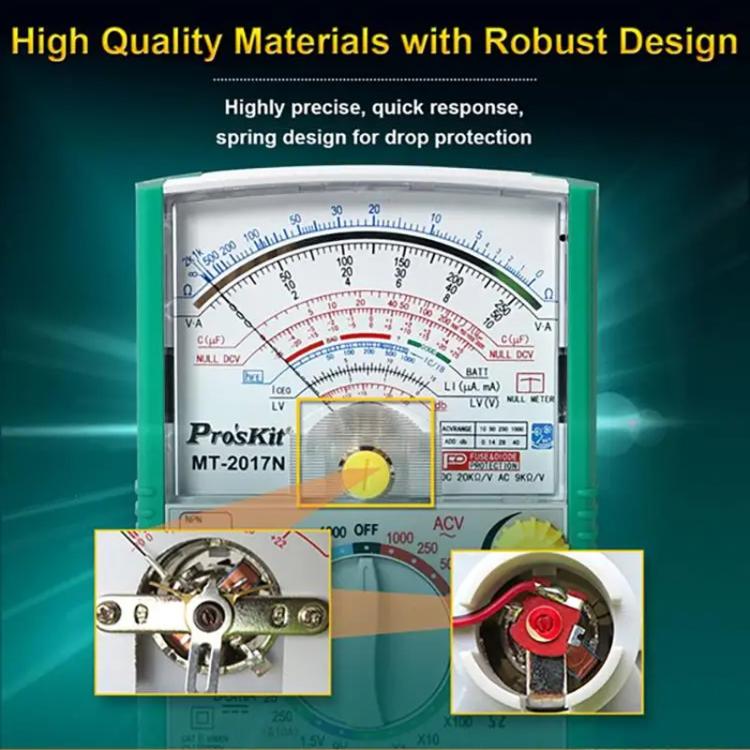

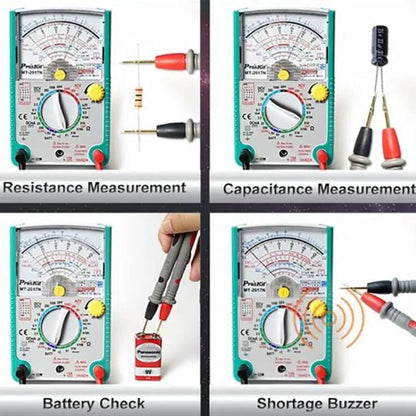

1. High sensitivity rare-earth magnetoelectric sensor head, carefully calibrated, accurately measuring and with excellent response. 2. Spring design, shock-resistant, does not cause the sensor head to fail due to dropping or vibration. 3. Multiple layers of protection, anti-slip shock-absorbing soft rubber sleeve, resistant to damage from falling, 0.5A/250V and 10A/250V fuse with rapid melting, overloading or incorrect measurement will not cause the instrument to burn out. 4. Gold-plated circuit board, excellent conductivity, resistant to oxidation, well-arranged layout. 5. Resistance range uses self-recovery fuse, anti-mistake measurement up to 250V/30 seconds, returns to normal after removal for 1 minute. 6. High definition dial, distinct gears, clear readings. 7. Short-circuit beeping function, convenient for detecting the connection status of circuits or conductors. 8. Rear cover rotating latch, convenient for replacing batteries and fuses. 9. Inclined stand/suspended double bracket, can be adjusted freely. 10. Functions: can perform zero position positive and negative voltage test / DC current test / DC voltage measurement / AC voltage test / resistance measurement / capacitance measurement / battery capacity measurement / short-circuit beeping / LED light-emitting diode measurement / transistor measurement

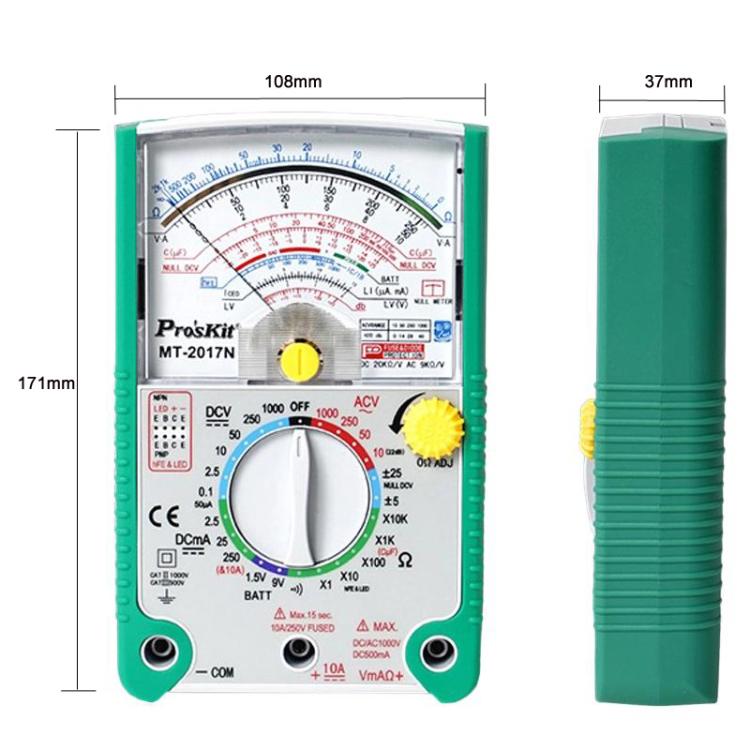

Parameters 1. DC voltage: 0.1/2.5/10/50/250V; +/-percent 3.0 FSD; 1000V; +/-percent 4.0 FSD 2. Intermediate zero positive/negative DC voltage: DC +5V, +/-25V, +/-percent 5.0 FSD 3. AC voltage: 10/50/250V, +/-percent 4.0 FSD, 1000V, +/-percent 5.0 FSD 4. DC current: 50 microamperes/2.5m/25m/250mA, +/-percent 3.0 FSD, 10A, +/-percent4.0 FSD 5. Resistance: - x1 (0.2 - 2k ohms) - x10 (2 - 20k ohms) - x100 (20 - 200k ohms) - x1k (200 - 2M ohms) - x10k ohms (2k - 20M ohms) - +/-percent 4.0 ARC of scale length 6. Capacitance: C (R x 1k): 2000 microfarads (approx.) max 7. Function: transistor test / diode test / LED test / short circuit beep 8. Power supply: 1.5V AAA battery x 2; 9V 6F22 battery x 1 (not Included) 9. Size: about 17.1 x 10.8 x 3.7 cm 10. Weight: about 390g
