PORTXVNSA VNA-H4 Plus 4 inch IPS Screen Portable Handheld Vector Antenna Analyzer MF HF VHF UHF, Spec: Without Memory Card
PORTXVNSA VNA-H4 Plus 4 inch IPS Screen Portable Handheld Vector Antenna Analyzer MF HF VHF UHF, Spec: Without Memory Card
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

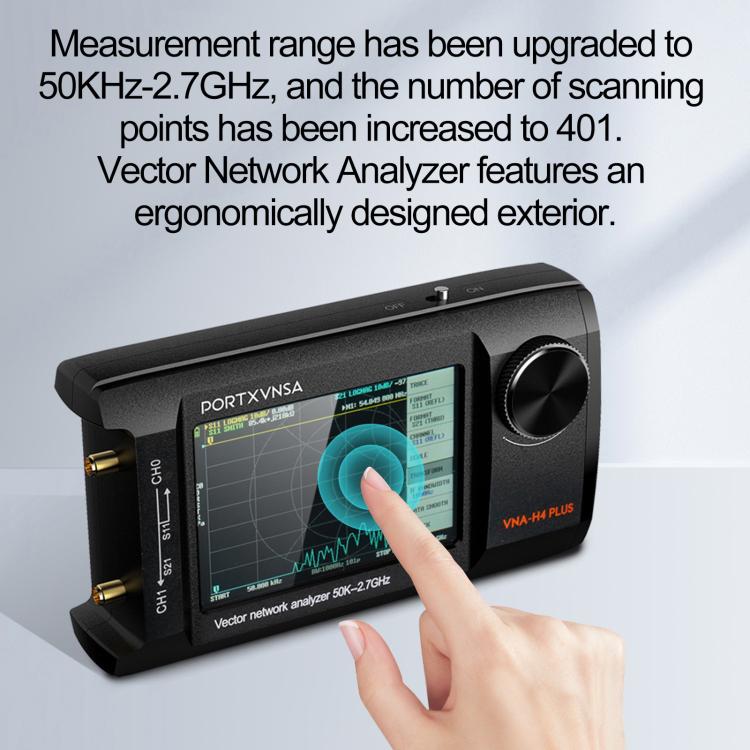

1. Bandwidth: 50KHz-2.7GHz
2. Dynamic range: 80dB (50KHz-900MHz), 60dB (900MHz-1.5GHz), 50dB (1.5GHz-2.7GHz)
3. Reflection coefficient: SWR less than 1.1
4. Frequency accuracy: less than 0.5 ppm
5. Frequency stability: less than 2.5 ppm
6. Number of scanning points: 401

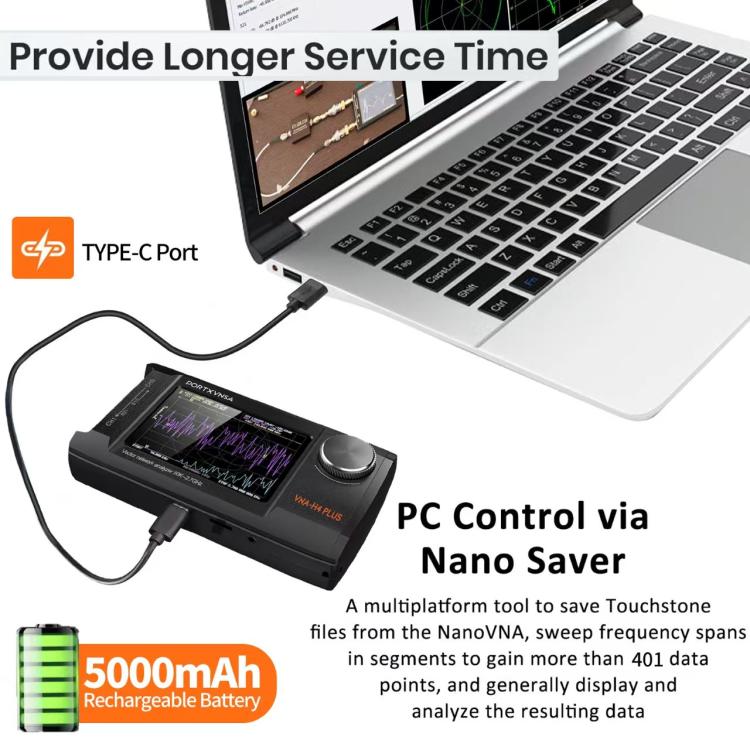

7. Battery capacity: 5000mAh
8. Size: about 16 x 9.2 x 3.5cm
Features:
1. Ergonomic design
2. Support SD card, convenient for saving test data and exporting data

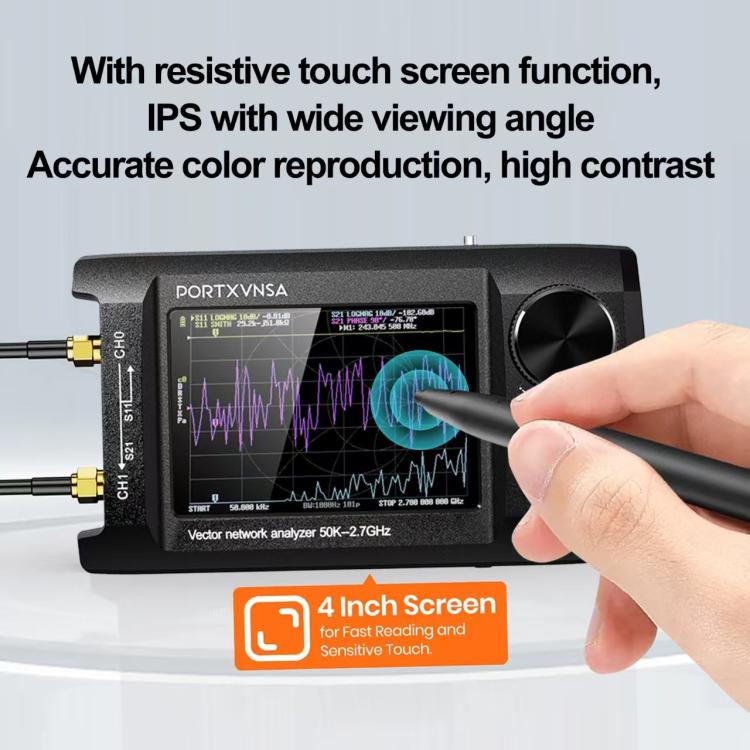

3. With resistive touch screen function, large knob operation, more convenient
5. Large capacity built-in 5000mAh battery, longer battery life
6. 4 inch IPS LCD display, wide viewing angle, accurate color reproduction, high contrast, uniform brightness

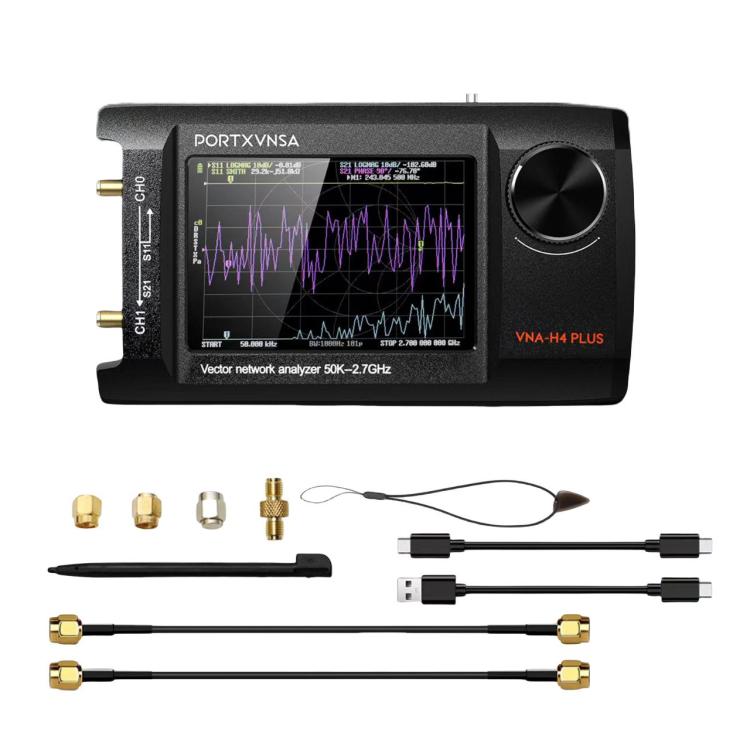

Packing list:
- Host x 1
- 15cm SMA male to male TG316 RF cable x 2
- SMA male calibration kit OPEN x 1
- SMA male calibration kit short circuit x 1
- SMA male calibration kit LOAD x 1
- SMA female to female connector x 1
- USB Type-C cable x 1
- Type-C to Type-C cable x 1
- Stylus pen x 1
- Pick x 1
