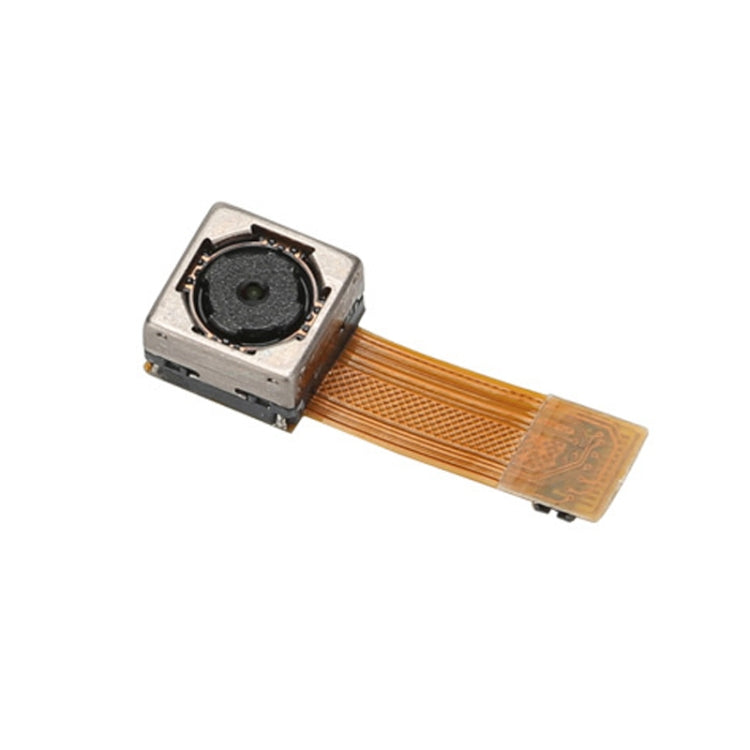

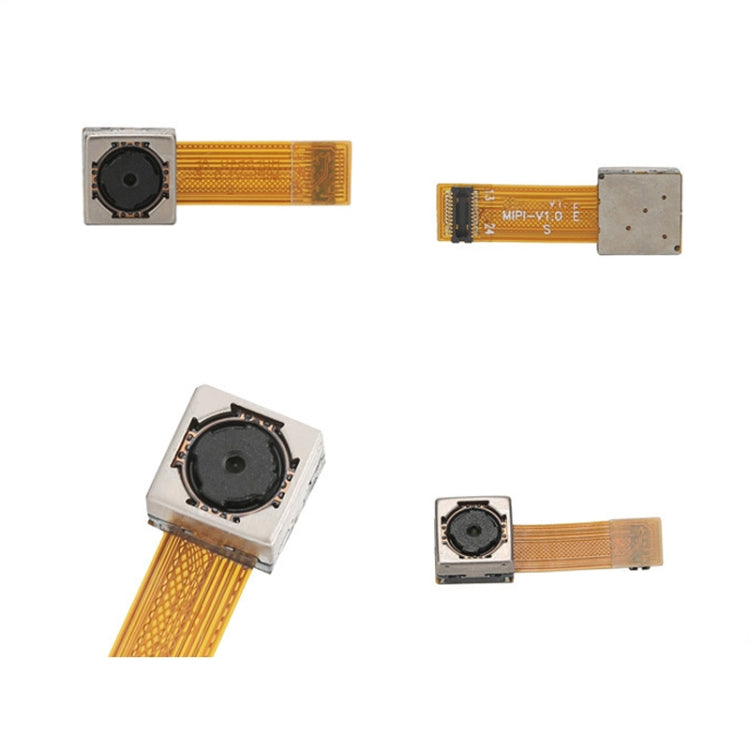

OV5645-AF-V1.0 HD Wide Angle MIPI Monitoring Module CMOS 5MP Scan Code FPC Camera Module

OV5645-AF-V1.0 HD Wide Angle MIPI Monitoring Module CMOS 5MP Scan Code FPC Camera Module

Regular price $25.00
Regular price Sale price $25.00
Sale Sold out
In Stock - Ships in 1-3 Days

Estimated delivery:

Quantity
Free Shipping
30-Day Returns
1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals


1. Support anti-shake, can be applied to cell phones, smart toys, PC multimedia, digital cameras, law enforcement, sports cameras, smart home, intelligent identification, car recorders, etc.
2. OV5645 light-sensitive chip, high image quality, low noise, high sensitivity, low crosstalk, low power consumption
3. Autofocus, with motor, support autofocus control AF VCM driver
4. 5 megapixels, 2592x1944 resolution, support 1080P@30fps, support 720P 60 fps high-speed shooting
5. Pixels: 5.0 megapixels (2592x1944)
6. Light-sensitive chip: OV5645 (1/4 inch) CMOS
7. Format: RGB/YUV
8. Frame rate: QSXGA (2592x1944): 15 fps; 1080p: 30 fps; 1280x960: 45 fps; 720p: 60 fps
9. Interface: MIPI
10. Field of view/focal length: 67.4 degrees/3.37mm

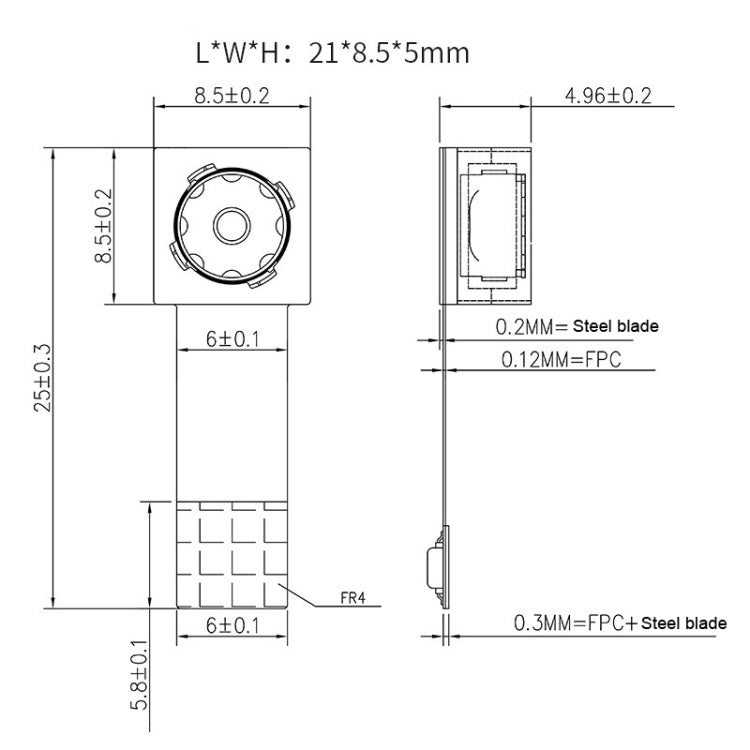

11. Size: about 21 x 8.5 x 5mm
