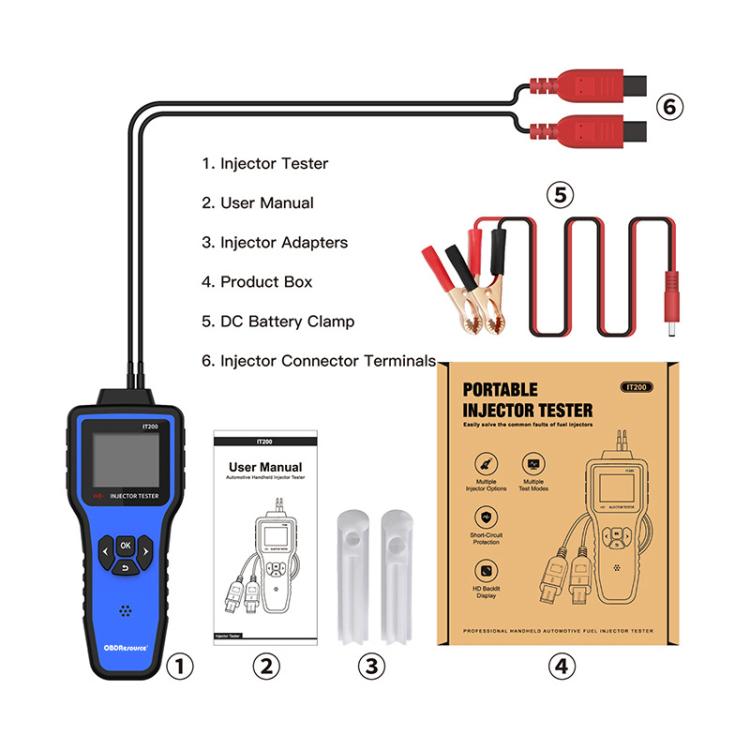

OBDResource 5V/12V Automotive Fuel Injector Custom Settings Dual Head Tester
OBDResource 5V/12V Automotive Fuel Injector Custom Settings Dual Head Tester
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. The device sends PWM pulse signals to the fuel injector in different preset modes, so as to observe the working state of the fuel injector and judge the quality of the fuel injector
2. Supports 5V/12V two voltage fuel injectors, and tests the fuel injectors through preset frequency and pulse value
3. This instrument can help you diagnose fuel injector problems. You can test the fuel injectors one by one to help confirm the jamming, leakage or combustion completion
4. Powered by a DC jack power adapter, the continuous working mode can identify the quality of the fuel injector when the engine is turned off. This instrument can be used with any fuel pressure tester
5. Supports 5 working modes (mode 1~mode 4 are preset modes, mode 5 is a custom mode [custom pulse width, frequency, test times]
6. Supports 5V/12V two different voltage fuel injector tests
7. High-definition screen display, display frequency, pulse width, test times and other parameter information, the test results are clearly visible
8. Buzzer prompts, test process prompts
9. Input voltage supports VDC 8V~18V
10. Output voltage supports VDC 0V~80V
11. Current supports 0A~8A
12. Short circuit protection (short circuit during the test, millisecond level protection equipment)
13. Supports 12V 2A power adapter and external car battery power supply
14. One to two, can test 2 injectors at the same time, easy to compare
15. High-definition backlit screen, using broken code screen display, clearer reading, day and night dual use
16. Size: 160x62x22mm
