NEJE N30610 2.5W 450nm Laser Engraver Module Kits
NEJE N30610 2.5W 450nm Laser Engraver Module Kits
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
2. Original laser diodes, good-quality, Ensure service life！

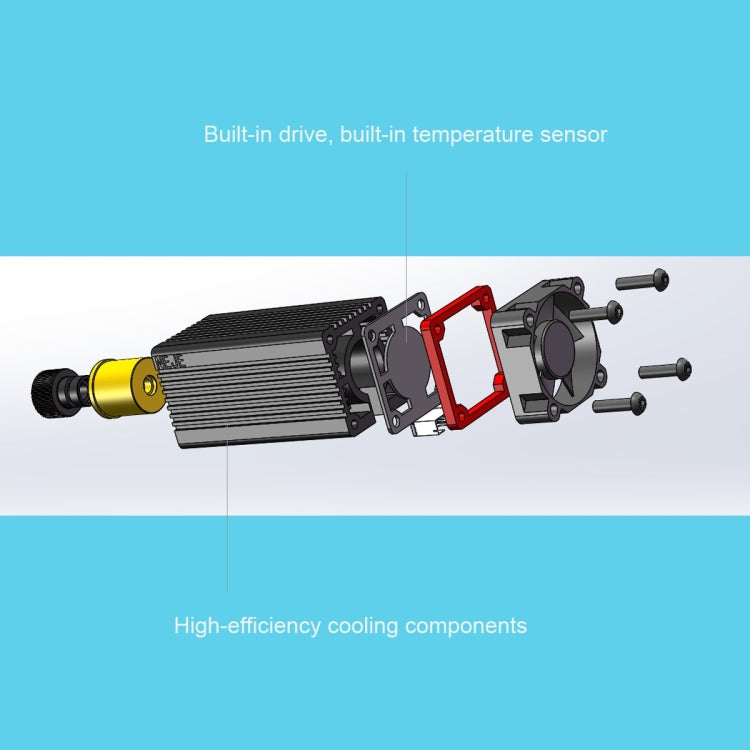

3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！

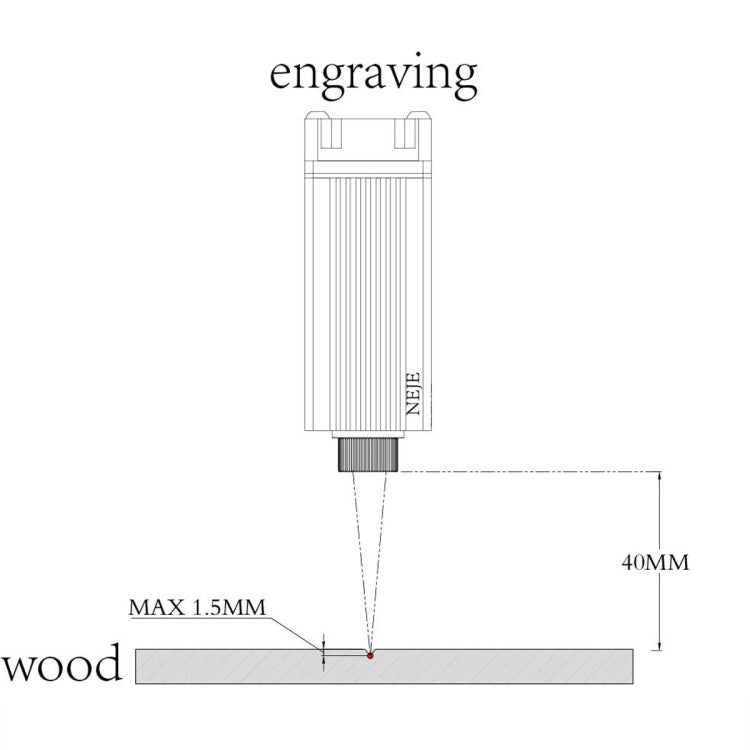

4. Clear focus lens, not stray light, adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).
Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Luminous Color: Blue
3. Laser diode: 5.6mm laser diode
4. LD Current: 1.6A
5. Section Size: 30mm x 30mm
6. Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan

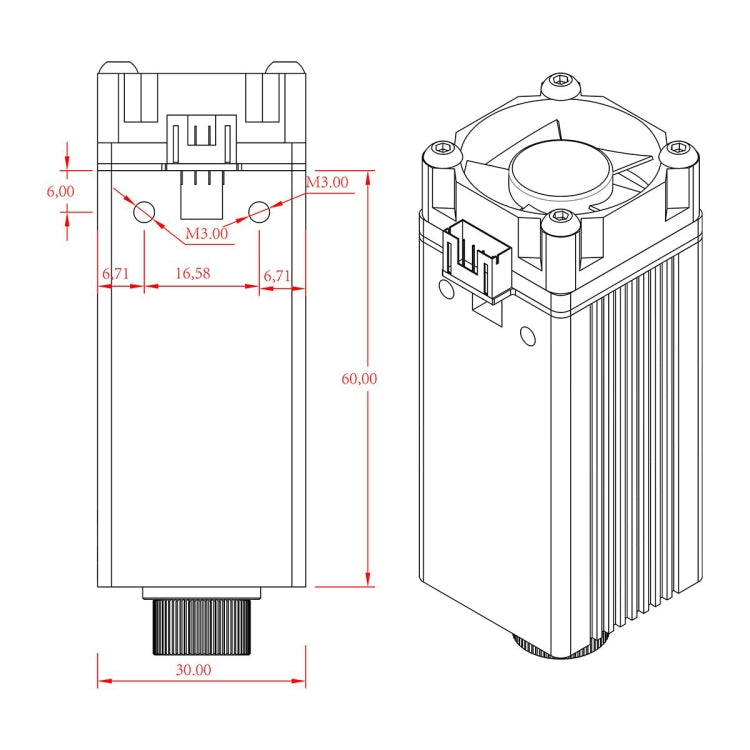

7. Dimension: 60 x 30 x 30mm
8. Adapter Output Voltage: DC 12V 2A
9. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
10. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters
1. Module Input: 10W
2. Laser Output Power: 2.5W (2500mW)
3. Wavelength: 445-450nm
4. Beam Shape: Dot (Focusable)
5. Voltage: DC 12V

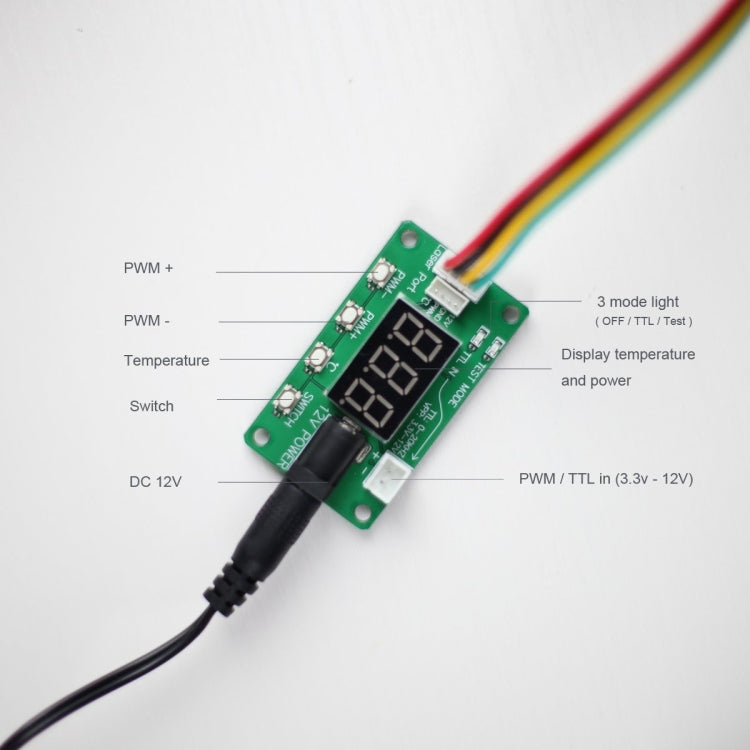

6. TTL&PWM Modulation: YES, compatible with Both TTL & PWM Modulation
7. Input Voltage: DC12V
8. PWM/TTL Input: DC3.3V-12V
9. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

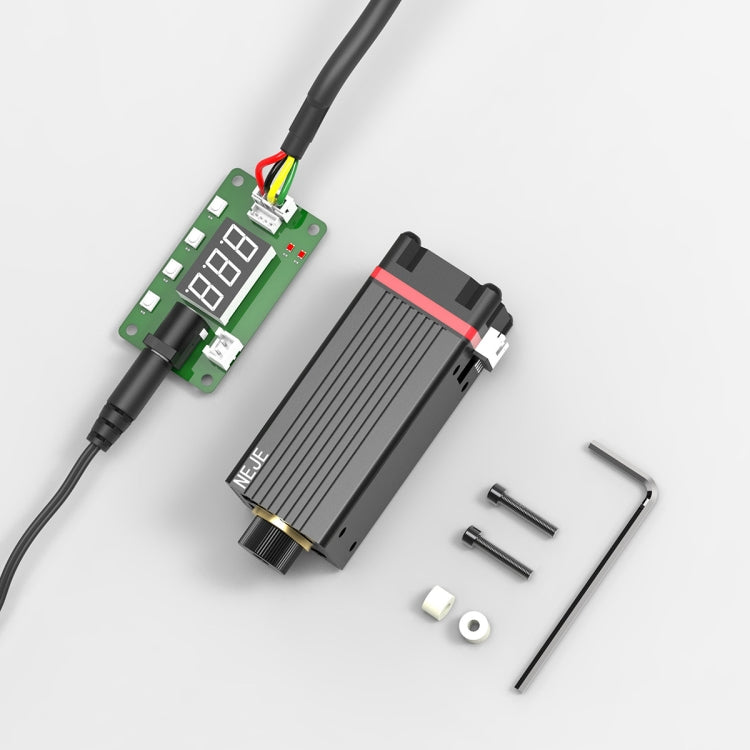

Package Included
- 1 x 2.5W Laser Engraving Module
- 1 x 4 Pin Sport Cable
- 2 x Screw
- 2 x ABS cushion post
- 1 x L-shaped wrench
