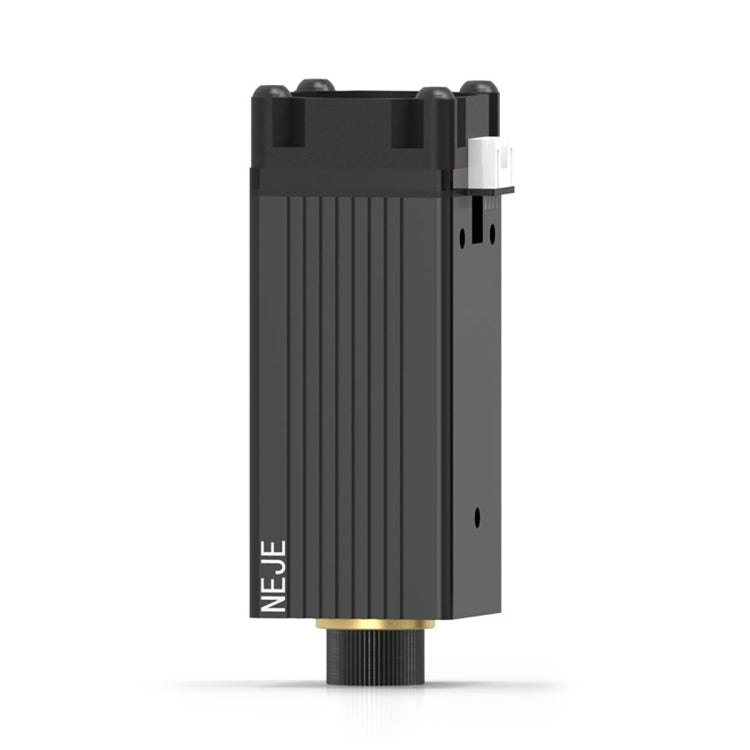

NEJE B30635 500MW 405nm Laser Engraver Module Kits
NEJE B30635 500MW 405nm Laser Engraver Module Kits
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
2. Original laser diodes, good-quality, Ensure service life！
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！

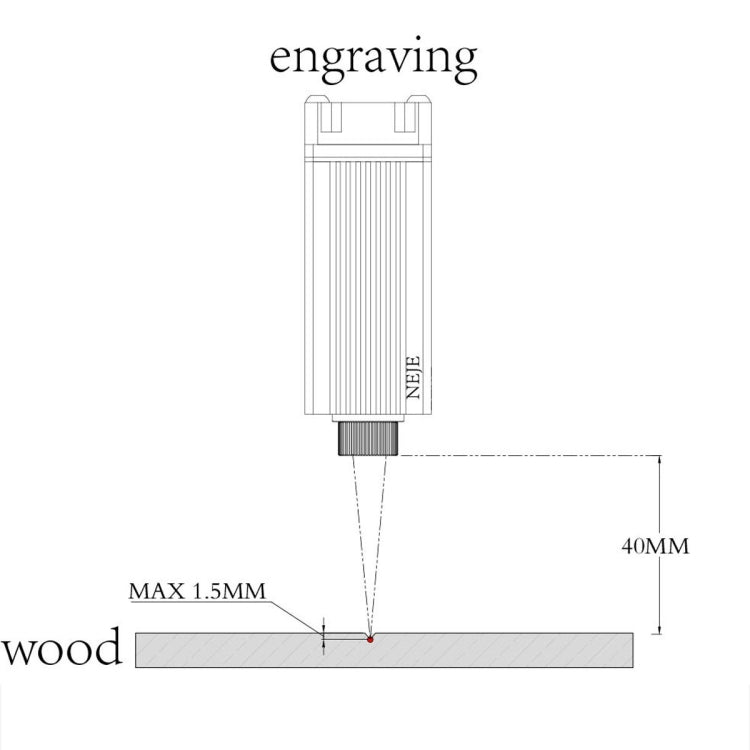

4. Clear focus lens, not stray light, adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).
Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Laser diode: sharp 350MW 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
3. LD current: 350mA
4. Luminous Color: Blue
5. Section Size: 30mm x 30mm
6. Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan

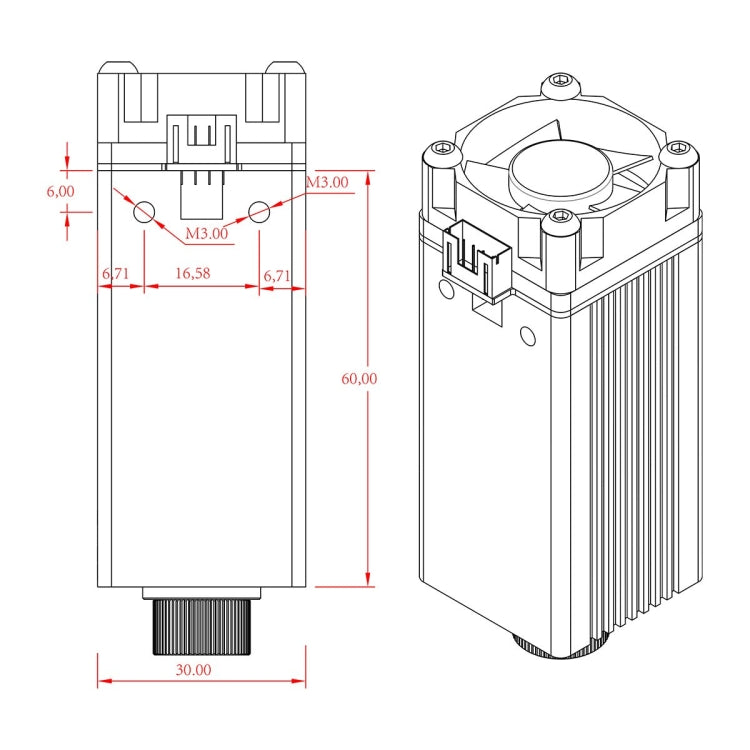

7. Dimension: 60 x 30 x 30mm
8. Adapter Output Voltage: DC 12V 2A

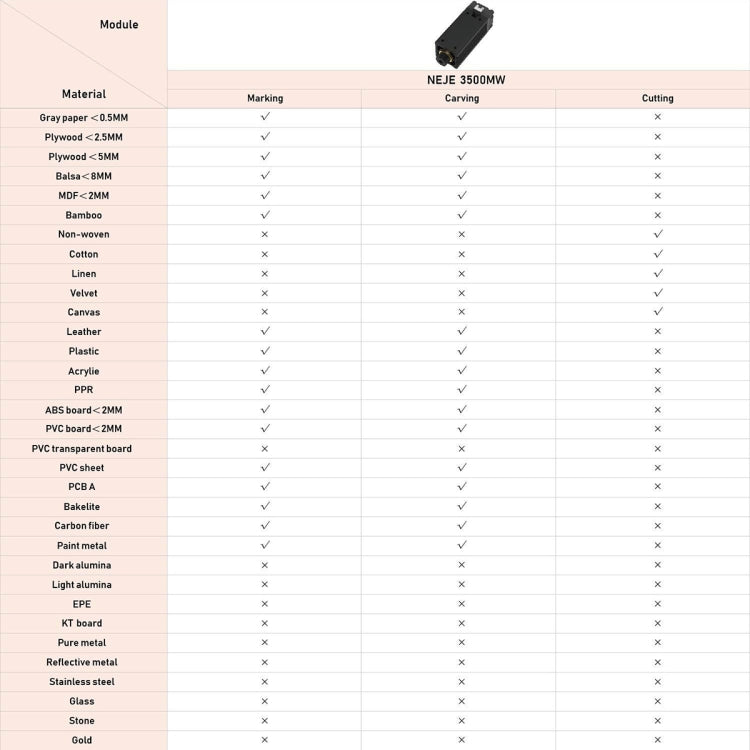

9. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
10. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
1. Module Input: 3500MW
2. Laser Output Power: 500MW
3. Wavelength: 405nm
4. Beam Shape: Dot (Focusable)
5. Working Voltage: DC 12V
6. TTL&PWM Modulation: YES, compatible with Both TTL & PWM Modulation
7. Input Voltage: DC12V
8. PWM/TTL Input: DC3.3V-12V?
9. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL), 2Pin+2Pin (+,-) + (PWM/TTL,-)
10. NOTE：Temperature interface can be disconnected
11. Drive Mode: External ACC
12. Safe temperature range: <70 degrees Celsius
13. Module weight: 115g ( The lighter the weight, the smaller the moving inertia, the better the performance )
14. Life Time: 20,000 hours

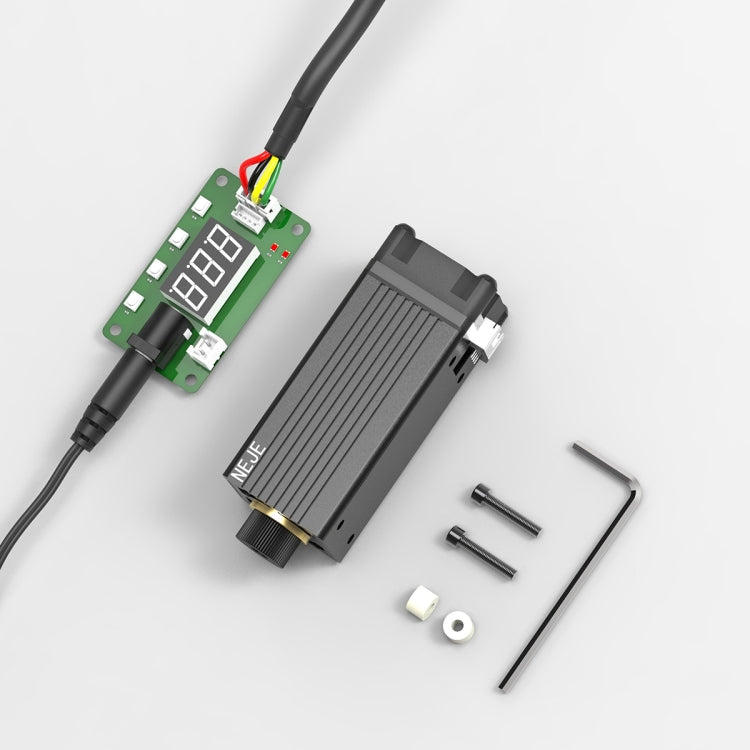

Package Included:
- 1 x Laser Engraving Module
- 2 x Screw
- 2 x ABS cushion post
-1 x L-shaped wrench
-1 x 4 Pin Cable(30cm Sports Cable)?
-1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
