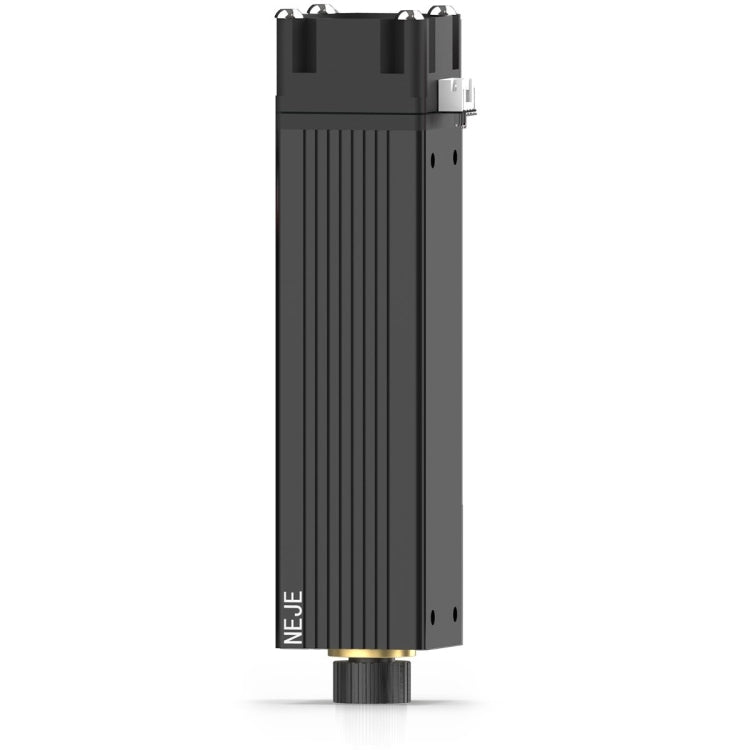

NEJE A30130 7.5W 450nm Laser Engraver Module Kits
NEJE A30130 7.5W 450nm Laser Engraver Module Kits
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

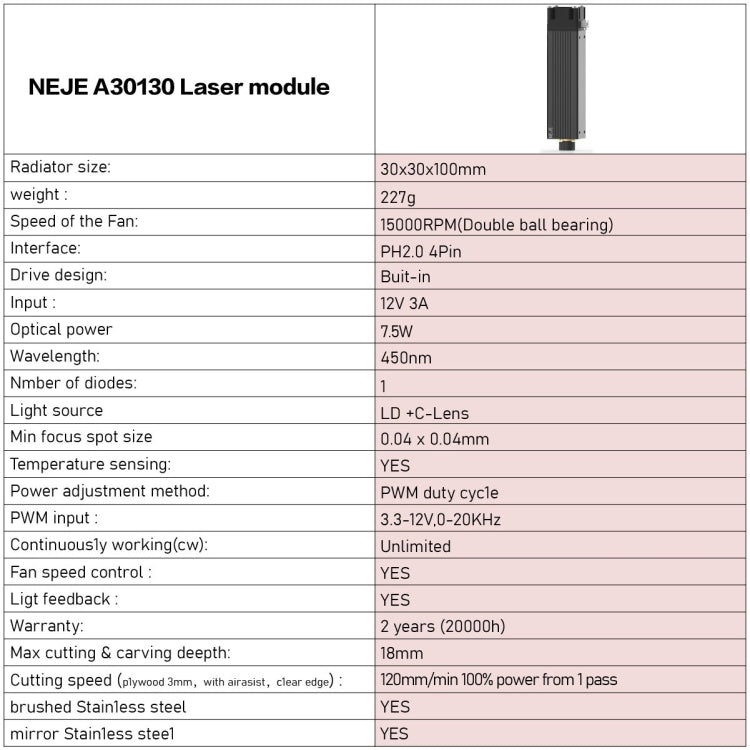

2. Weight: 227g
3. Speed of the fan: 15000RPM(double ball bearing)
4. Interface: PH2.0 4 Pin
5. Drive design: buit-in
6. Input: 12V3A
7. Optical power: 7.5W
8. Wave length: 450nm
9. Nmber of diodes: 1

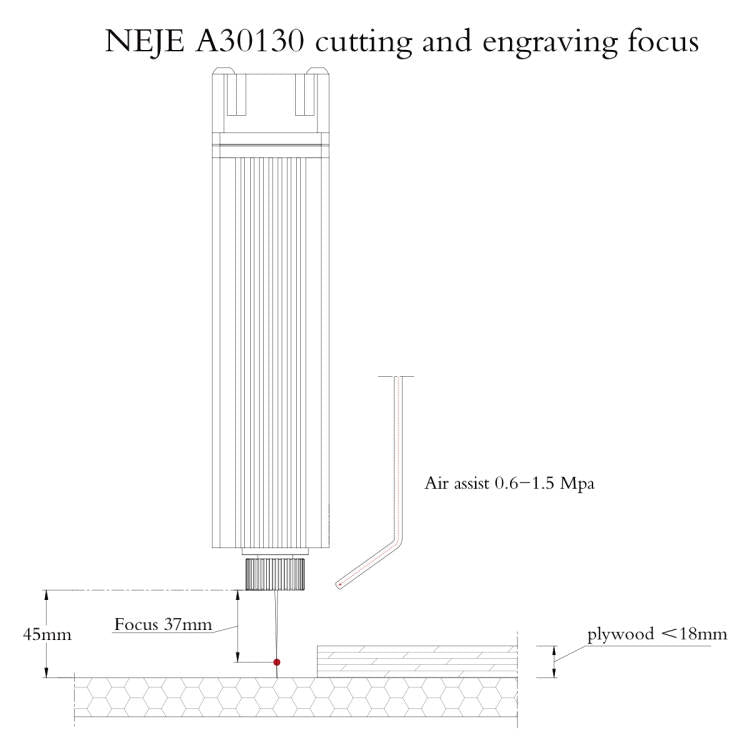

10. Min focus spot size: 0.04x0.04mm
11. Temperature sensing: YES
12. Power adjustment method: PWM duty cvcle
13. PWM Input: 3.3-12V.0-20KHz
14. Max cutting carving deepth: 18mm

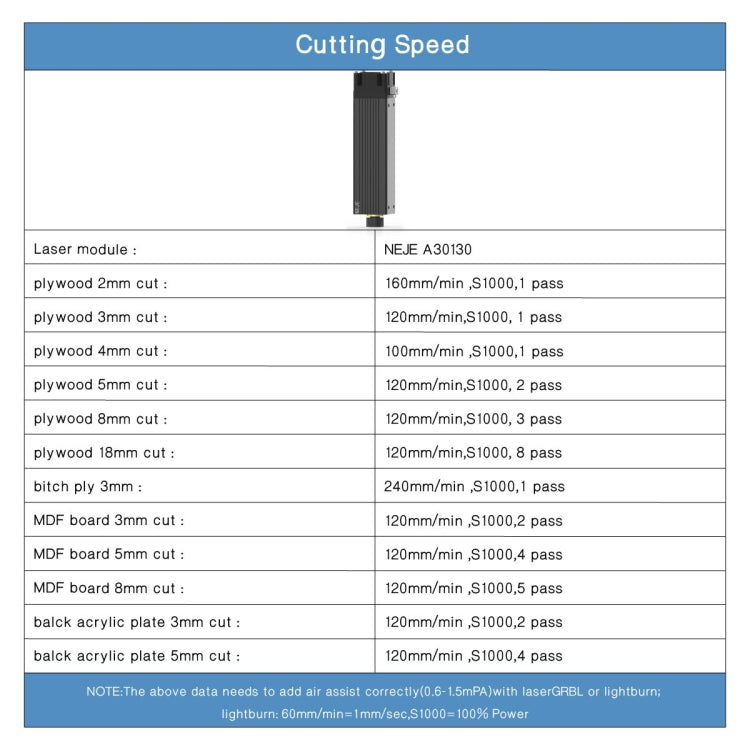

15. Cutting speed(plywood 3mm, with airasist, clear edge): 120mm/min 100% power from 1 pass
16. Packing list
- 1 x laser module
- 1 x sliding card slot
- 1 x L wrench
- 1 x L-shaped small wrench
- 1 x Interface adapter board
- 1 x 4pin laser line
- 1 x 3pin 2.54 interface output cable
- 1 x 2pin TTL control line
