NE5532 Tuner Plate Active Filter Amplifier Board HIFI Front Module Universal Dual Operation Amplifier

Name: NE5532 Tuner Plate Active Filter Amplifier Board HIFI Front Module Universal Dual Operation Amplifier
Brand: buy2fix
SKU: TBD06032704
Availability: InStock

$31.00

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery:

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

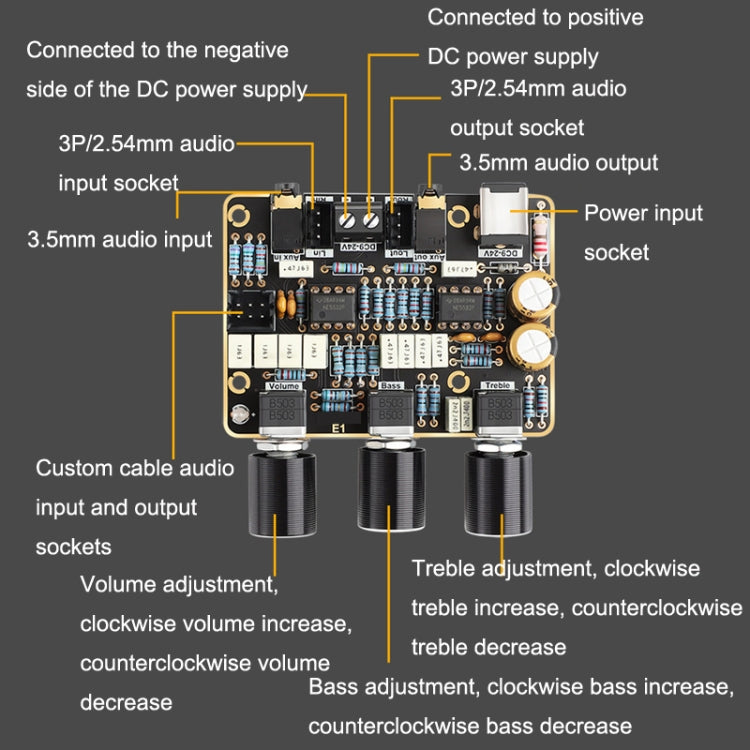

1. Use NE5532 chip, can replace OP275, AD828, NJM4558, TL072 and other general-purpose dual op-amps
2. Low quiescent current and noise suppression
3. Bass: 100HZ/80DB gain adjustment
4. Tweeter: 10KHZ/80DB gain adjustment
5. Frequency response: 20-20000HZ
6. Signal to noise ratio: 98dB
7. Supply voltage: DC9-24V (5 x 2.1mm core input, 2P chassis input)
8. Rated power 2x770mW stereo (24V/32 ohms) can be connected to loads above 32 ohms
9. Output method: 3.5mm audio jack
10. Input method: 3.5mm audio terminal, 3P 2.54mm terminal block, 6P 2.5mm chassis
11. PCB: 72x53mm
12. Overall: 72x53x15mm
13. Potentiometer knob opening: 7mm
14. Distance between mounting holes: 47.58x36mm
15. Net weight: 54g
