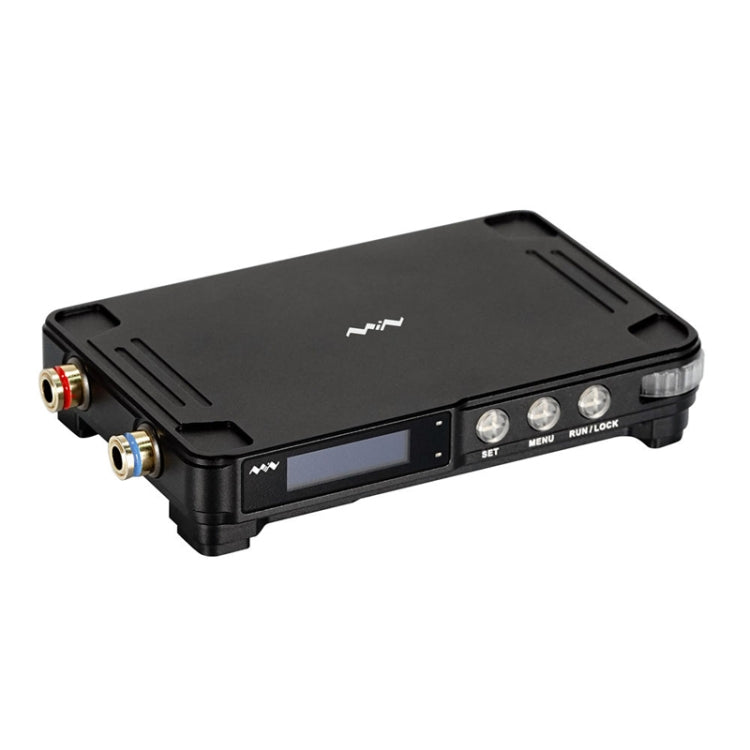

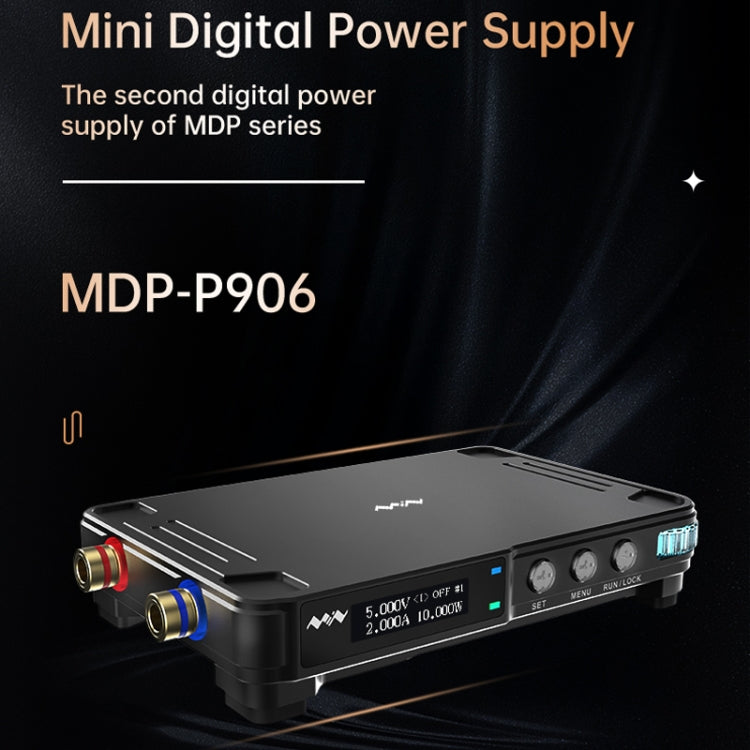

MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module, Model: MDP-P906
MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module, Model: MDP-P906
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

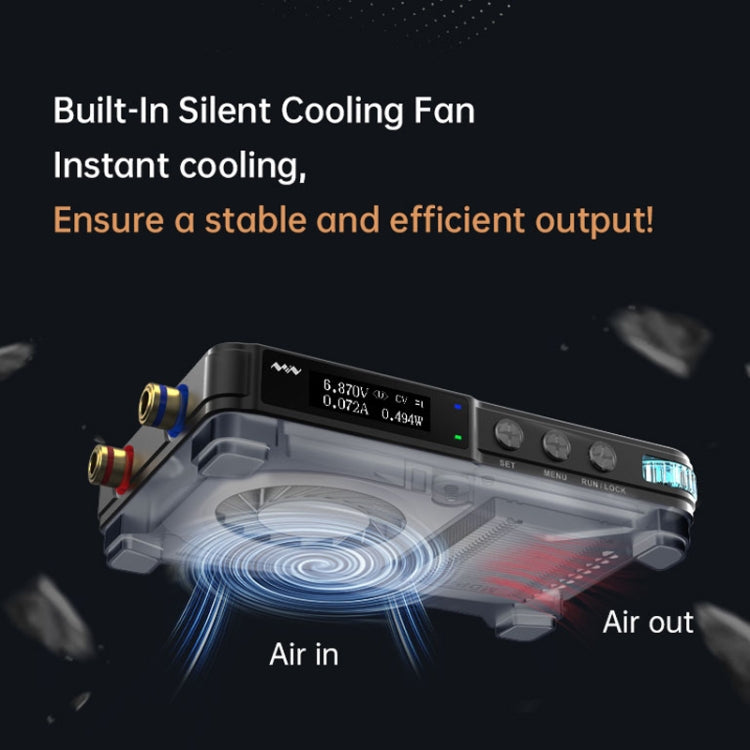

1. Built-in silent cooling fan, fast heat dissipation to ensure stable and efficient output

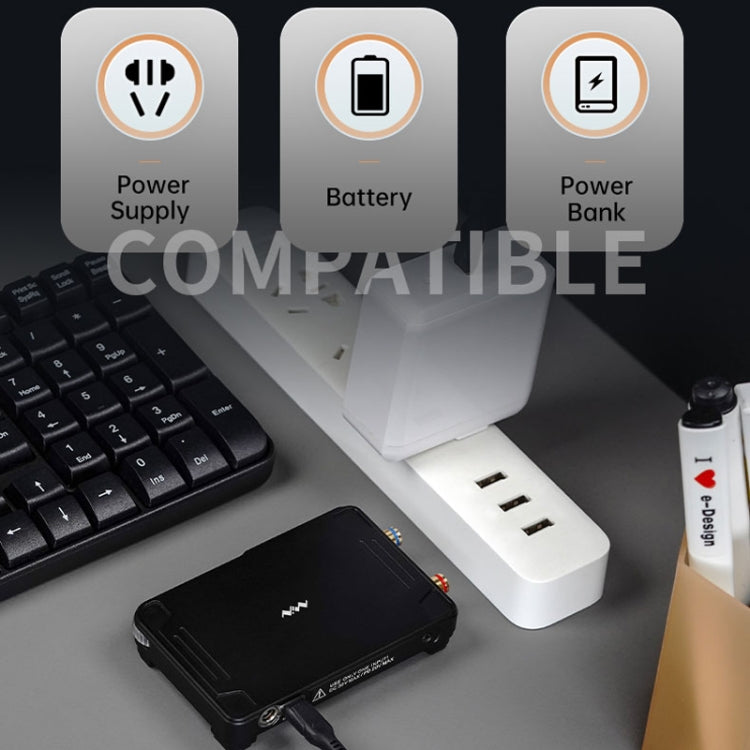

2. Compatible with a variety of mobile power supply, maintenance and debugging at any time and anywhere

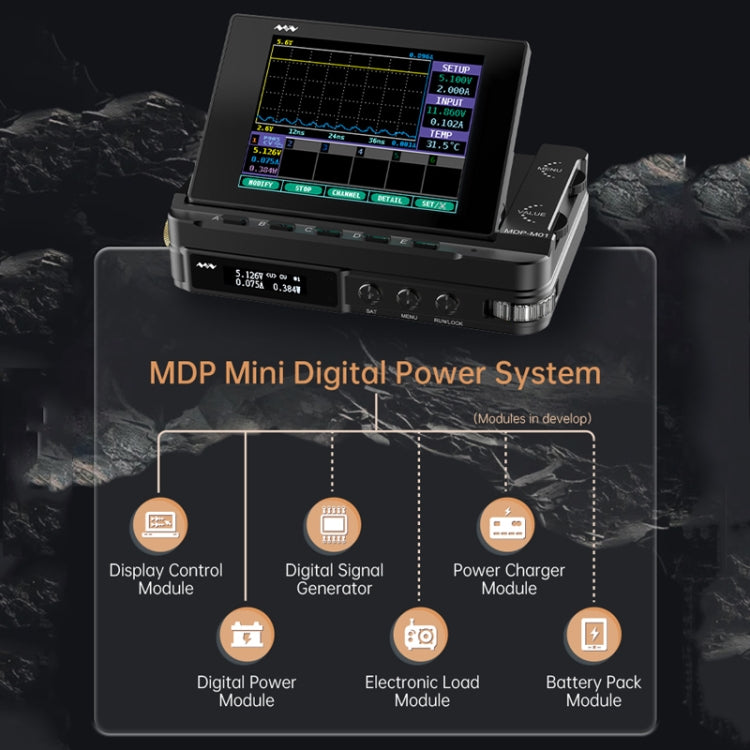

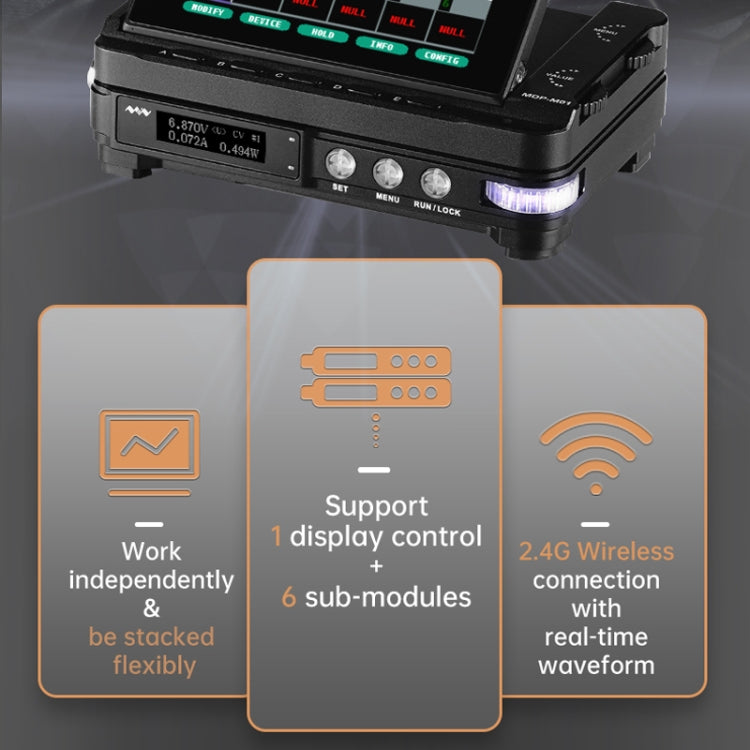

3. Can work independently or stacked flexibly
4. Mini size, higher sensitivity

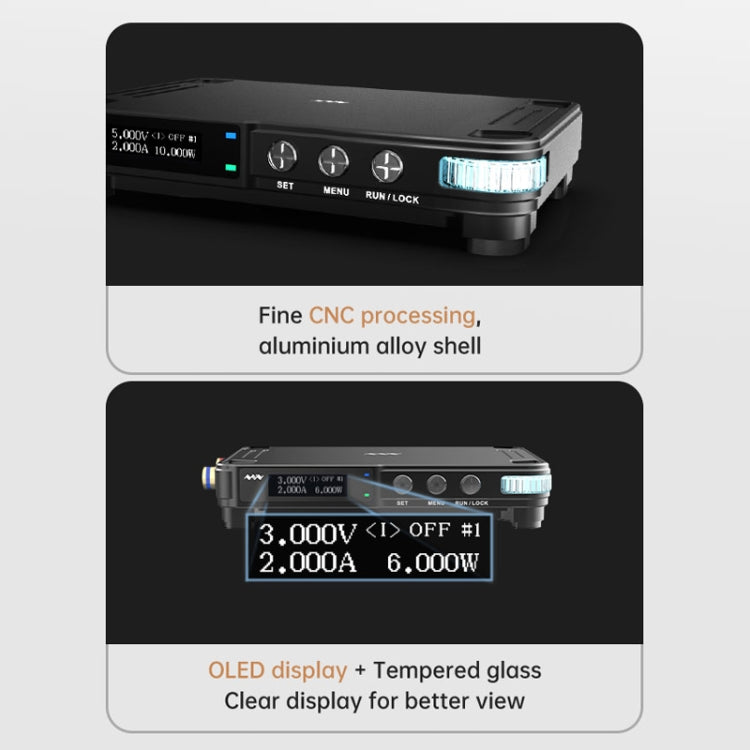

5. Precision CNC machining, full aluminum alloy plating shell, durable and rust resistant
6. OLED display, tempered glass surface for clearer display

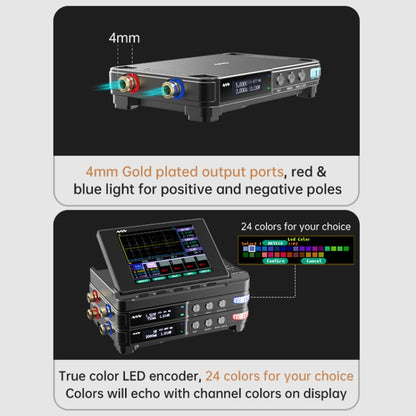

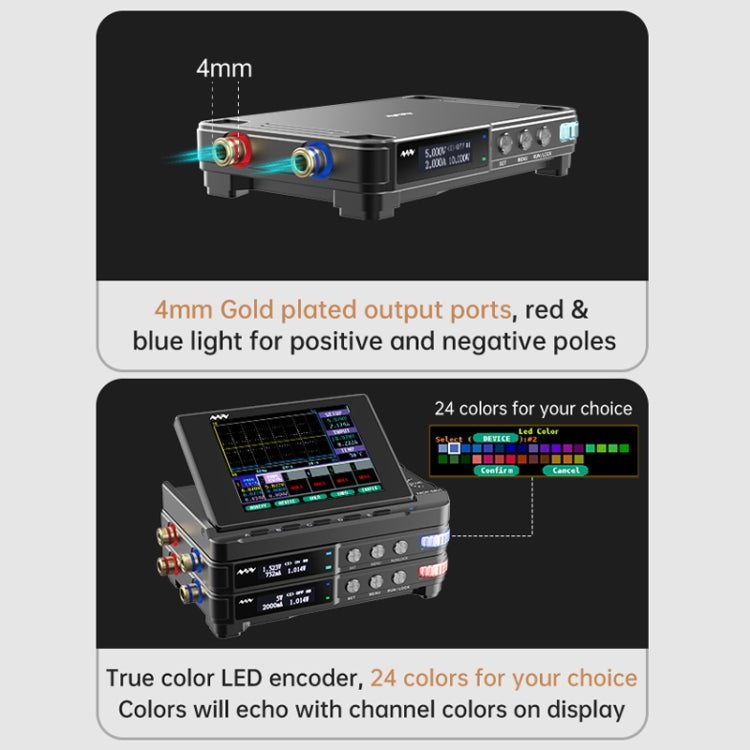

7. 4mm gold-plated output connector, positive and negative red and blue status indicators
8. 24-color colorful light dial wheel set up at will, the display and control interface color block and its intelligent echo when on-line
9. Built-in high-performance MCU chip, powerful function

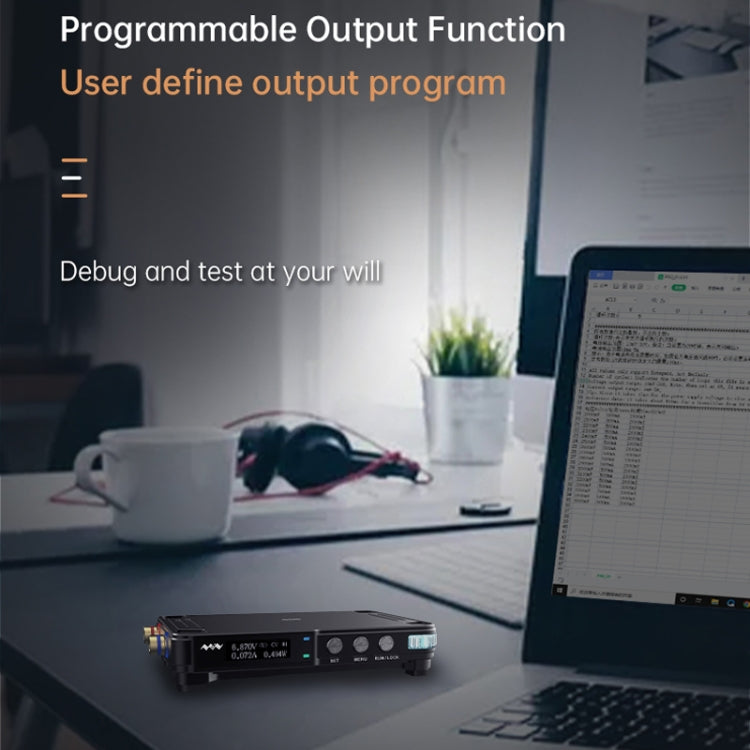

10. Programmable output advanced features, custom program output law
11. Can be preset parameters and firmware upgrades, a wide range of application scenarios
Parameters:
1. Input: DC4.2V-30V 14A; QC3.0/PD2.0 20V 5A

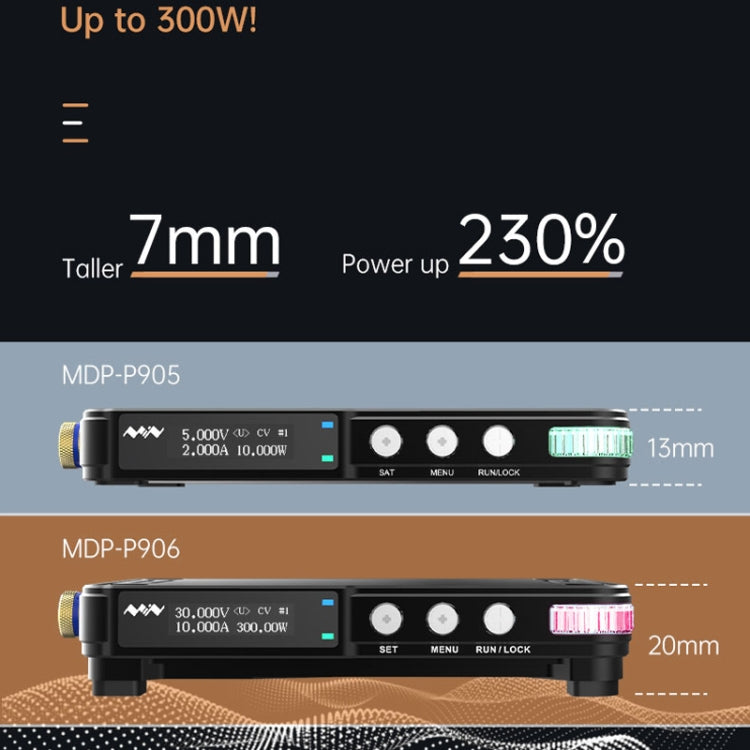

2. Output: 0-30V 0-10A 300W
3. Conversion efficiency: 95 percent
4. Output resolution: 10mV, 2mA; through the line control module settings up to 1mV, 1mA
5. Output accuracy: 0.03 percent+5mV, 0.05 percent+2mA
6. Adjustment rate: Load adjustment rate is less than +/-0.01 percent; power supply adjustment rate is less than +/-0.01 percent

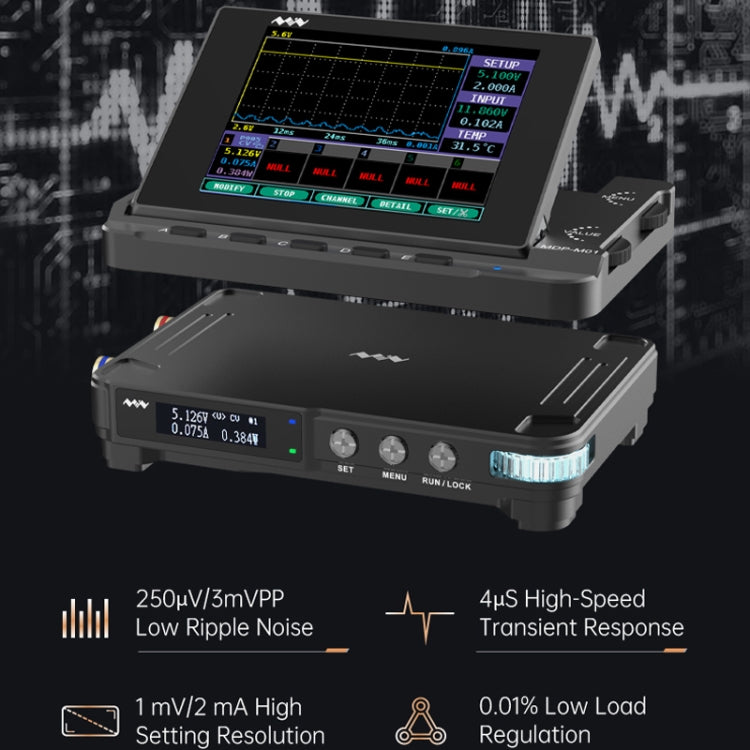

7. Ripple and noise: less than 250uVrms, 3mVpp; less than 2mArms
8. Transient response time: less than 4uS
9. Safety protection: input overvoltage, undervoltage, reverse connection protection, output overcurrent, backflow, over-temperature protection
10. Other features: automatic shutdown, enter micro-power mode, support USB firmware upgrade

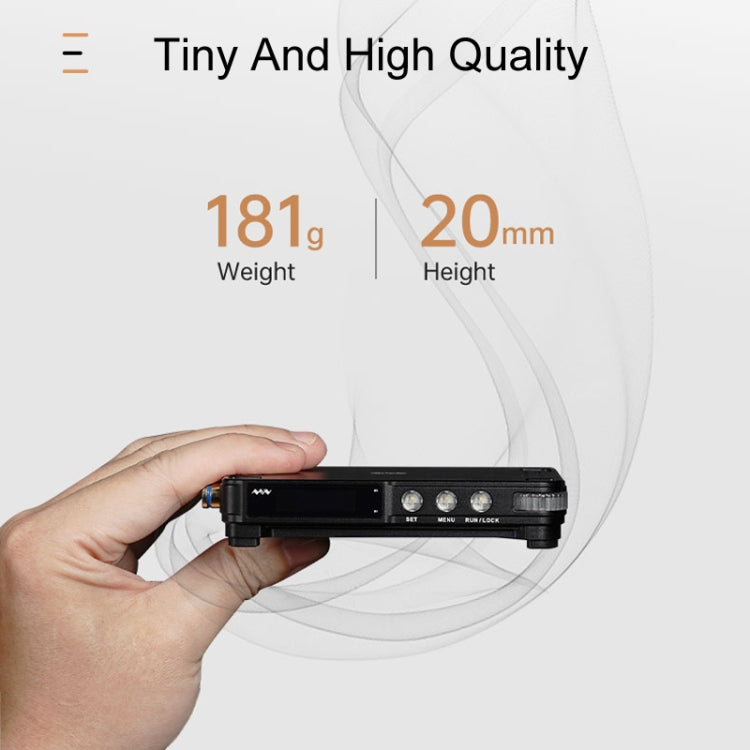

11. Size: 112 x 66 x 20mm
12. Weight: 181g

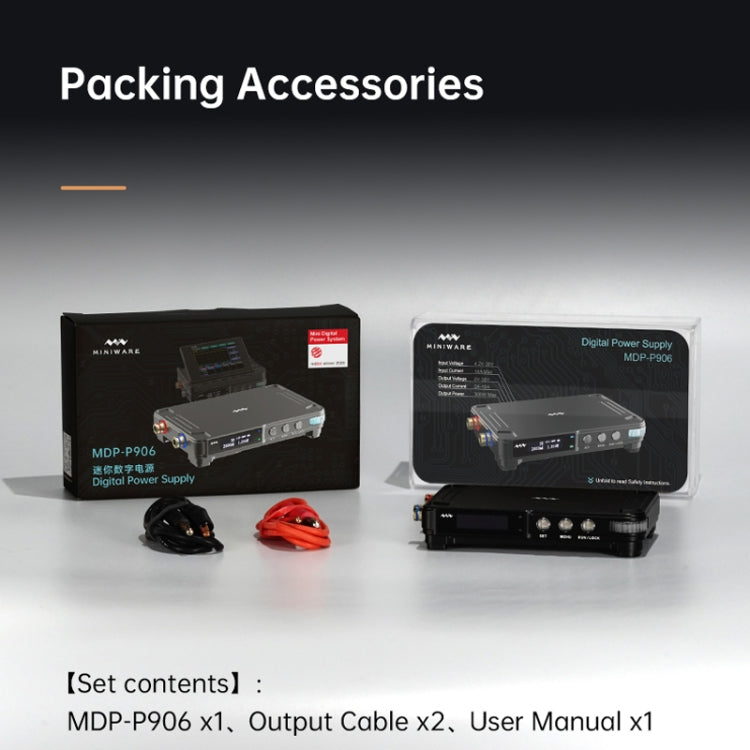

Packing list:
- MDP-P906 x 1
- Output data cable x 2
- Instructions for use x 1
