MINIWARE LA104 Logic Analyzer 4-Channel Debugging Assistant Sampling Analog Oscilloscope
MINIWARE LA104 Logic Analyzer 4-Channel Debugging Assistant Sampling Analog Oscilloscope
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Widely used in automotive electronics, communications, power supply, computers and other industries and fields
2. Logic analyzer is used to analyze the logical relationship of the digital system, it can capture and store multiple digital signals and display their sequential relationship directly on the screen
3. With protocol analysis function, you can analyze the logic signal of the physical layer of the protocol into the data of the high-level protocol and display it on the screen
4. Mini size, easy to carry
Parameters:
1. Number of input channels: 4
2. Sampling rate: 100MHz
3. Capture pulse width (Min): 10ns
4. Input impedance: 1 milliohm
5. Number of output channels: 4
6. Mode: SPI, I2C, PWM
7. 3V output channel: 1
8. Storage: 8MB USB memory storage
9. Screen size: 2.8-inch TFT LCD
10. Screen resolution: 320 x 240
11. Battery capacity: 500mAh
12. Threshold voltage: 1.2-3V

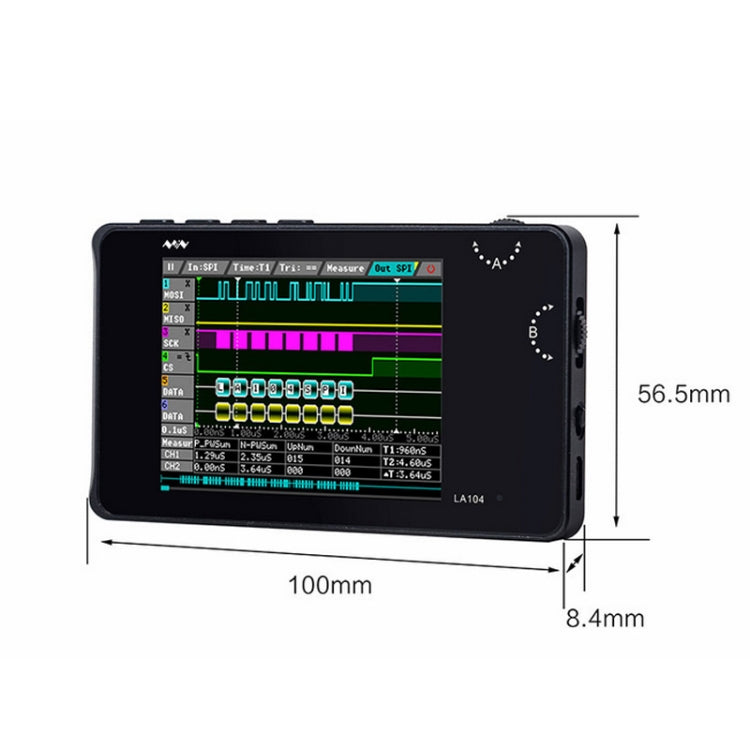

13. Main unit size: 100 x 56 x 8.6mm
14. Weight: 83g

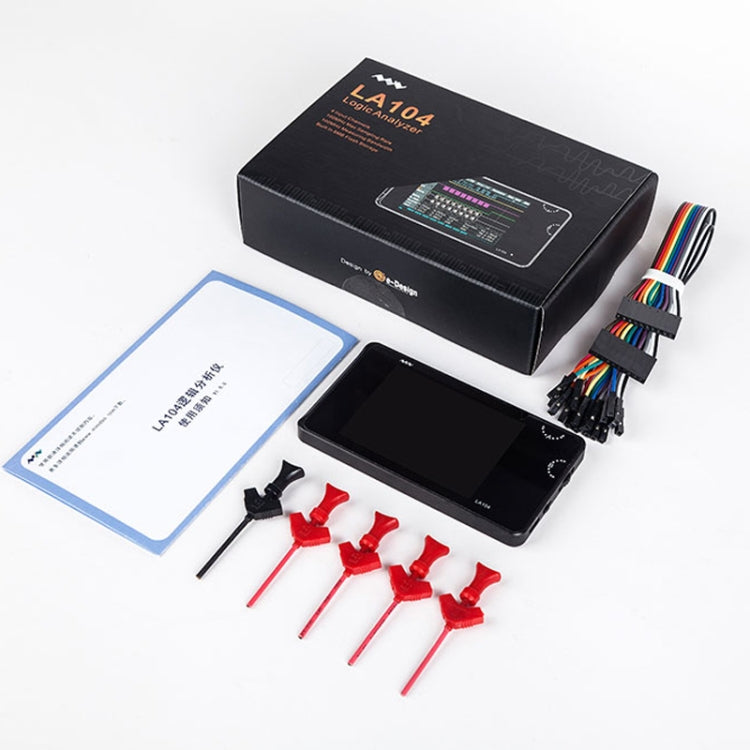

Packing list:
- Logic analyzer host x 1
- DuPont cable x 20
- Test hook x 5
- Instructions for use x 1
