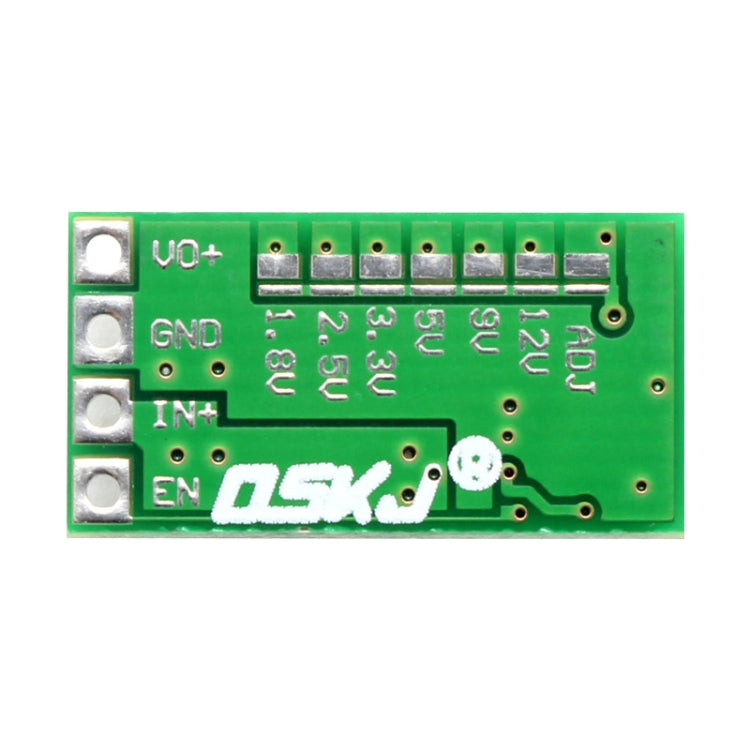

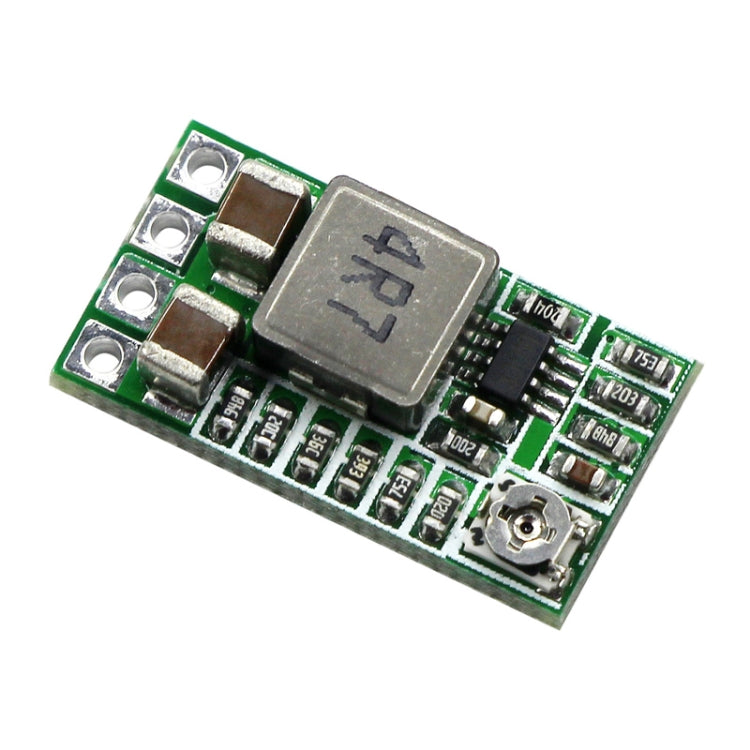

Type:Voltage Regulator 1. Package: Step-down module 2. Power: Standard 3. Size: 20*11*5 mm 4. Input voltage: DC 4.5-24V 5. Output voltage: integrated adjustable and fixed output, fixed output voltage on the back 6. Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V) 7. Output current: maximum 3A (please pay attention to heat dissipation at full load), the actual test input 12V output within 1.5A without special treatment heat dissipation. 8. Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) 9. Switching frequency: 500KHz 10. Output ripple: 20mV (12V to 5V3A) 20M bandwidth 11. Wiring method: welding 12. Input method: welding 13. Output method: welding / pin header 14. Welding hole spacing: 2.54 mm 15. Output over voltage protection: none 16. Full load temperature rise: 40 ° C 17. Quiescent current: 0.85 mA 18. Load adjustment rate: ±1% 19. Voltage regulation rate: ±0.5% 20. Dynamic response speed: 5% 200uS
