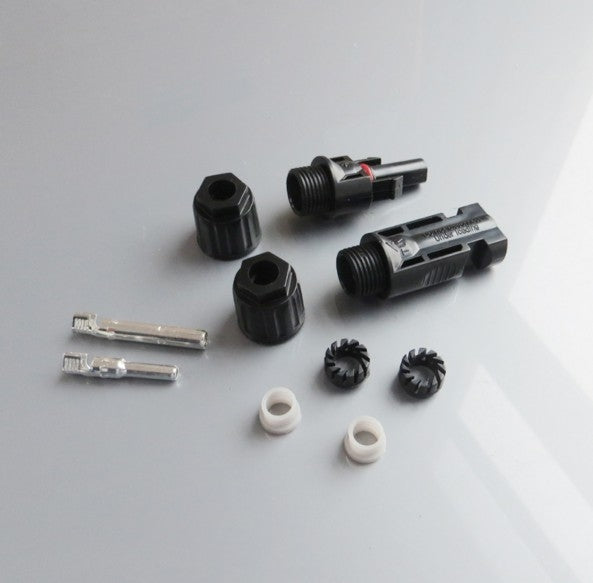

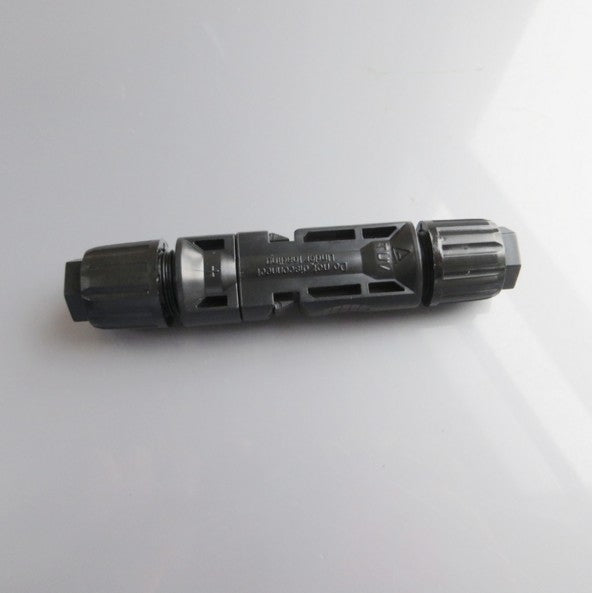

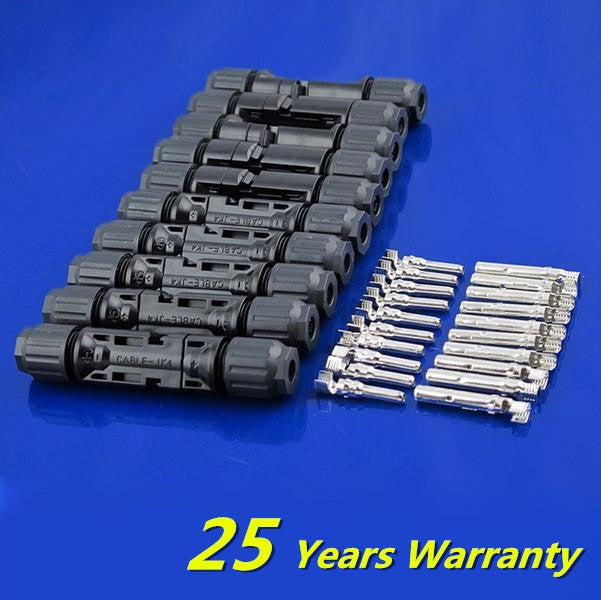

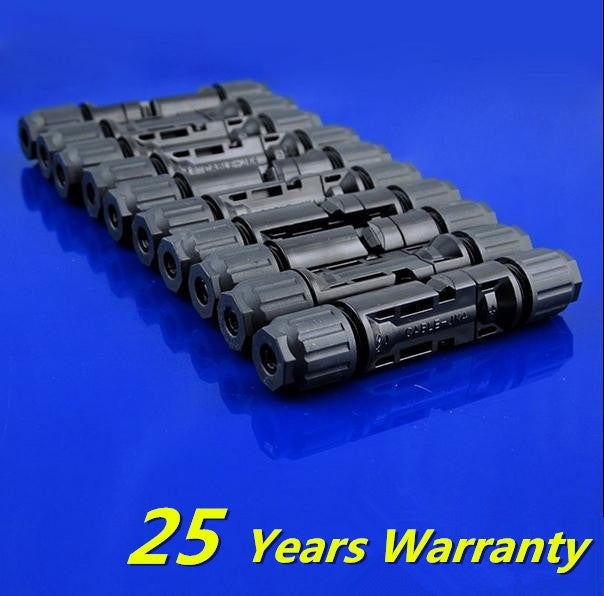

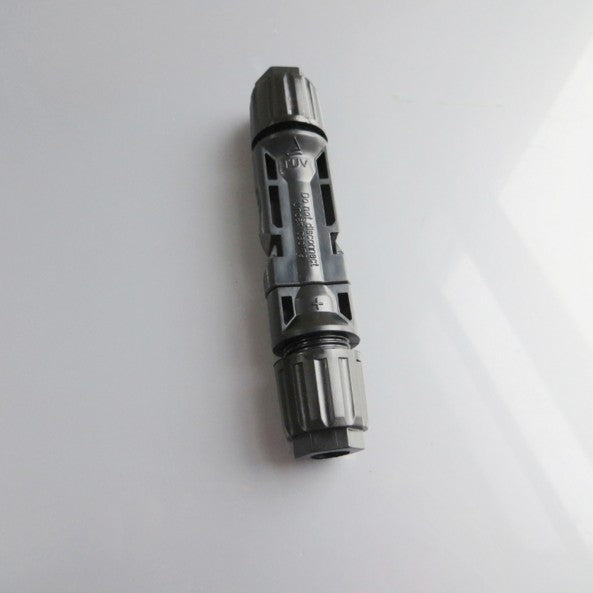

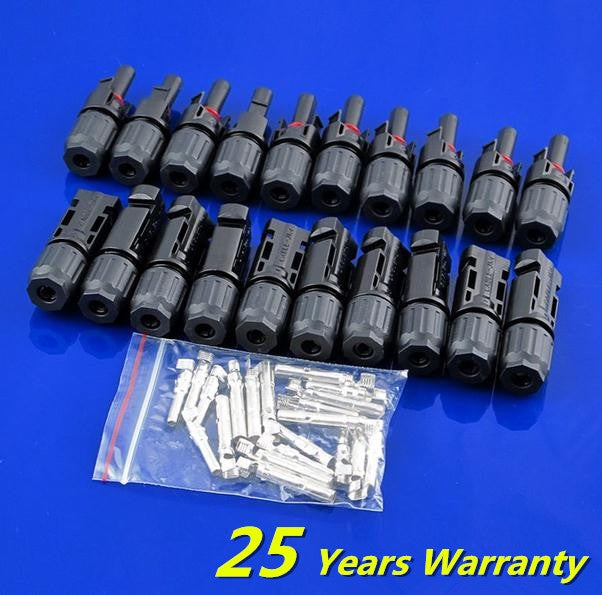

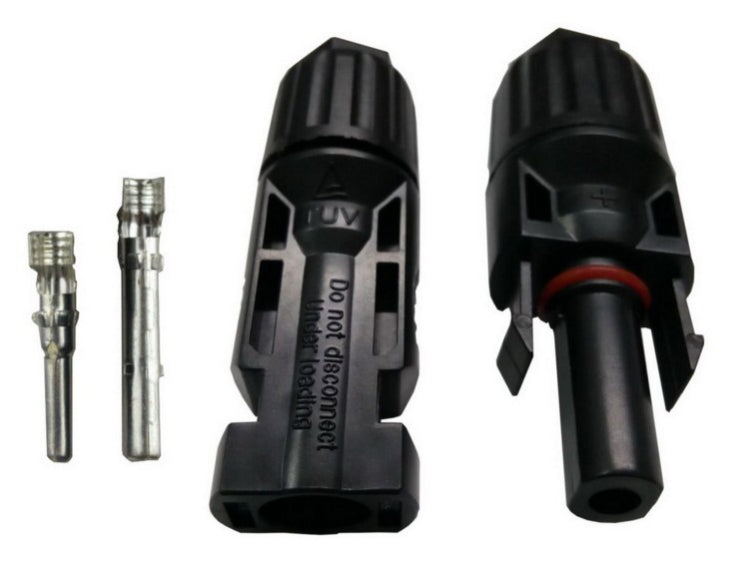

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
- Model Number:EU
- Connection:Plug In
- Output Type:DC
- Brand Name:ZOORUI
- Usage:Electric Tool
- Output voltage:DC1000V
- Usage:solar
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
