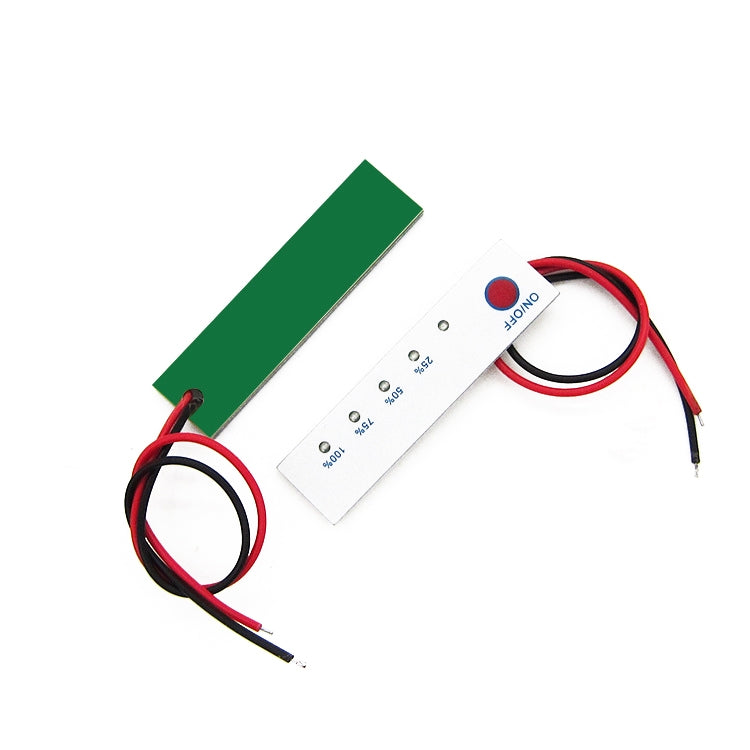

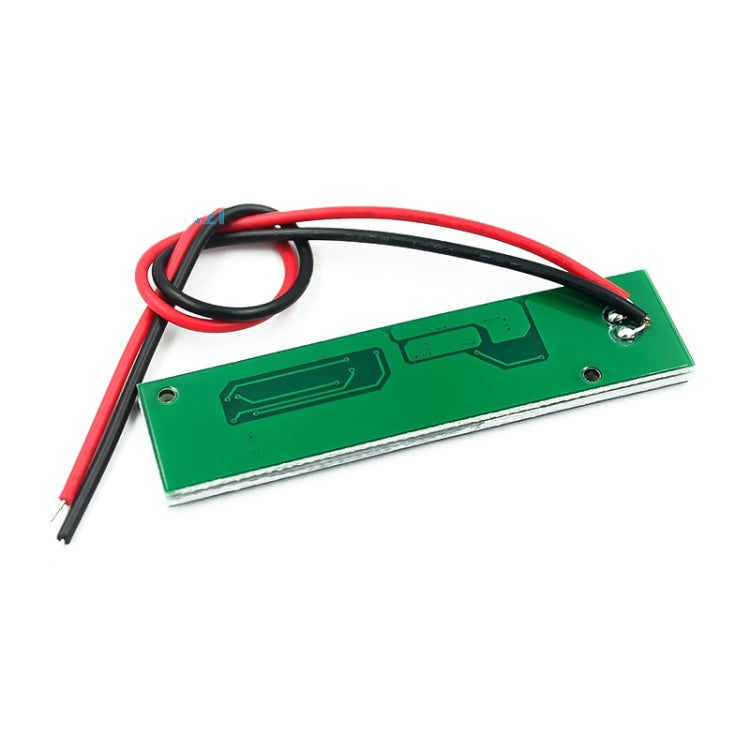

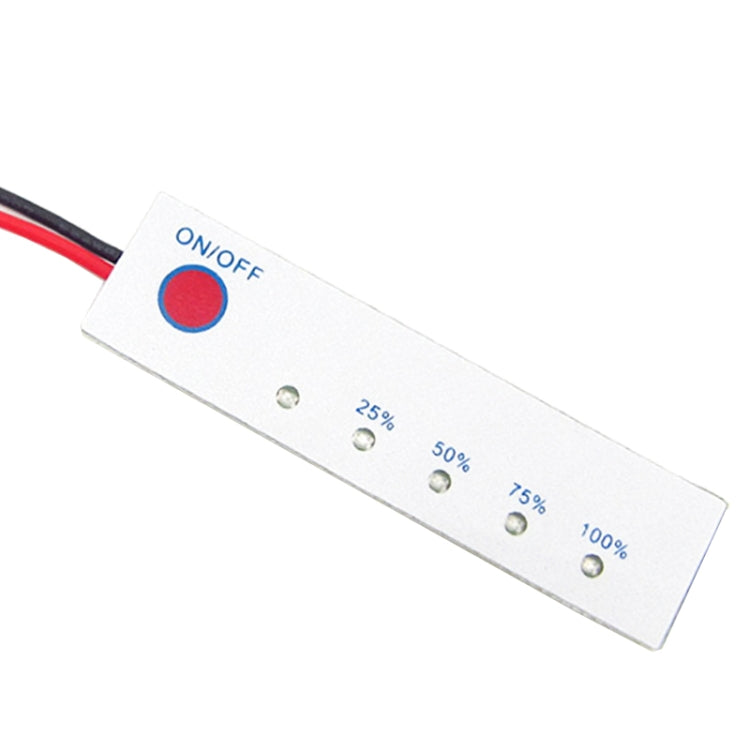

Lithium Battery Power Display Board Iron Phosphate Indicator Board, Specification: 4S 14.4V Iron Phosphate
Lithium Battery Power Display Board Iron Phosphate Indicator Board, Specification: 4S 14.4V Iron Phosphate
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

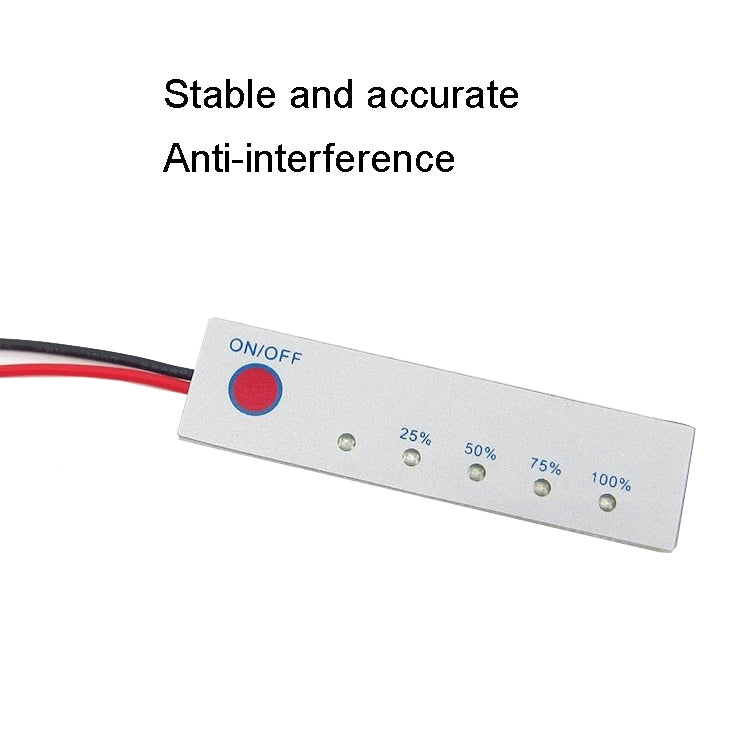

1. Stable and accurate, anti-interference

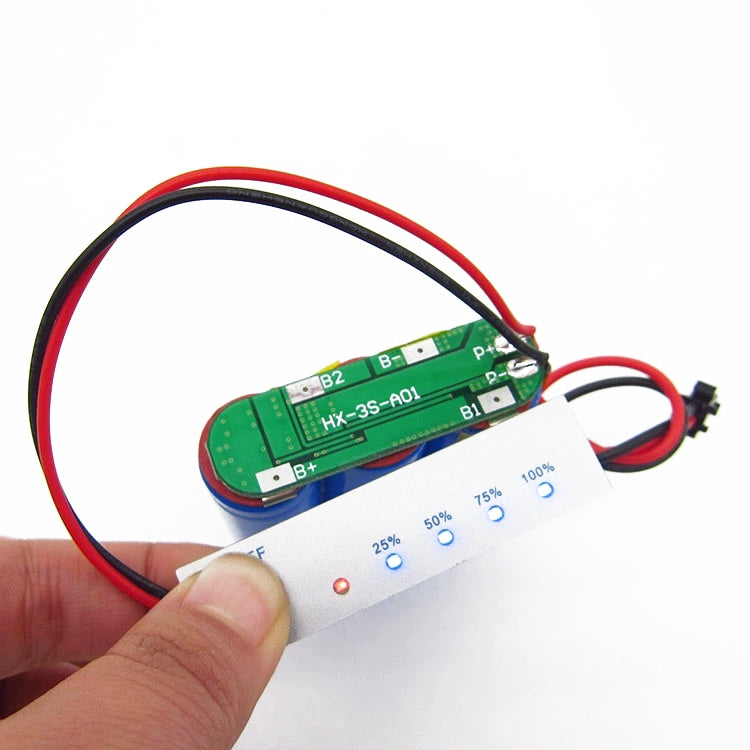

2. There are 5 small lights to show the power level, applicable to inverter lithium battery power prompts
3. Voltage range L1: 2S 8.4V: 4.5-5.5V; 3S 12.6V: 1.5-9V; 4S 16.8V: 8-10V; 4S 14.4V: 8-9V
4. Voltage range L2: 2S 8.4V: 5.5-6.8V; 3S 12.6V: 9-11V; 4S 16.8V: 10-13V; 4S 14.4V: 9-11.4V
5. Voltage range L3: 2S 8.4V: 6.8-7.4V; 3S 12.6V: 11-11.5V; 4S 16.8V: 13-15V; 4S 14.4V: 11.4-13.2V
6. Voltage range L4: 2S 8.4V: 7.4-8.0V; 3S 12.6V: 11.5-12V; 4S 16.8V: 15-16V; 4S 14.4V: 13.2-14V
7. Voltage range L5: 2S 8.4V: 8-8.4V; 3S 12.6V: 12-12.6V; 4S 16.8V: 16-16.8V; 4S 14.4V: 14-14.4V
8. Weight: about 5.9g

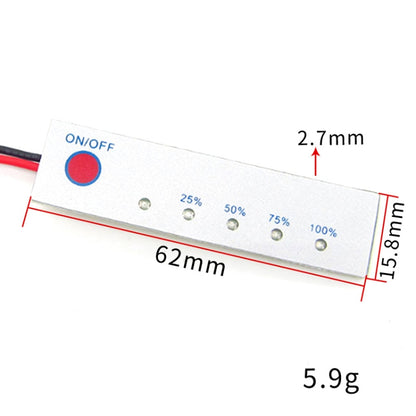

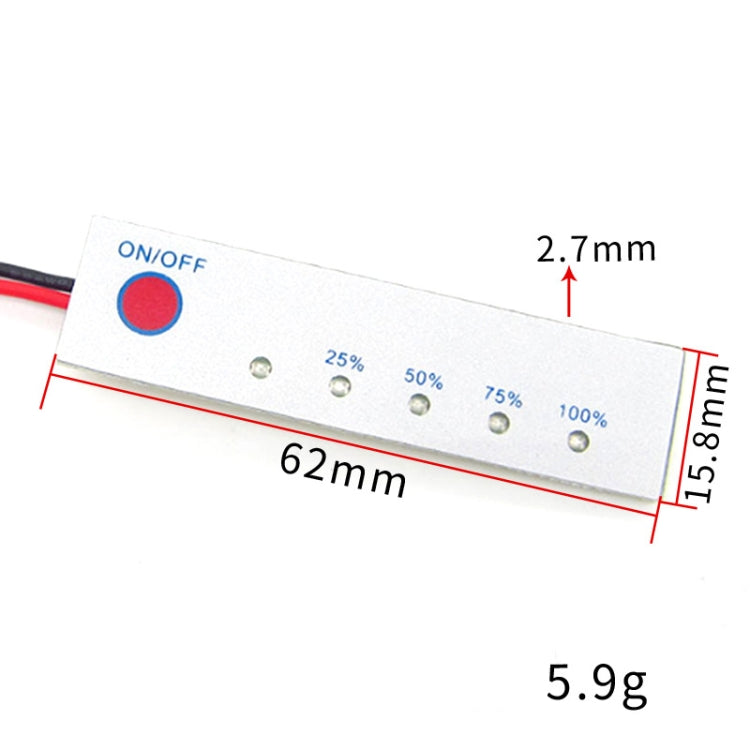

9. Dimensions: about 62 x 2.7 x 15.8mm
Usage:

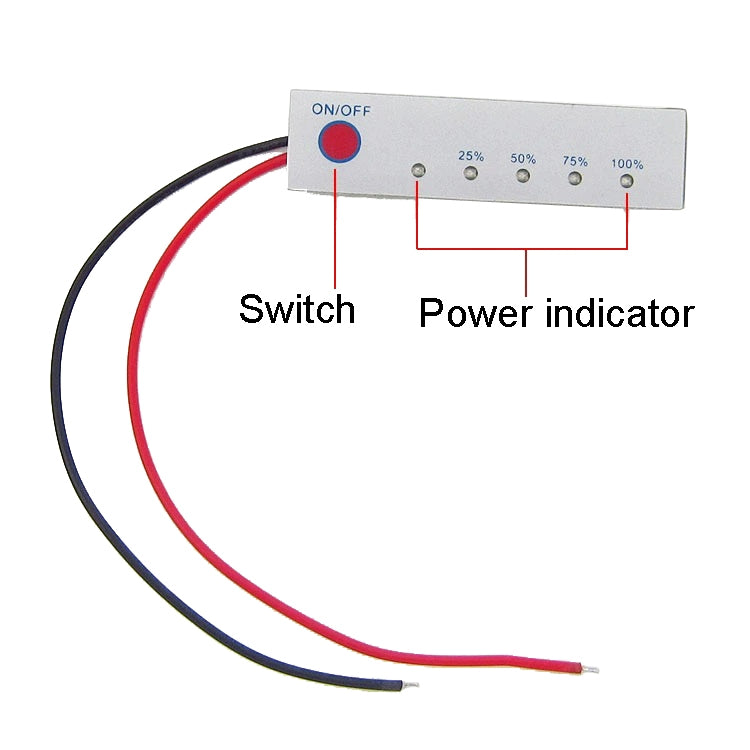

1. During charging or discharging, press the red button lightly with your finger, the LED light will be on, and the current through the light board is about 30mA
2. Release the finger, the LED light will go out, the light board circuit shutdown, no current through
3. With reverse function, the line is connected to the wrong positive and negative no problem, adjusted over on it
