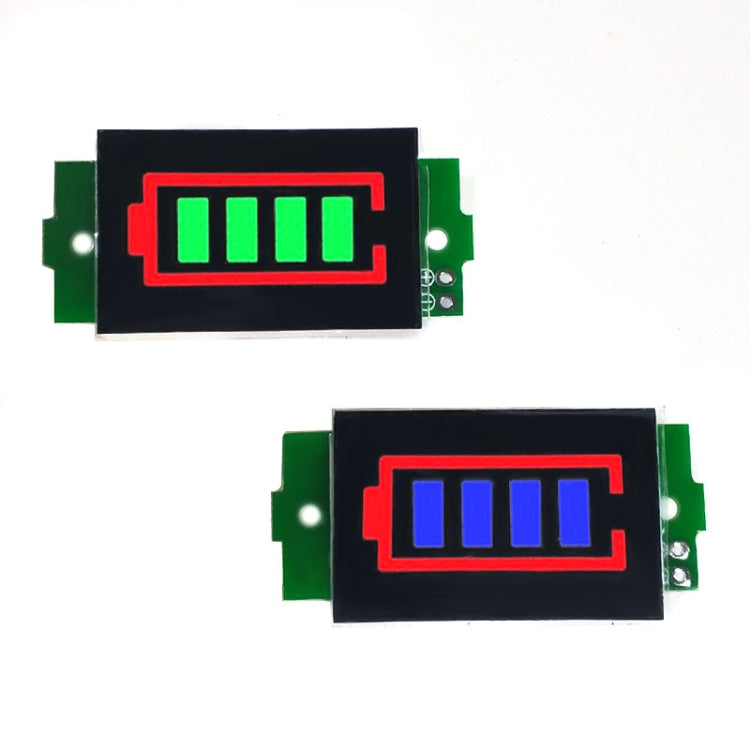

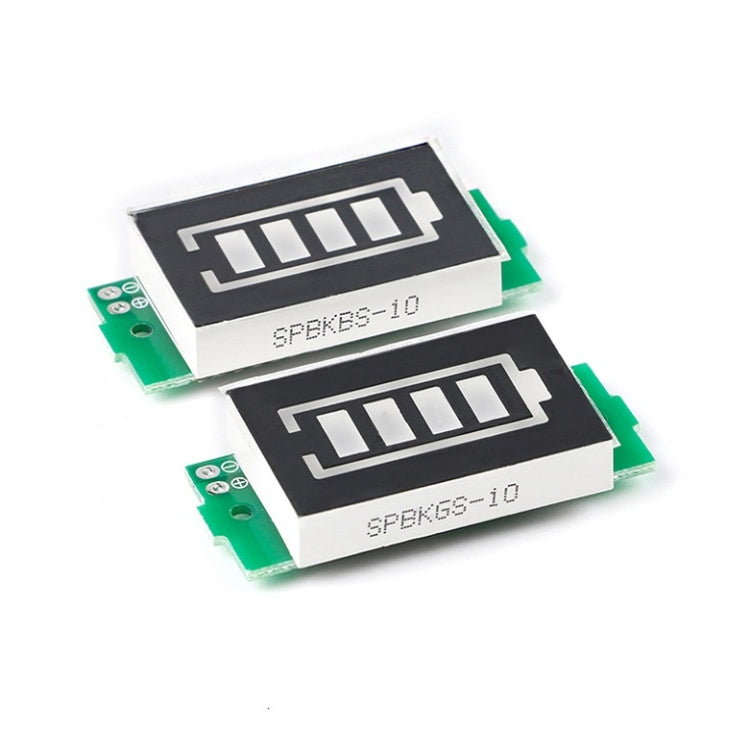

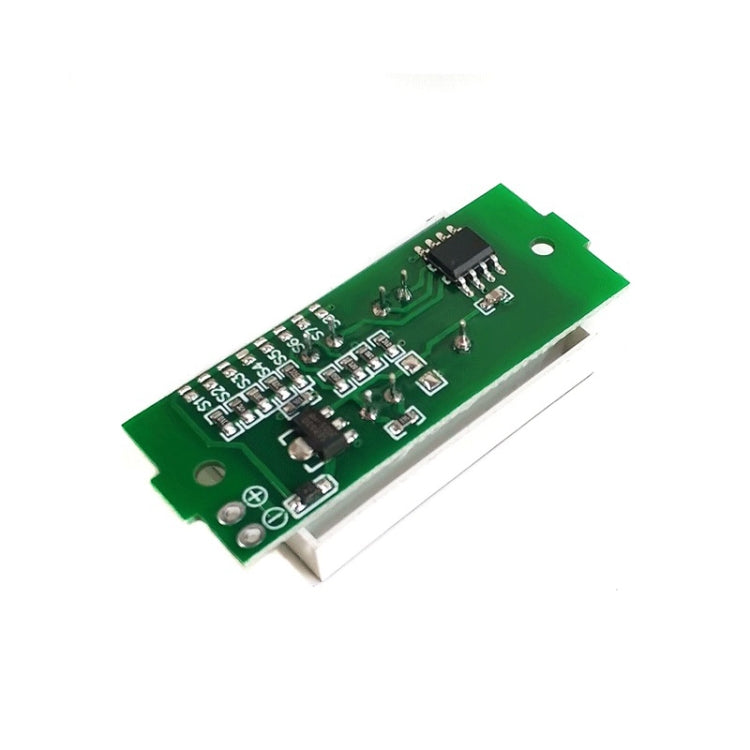

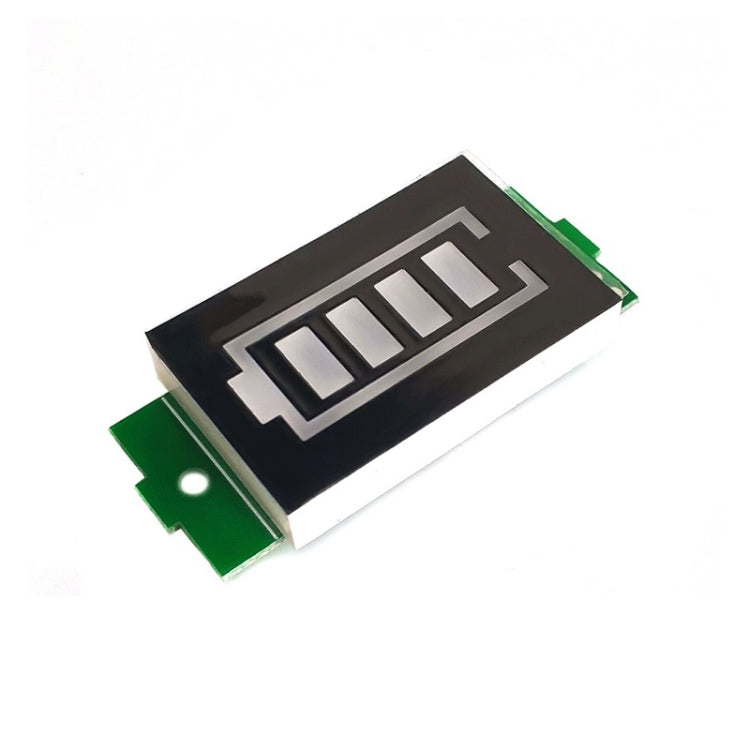

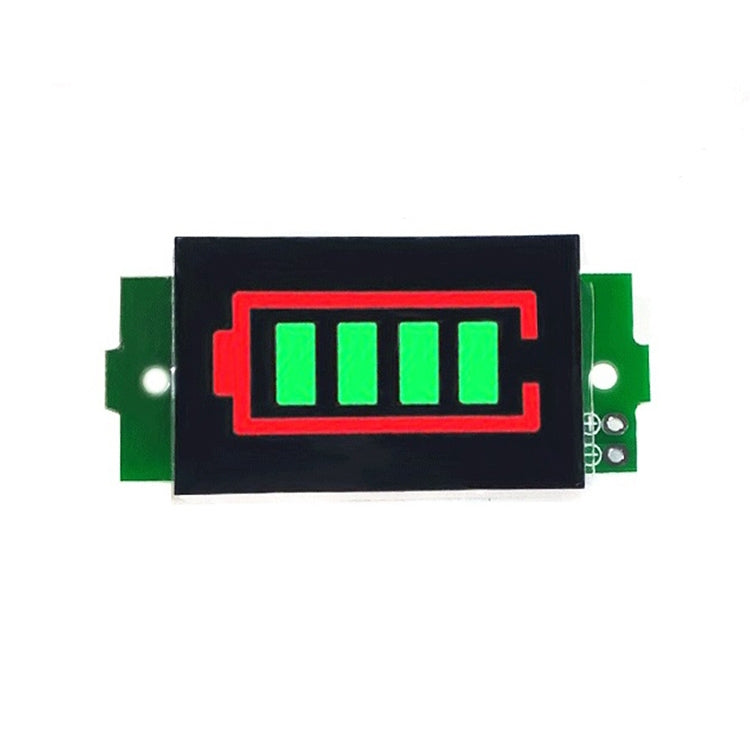

Lithium Battery Fuel Gauge Display Module(Green)
Lithium Battery Fuel Gauge Display Module(Green)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.

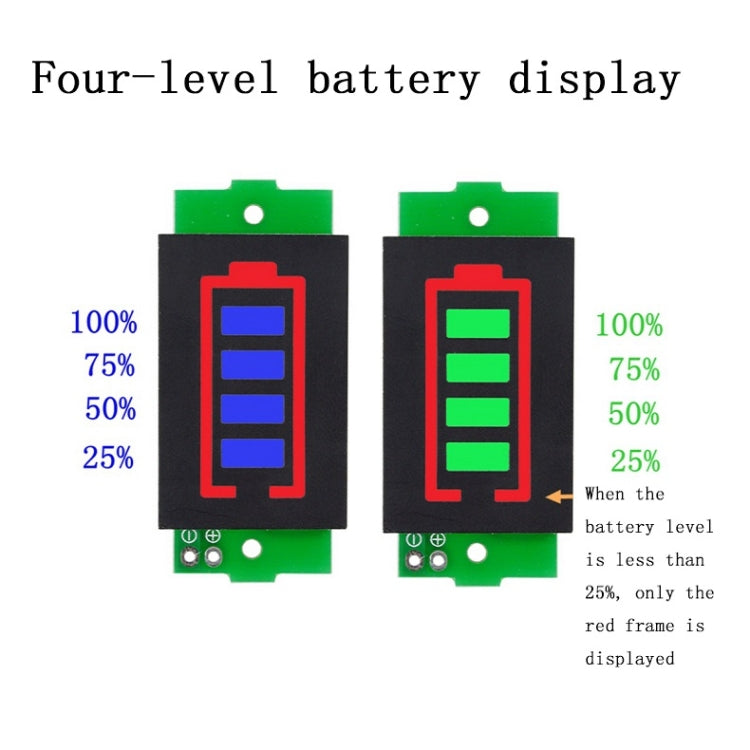

1. Four-level battery display
2. Working current: 5mA
3. Working voltage: 3-34V
4. Please be waterproof for outdoor use
5. Working temperature: -20-50 degrees Celsius
6. When the battery level is less than 25%, only the red frame is displayed
7. S1-S8 optional pads can only be connected to one type, and 2 or more simultaneous short-circuiting are not allowed
8. Lithium battery, lead acid, nickel metal hydride, battery can be used to display the battery, as long as the voltage is within the range of the parameter table

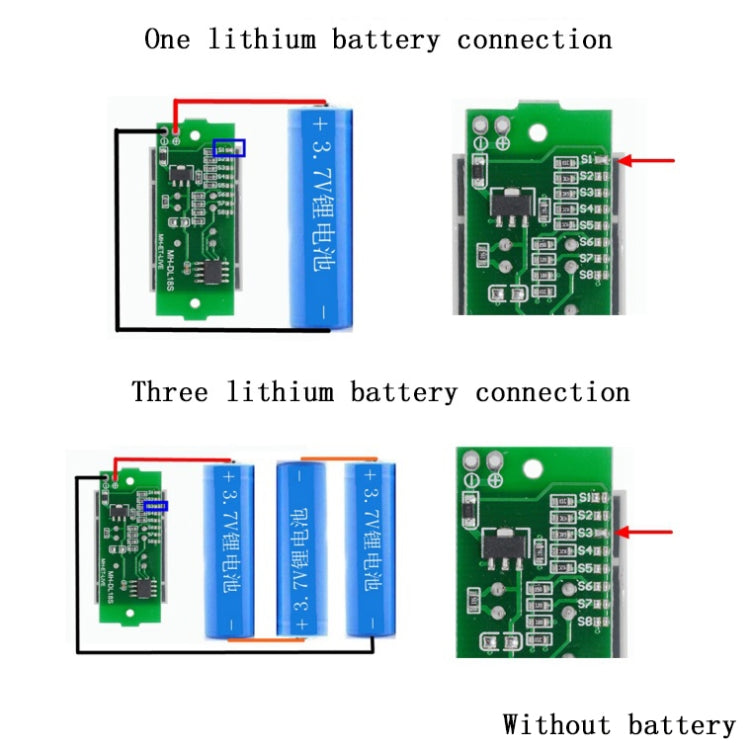

9. Battery-type power display, select the corresponding solder pad to detect the voltage of the battery pack corresponding to 1S-8S, which is very convenient
10. How to use: connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube will display the real-time battery power
