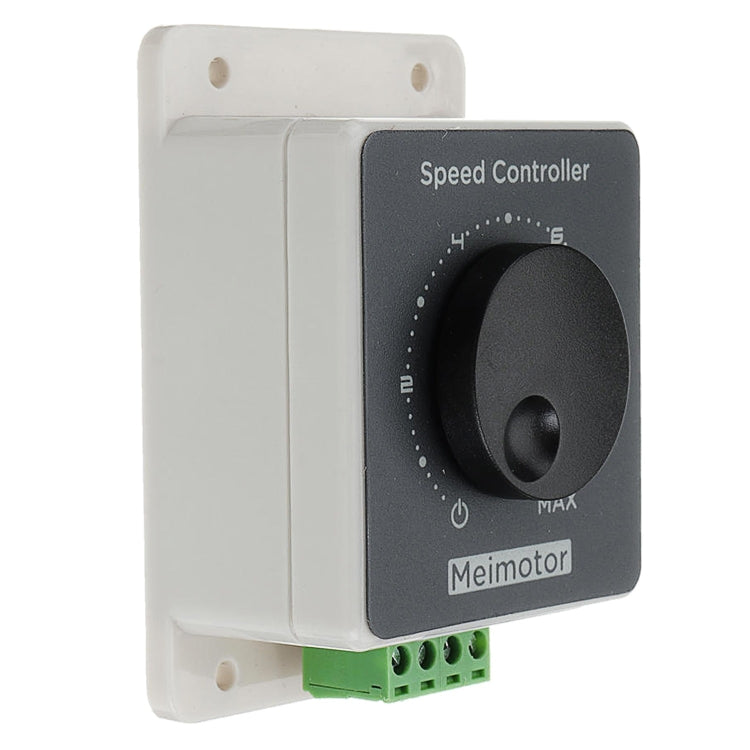

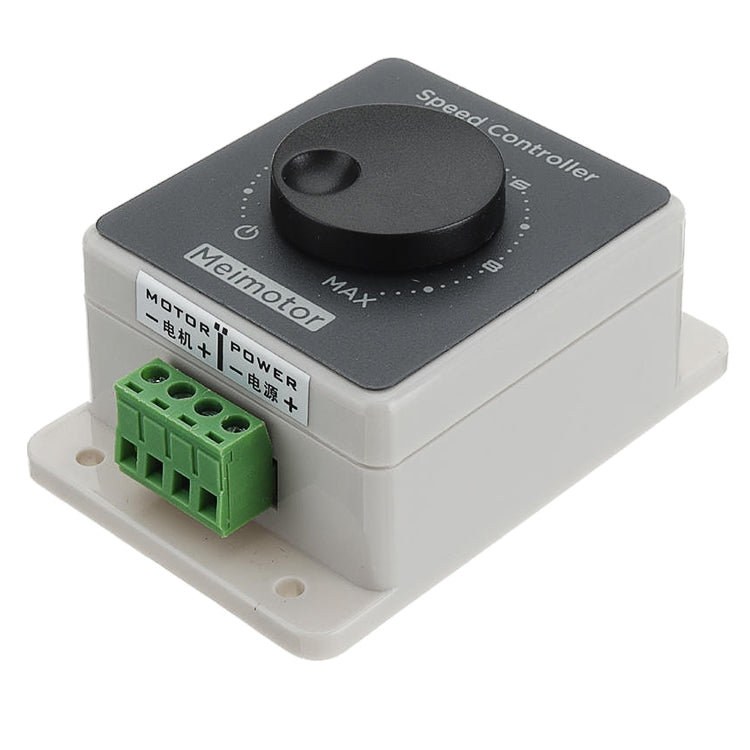

CCM96SK DC 12V 24V 36V 48V PWM DC 10A High Power Motor Speed Controller with Housing (White)
CCM96SK DC 12V 24V 36V 48V PWM DC 10A High Power Motor Speed Controller with Housing (White)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Model: LDTR-WG0267
2. Potentiometer: Resistance B100K; opening 8mm
3. Input voltage: DC10-60V
4. Output voltage: 0-100% of input voltage
5. Control power: 12V*10A=120W, 24V*10A=240W,...
6. Rated current: 10A
7. Maximum current: 20A
8. Speed range: 5%-100%
9. Size: 88mm*59mm*35mm
10. PWM frequency: 25kHz
11. Package included: 1 x DC 12V 24V 36V 48V PWM DC Motor Speed Controller
Precautions and instructions for use
1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out
2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged.

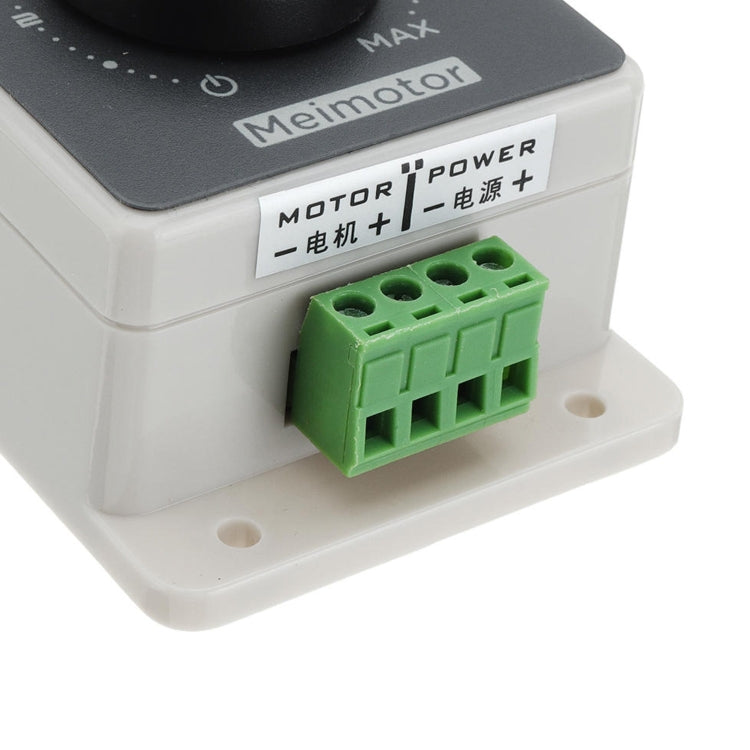

3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,
4. the direction can be changed by adjusting the line sequence.
5. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.
