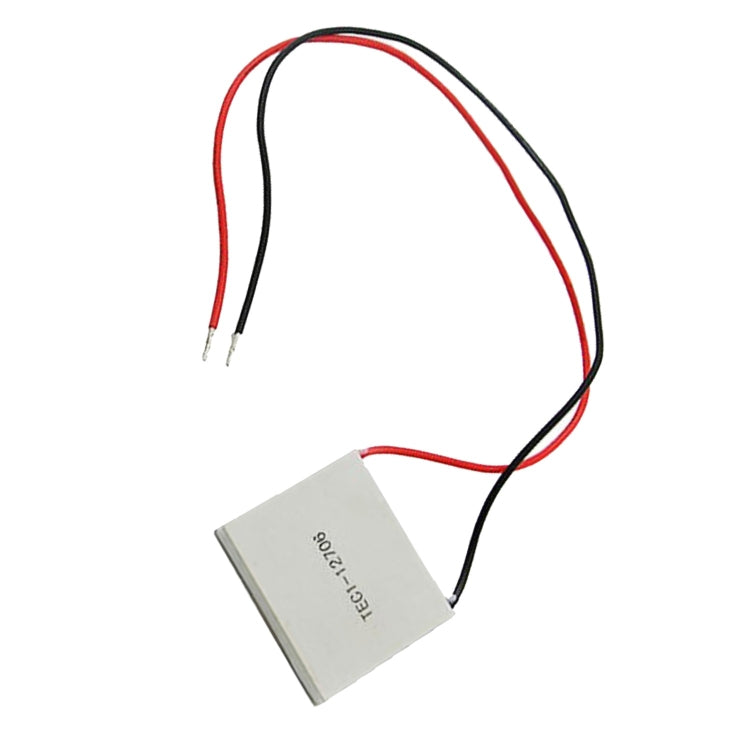

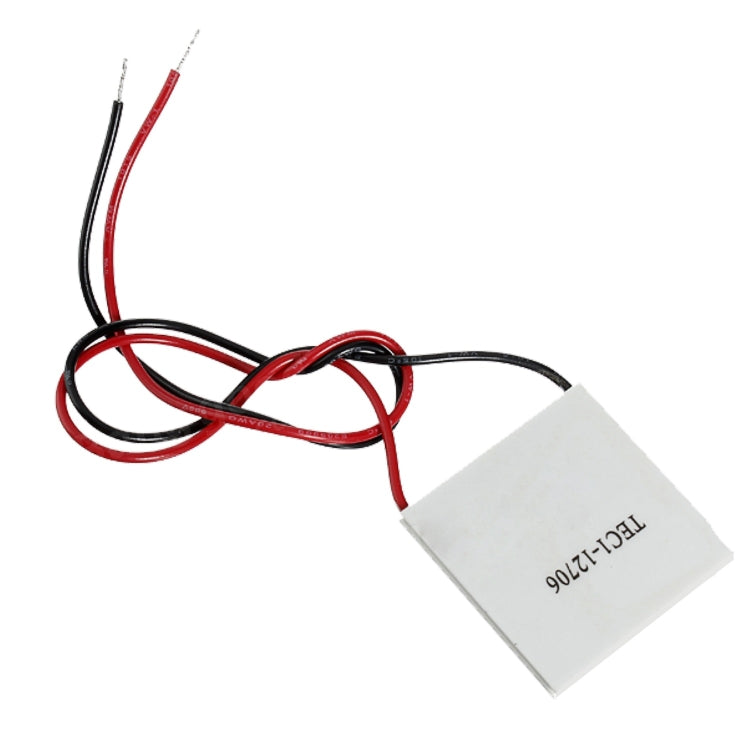

LDTR-WG0227 TEC1-12706 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module, 12V 60W
LDTR-WG0227 TEC1-12706 40x40mm Thermoelectric Cooler Peltier Refrigeration Plate Module, 12V 60W
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.
1. Its work is characterized by side refrigeration and side fever
2. Hot and cold on both sides of the temperature difference of 68 degrees
3. Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning
4. These devices must be used in conjunction with a heat sink to avoid burned
5. Each device is full inspected and tested
6. Fitted with 6-inch insulated leads
Specification
1. Size: 40mm x 40mm
2. Operates from 0~15.2V and 0~6A
3. Operates Temperature: -30C to 70C
4. Max power consumption: 60W
5. Material：Semiconductor/ceramic plates
4. Package included: 1 x cooler plate module
Installation
Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.
