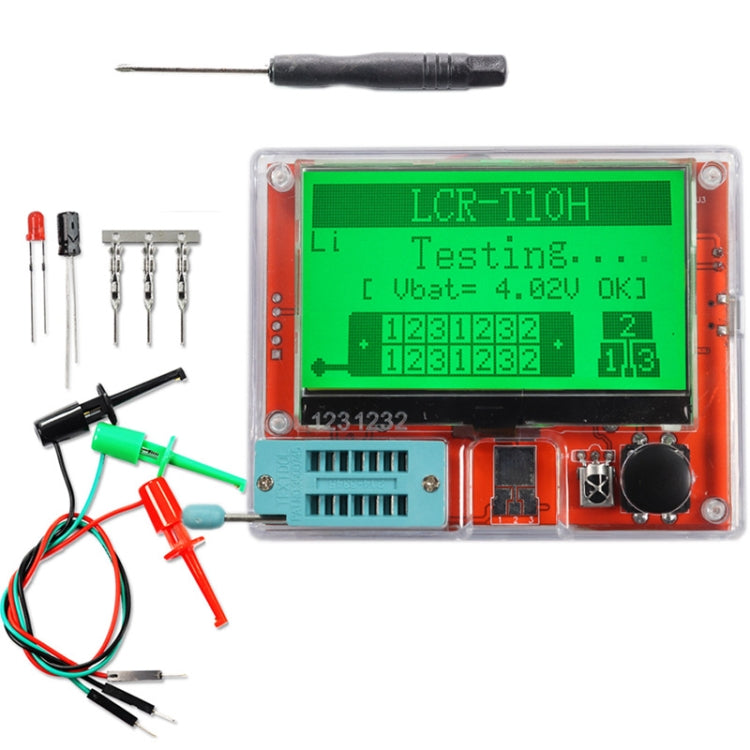

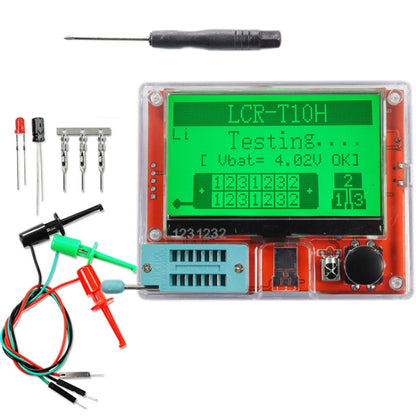

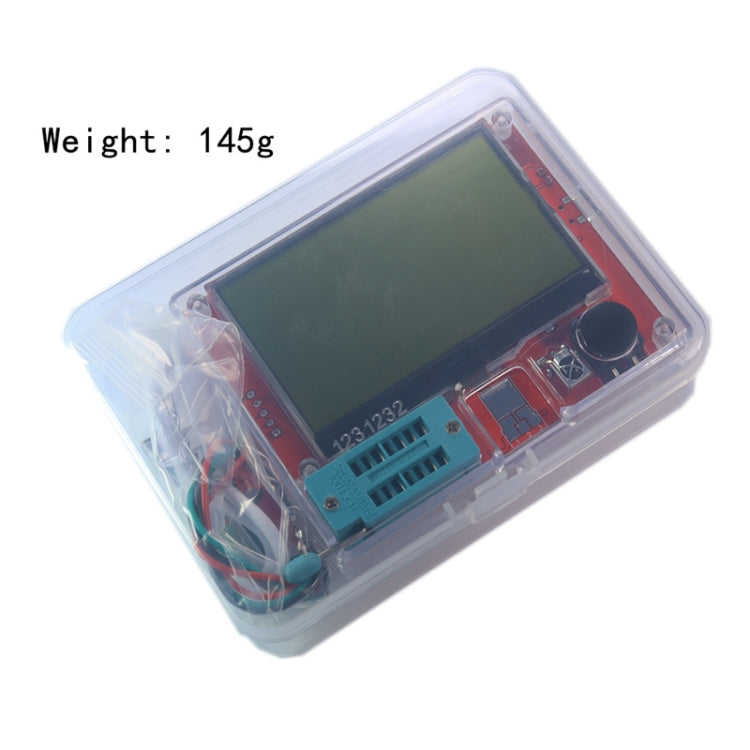

LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered
LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
1. Made of high-quality materials, durable and practical.
2. Small size, simple application and easy installation.
3. Efficient and stable performance, long service life.
4. It can automatically identify the pin position and display it as a graphic. The large-screen graphic display is easy to read and observe.
5. Wide range of applications, with infrared waveform display and infrared receiving indication.

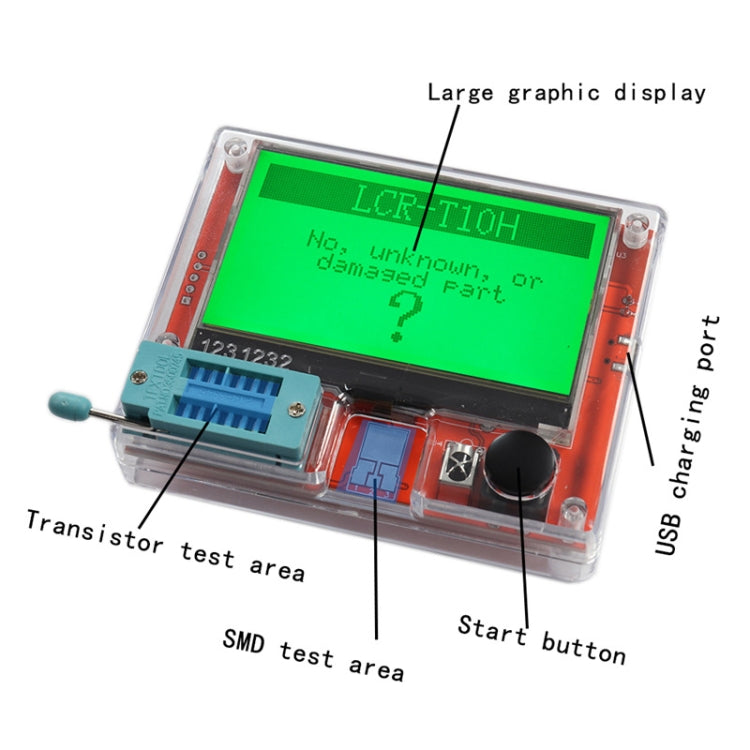

6. Easy to use, just place the component in the test area and press the "Start" button. Start automatic measurement

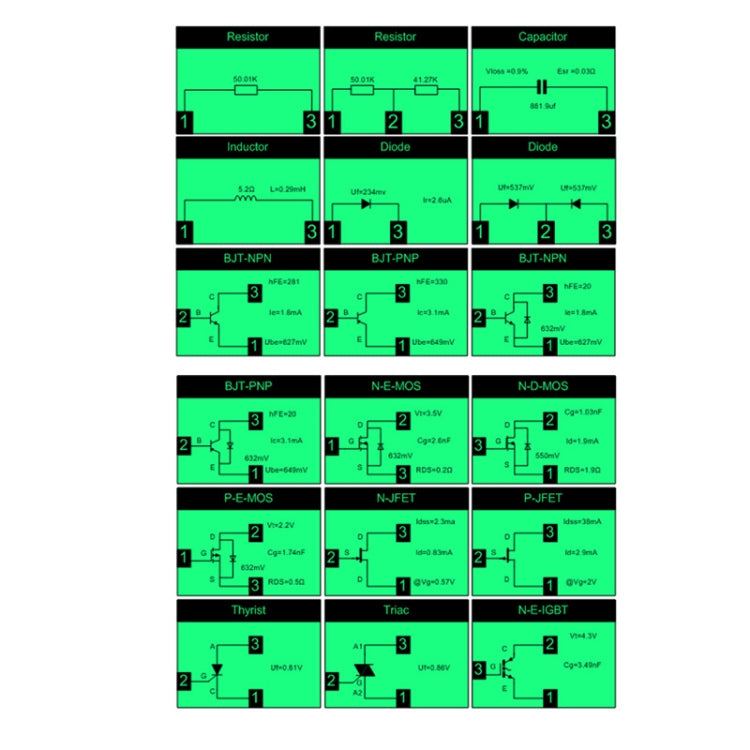

7. Can test related parameters of diodes, transistors, resistors, capacitors and inductors

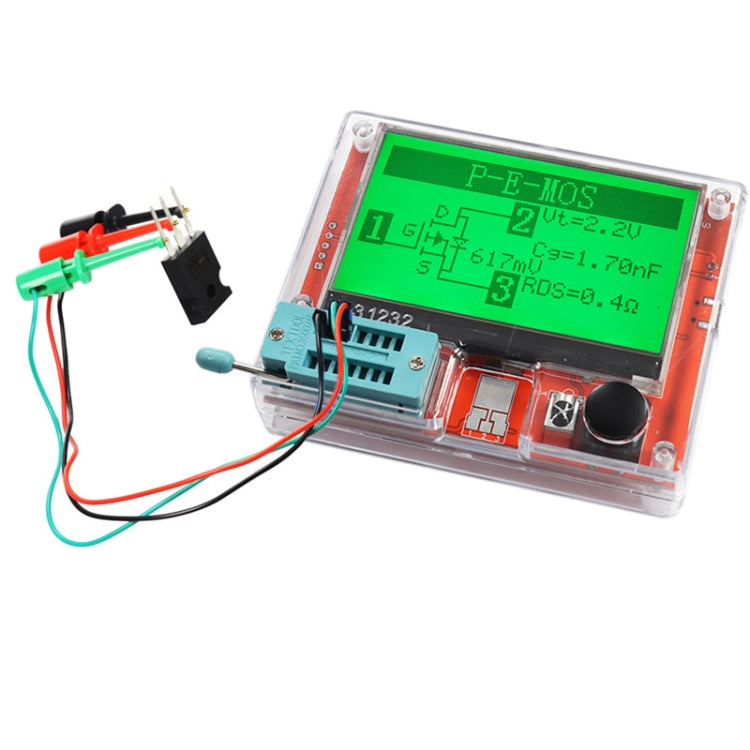

8. Able to test transistors, MOS tubes, thyristors, Darlington tubes, and IGBTs (note: high-power thyristors and IGBTs may not be tested accurately), and can automatically identify the foot position and display it graphically

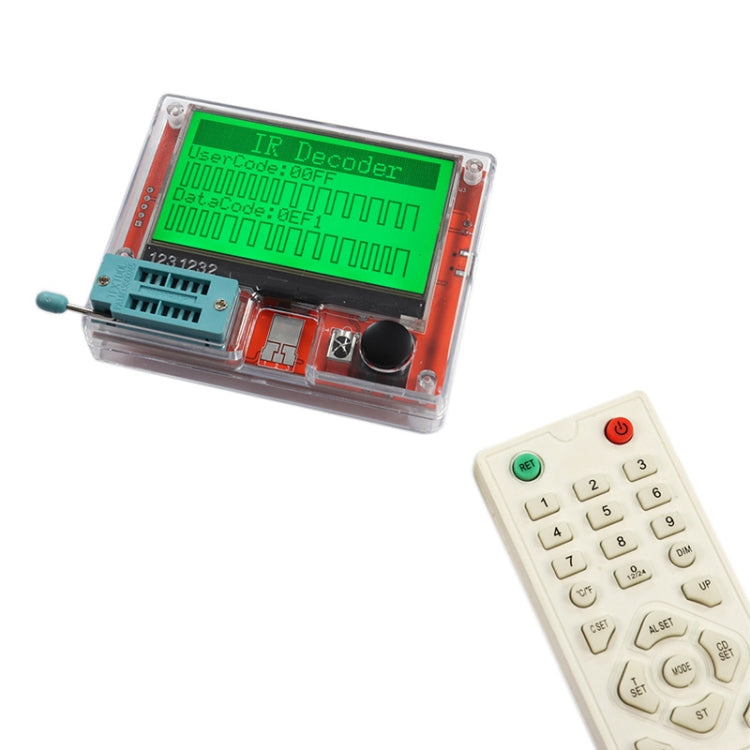

9. Can test the encoding value of the infrared remote control (only supports NEC format)
Parameter:
1. Lithium battery power supply: 3.7V
2. Working current: 50ma
3. Capacitance: 25pF-100mF
4. Resistance: 0.01-50MΩ
5. Inductance: 0.01mH-20H
6. Battery: 0.1-4.5V

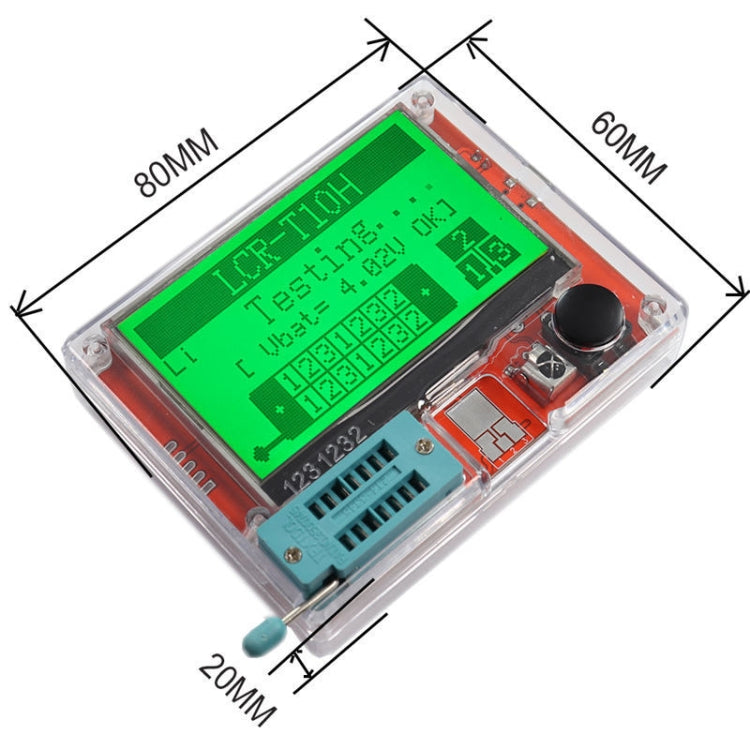

7. Dimensions: 80 x 60 x 20mm

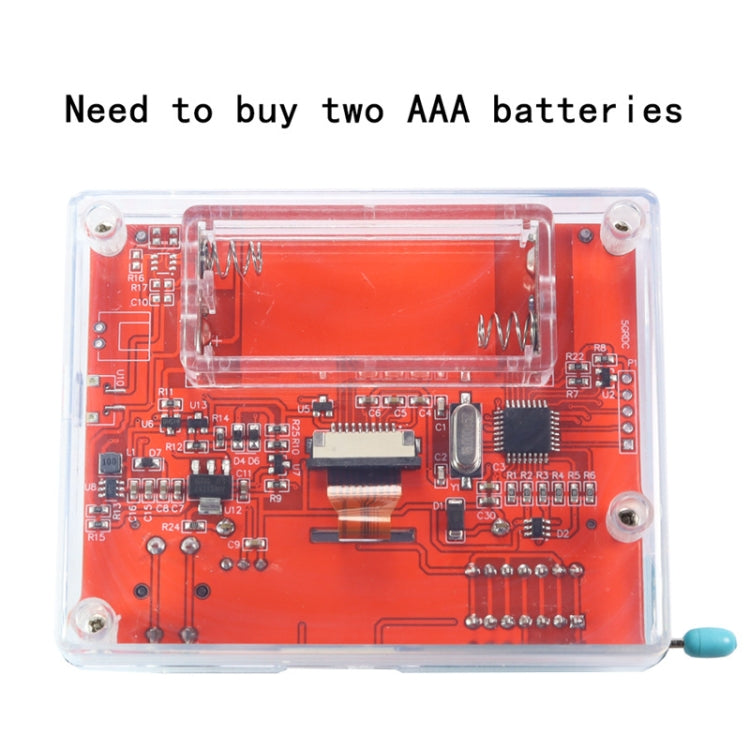

8. Power supply method: rechargeable lithium battery (3.7V 300mAH)/2 AA batteries (optional style)
Note: The capacitor must be discharged before testing, otherwise the instrument will be directly damaged. This instrument is an active instrument. Do not use this instrument to measure live circuit boards, as it may cause damage to the circuit board and instrument.
