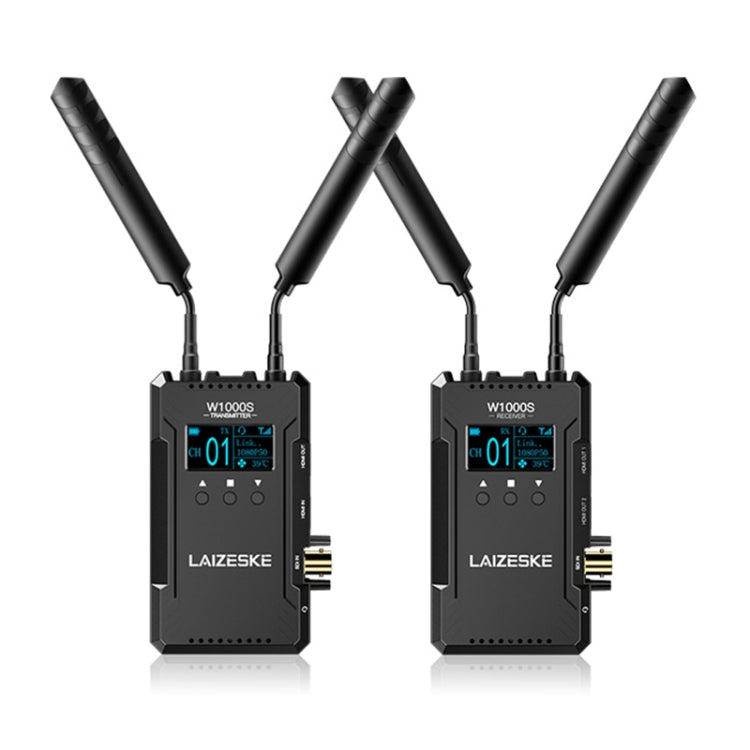

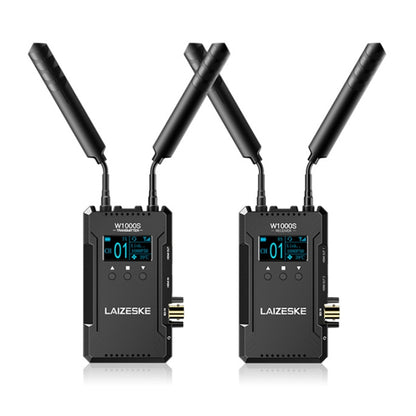

LAIZESKE W1000S 1000FT Dual HDMI + SDI Wireless Video Transmission System (Black)
LAIZESKE W1000S 1000FT Dual HDMI + SDI Wireless Video Transmission System (Black)
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Portal.

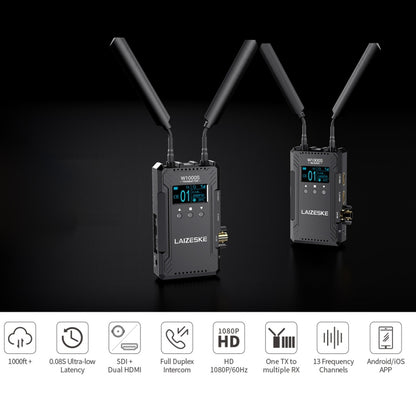

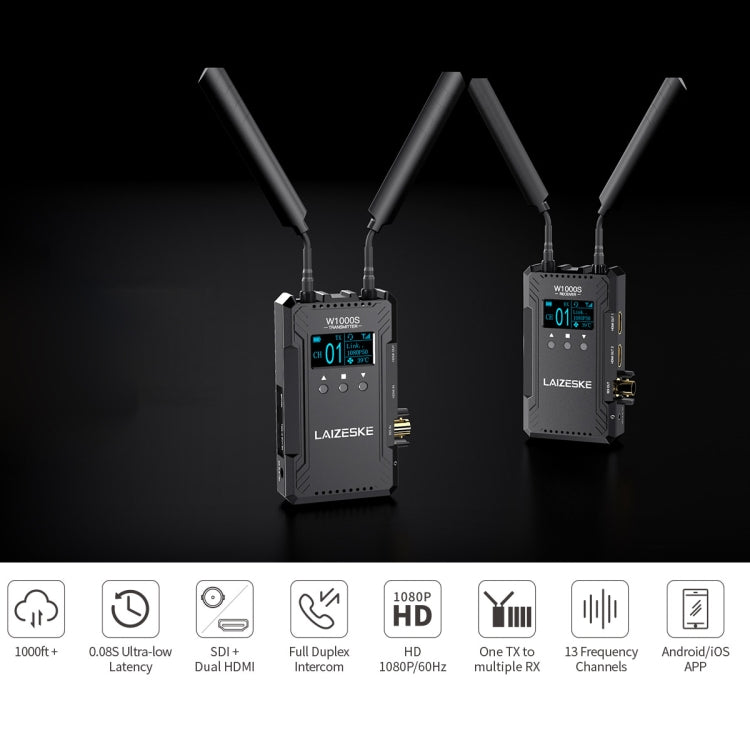

1. Dual HDMI-compatble + SDI signal interfaces, meet your different needs

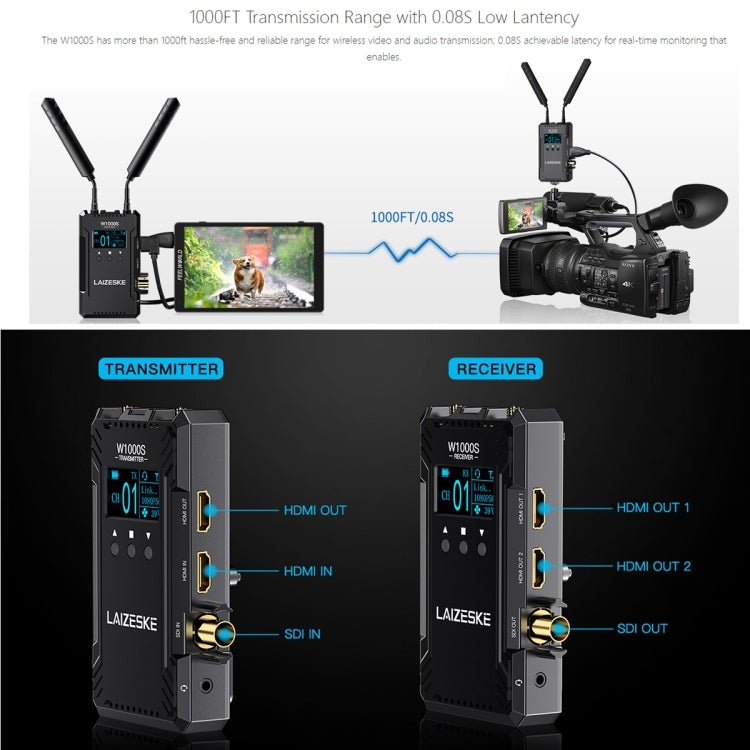

2. More than 1000ft transmission range with 0.08S ultra-low latency
3. Up to 1080P at 60Hz, provide high quality image

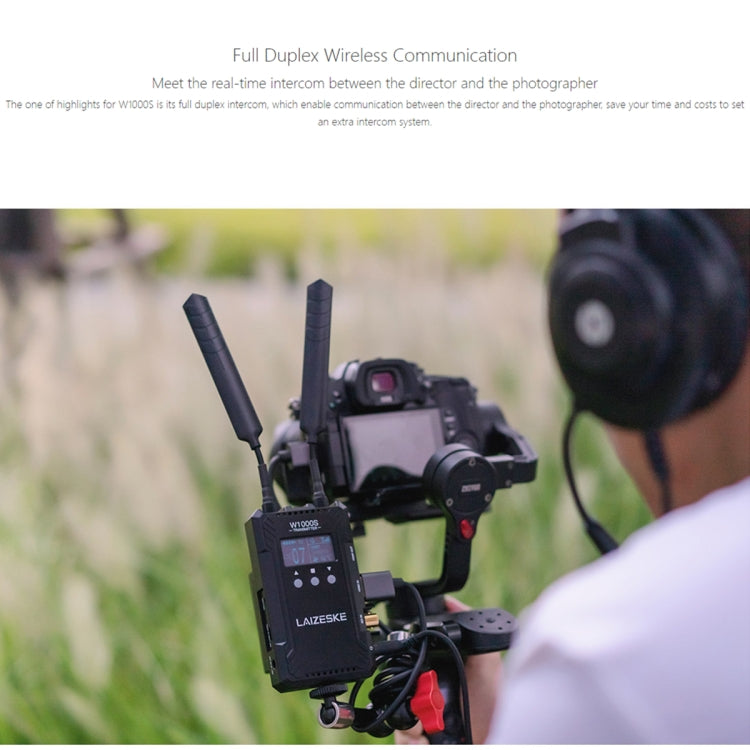

4. Wireless full-duplex talkback, real-time intercom between the director and the photographer

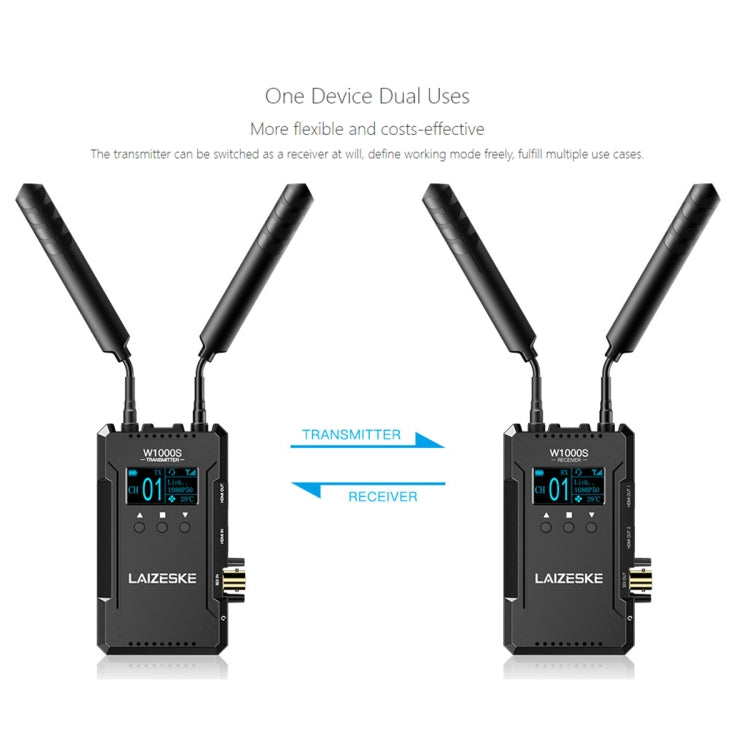

5. The transmitter can be switched as a receiver at will
6. One TX to multiple RX, monitoring for everyone on set
7. Real-time APP monitoring for Android/iOS system
8. 13 frequency channels, AUTO channel scan
Transmitter Specifications

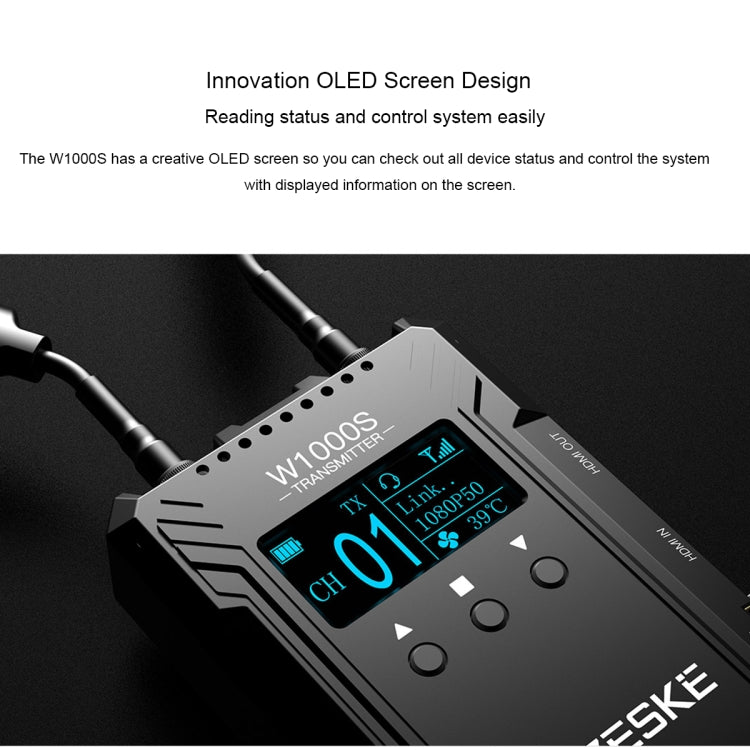

1. Screen: OLED
2. Interface
- SDI input
- HDMI input
- HDMI output
- Antenna port (RP-SMA Male)x 2
- DC power input
- 3.5mm headphone jack
- Type-C
3. Power Supply Way/Voltage:
- F970 battery (not included)
- Type-C: 5V/1.5A
- DC adapter: 6-16V
4. Power Consumption: Less than 7.5W
5. HDMI Format
- 480P 60, 576P 60
- 720P 60/59.94/50 /60
- 1080P 60/59.94/50/30/29.97/25/24/23.98 60
- 1080I 60/59.94/50/60fps
- HDMI: Type A
6. SDI Format
- 480P 60, 576P 60
- 720P 60/59.94/50
- 1080 P60/59.94/50/30/29.97/25/24/23.98
- 1080I 60/59.94/50
- 1*BNC
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 17dBm
10. Band Width: 20MHZ
11. Occupied Bandwidth: 20/40MHz
12. Latency: 0.08S
13. Intercom Frequency Response Range: 20Hz~20KHz
14. Operating Temperature: 0 degree C to 40 degree C
15. Storage Temperature: -20 degree C to 60 degree C

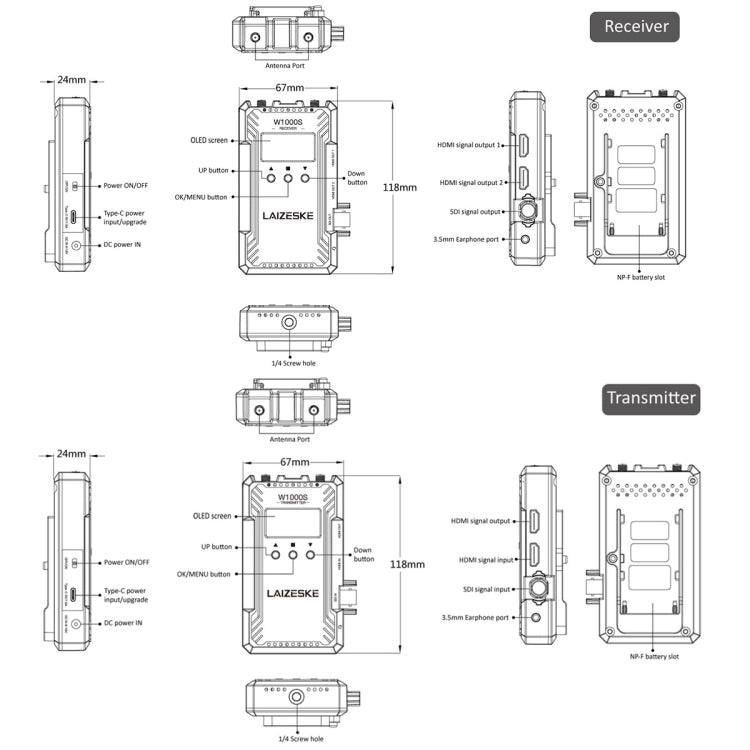

16. Unit Size(mm): 67L x 24W x 118H (excluding antenna)
17. Unit Weight: 128g
Receiver Specifications
1. Screen: OLED
2. Interface
- SDI input
- HDMI output x 2
- Antenna port (RP-SMA Male)x 2
- DC power input
- 3.5mm headphone jack
- Type-C
3. Power Supply Way/Voltage:
- F970 battery (not included)
- Type-C: 5V/1.5A
- DC adapter: 6-16V
4. Power Consumption: Less than 6.5W
5. HDMI Format
- 480P 60, 576P 60
- 720P 60/59.94/50 /60
- 1080P 60/59.94/50/30/29.97/25/24/23.98 60
- 1080I 60/59.94/50/60fps
- HDMI: Type A
6. SDI Format
- 480P 60, 576P 60
- 720P 60/59.94/50
- 1080 P60/59.94/50/30/29.97/25/24/23.98
- 1080I 60/59.94/50
- 1*BNC
7. Frequency: 5.1-5.9GHz
8. Modulation Mode: OFDM
9. Transmission Power: 17dBm
10. Band Width: 20MHZ
11. Occupied Bandwidth: 20/40MHz
12. Latency: 0.08S
13. Intercom Frequency Response Range: 20Hz~20KHz
14. Operating Temperature: 0 degree C ??? 40 degree C
15. Storage Temperature: -20 degree C ??? 60 degree C
16. Unit Size(mm): 67L x 24W x 118H (excluding antenna???
17. Unit Weight: 128g

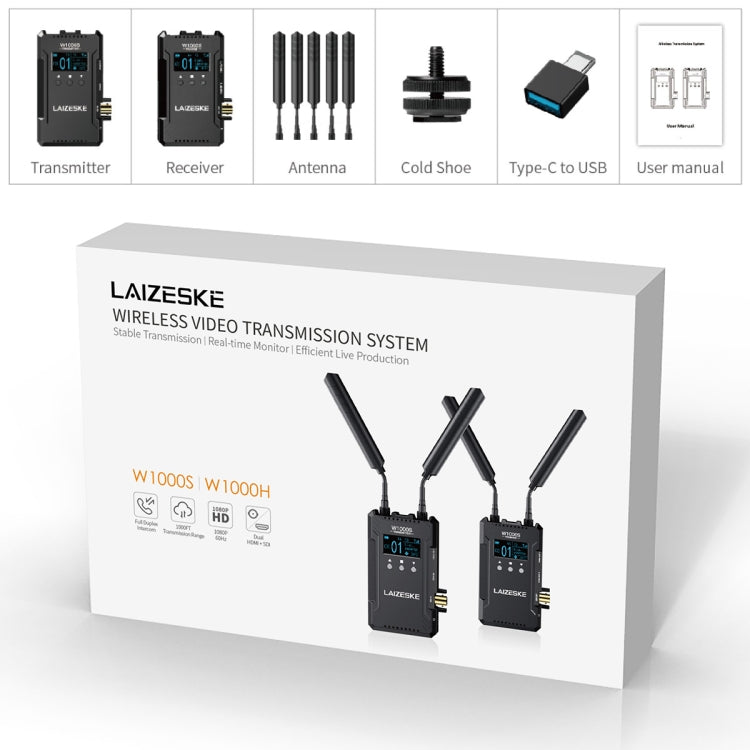

Package List
1. Transmitter x 1
2. Receiver x 1
3. Antenna x 5
4. Cold Shoe x 1
5. Type-C to USB x 1
6. User Manual x 1
