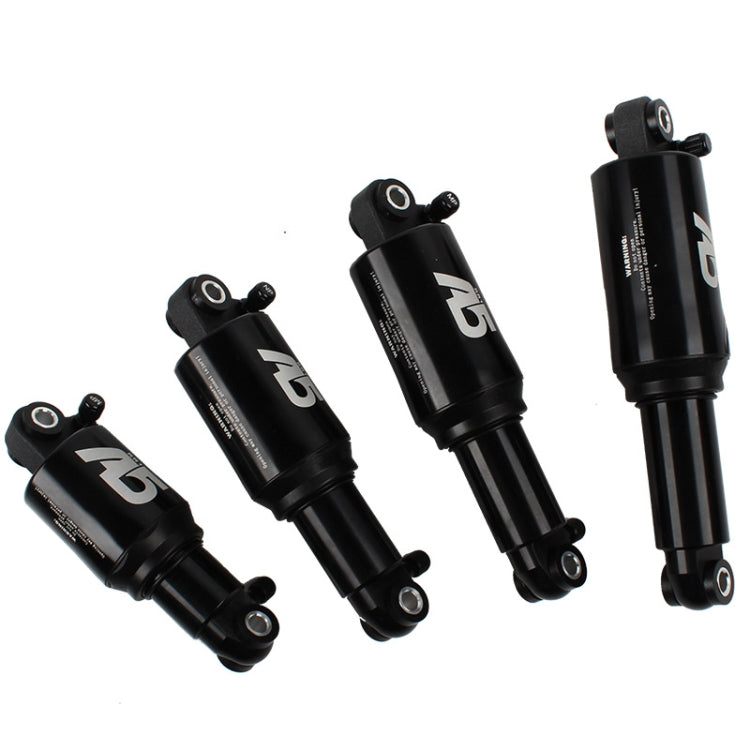

Parameter: 1. Weight of single chamber/double chamber: 125mm 170g/173g, 150mm 184g/184g, 165mm 190g/192g, 190mm 202g/205g 2. Eye-to-eye distance: 125mm/150mm/165mm/190mm 3. Installation width: 24 mm 4. Screw hole diameter: 8mm 5. Application: The frame beams suitable for 125mm shock absorbers are generally round, and the frame beams suitable for 150mm shock absorbers are generally angular square tubes. 165mm/190mm is often used in mountainous areas corresponding to the length of the shock absorber. Car soft tail frame (subject to the length of the original shock absorber that can be measured) Features: 1. The internal structure is simple and precise 2. Unique shape, beautiful and practical 3. Wide application 4. Gas as the main shock absorber provides good sliding properties 5. By adjusting the air pressure of the negative air chamber to adjust the fisheye bearing design to solve the tolerance and deviation of the car body itself 6. Easy to install and use
