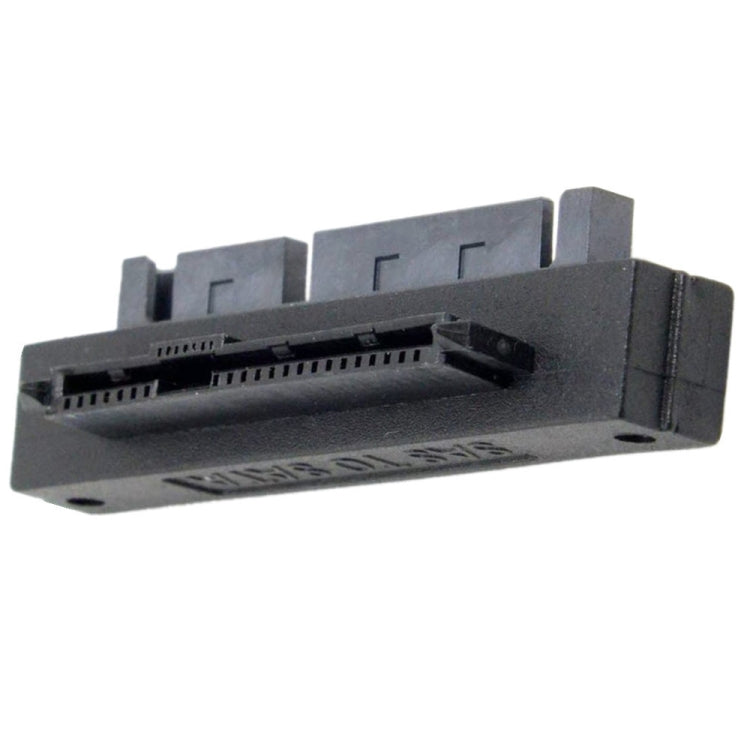

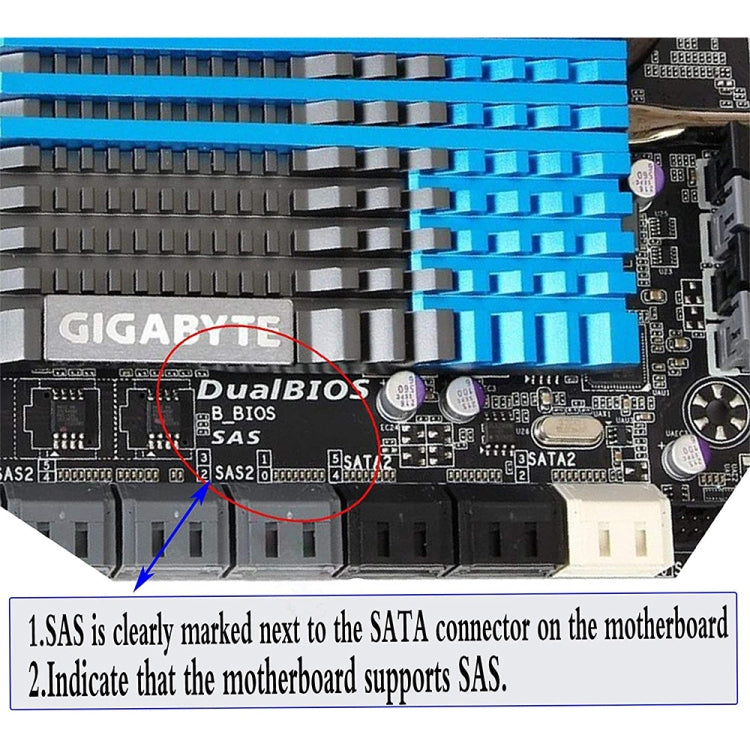

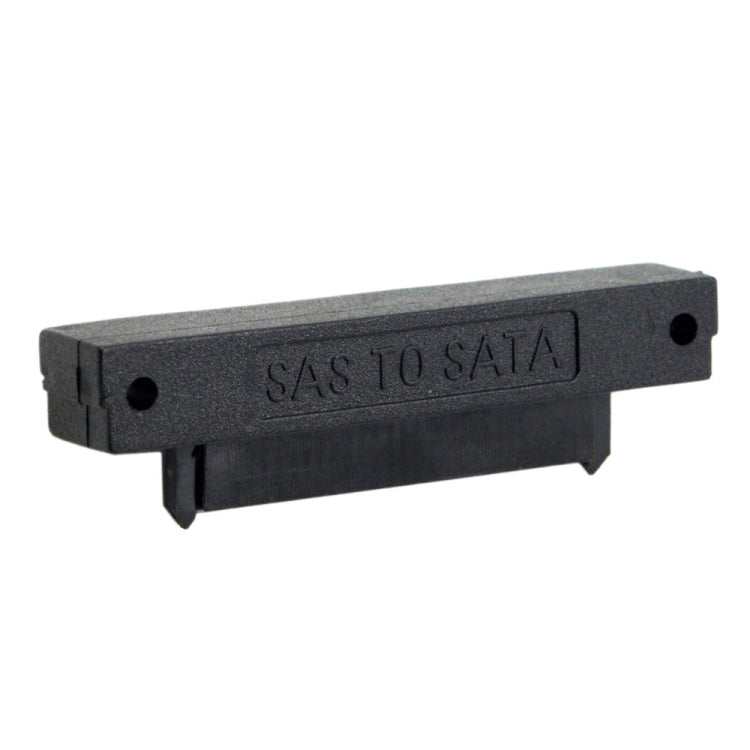

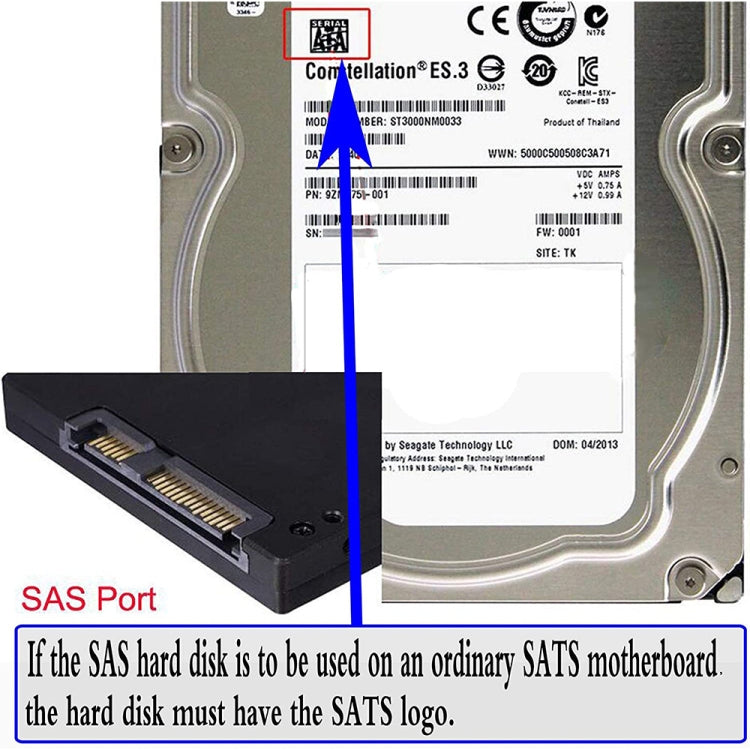

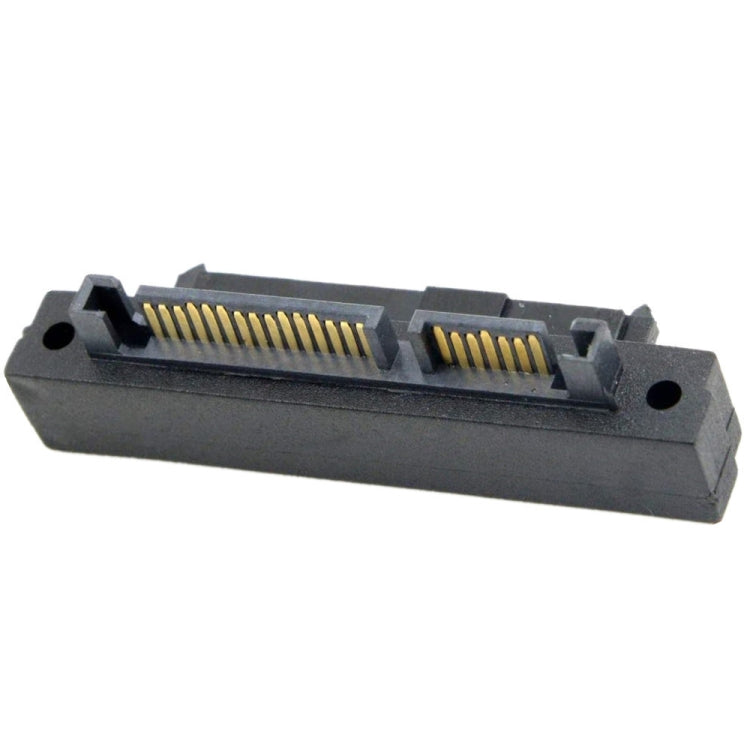

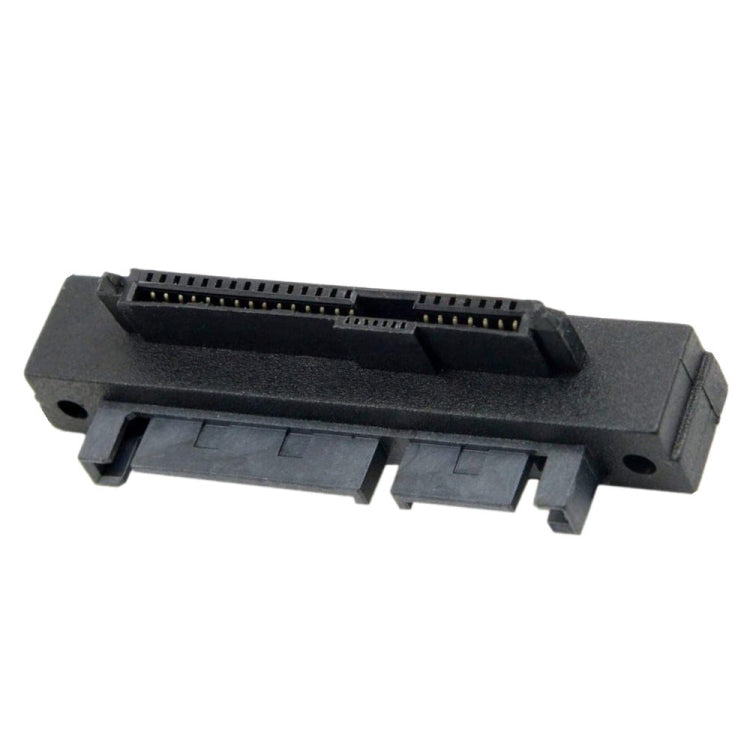

1. Please note: IF the SAS hard disk is to be used on an ordinary SATA motherboard the hard disk must have the SATA logo. Please pay attention to the description in the 7th and 8th pictures. SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port 2. Explanation about SAS: Please pay attention! The motherboard must support SAS, (you can use SATA cable), but you must connect to the SAS interface, then you cant recognize the hard disk on the SATA! No SAS connector on the motherboard does not support this connector! Must be a SAS interface! ! The purpose of the product is to connect the SAS hard disk to the motherboard with SATA through the adapter. Can not be used in reverse, please be aware! 3. This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller 4. 7 Pin SATA Connector to 15 Pin Male Power Connector and SAS Connector. 5. Connector Details: 1 x 7 Pin Serial ATA Male. 1 x 15Pin Male.Connector Details: 1 x 22 Pin SAS.
Verified Compatible
Guaranteed fit for your device. Wrong part? Full refund including shipping.
