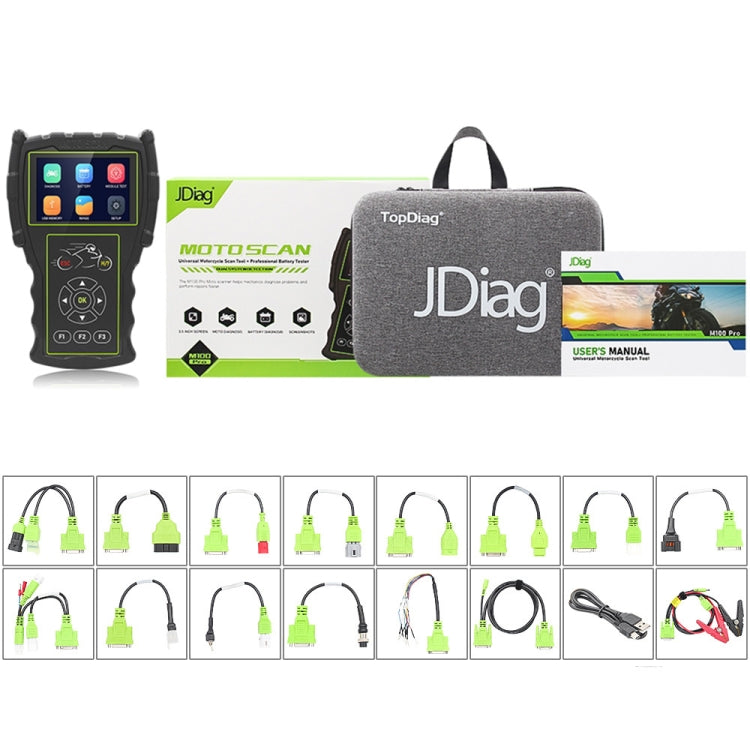

JDiag M100 PRO Intelligent Motorcycle Electronic Fuel Injection System Diagnostic Instrument, Fully Equipped Version(Black)

1. The product is a motorcycle diagnostic tool, which covers almost all major manufacturers diagnostic functions. It helps technicians diagnose problems and make repairs faster; many common procedures are written into the tool so the technician can follow them (injectors, ignitions, coils, fuel pumps, etc.).
2. It allows technicians to perform factory service procedures such as resetting service lights, unlocking immobilizers and configuring immobilizers/alarms, making injection adjustments (COTrimmer), adjusting throttle position sensor (TPS), resetting auto-adaptive parameters, and adjust the idle speed.
3. The tool displays real-time data, displays ECU data, reads stored faults (history) or real-time data (RPM, battery voltage, throttle).
4. List of supported motorcycles: Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.
5. Support multiple languages: English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian, Japanese, Korean.

Feature:
1. Hand-held operation, easy and flexible to use
2. Support SD card to store data and upgrade
3. Reserved CAN bus interface

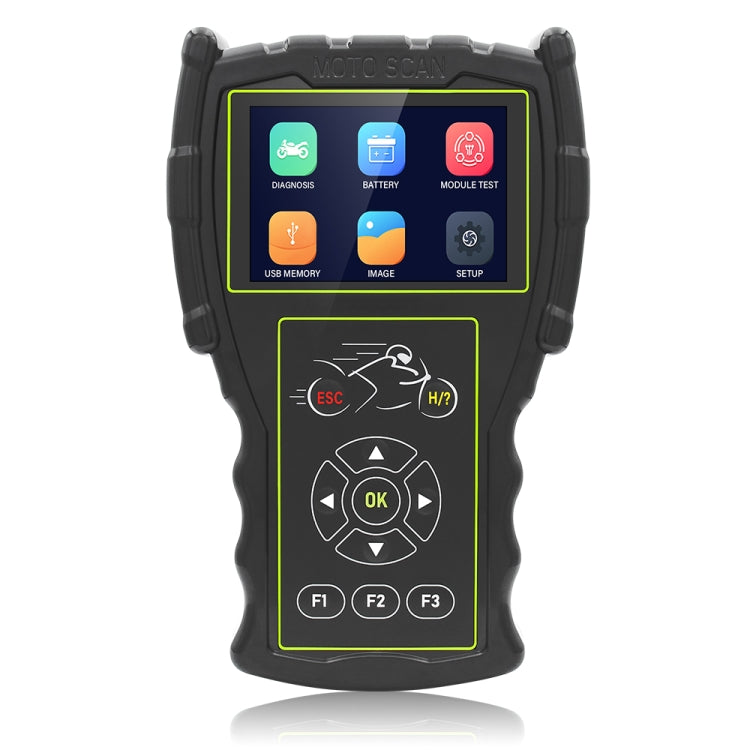

4. 3.5-inch color screen, clear display
5. Dynamic data with values ??and waveforms

Function:
1. Read system information
2. Read the data stream
3. Read the fault code
4. Clear the fault code
5. Freeze data
6. CO idle speed adjustment
7. ABS system test

Specification:
1. Power supply: DC10-15V
2. Working current: 250mA
3. Storage temperature: -10 degrees Celsius to 85 degrees Celsius
4. Operating temperature: 0 degrees Celsius to 70 degrees Celsius
5. Humidity: less than percent 90
6. Upgrade port: USB port
7. Communication port: COM port
