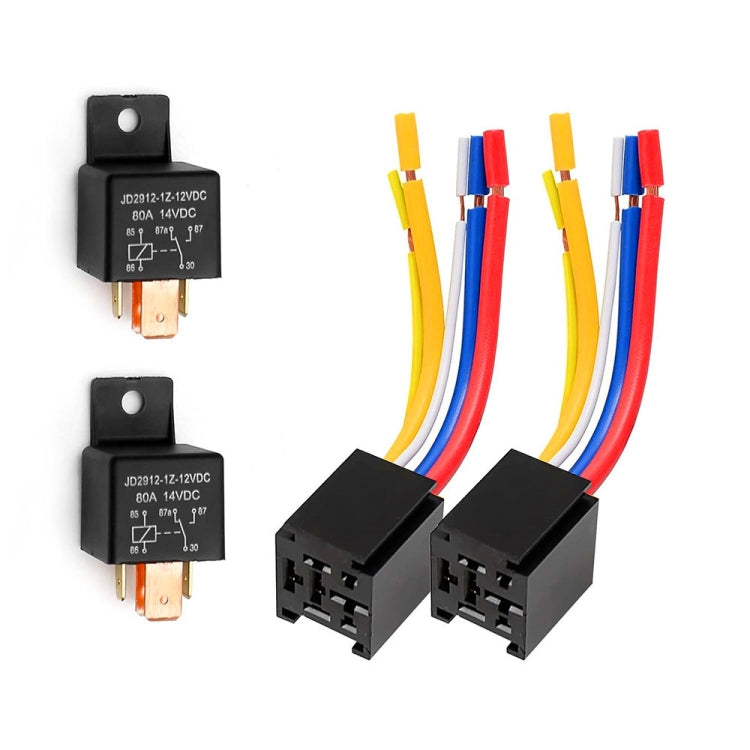

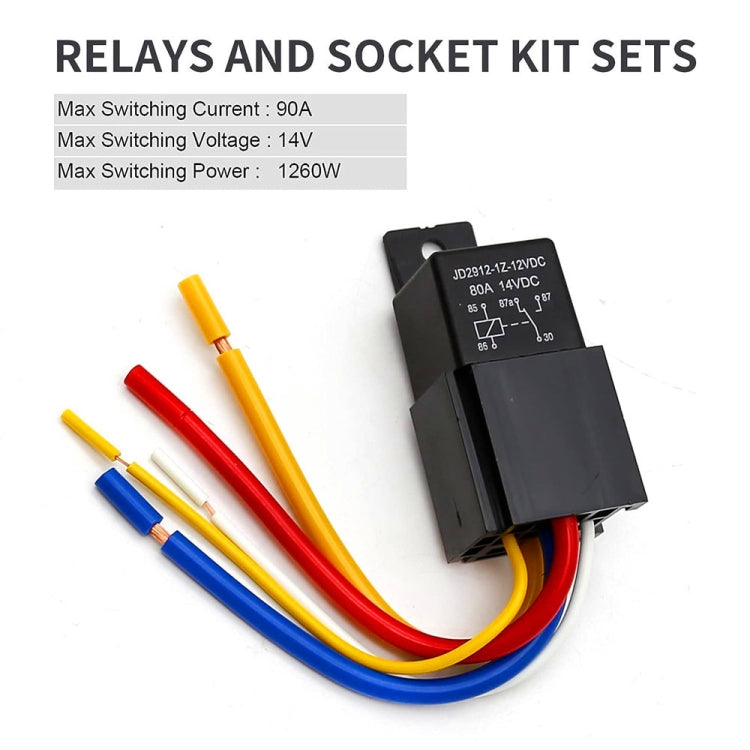

JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug
JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug
In stock
🔥 Buy any 2 items, get 25% off 3rd item 🔥 Save today!
Couldn't load pickup availability
Shipping Guarantee
Shipping Guarantee
FREE SHIPPING on all UK orders. Fully insured.
Handling time: 1 - 3 business days. (Buy2fix has to process your order and put all your items through its strict quality-control tests.)
Transit time is 5 - 10 business days to the UK. Transit times to other countries are displayed at checkout.
Origin: CN
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 30 days, you can return it to us in new condition for a refund minus the shipping charges.
The Right Part Guarantee
The Right Part Guarantee
The Right Part, Guaranteed. If we send the wrong part (not as described), our 30-day return policy has you covered. You get a full refund, including the shipping fees.
Hassle-Free Returns
Hassle-Free Returns
Start Your Return in Seconds with Our Easy Online Return Portal.
2. Coil power: 1.8W
3. Contact form: 1a, 1b, 1c
4. Contact capacity: 1a:80A 14VDC / 1b:60A 14VDC / 1c:80A/60A 14VDC
5. Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC
6. Contact resistance: less than or equal to 50 milliohms
7. Insulation resistance: greater than or equal to 100 milliohms
8. Lifespan:
- Electrical: 1 x 100000 times
- Mechanical: 1 x 10000000 times
9. Dielectric withstand voltage: 500VAC between open contacts, 500VAC between coil contacts
10. Ambient temperature: -40 degrees Celsius to +125 degrees Celsius
11. Installation form: quick connection type and socket type
12. Product features: large capacity, can switch 80A current, and can provide standard contact forms: 1 set of normally open, 1 set of normally closed, and 1 set of switching.
13. Product use: automobile control device
14. Simple and convenient installation, easy to replace and use.
